0.16mm layer, 2 walls, 25% infill
0.16mm layer, 2 walls, 25% infill
Designer
8.3 h
3 plates
5.0(2)

Open in Bambu Studio
Boost
24
54
2
0
13
8
Released

Description

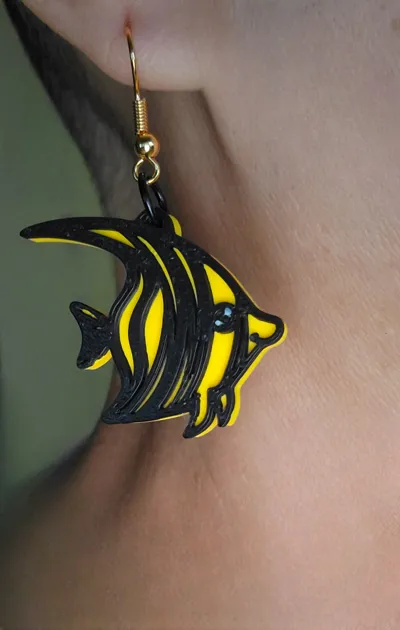

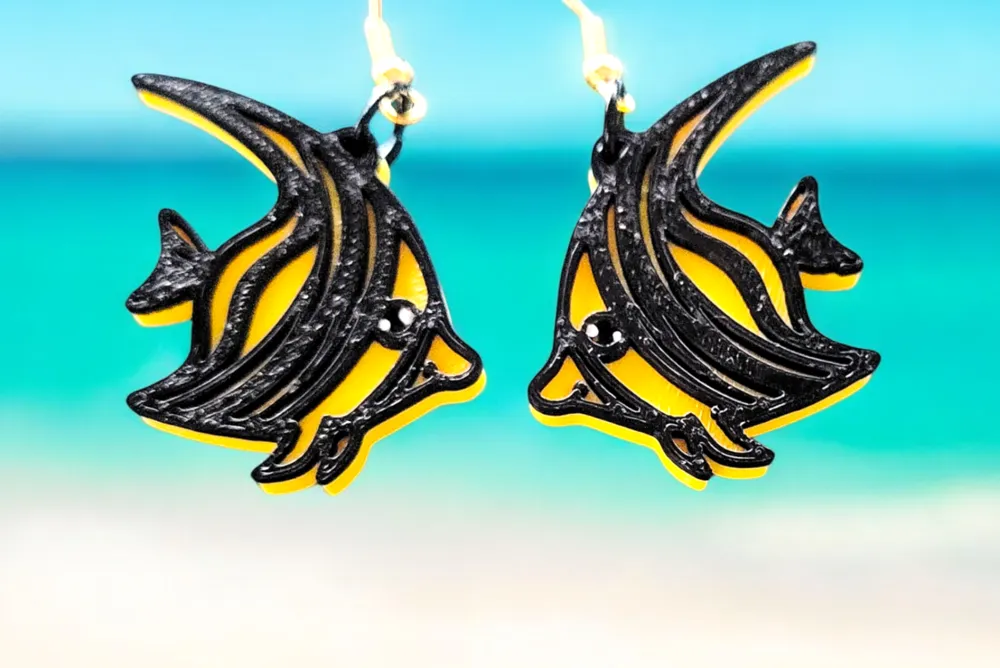

Gill (Moorish Idol) Earrings.

Remember Finding Nemo? Nemo and Dory are always Memorable-but what about Gill?



These are a super simple file-an excellent choice to create something from those slim pickins spools (getting ready to run out or just not enough to use for major prints)



The 3MF has THREE different Color sets to get you started -this is also an easy to paint (re-paint model) to make your own exotic color combos. You can either delete or duplicate the files depending on your needs

This piece can be successfully sized up -depending on your need.. Can also be used to create a pendant to make an earring and pendant set.



Current size can use a 7-8mm/20 gauge jump ring for attaching



Print Time for color pattern -Approximately 2 hrs and 28 min -to- hrs. 6 min for 4 sets(depending on how many colors and sizes)

P1P/ Bambu Basic
Aux fan should be at or below 20% or turned OFF (if using one)

Settings
First Layer .12mm
Other layers .16mm
Ironing is turned on for topmost surfaces
Arachne walls
2 wall loops
6 top shell
6 bottom shell
25 % Gyroid infill
Initial Layer 35mm
Initial Layer Infill 90mm
Overhang speed 50, 20 5 and 5 respectively

Prime tower enabled (suggest it be used on the pattern multi colored print)
Brim/Bed Adhesion: None Needed
Flushing set at default (you will need to adjust this for your filaments and machine type)
