FilterMax—a BentoBox/CarbonMax variant
Remixed by
IP Report
Print Profile(2)
0.2mm layer, 3 walls, 10% infill
Designer
65.4 h
13 plates
0.2mm layer, 3 walls, 10% infill
Designer
16.2 h
2 plates
Open in Bambu Studio
Boost
40
150
28
17
100
29
Released
Bill of Materials
List other parts
- Fans x 2: Type depends on variant
- Filter(s) x 1: As used in vacuum robots
- Carbon x 1: Not acid washed!
- Magnets 6x3 x 8: 4 to 8 per module
- Magnets 4x2 x 5: 5 for the HL filter module
Description

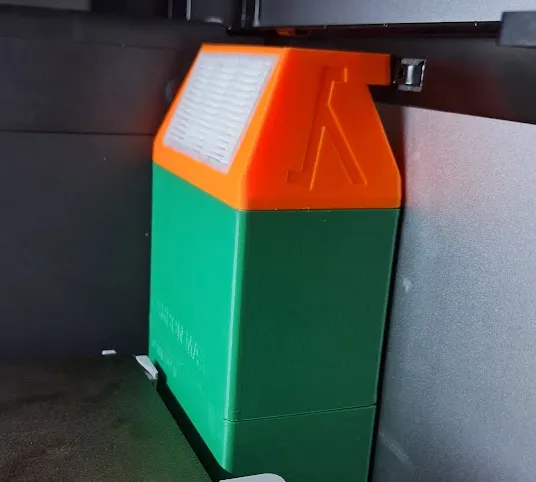

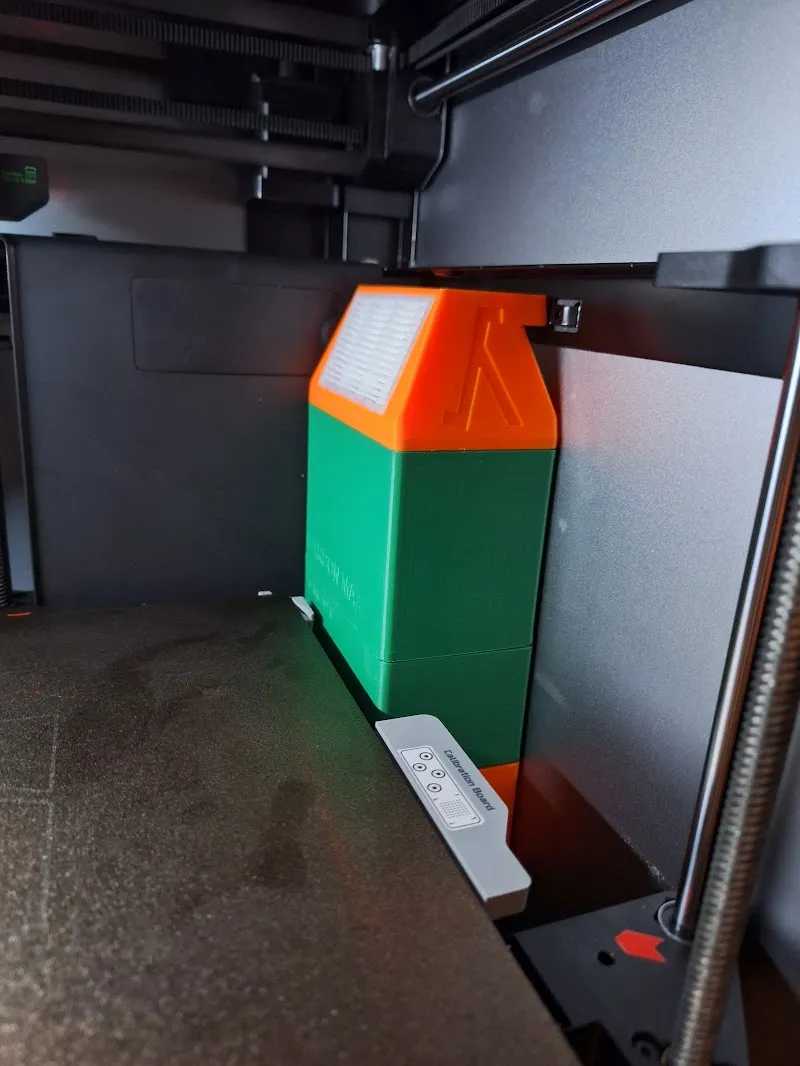

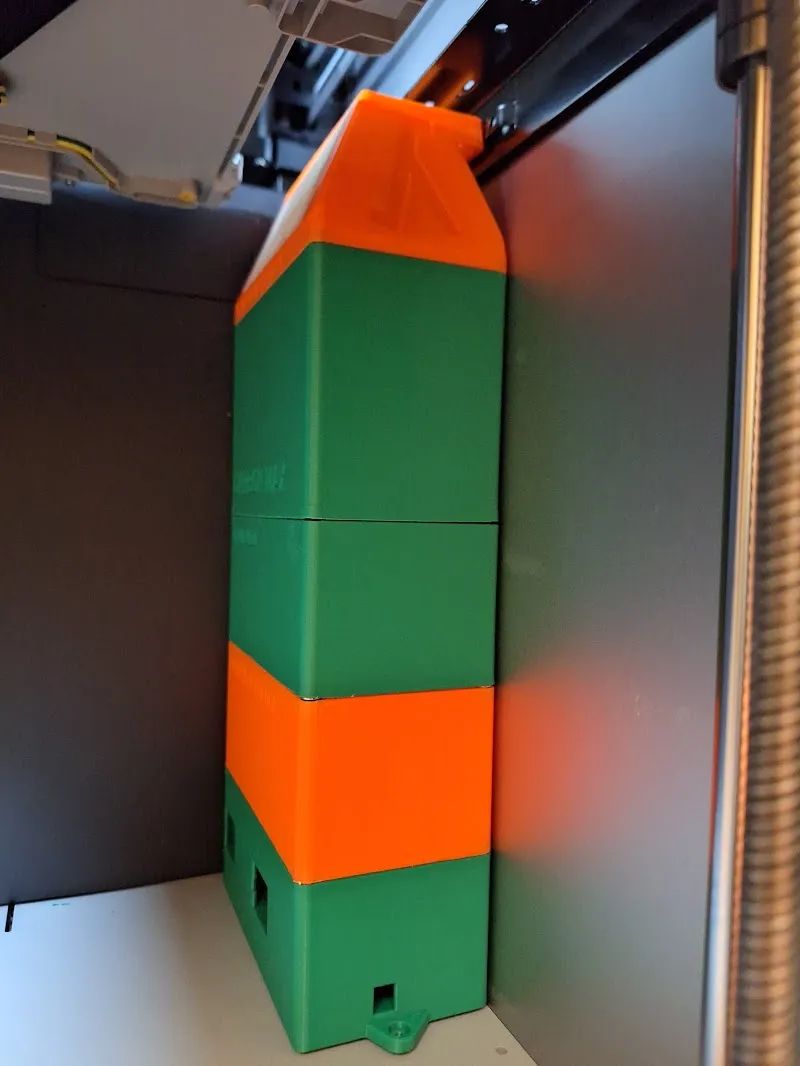

This is an air cleaner (fan + filter + carbon) that sits INSIDE your X1 / P1 printer. It is based upon the work of Anselor (Carbonmax) and ThruTheFrame (Bentobox) though the only part left unchanged is Anselor's fan holder (still working on an improved version of it).
Summary / Changes:
- update: changed the name to ‘Filtermax’ to avoid confusion
- a bunch of models to enhance / replace / improve Anselor's CarbonMax

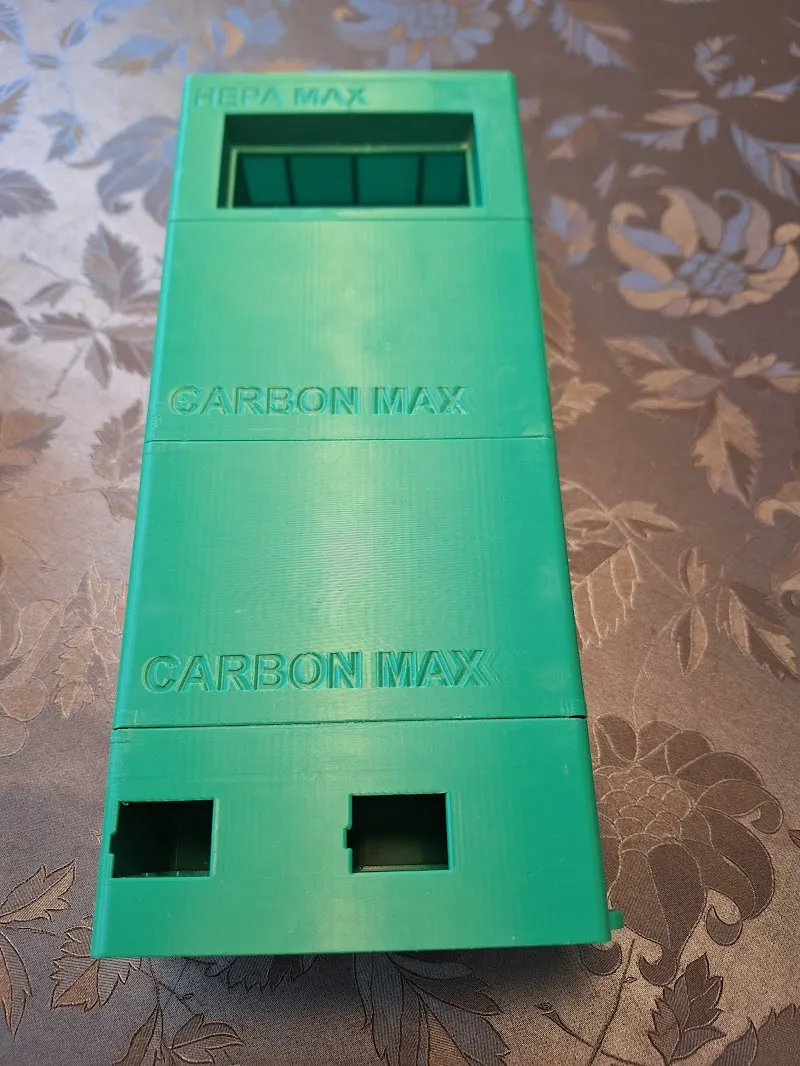

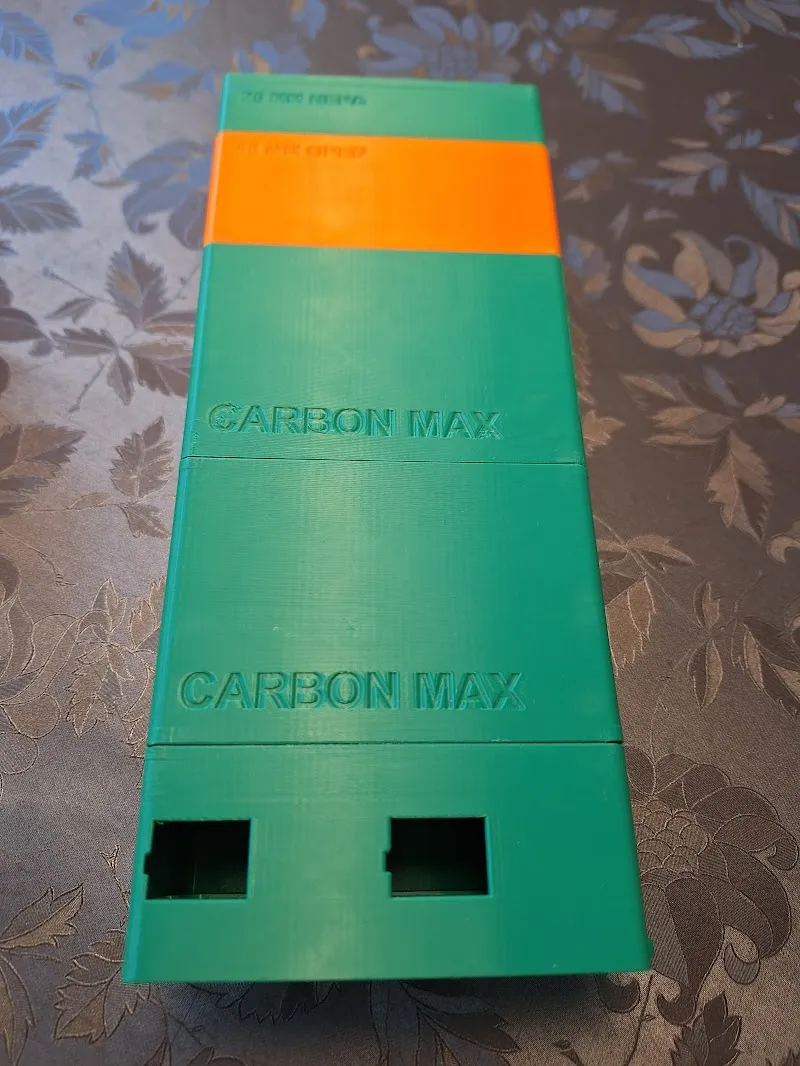

- plates 1 and 2 together provide you a full, working stack - everything else is bonus :-)
- pick parts from the other plates if you want to build your own non-standard stack
- Ansalor's build was 1 mm too high for my X1C, and didn't play nice with a knob inside - fixed

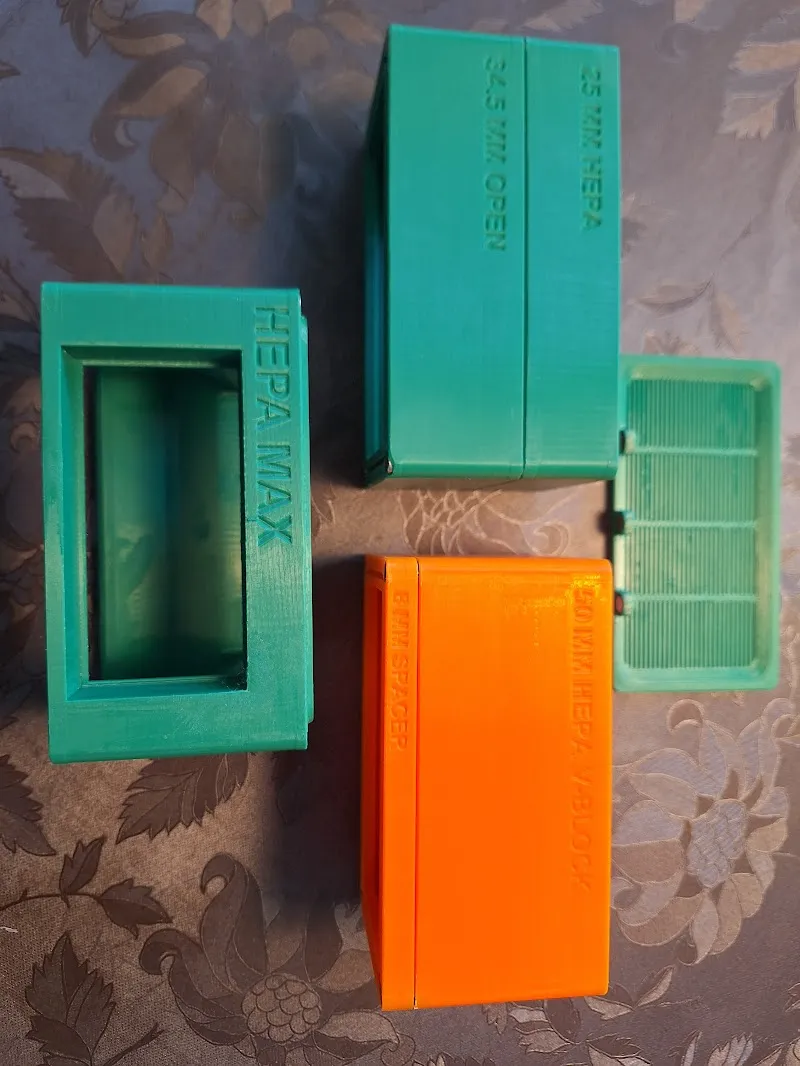

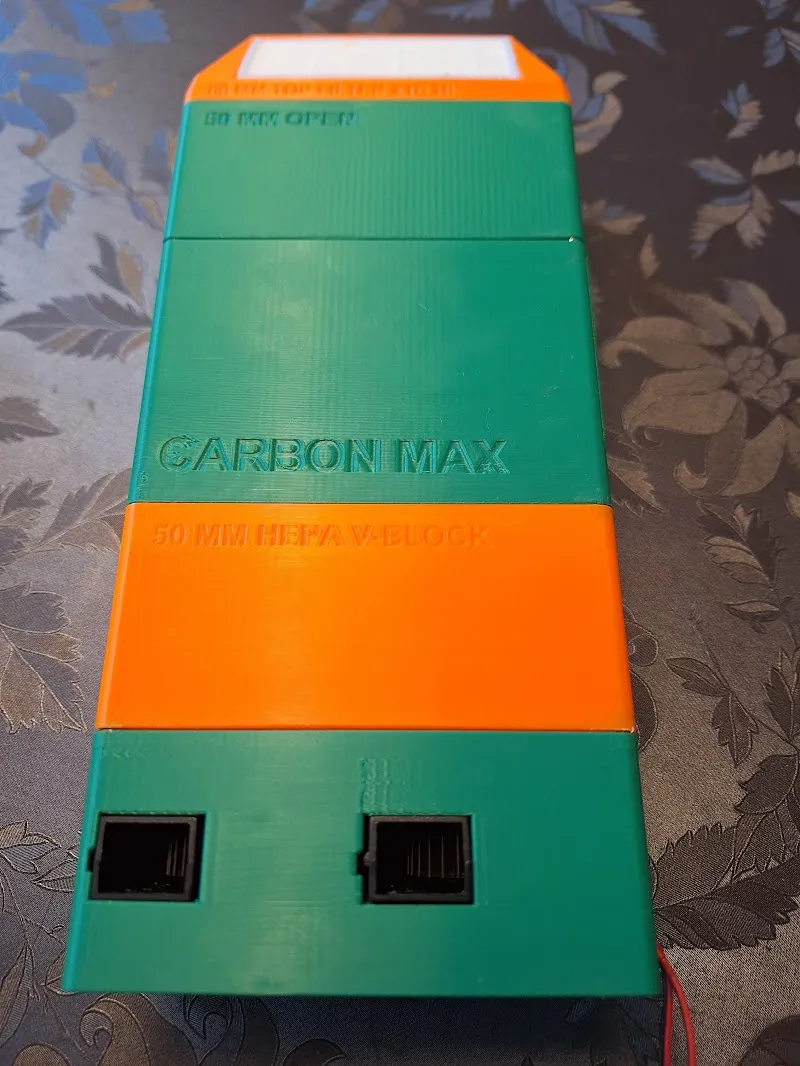

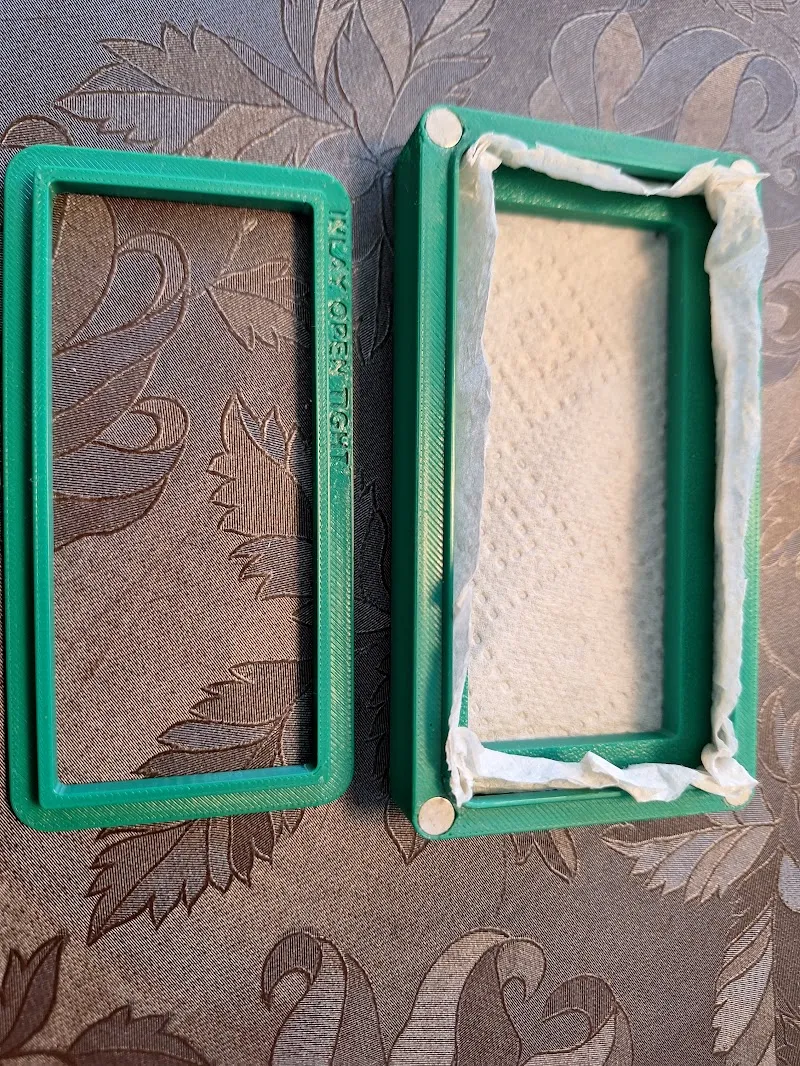

- I've added a replacement for the top filter (the hl-block) which offers more vertical flexibility

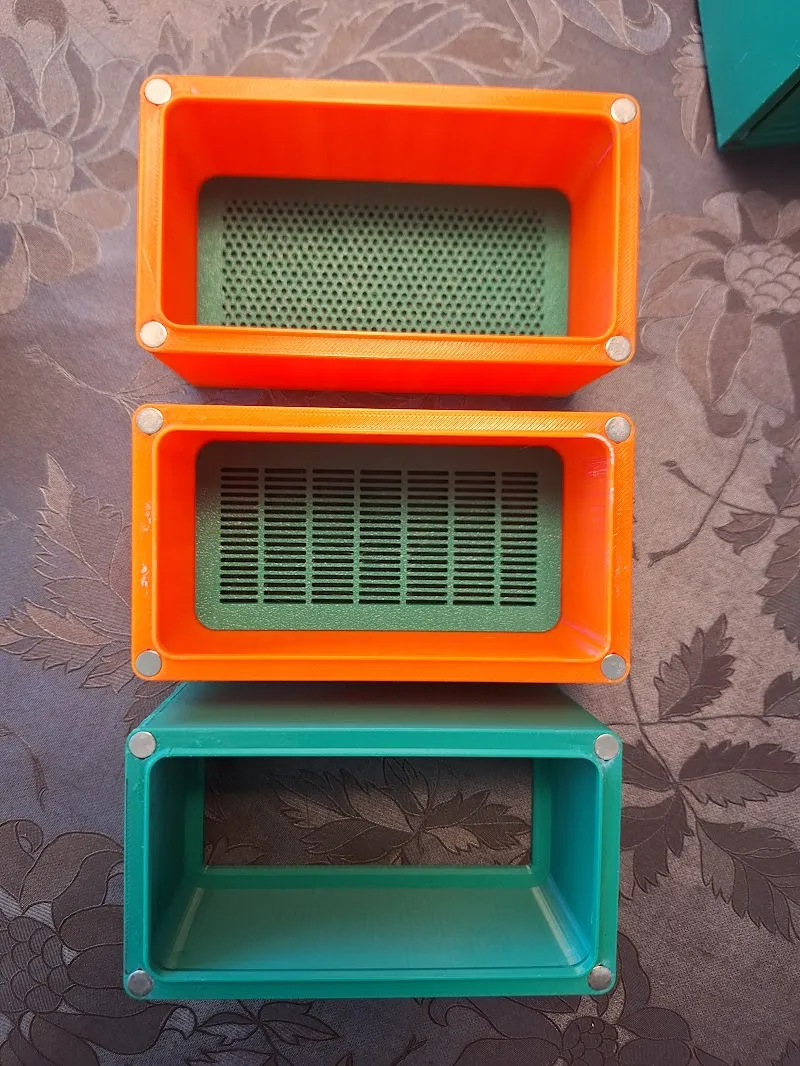

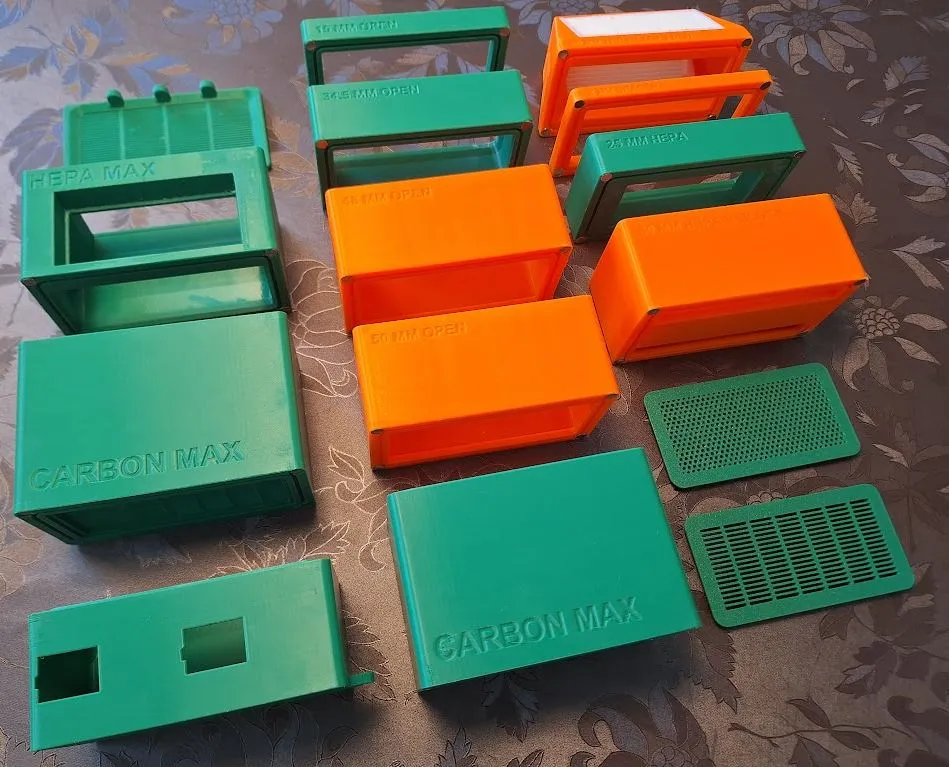

- all the other plates contain the additonal bits and pices, including filter holders, spacers, different sizes of boxes, etcetera
- the original design files have been included (some are pretty ugly, sorry)
- additional materials: magnets (mostly 6x3, for the HL filter you also need 4x2), fans, filters

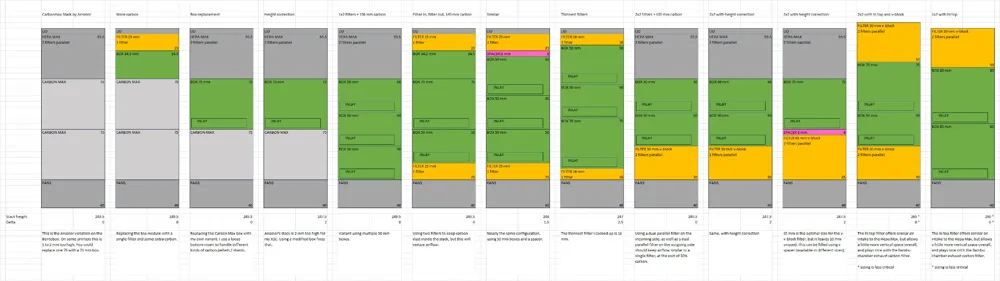

All documentation and all the different variants (boxes, spaces, filters, etc.) you'll find inside the .zip file. Build and installation are similar to the original CarbonMax and BentoBox.
