Hi,

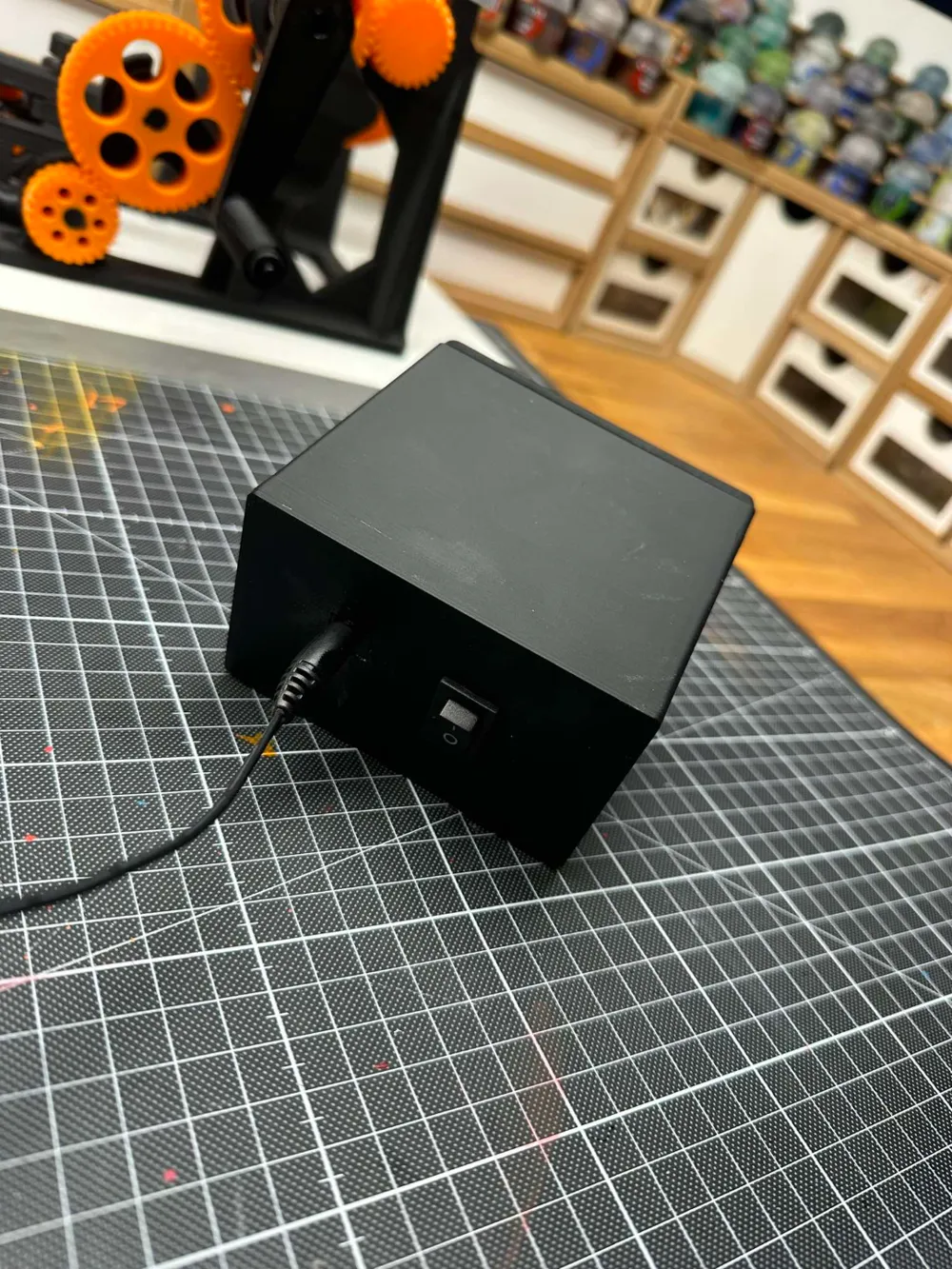

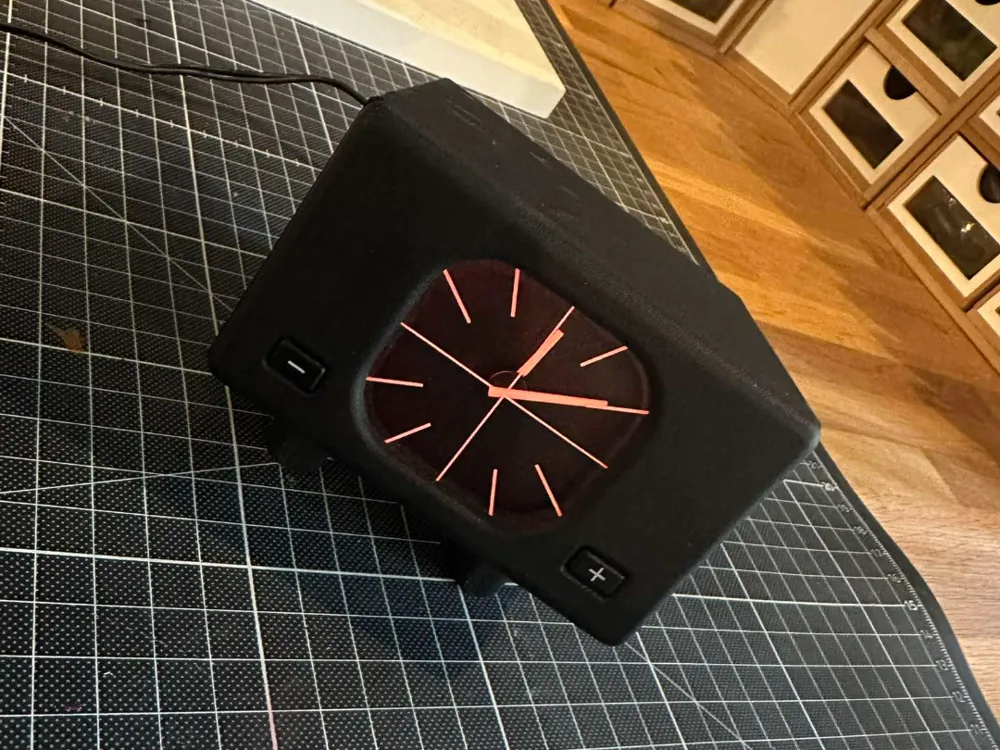

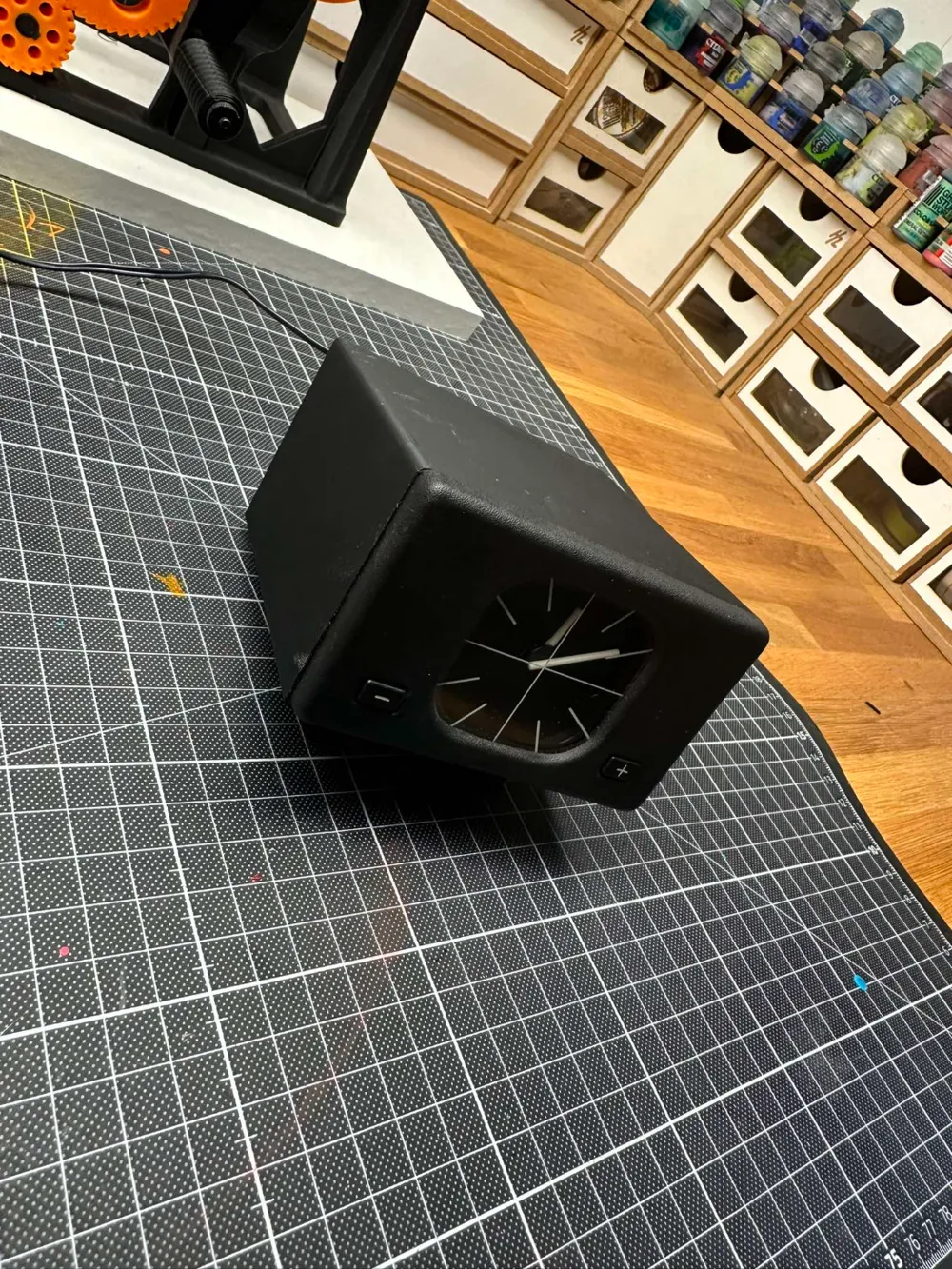

i wanted to give my old boardclock from my BMW E34 a new life. Therefore i designed a case and also added two breakthrougs in the back for the switch and 12VDC adapter.

equipment:

3X Jumper cables (you can gahter them from old PC hardware or Amazon)

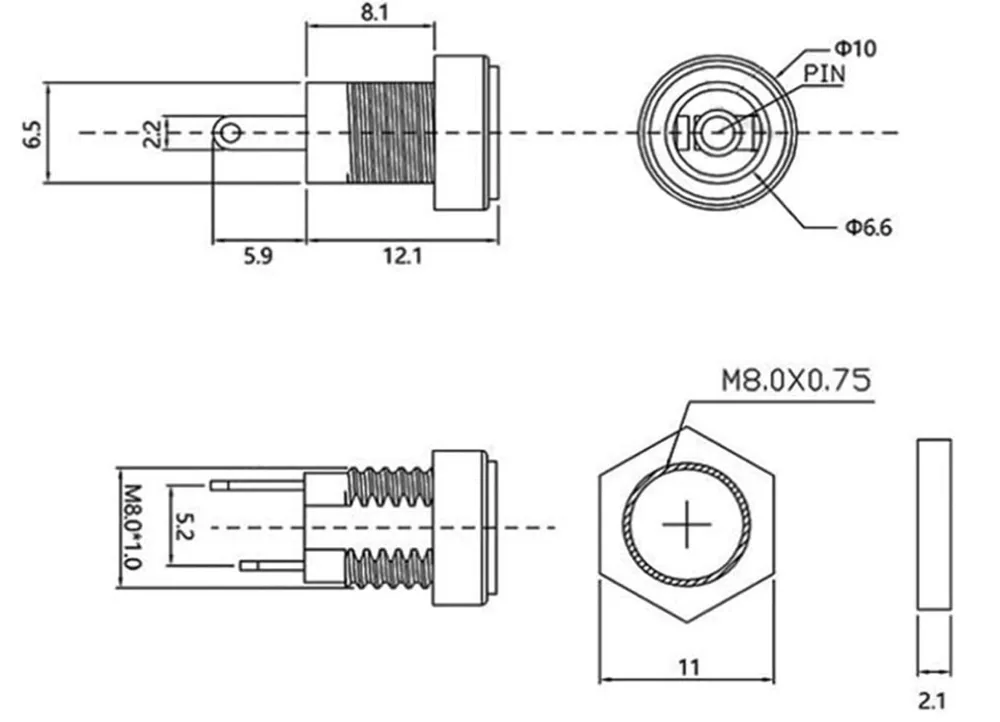

1X DC Socket (i added a picture of it)
1X on/off switch (i added a picture of it)

than you have to solder all together:

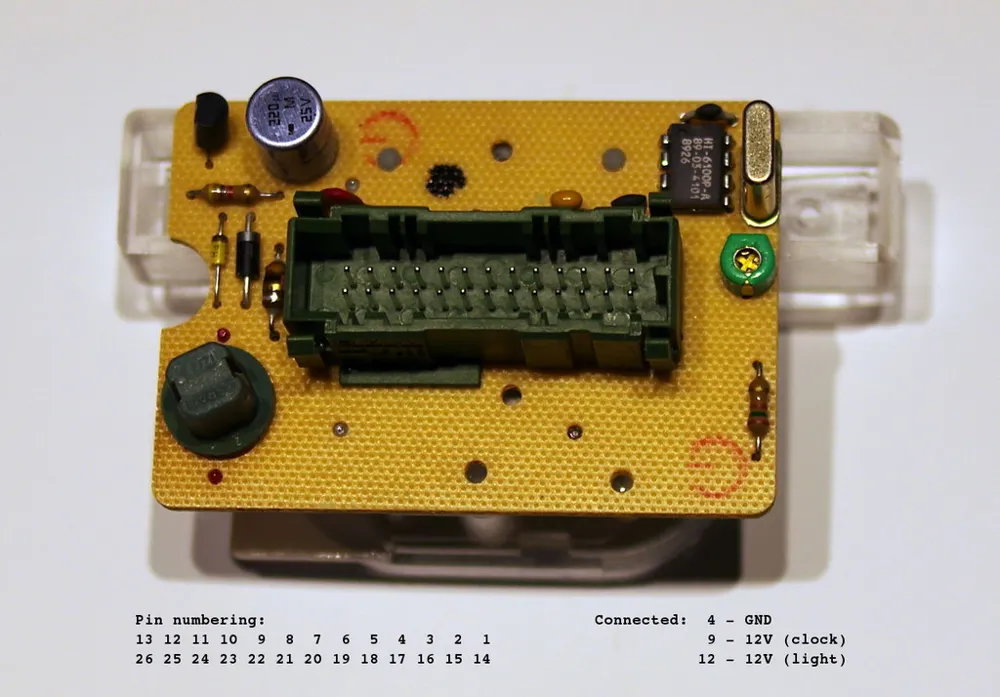

You have to connect GND to PIN 4 and the + Wire without switch to the Clock Pin 9. The secound + wire after the switch goes to the Pin 22 (in some versions it is pin 12)

Have fun to bring your old clock back to life and enjoy your retro desk clock
