Hold Down Toggle Clamp

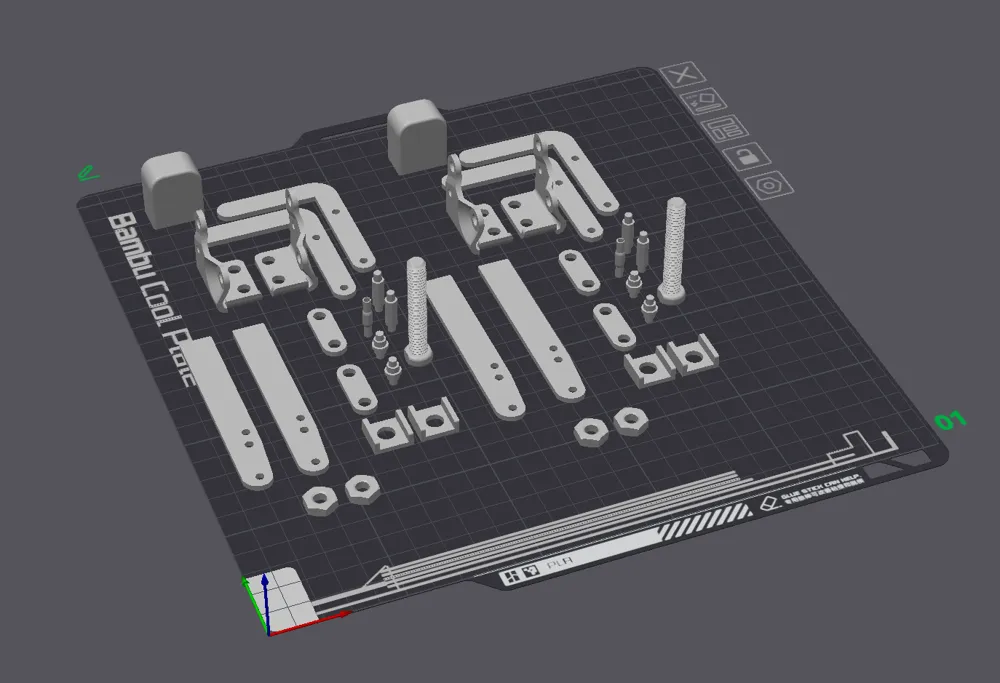

Print Profile(1)
Description

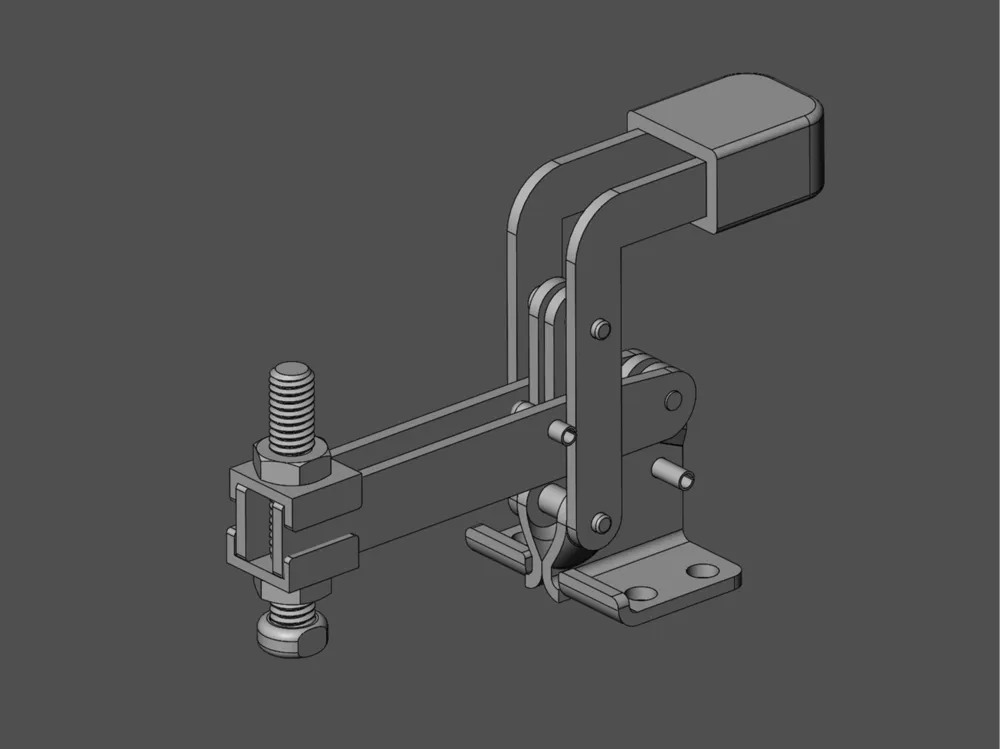

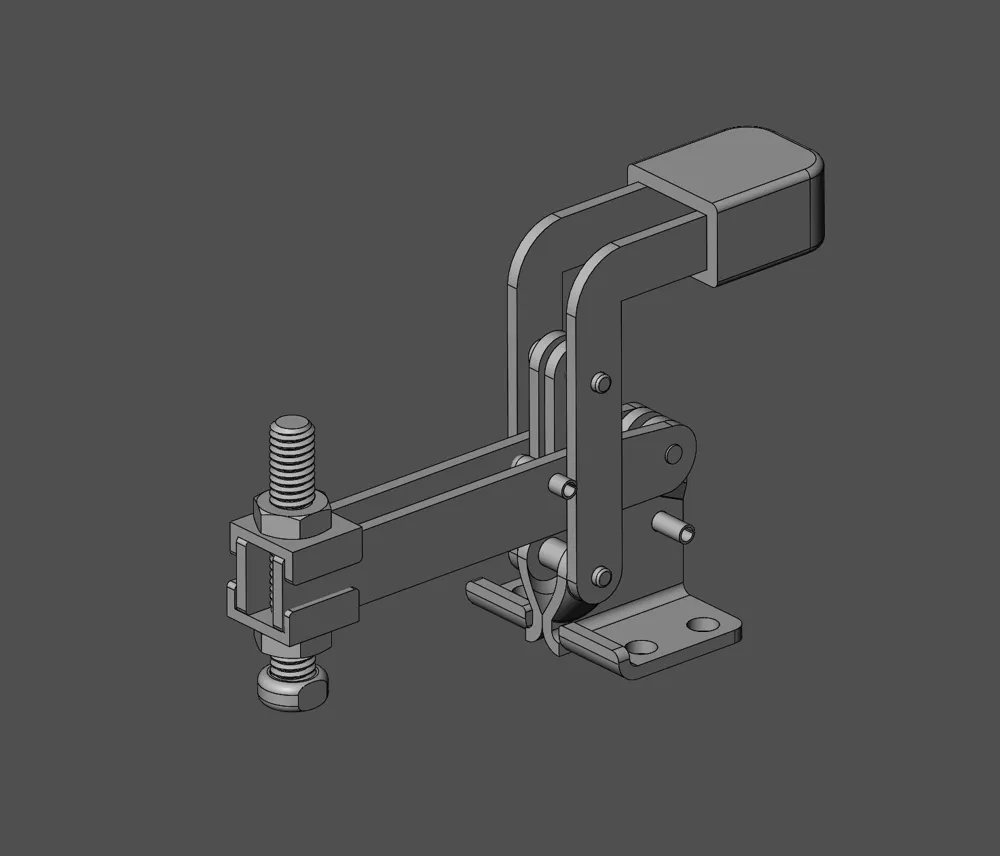

Had to get a clamp for use in prototyping a fixture at work. Found a clamp I liked on mcmaster and modifed it some to be 3d Printable.
I will probably upload instructions on assembly later, but it is based on part # 5126A71
Let me know if you guys like it!
I was able to get the screw to work by boring out the holes on the two spacers lightly with a knife. I ended up not using the nuts, however if you can get them to work more power to you. Everything else is a snap or press fit. No glue required. The 3mf file I uploaded is for printing 2 of the clamps. I also suggest printing a few extra of the small pins as they can snap during assembly if you aren't careful. (Ask me how I know lol)
