IKEA 365+ 10.6l Drybox (lightweight print)
IP Report
Print Profile(19)
0.2mm layer, 2 walls, 15% infill
Designer
3.5 h
2 plates
Combination of wide rolls and the A1 Mini plate with cutout
4.2 h
3 plates
Wide Roll for smaller Spools 0.2mm layer, 2 walls, 15%infill
37 min
1 plate
0.2mm layer, 2 walls, 15% infill
1.3 h
1 plate
Click to see more
Open in Bambu Studio
Boost
757
2960
696
495
3.3 k
2.4 k
Released
Bill of Materials
List other parts
- 608zz_Bearing x 8:
- Hygrometer_Roung x 1:
Description
Description

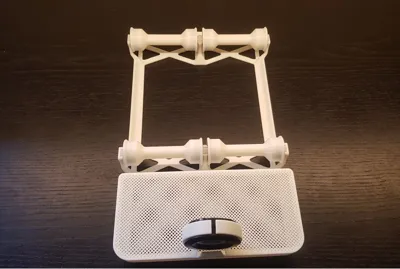

After searching for a drybox I found the Ikea 365+ 10.6l to be the best option and I didn't like the available models to convert it in a drybox… so I designed this lightweight and fast printing model to meet my needs for Bambu Lab Spools.
Info:
- Printed in Bambu Basic PLA (White):
- 110,41 g of consumption and 3h15m of printing time in X1C with 0.4 mm nozzle for configuration in the 3mf file shared .
- No supports.
- Model details:
- The shafts can be replaced by ⌀8 mm rods. Debur might be needed on the bed side of the shafts to adjust the bearings fitting.
- The seams of the rollers are twisted to avoid bumping the spools at the same time. Rollers were designed and tested with Bambu Lab Spools only, so feel free to improve them.

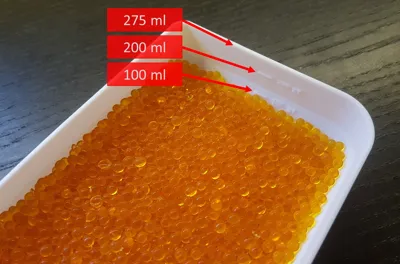

- Desiccant box max capacity is 275 ml and contains markers for 100 ml / 200 ml to give more control of the amount of placed beads.

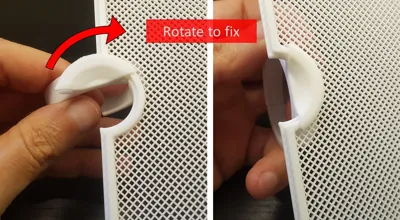

- Hygrometer holder is designed for the rounded model and can accept many tabs position. Also it is not fixed and can be rotated or replaced for different model holder.
- Update: Added hygrometer holders for rectangle and square types. All holders can be used as standalone holders.

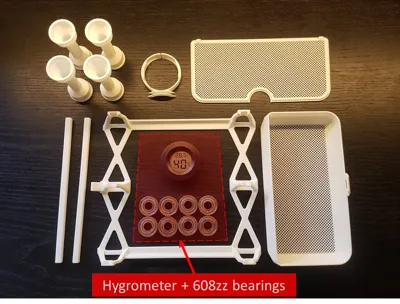

- Bill of Materials:
- 8 x 608zz bearings
- 1 x Round/Rectangle/Square Hygrometer
Feel free to improve and share your insights.
