Mini Bar Stool

Description

This is my first go at taking something from ideation to design to print. I have to say it was a lot of fun and the contest kept me inspired and focused.

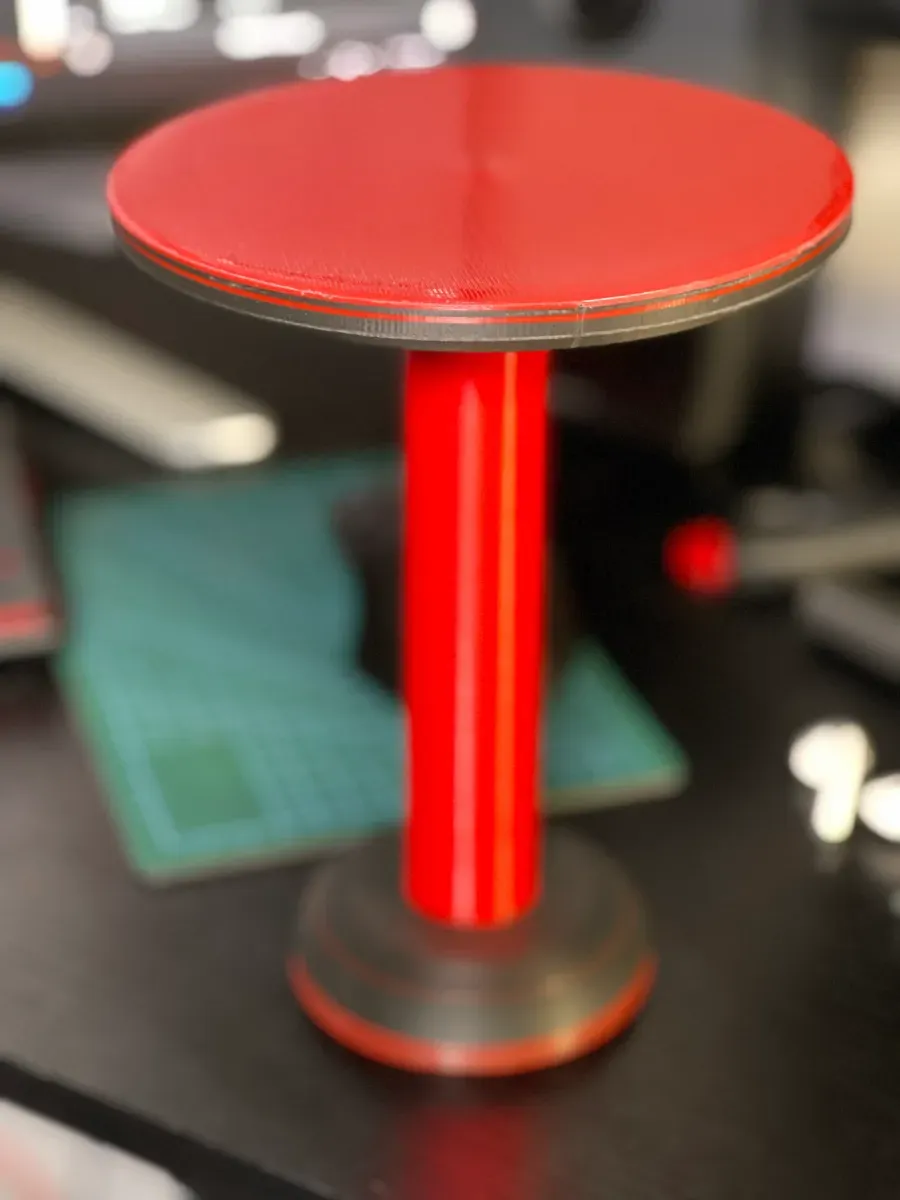

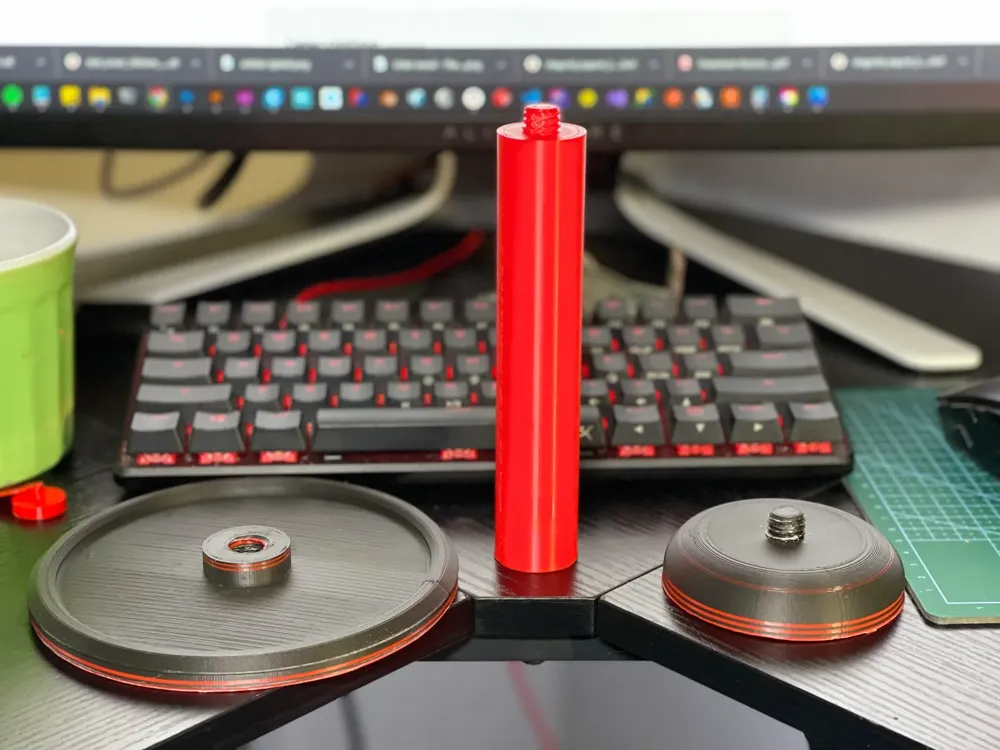

The table consists of three parts.

• table top
• peg leg
• table base

Each part fits into each other. This allows you to make the barstool taller or smaller. Depending on what you prefer.

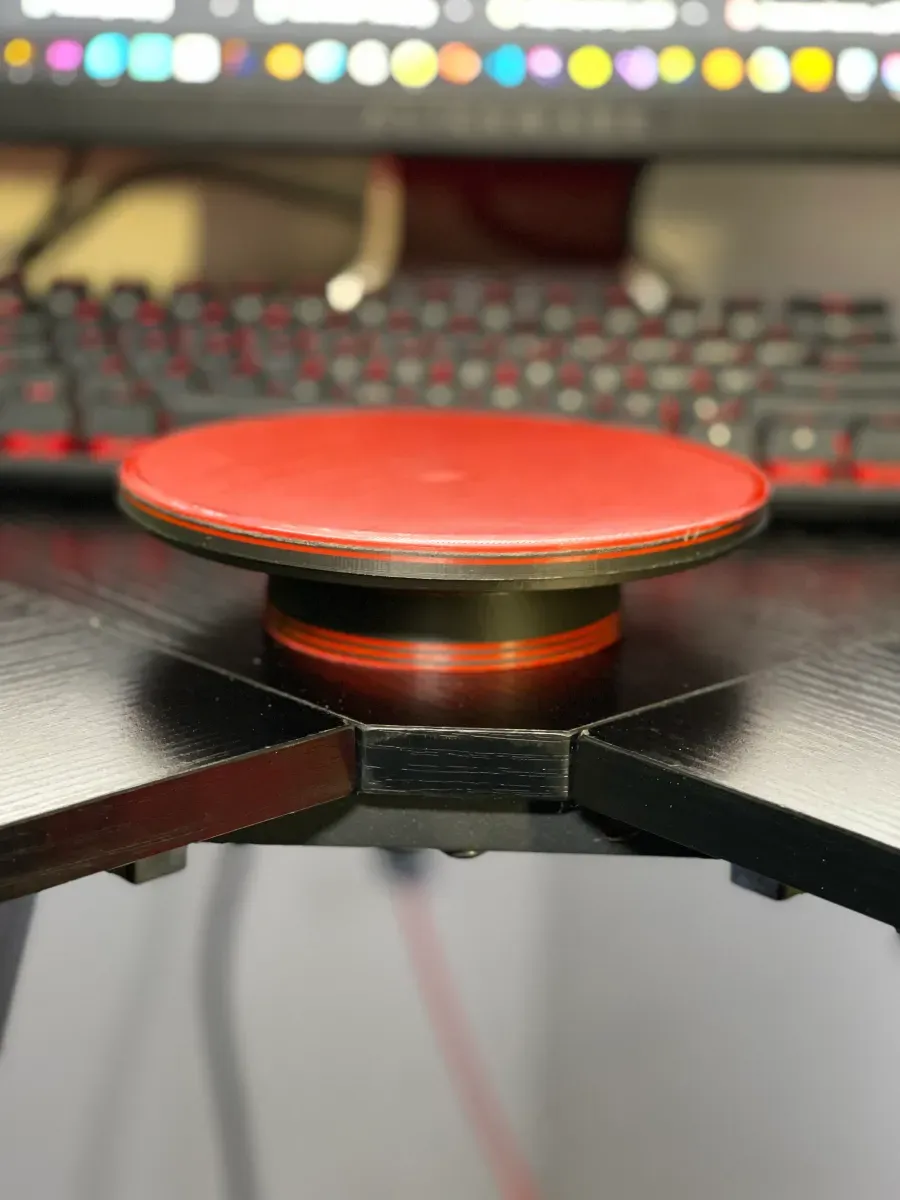

You can use the table top and table base together as well to use as a stand.

Print settings

I printed the leg and base using a 0.4mm nozzle with the settings listed below.

Table leg and base settings

• Layer height 0.2mm
• First layer height 0.25mm
• Perimeters/walls set to 3
• Infill 40%
• External perimeters/walls 0.6mm
• Fans at 100% after 4th layer

I printer the table top using a 0.4mm nozzle as well. I used all of the same settings above except for the infill which I set to 15%.

table top settings

• Infill 15%
