Description

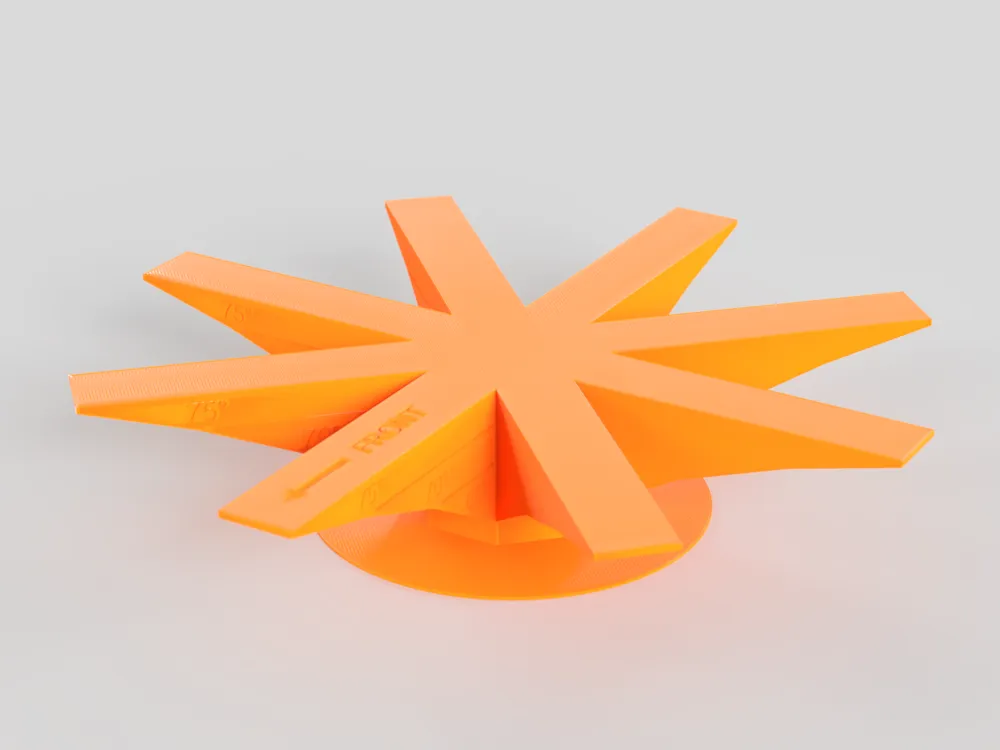

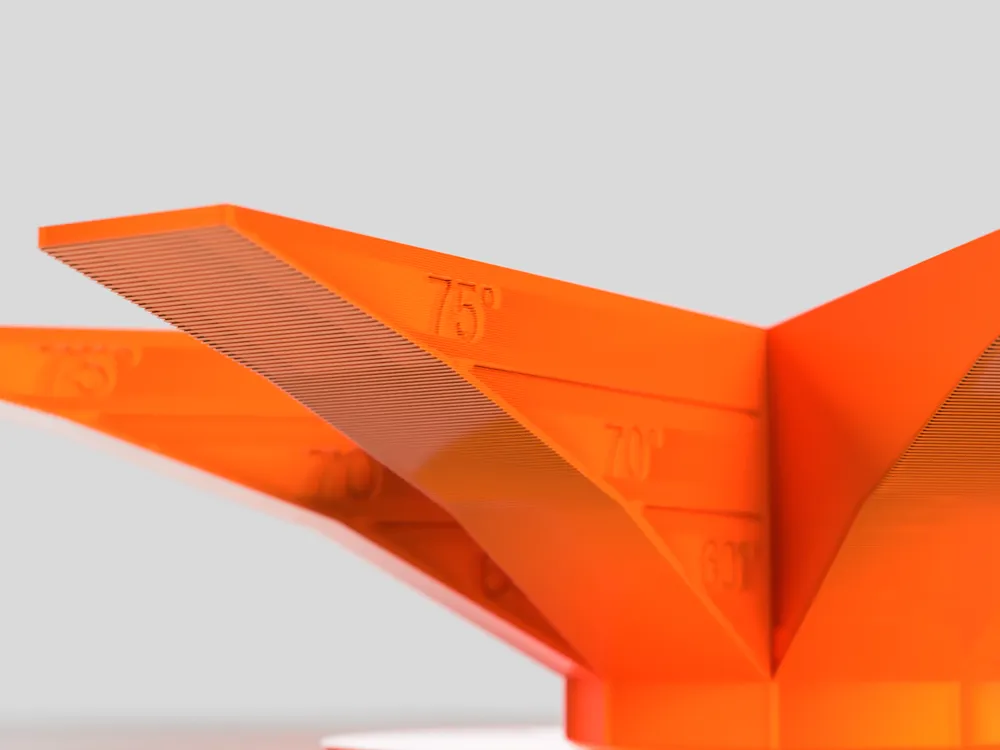

Star Overhang Test by Prusa, test your printer capability with 70 to 75 degree overhang. Bambu printer is capable to print those overhang, but the software Bambu Studio and OrcaSlicer are treating it as bridge instead of overhang. The profile is modified the bridge speed to 10mm3.

Check out the video by Robert Cowan

Bambu Studio 1.9.3.50

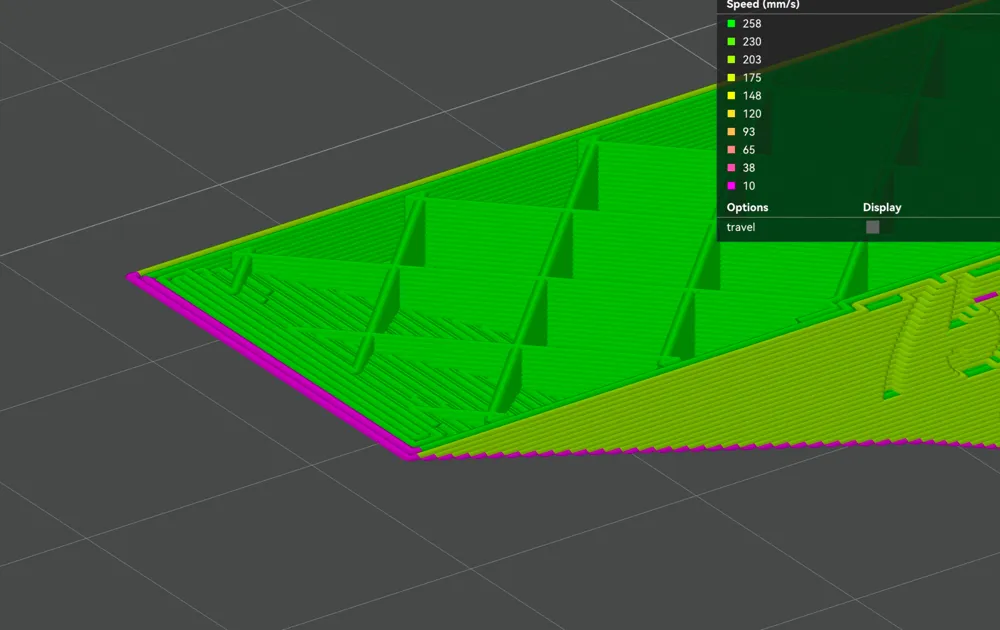

Bambu Studio does not have “Slow down for curled perimeters”, workaround is slow down Bridge 10mm3 but that affects all the bridging in the model external and internal as well.

Bambu Studio 1.9.4.60

Play around with the setting, may not work for everyone; depends on everyone set up on their printer (cooling, mods etc)

https://github.com/bambulab/BambuStudio/releases/tag/v01.09.04.60

Default is 150, testing at the slowest 1

Default is 50mm/s, test at 10mm/s

OrcaSlicer

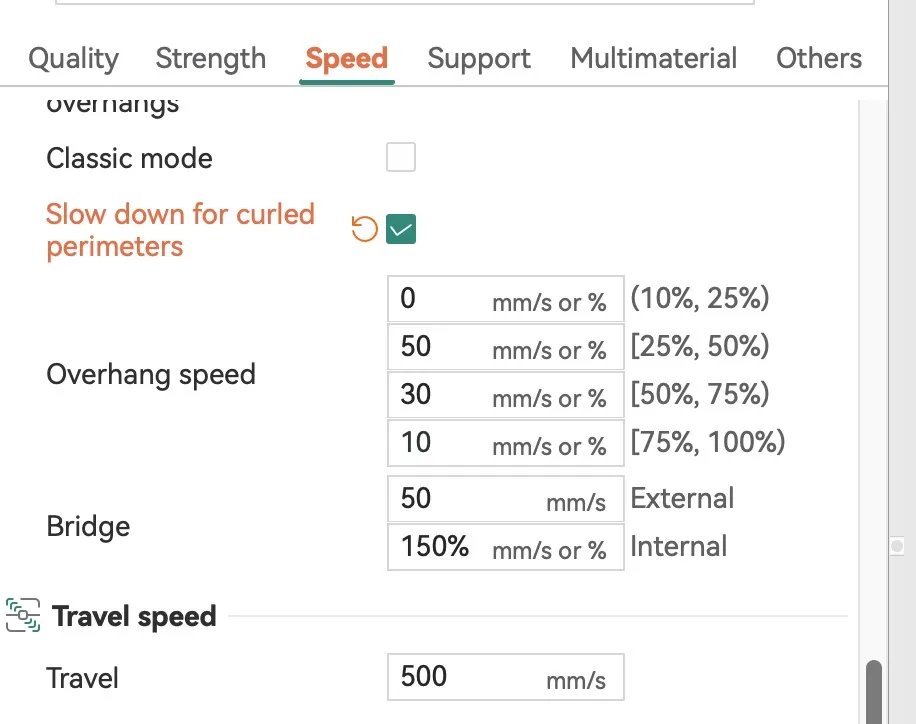

With OrcaSlicer, you can turn on “Slow down for curled perimeters”. This will not slow down all internal bridge.

overhang test print

Comment & Rating (14)

This remix is based on

https://help.prusa3d.com/article/sample-g-codes_529630

https://help.prusa3d.com/article/sample-g-codes_529630

License

This user content is licensed under a

Creative Commons Attribution-Noncommercial-Share Alike
