FULLY Redesigned and MUCH larger! - the KOTOR Storage container is NOW ready to have an automatic opening- and much more room!

One of my favorite things! Unique storage containers!

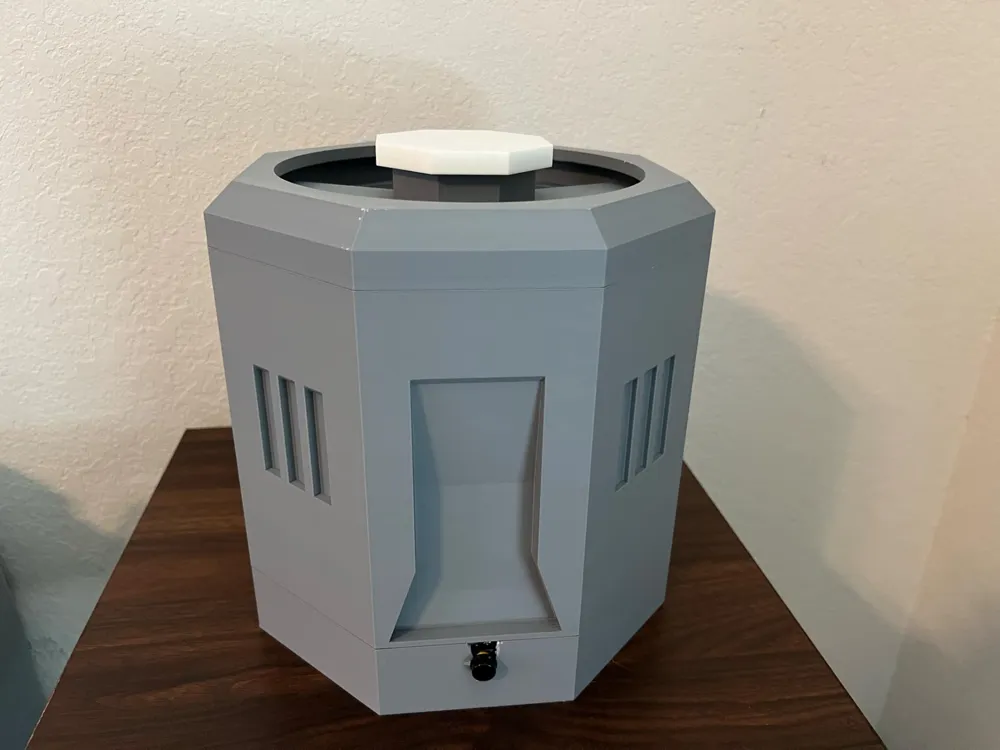

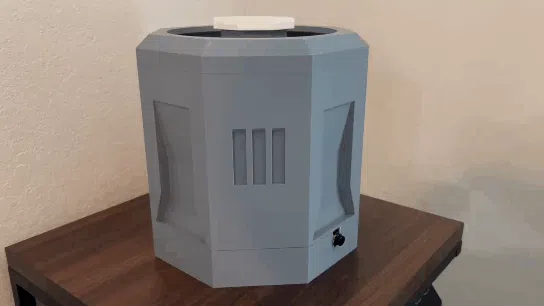

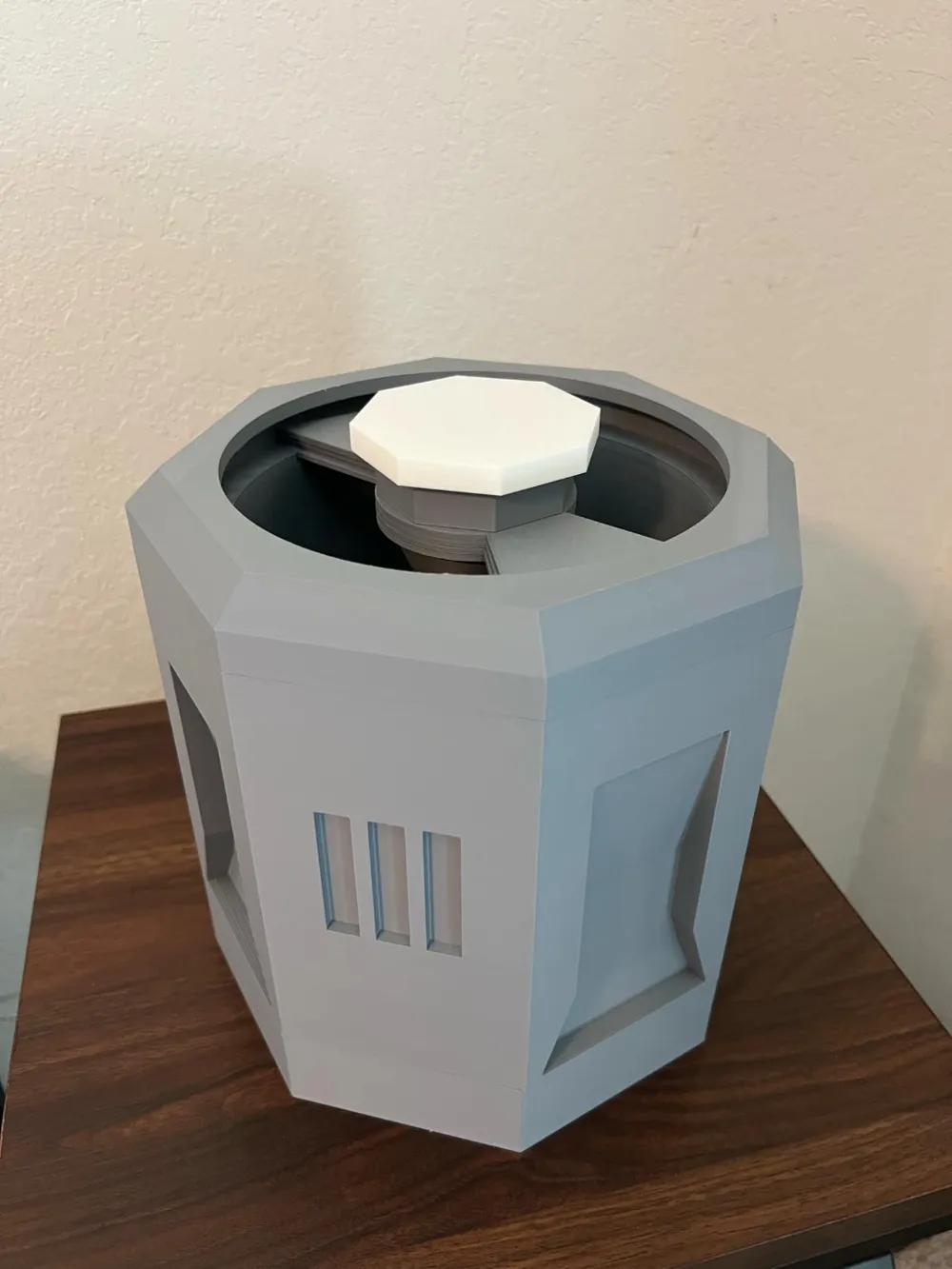

Here's a larger version container you find in the old KOTOR games! It now has an area to place a servo to make it open!
If you want the smaller one, it can be found here: https://makerworld.com/en/models/474640#profileId-385200

Perfect for your Star Wars storage!

I have included, documents to have the servo, including the code, and links to the servos, HOWEVER, you can just print the alternate base, and it can still open manually!

If you want the Resident Evil 4 Umbrella Company spiral, simply print the 1 and 3 flaps, or the 2 and 4 flaps in red or white, then they'll fan out in that style.

Assembly Instructions:

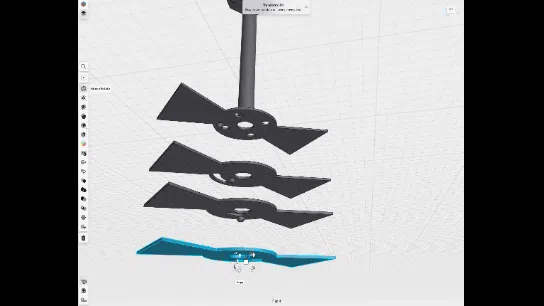

1) Snap the top flap to the 4 holes on the bolt.

2) GENTLY slide the 2nd, 3rd, 4th, flaps up the bolt, below it. The small curved holes should match up with the bottom pegs on each piece.

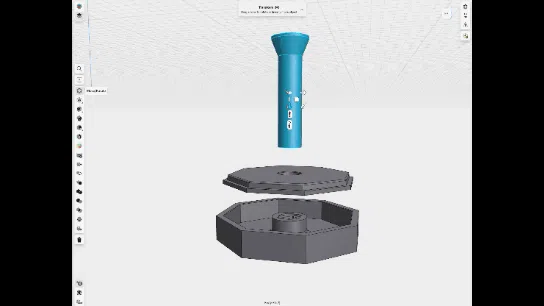

3) Slide the center post into the false bottom, and push it into the main base.
4) GENTLY take the top cap piece, and push the bolt with the four flaps up through the cut out area into the internal groove of the cap.

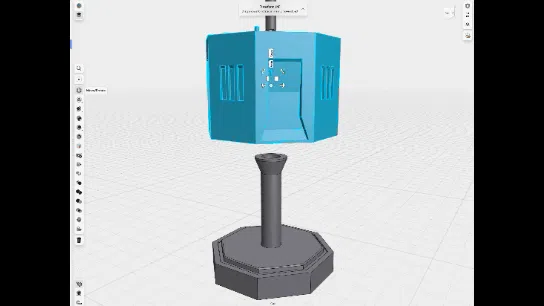

5) Connect the main cannister onto the base, then slide the whole upper into the the cannister. There are two guide hole to help you line the lid up properly.

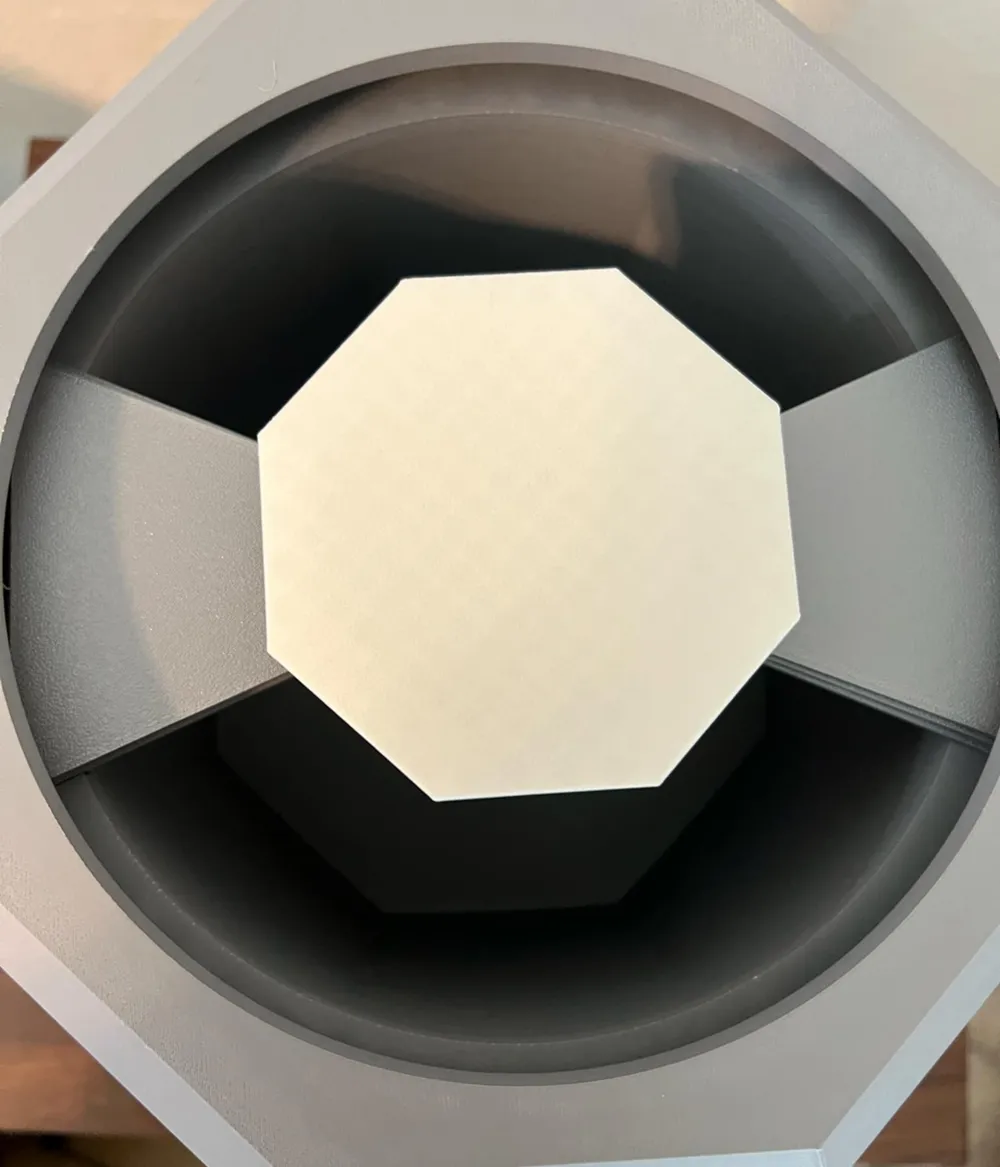

5) Once the cap is fully secured and in place, the bottom flap should again settle into a slight indention where the cutout was in step 3. This holds the flaps in place when they spin.

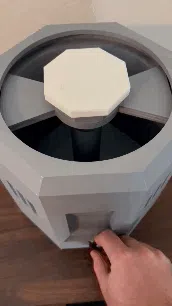

6) Spin away! Store your Republic Credits, Repair Spikes, Medpacks, and even the T-Virus in it!

SERVO ASSEMBLY INSTRUCTIONS IN DOCUMENTATION


Notes: It is designed with slow printing, to make sure all the edges match up smoothly, with ironing and such. You can adjust the settings if you like, and are confident in a fast print. I do have VERY thick sides, but it matches the in game specs and allows for space to spin the top. However, smaller things snap off and you'll find yourself printing a lot of flaps.
