TS101 case

I simply adapted the work of 'BlkWgn' to the TS101:

• I imported the bottom insert from here and modified it to have a longer cable organizer.

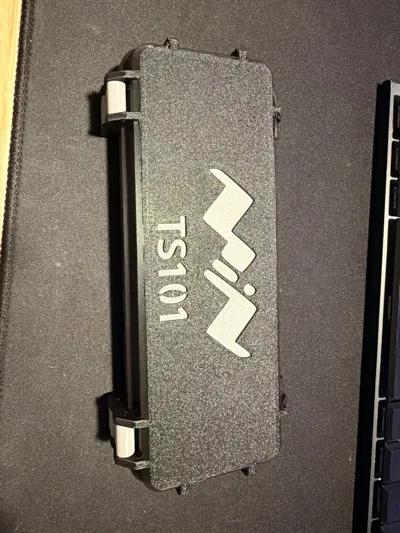

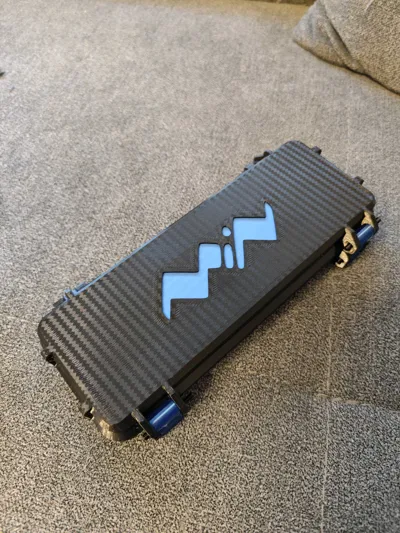

• I then created 2 different versions of the lid, one with just the Miniware logo, and the other with the logo and 'TS101' writing.

You will need:

• M3x20 screws (6 pieces)
• 608 bearing (1 piece)

Tips:

• print the stand in PETG
• print the latches in TPU, they work better
• I left the pins made by 'BlkWgn' in the project, however I think that the M3 screws are much better

In the print profile you can choose between 2 different top lids and 2 different top inserts.

UPDATE:

• Fixed the original 'Pinecil Bottom Cable TS101' because the edge between the wall and the bottom was too thin.
• Fixed print profile with "Thin Wall Detection" enabled.

See my other models for FPV and whoop.
