Egg Holder Stand
Print Profile(0)
Description
Summary

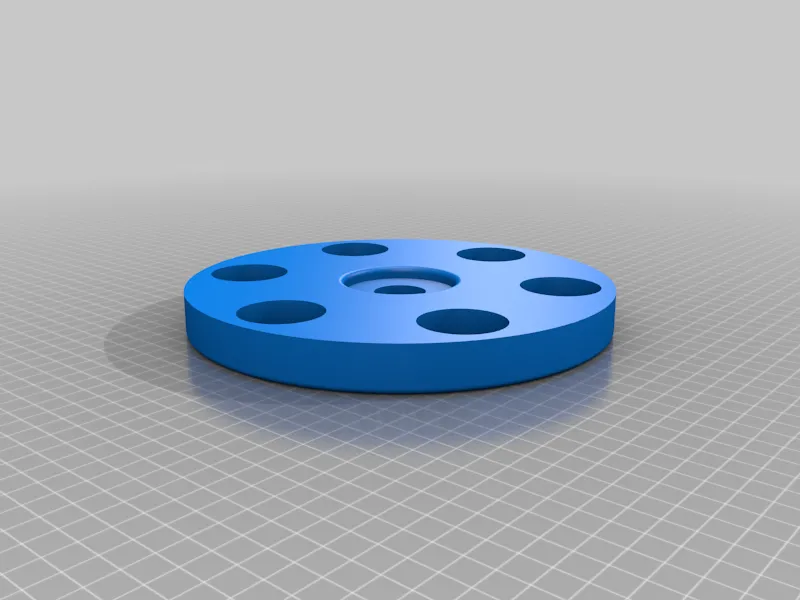

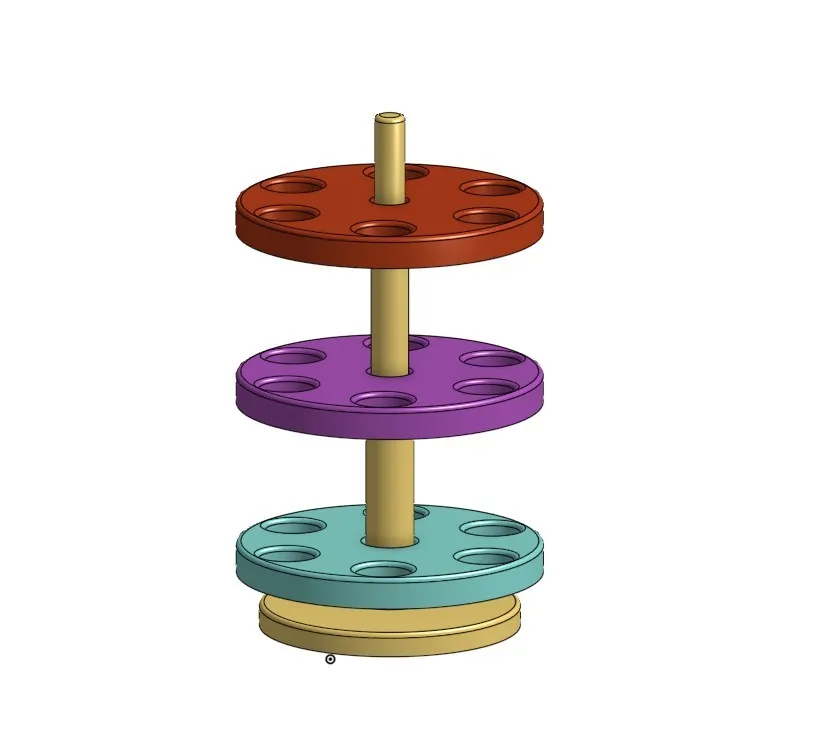

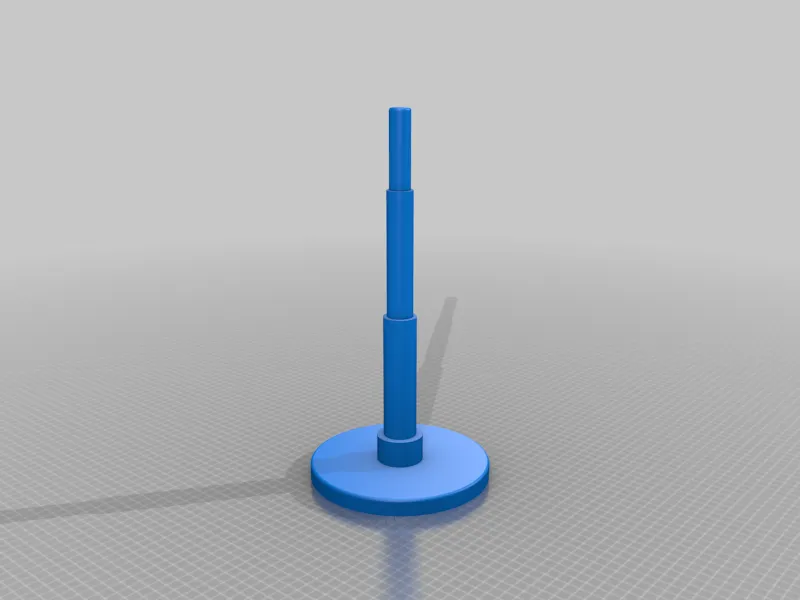

This is a 4 piece design of an Egg Holder stand I've seen somewhere and thought was a cool idea. A sketch and a bit of time in CAD later and this creation is born. Feel free to print or remix as fit just add it to the remix tab please. I haven't printed this myself as eggs last 2-3 days outside where I live due to ambient temperature. I would print this in PLA or PLA+ with 3x3x3 at 10-20% infill. Parted up to allow for normal size printers to fit. Shouldn't need any supports but I've not tested or versioned this. STL's separately, as assembly and STEP uploaded.
How I Designed This

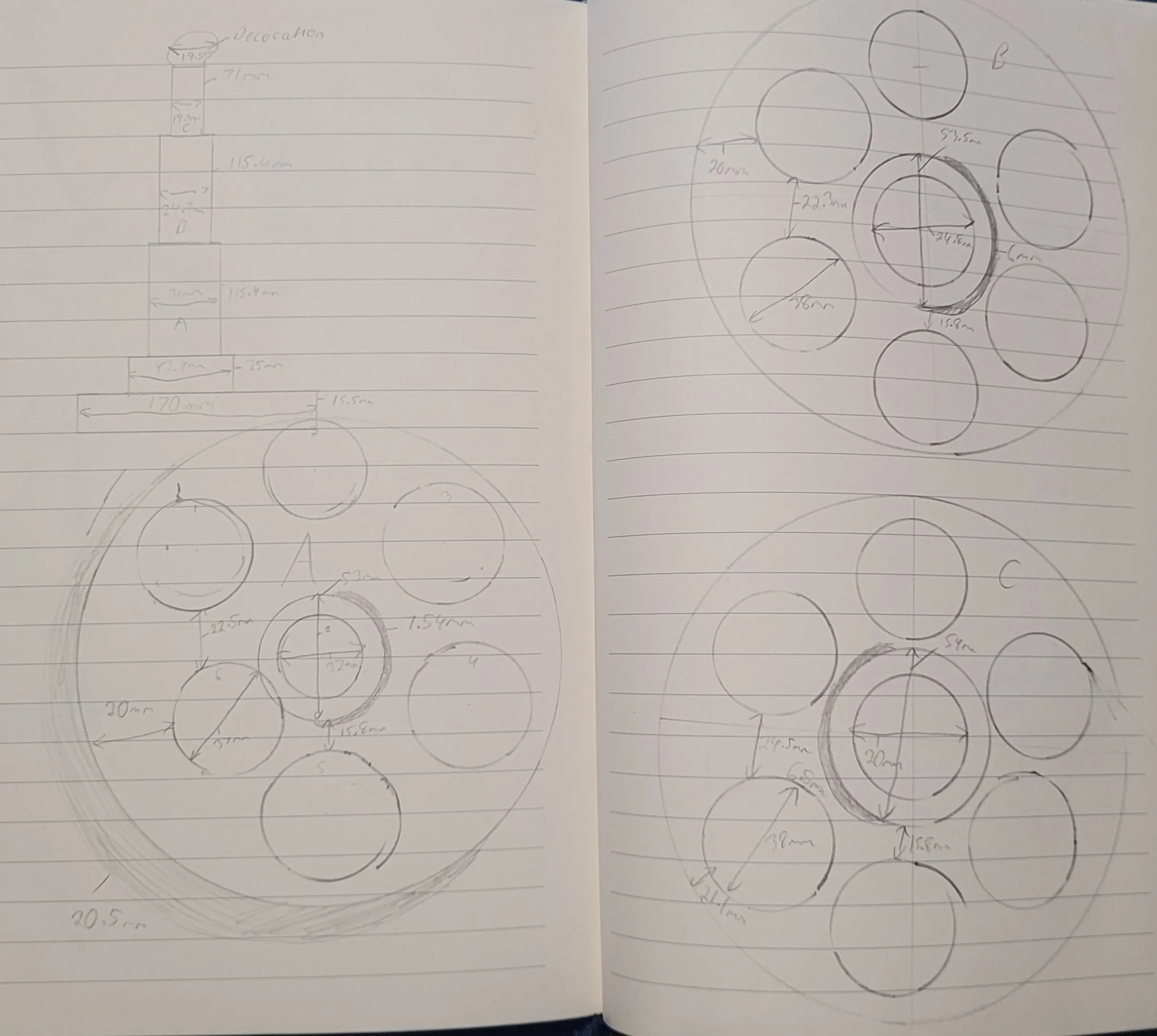

A quick sketch as seen. Blasted into Onshape with a lot of circles in a sketch separated into multiple parts tabs for ease of use. Extruded all the circles as required and a sneaky fillet to tidy up.
