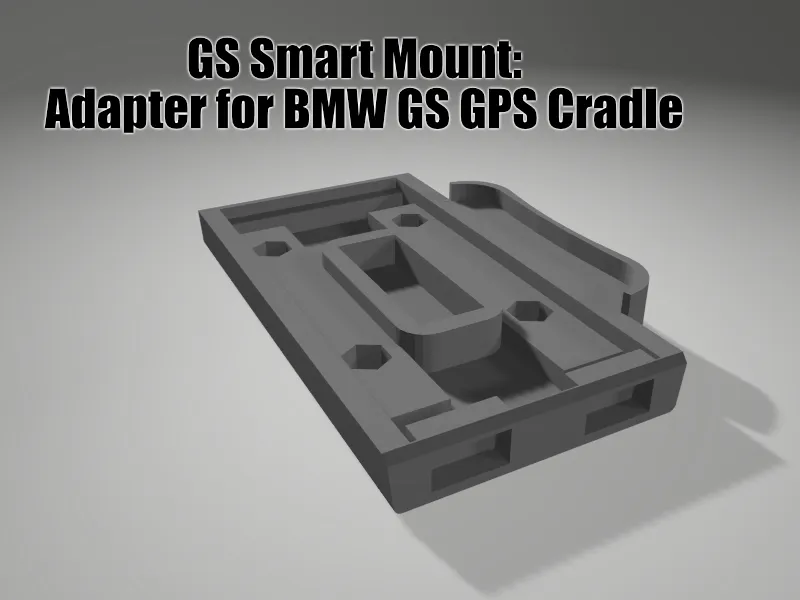

GS Smart Mount: Adapter for BMW GS GPS Cradle

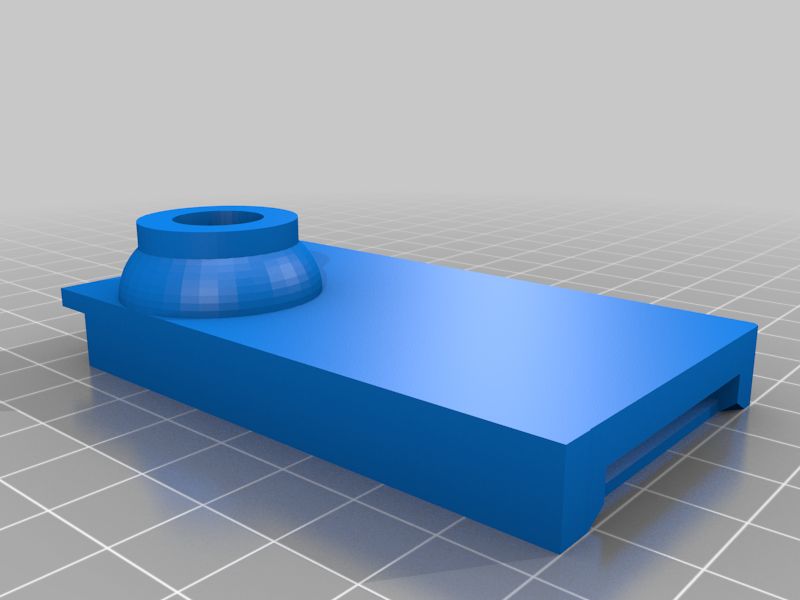

The GS Smart Mount is an adapter that transforms your BMW GS motorcycle’s GPS cradle into a versatile mounting solution for modern wireless display units like the Carpuride W702 or W502. It integrates with BMW GS models—including the R1200GS, R1250GS, and potentially the R1300GS - this adapter allows you to enhance your bike with CarPlay or Android Auto functionality while maintaining a sleek, factory-installed appearance.

Key Features:

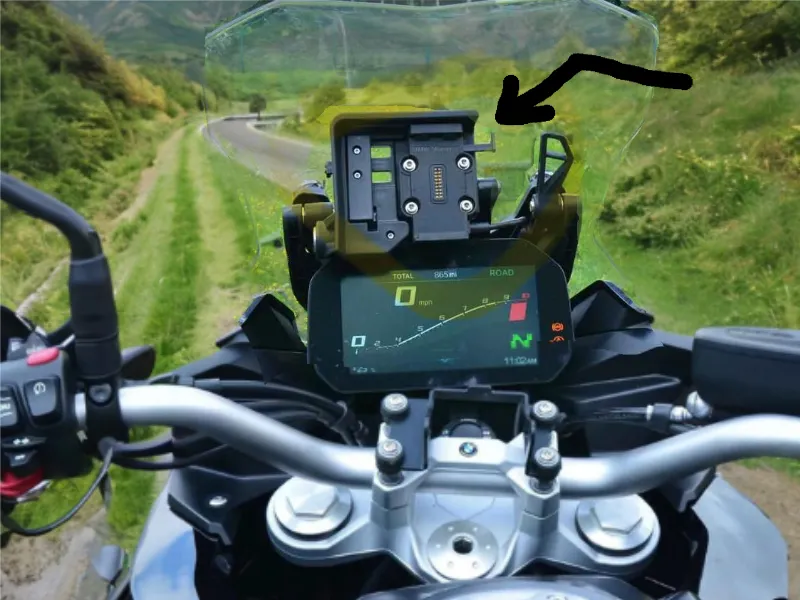

• Seamless Integration: The GS Smart Mount fits perfectly within the BMW GPS cradle, aligning with existing mounting points to create a secure and stable platform for your display unit.
• Robust Design: Featuring reinforced mounting areas and a low-profile structure, this adapter is built to endure the vibrations and stresses of both on-road and off-road adventures.
• Sleek Aesthetics: The adapter’s design ensures that it blends seamlessly with your bike's dashboard, preserving the clean, professional look of your motorcycle while adding modern functionality.
• Efficient Installation: With precisely positioned screw holes and an intuitive design, installing the GS Smart Mount is straightforward and hassle-free. The adapter includes space for tidy cable management, keeping your USB power cable securely connected and out of the way.
• Durable Material: While the initial prototype may be printed in PLA, I printed it using ASA for it to be durable for UV as well, but it can also be printed with PETG or ABS for increased durability and heat resistance, especially under challenging outdoor conditions.

Installation Guide:

• 3D Printing: Print the adapter with a 0.4 mm nozzle, 0.2 mm layer height, and 20% rectilinear infill to ensure structural integrity, particularly around the mounting points. Supports should be used for areas with overhangs.
• Required Hardware:
  • M4 x 16 mm bolt and nut
  • 25 or 26 mm washer (optional securing washer)
• Material Recommendation: For best results, use ASA, ABS or PETG to ensure the adapter withstands various environmental conditions and high temperatures.
