Bill of Materials
List other parts
- Springs x 4:
- screws x 4: M3x15
Description

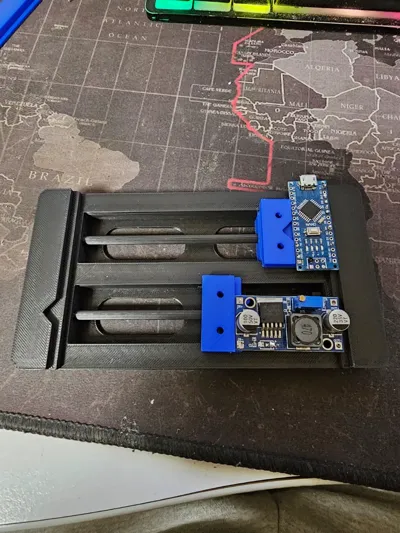

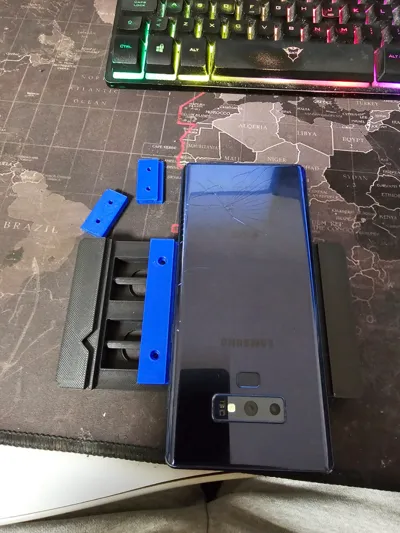

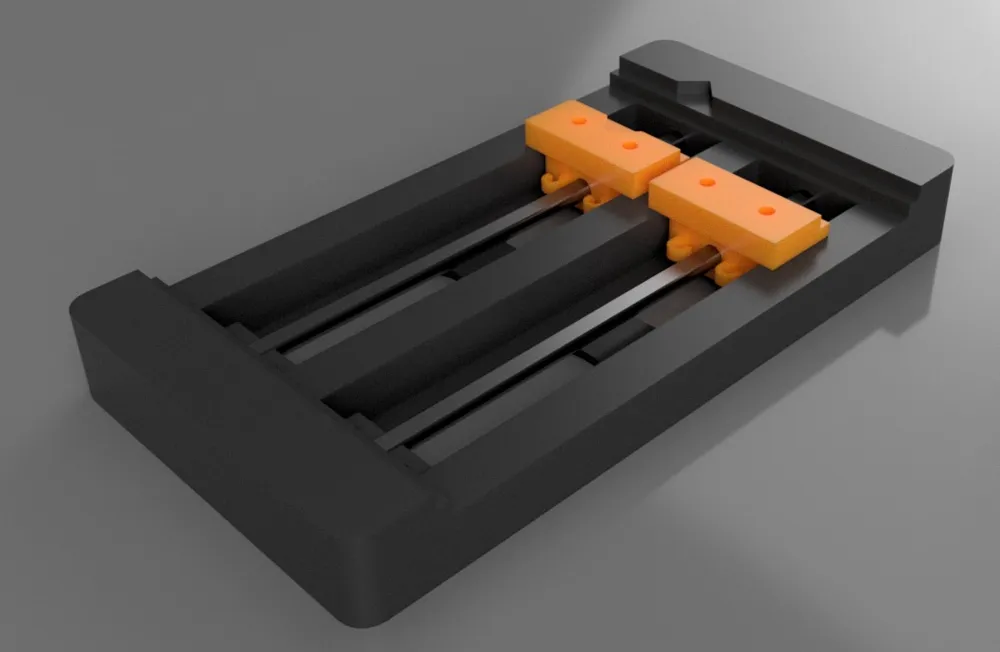

Hello guys, I create this PCB Workbench to help manufacturing smartphones and boards.
This help with soldering and I will prepare the second version with a third hand. :D
If has some problem or question, please tell me.
Material:
- PLA
- M3 x 15 (4x)
- springs (4x) - If don't have a springs, use elastics. :D

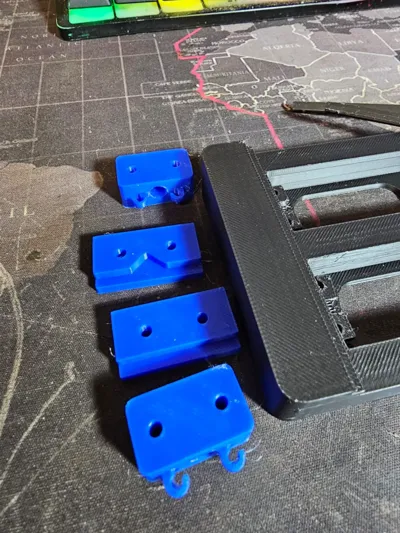

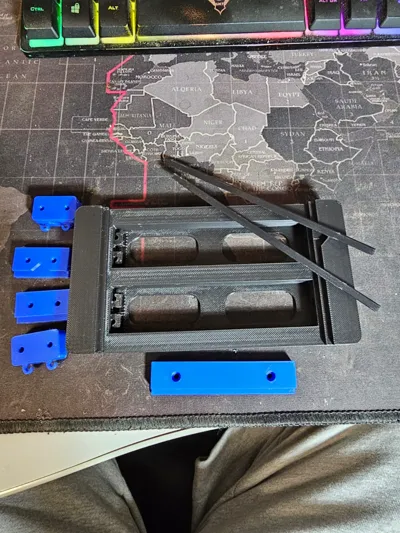

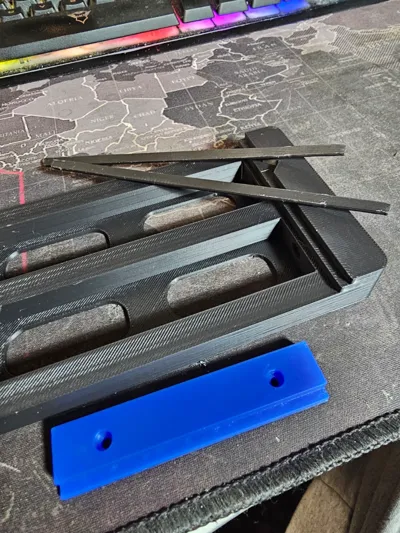

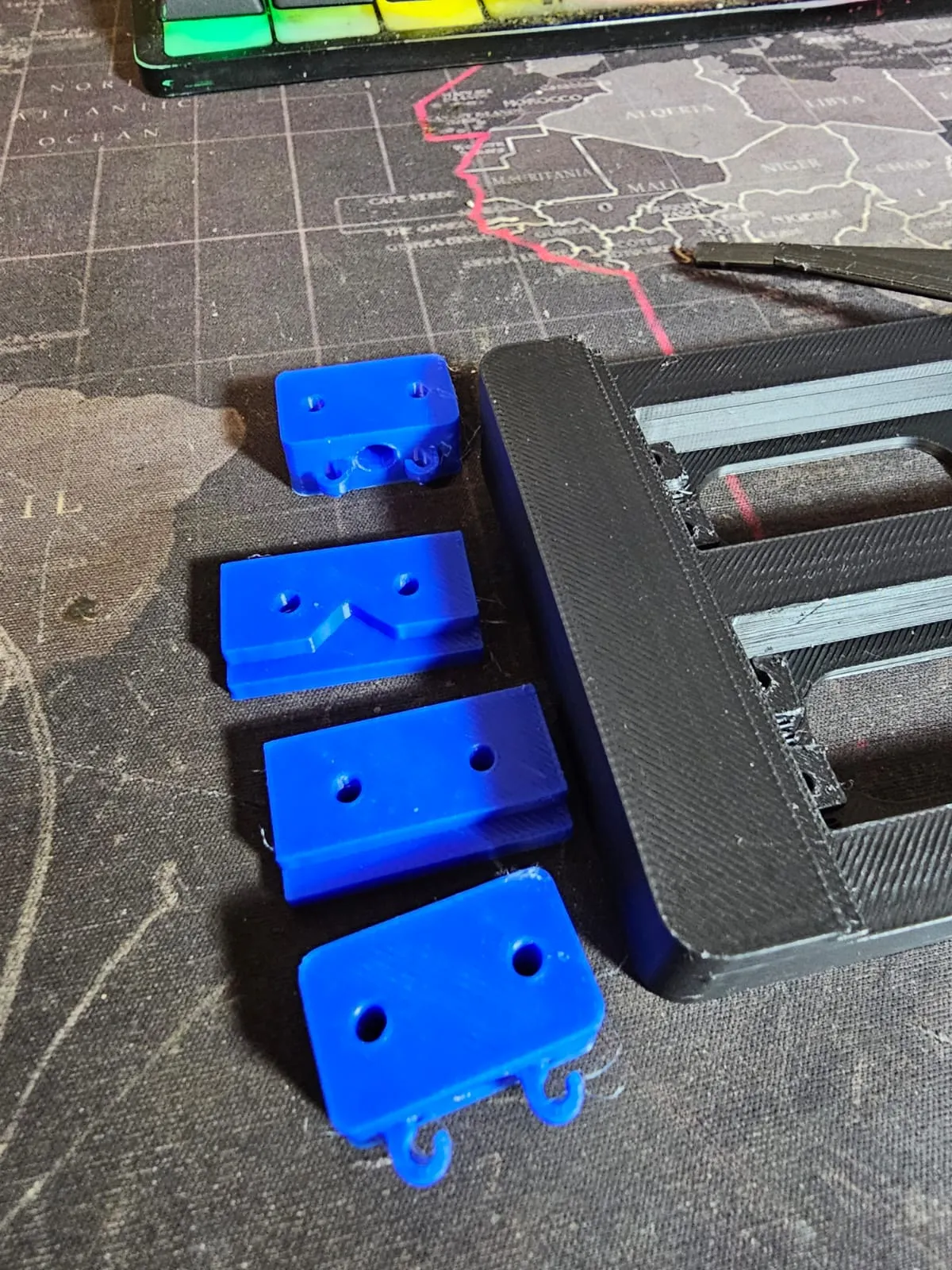

Parts:
- Base
- Carriage (2x)
- Support (2x small)
- Support (1x big)
Thank you and see my others works. :D
