Description

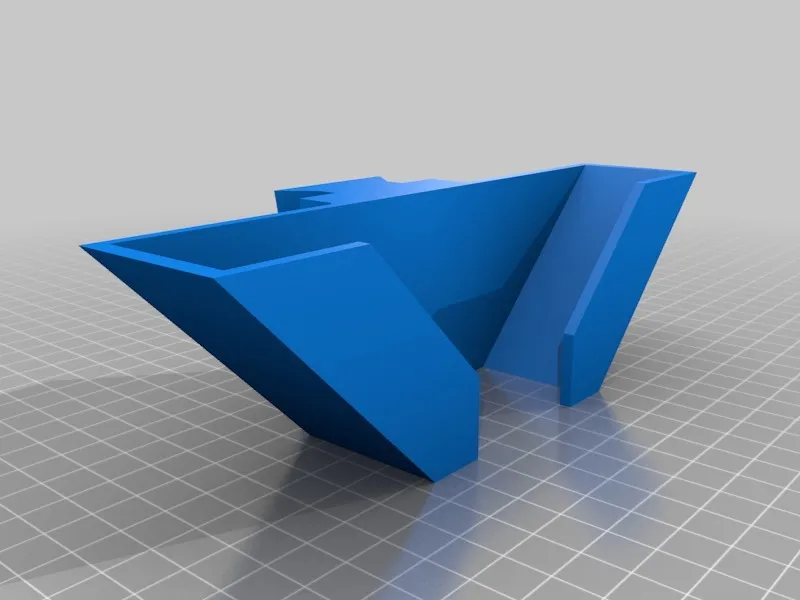

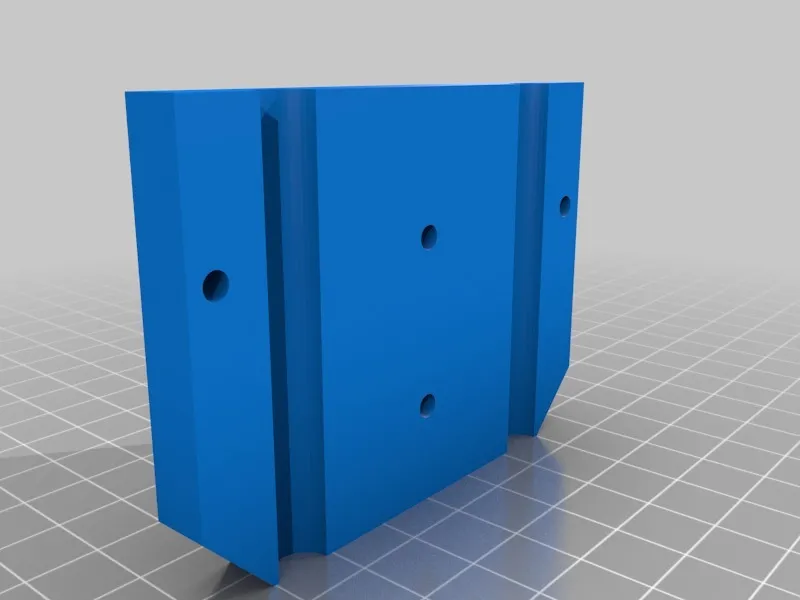

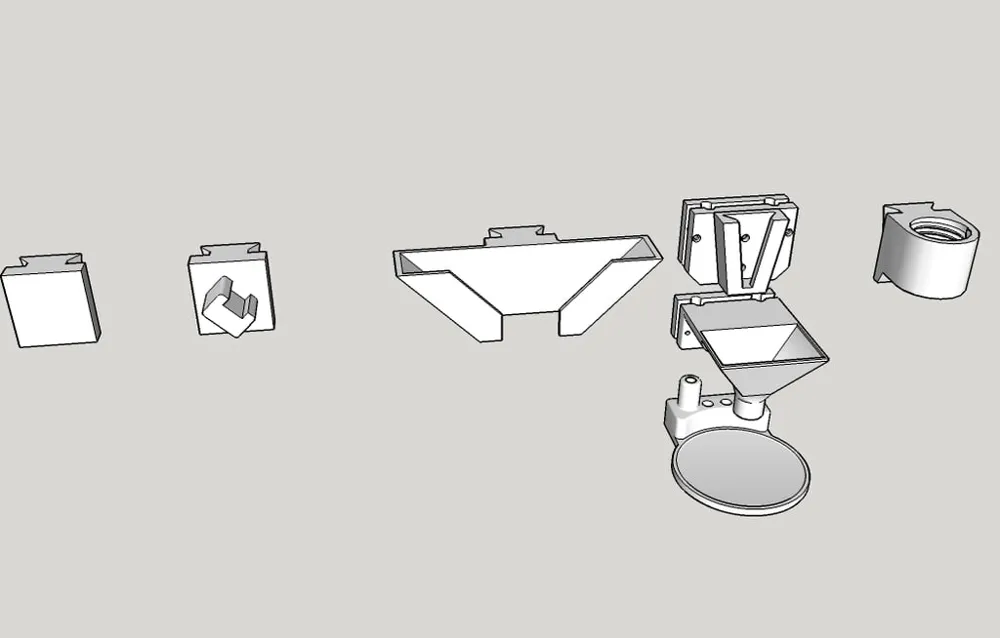

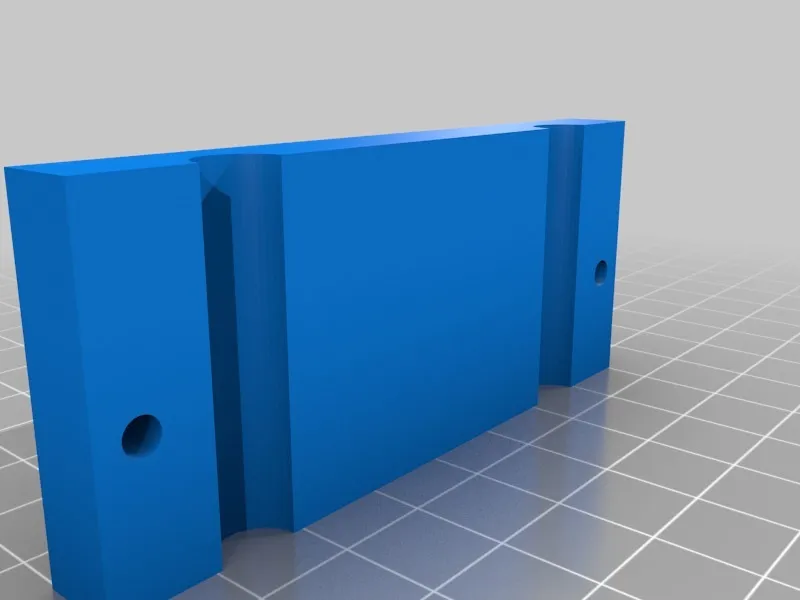

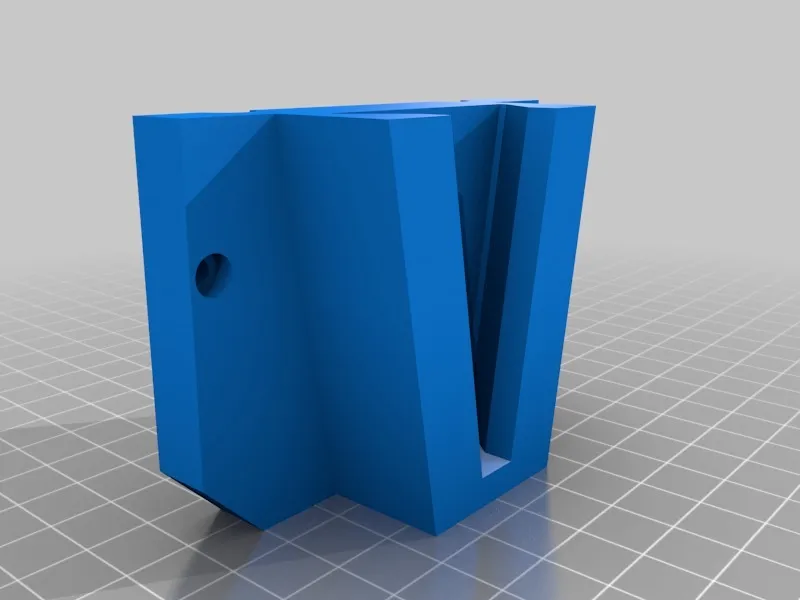

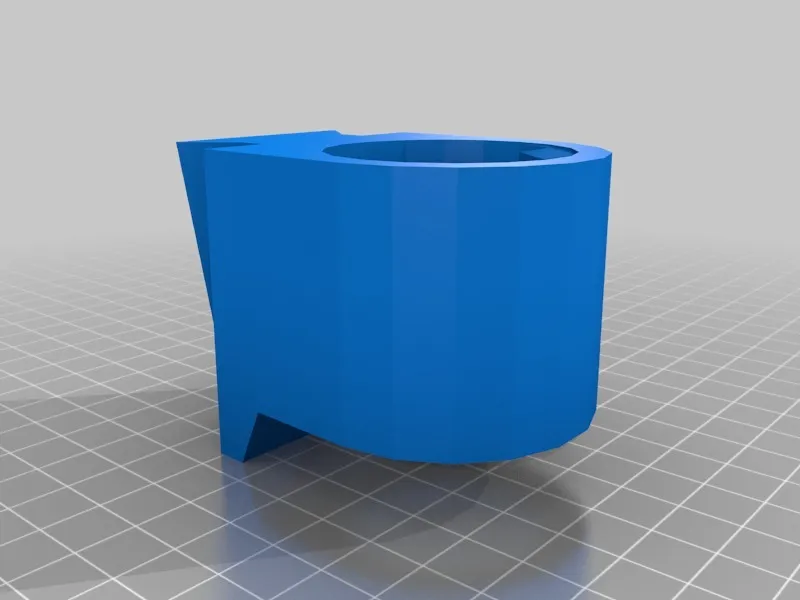

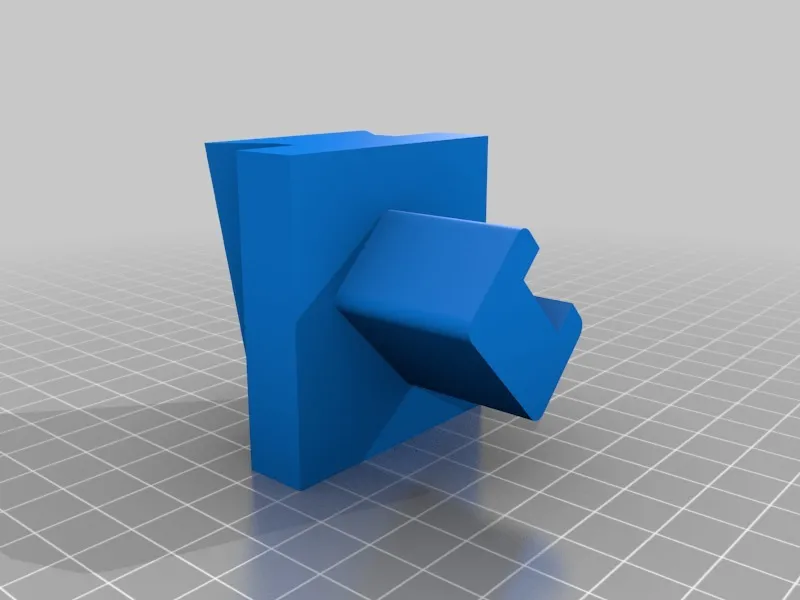

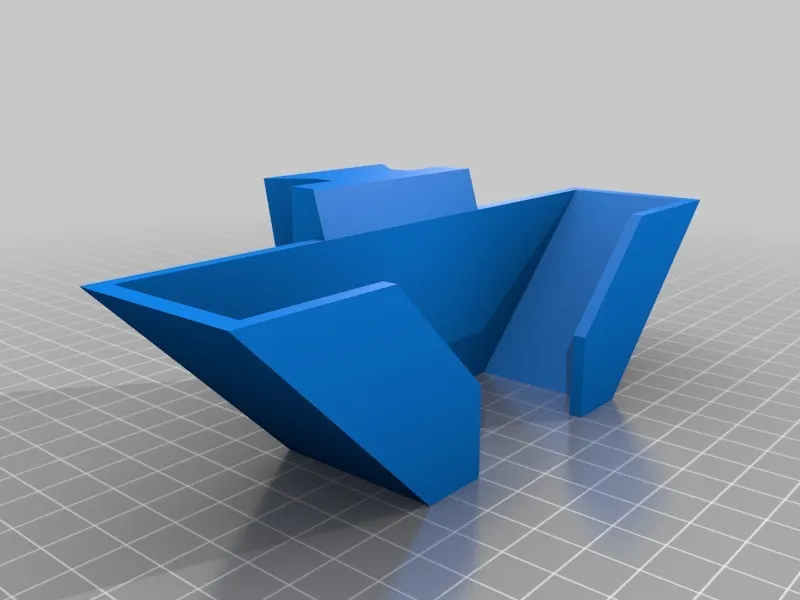

This is a modular drip tray for resin printing. I made the top portion modular to include a bottle adapter to empty one bottle into another, an angled build plate drip, one to hold the vat to drain, and included in the .skp is a blank adapter to add any other attachments you wish.

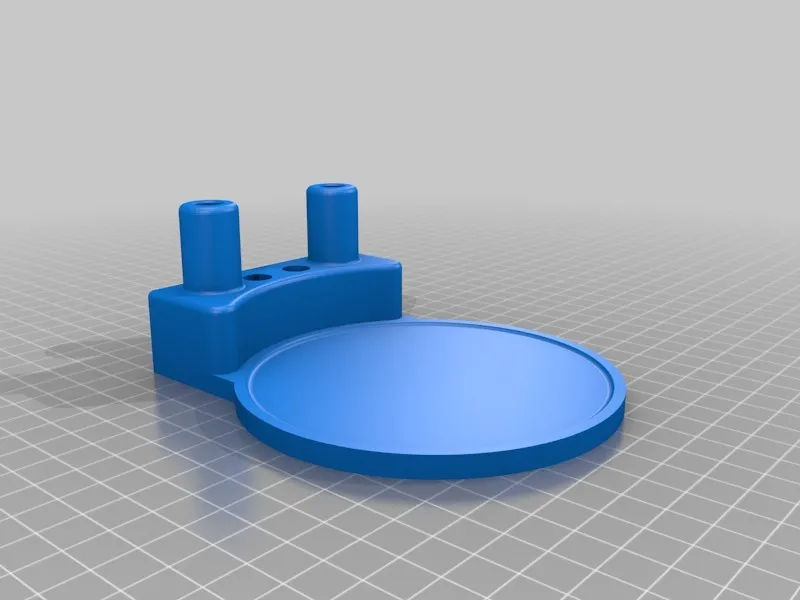

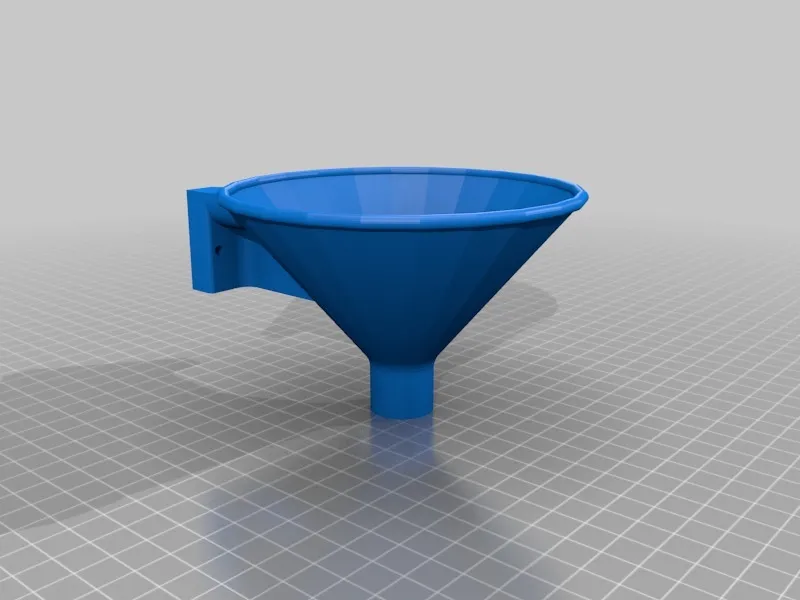

UPDATE: Added a new round funnel section that should fit a standard paint filter

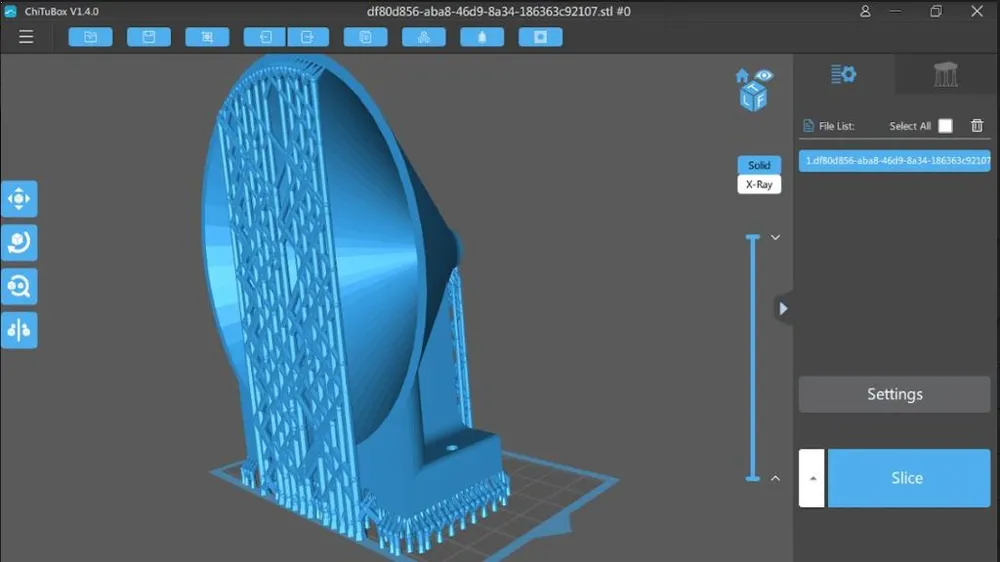

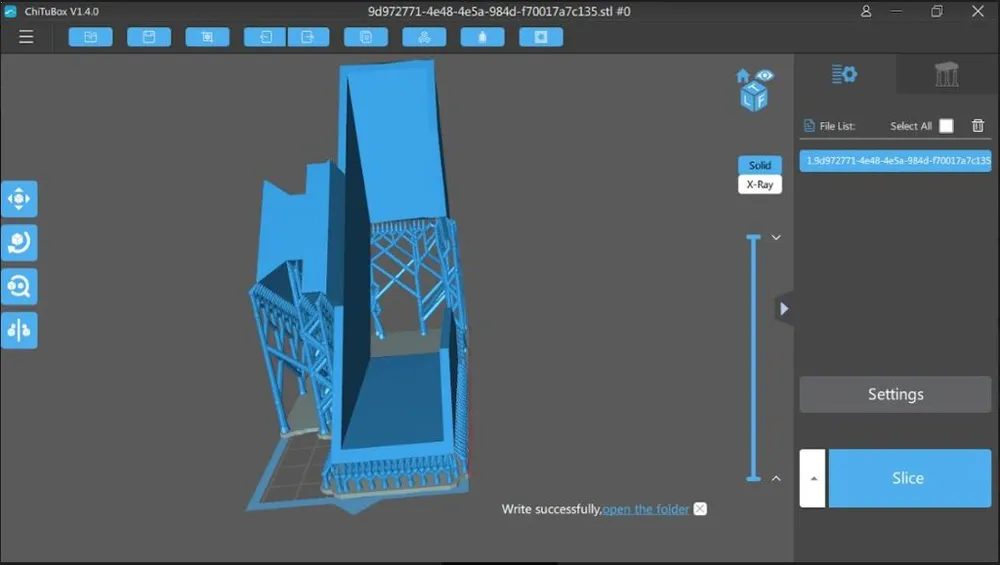

Added Resin Trap Tray V3 and Resin Trap Funnel V3- Resized tray holder and funnel to be able to fit on a SLA buildplate (specifically the Elegoo Mars) for those without FDM printers.

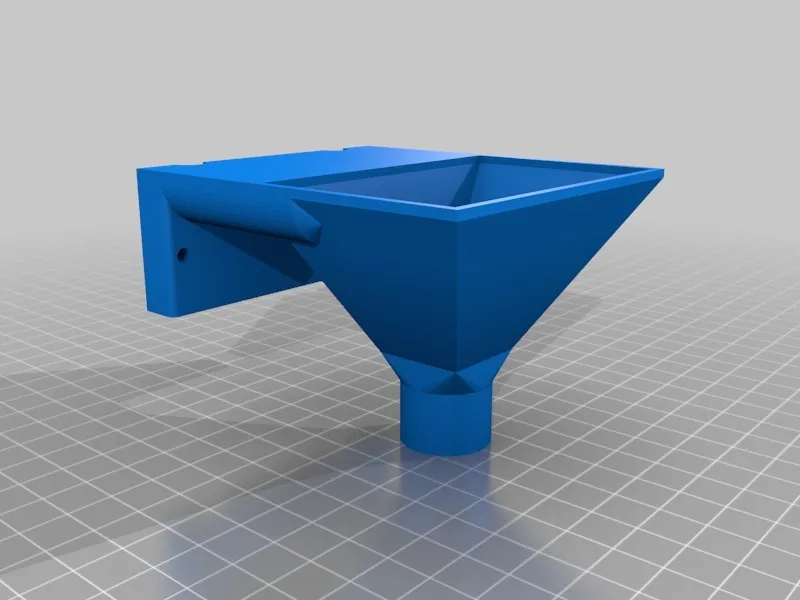

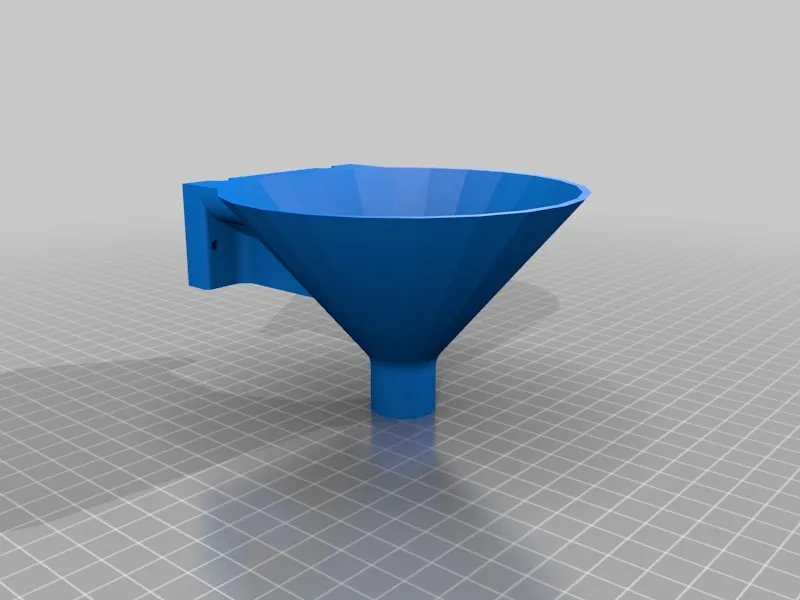

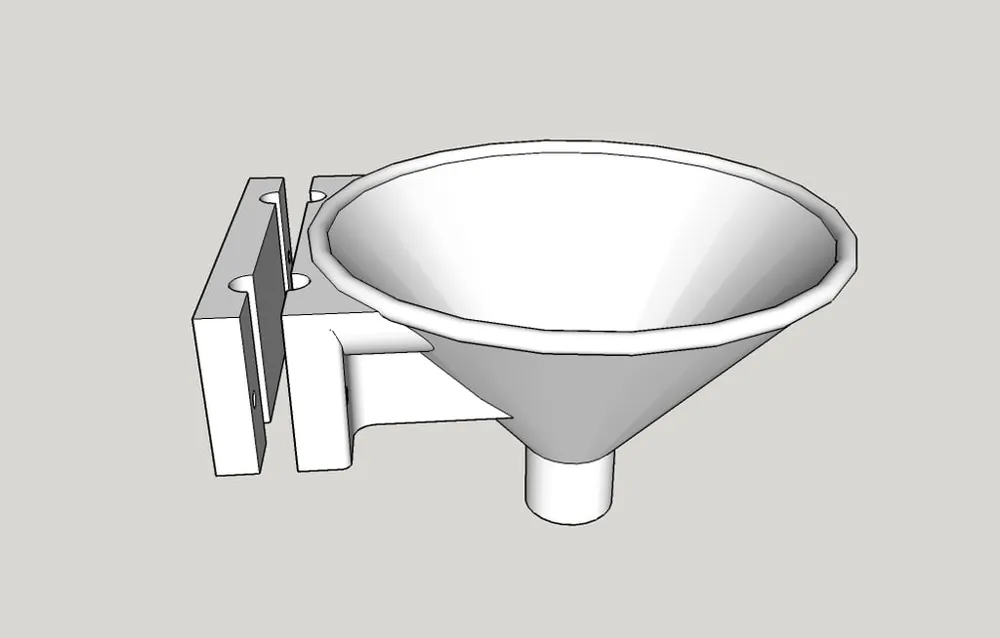

Added Resin Trap Funnel V4 - changed the geometry of the funnel and increased the wall thickness to print better.
