Interlock Rod
IP Report
Print Profile(2)
0.16mm layer, 2 walls, 15% infill
Designer
1.7 h
1 plate
0.16mm layer, 2 walls, 15% infill, add extension
Designer
3.8 h
2 plates
Open in Bambu Studio
Boost
9
14
2
2
17
10
Released
Description

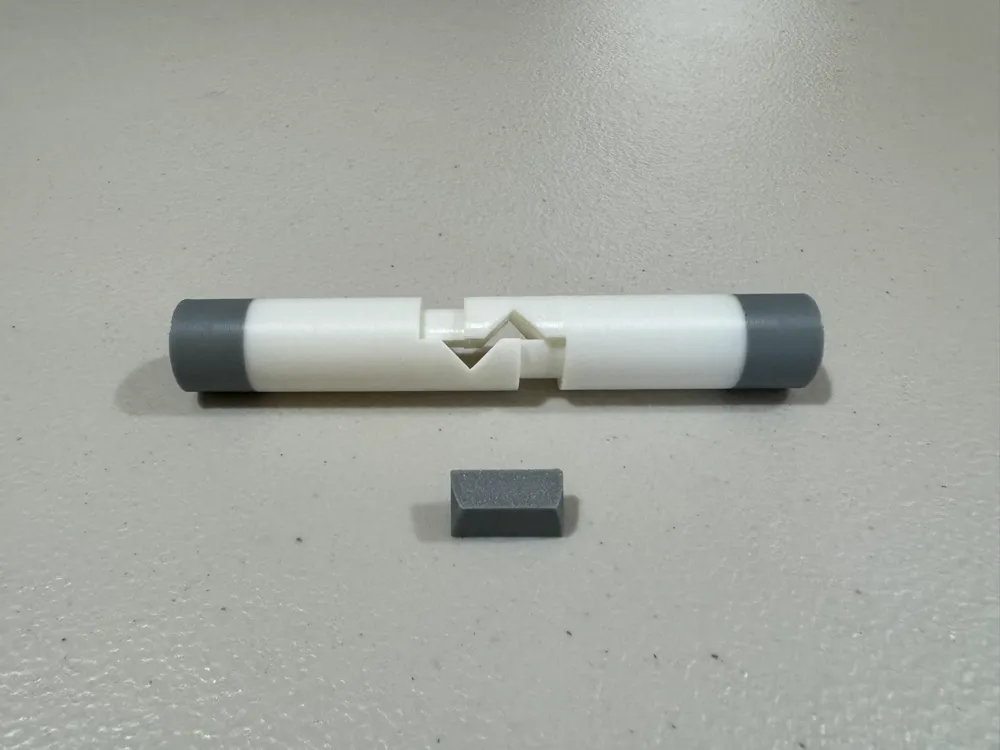

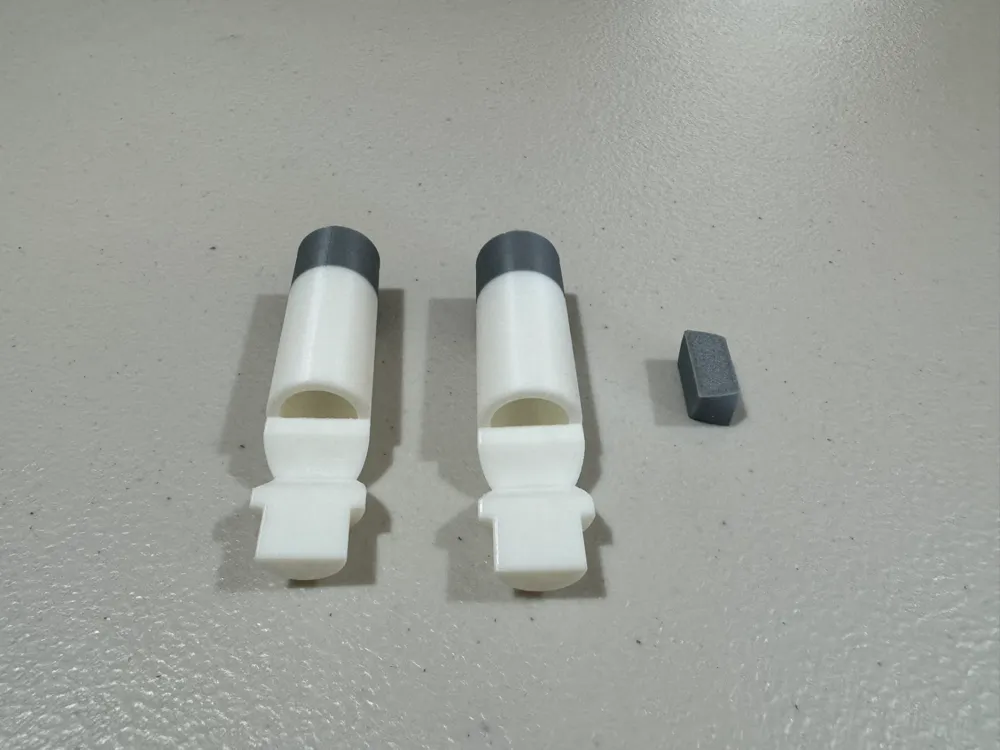

A simple rod to demonstrate mortise-and-tenon joint, you can use this instead of glue to make long rob or apply it in other models.
My printer is small,180x180mm. There are many big models that I can't print, or glue is used to put parts together. This mortise-and-tenon technique can be used to solve this problem perfectly, unless you want your model to be airtight/watertight.
This is my first design, and first print works out perfectly. (Please ignore the color profile :))
The size is bit small as I was expecting multiple iterations, didn't want to waste too much material. Scale the model to your desire.
And enjoy!
