Customizable cable holder

Overview

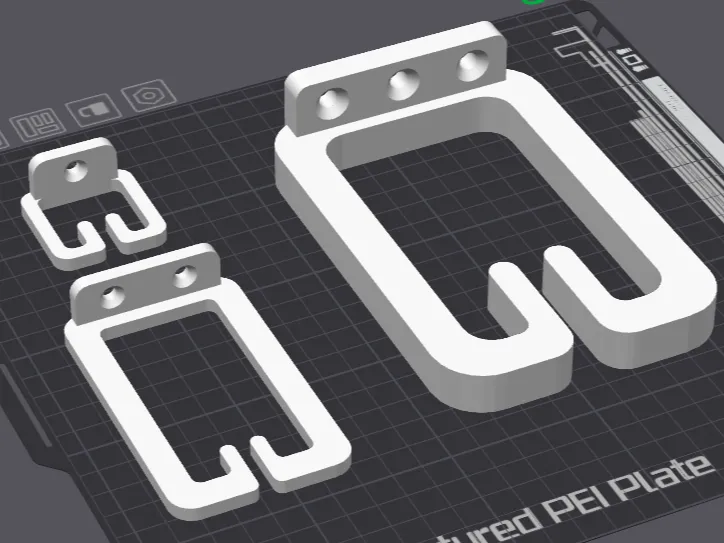

This customizable cable management arm is a versatile and practical solution for organizing and securing cables. The model is created using OpenSCAD, providing users with the ability to adjust various parameters to suit their specific needs.

Key Features

• Parametric Design: Allows full customization of dimensions such as length, height, width, thickness, and curvature.
• Cable Entry Hole: Adjustable hole size to accommodate different cable diameters, featuring inner retaining ears to secure cables in place.
• Holder Base: Configurable base plate dimensions with options for screw holes and countersinks, ensuring a secure mounting on diverse surfaces.
• High Resolution: Modeled with high-resolution settings to ensure smooth and precise 3D prints.

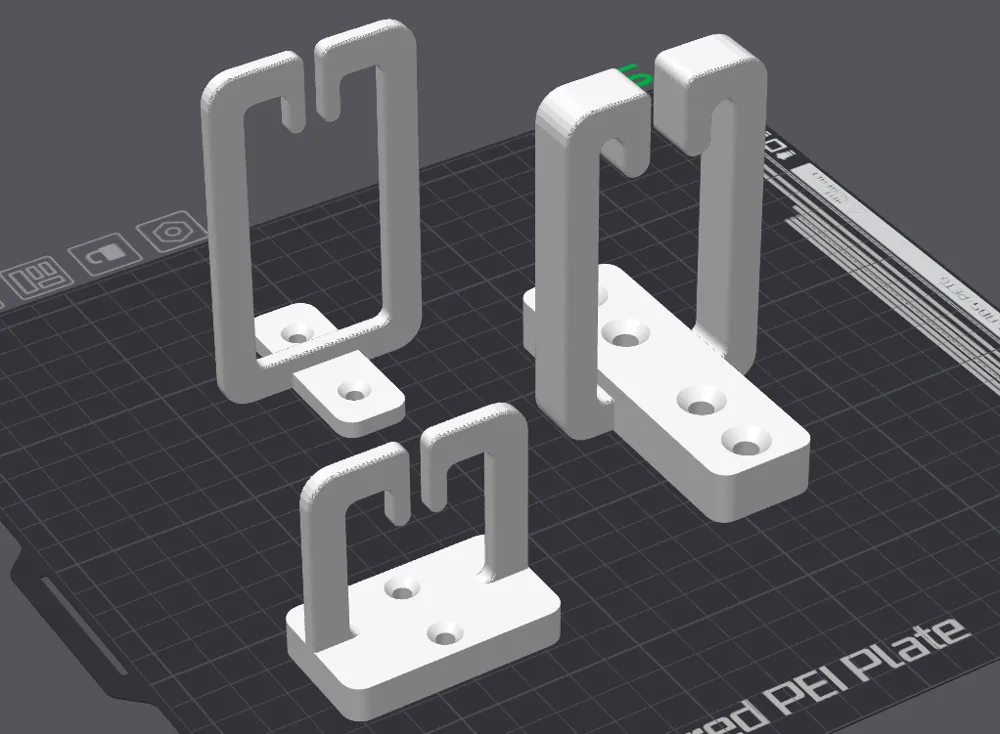

• Multiple baseplate positions and styles

Customize

• Online at MakerWorld - just click on "customize", fill out the web form and download your STL
• On your computer with OpenSCAD - edit the source to change parameters then export your STL
• Also available at Printables

Printing instructions

• Select any material (PLA is good for indoors use if you make it beefy enough)
• Print flat with no support
• Prefer concentric surface patterns
• Use thick walls for added strength

Contribute

• Pull requests are welcome on GitHub
• Comment, like, subscribe, publish your makes

Changelog

v1.0 (2024-07-11)

• initial release

v1.1 (2024-07-13)

• fix final output rotation
• add support for different base styles
• add automatic failsafe for base_radius
• add 1mm rounded edges to the holder arm

v1.2 (2024-07-13)

• published on github
• updated README

License

CC BY-NC-SA (c) by Erno Rigo erno@rigo.info

Free for private use. For commercial usage please contact the author.
