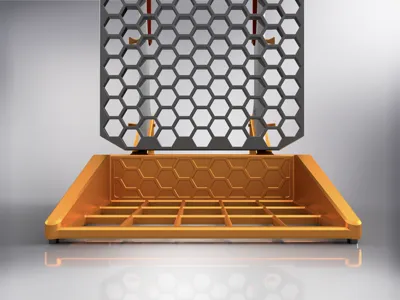

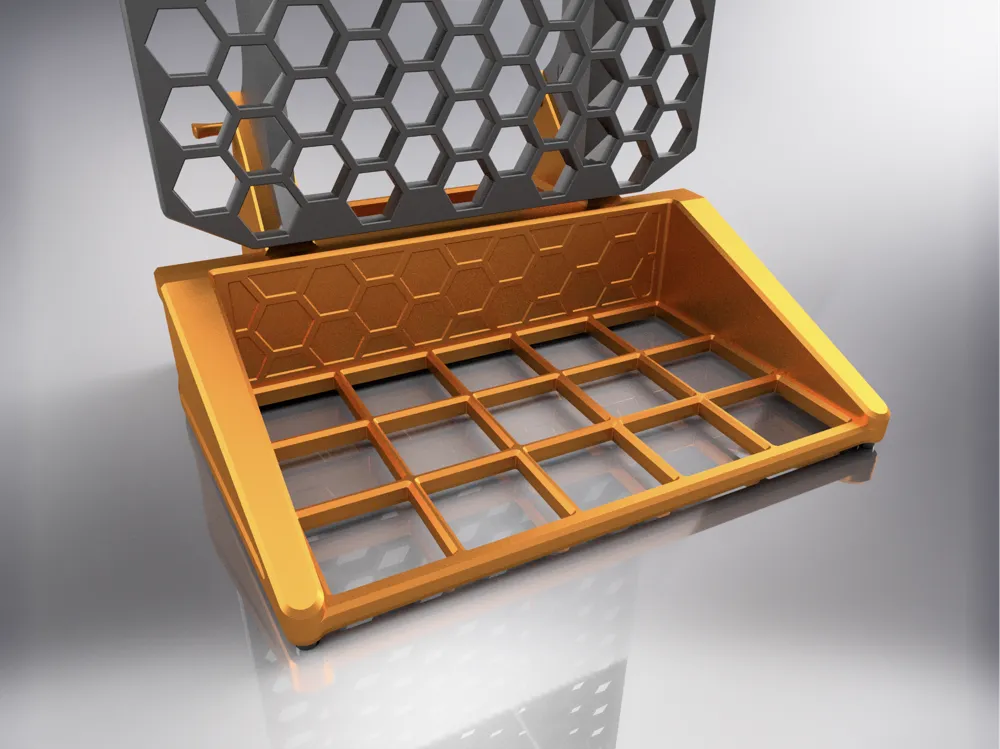

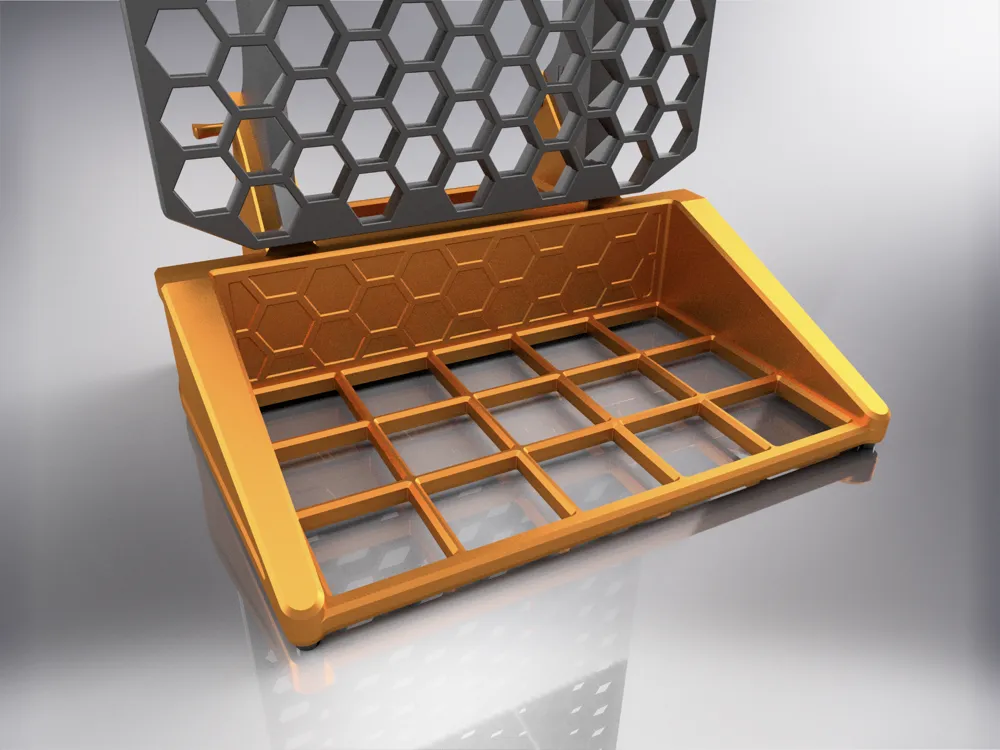

Gridfinity Base for KYZ HSW Display Stand - Large

Introduction

This is used as a replacement base for this display stand - please go to this model page for general information.

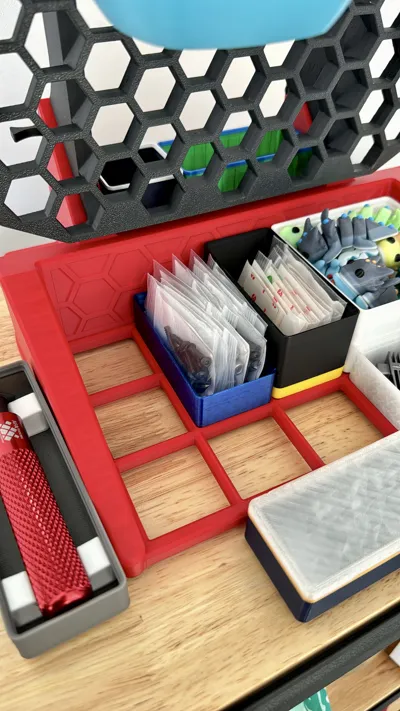

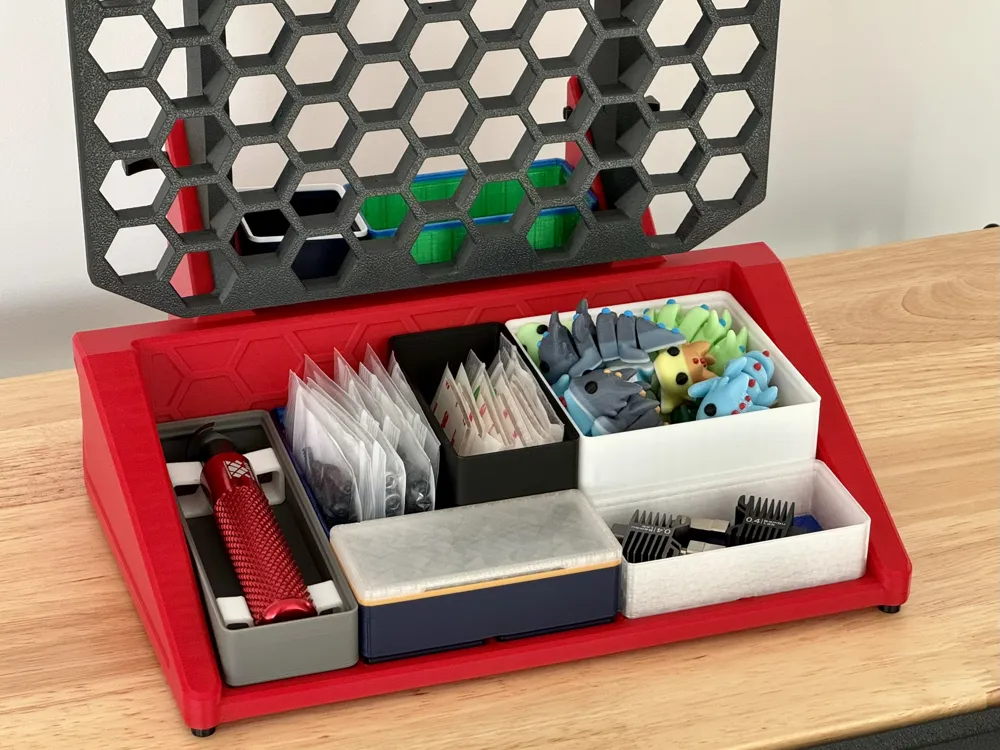

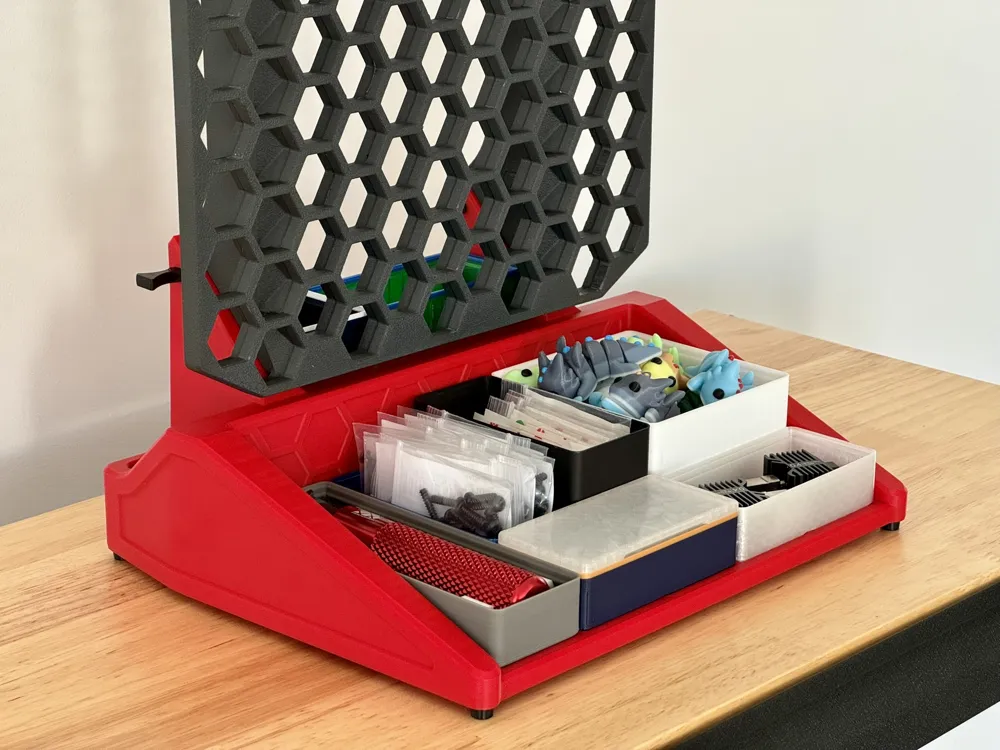

Compatible with standard (42mm) Gridfinity modules.

Uses the same TPE/TPU feet as the original display stand.

Materials

• Any stiff material (PLA/ABS/PETG, etc)
• Whilst PLA will be fine for general indoor use, be wary of using PLA if this will be in a hot car, or in the sun on a warm day (especially if it's a dark colour)

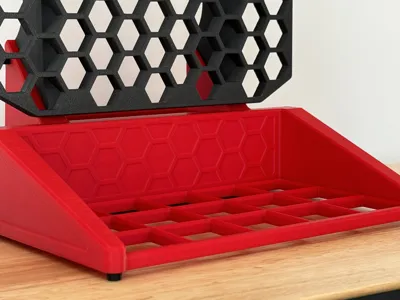

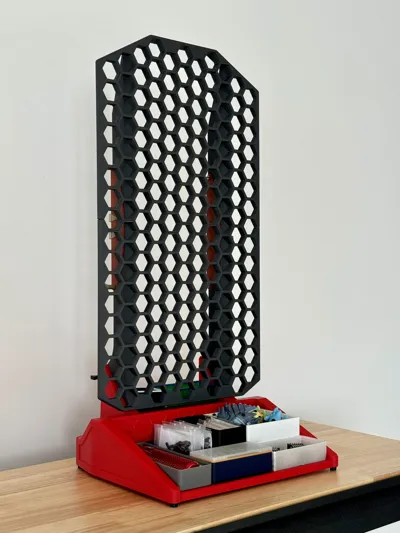

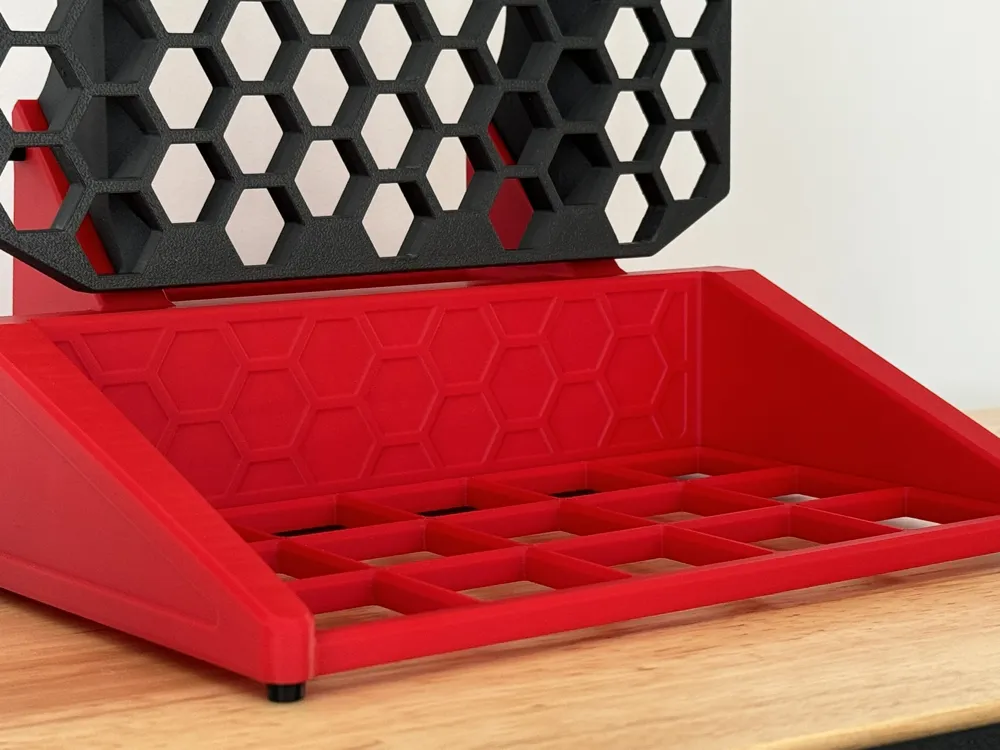

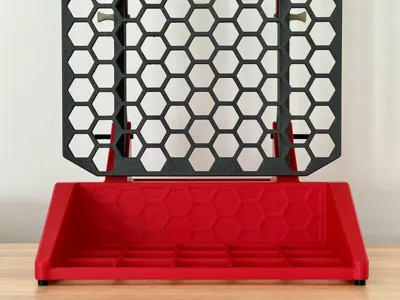

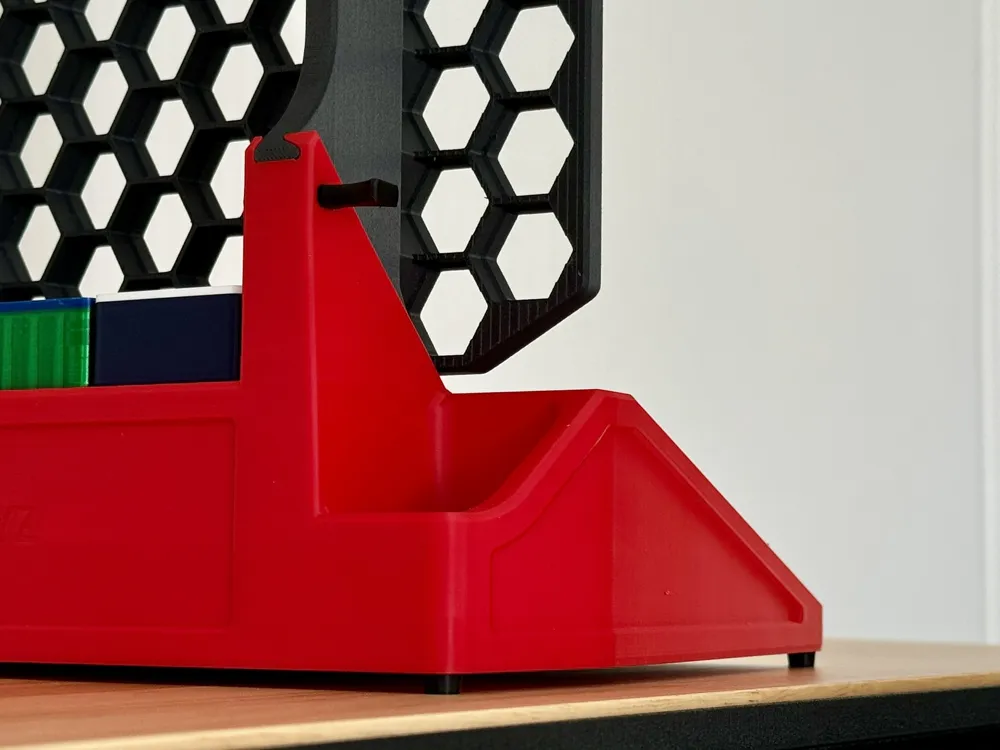

• (The red one in the photos is made with ABS)

Print settings

Tested with a 0.4mm nozzle. With this:

• If PETG - use 4 perimeters
• If PLA/ABS/ASA/PETG-CF/etc. - use 3 perimeters
• 4 bottom layers and 5 top layers
• Infill of your choice
• Print outer walls slowly for a strong part with consistent gloss level
• If your printer has an auxiliary fan, turn this off - the layer times are already high to ensure each layer is cooled before the next layer, and there are very few overhangs to worry about
• The rest is up to you

General precautions apply for printing large parts - ensure your build plate is clean (wash with hot water and dish soap and dry with a clean towel), add mouse-ears and/or apply some glue in the corners if you often have adhesion issues.

Support

If you would like to say thanks, please post a make and share here and on socials. You could buy me a few metres of plastic on Ko-Fi otherwise, please post a make and check out my other HSW models in this collection. If you are using these stands as a part of your business and are finding it helpful, please consider buying this price label model to support more projects like this.

Remixes with significant changes are very welcome.

But what is a “Gridfinity”?

Start with this video (and I am sorry, you will only print rectangles from here on).
