X1 / P1P PTFE Tube Guide REMIX V2 Remixed by starfalk

Remixed by

starfalk

3D Printer>3D Printer Accessories

Print Profile(2)

All

X1 Carbon

P1S

P1P

X1E

0.2mm layer, 2 walls, 15% infill

Designer

37 min

1 plate

4.8(130)

Well supported, strong 25% infill, 0.2mm layer, 2 walls, ABS-ABS+

25 min

1 plate

5.0(7)

Boost

125

302

150

755

692

Released

Description

17.12.2023:

I advice to not use additional tube clips because they restrict the movement of the PTFE tube too much, what leading to colission.

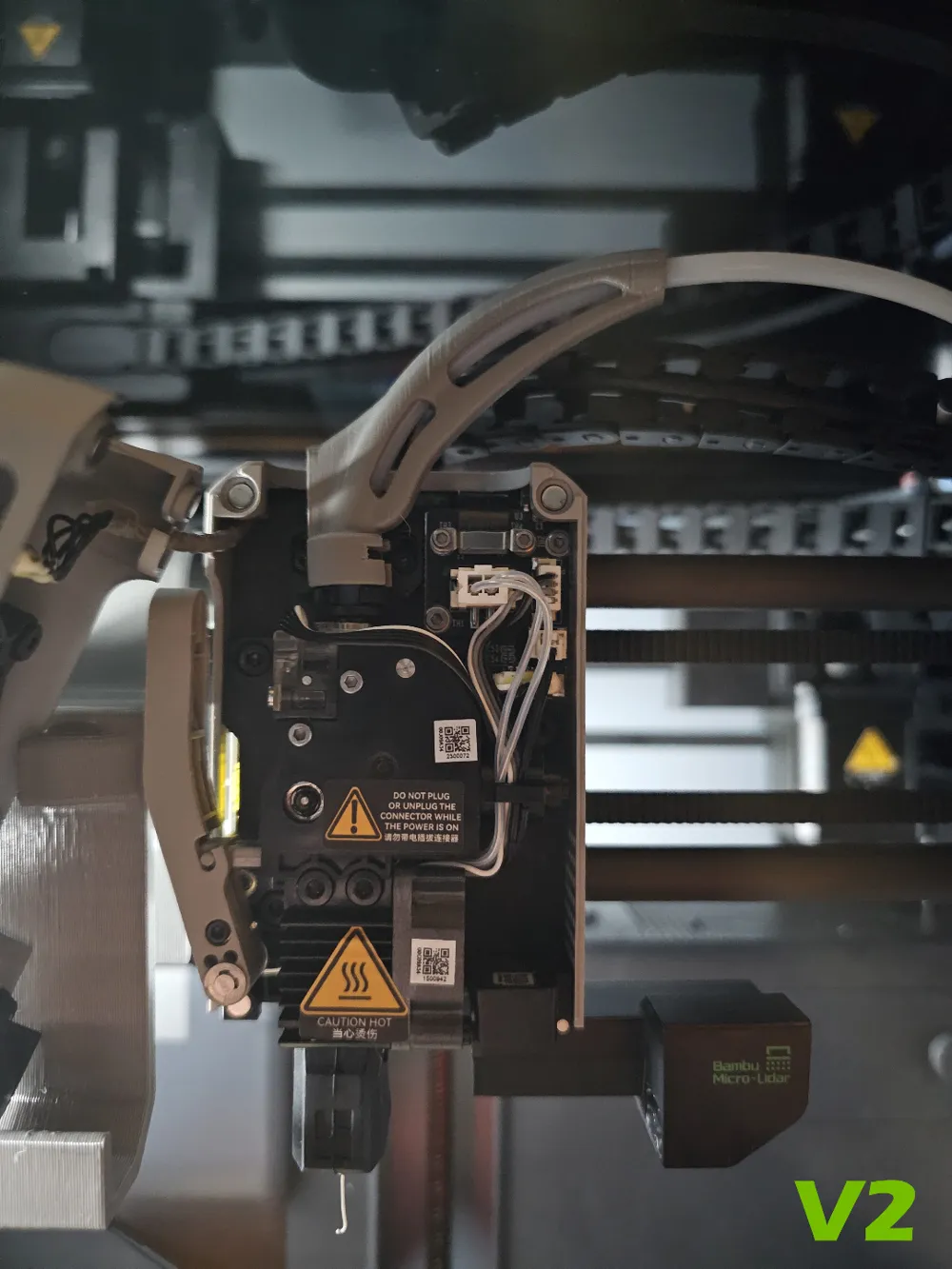

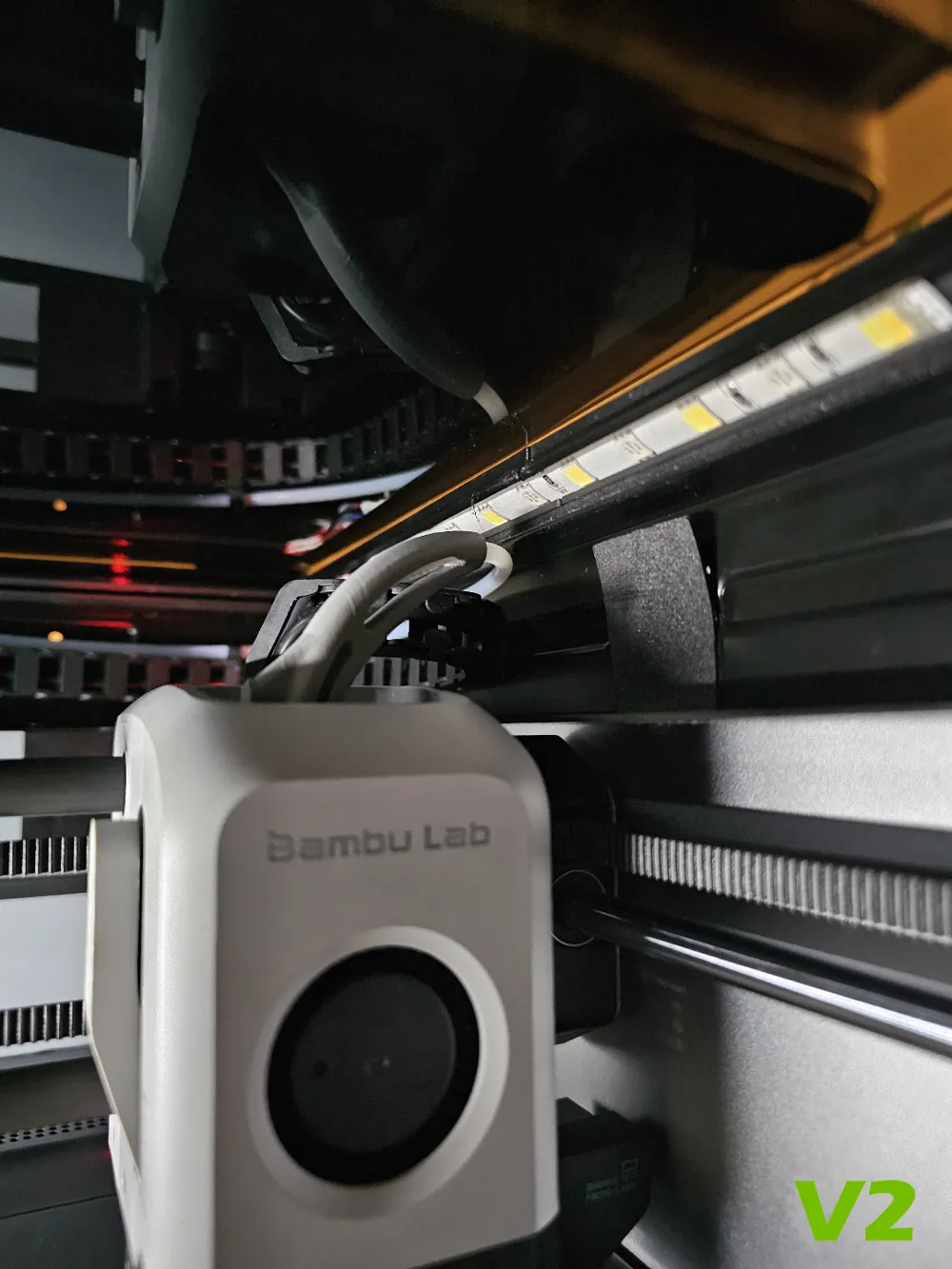

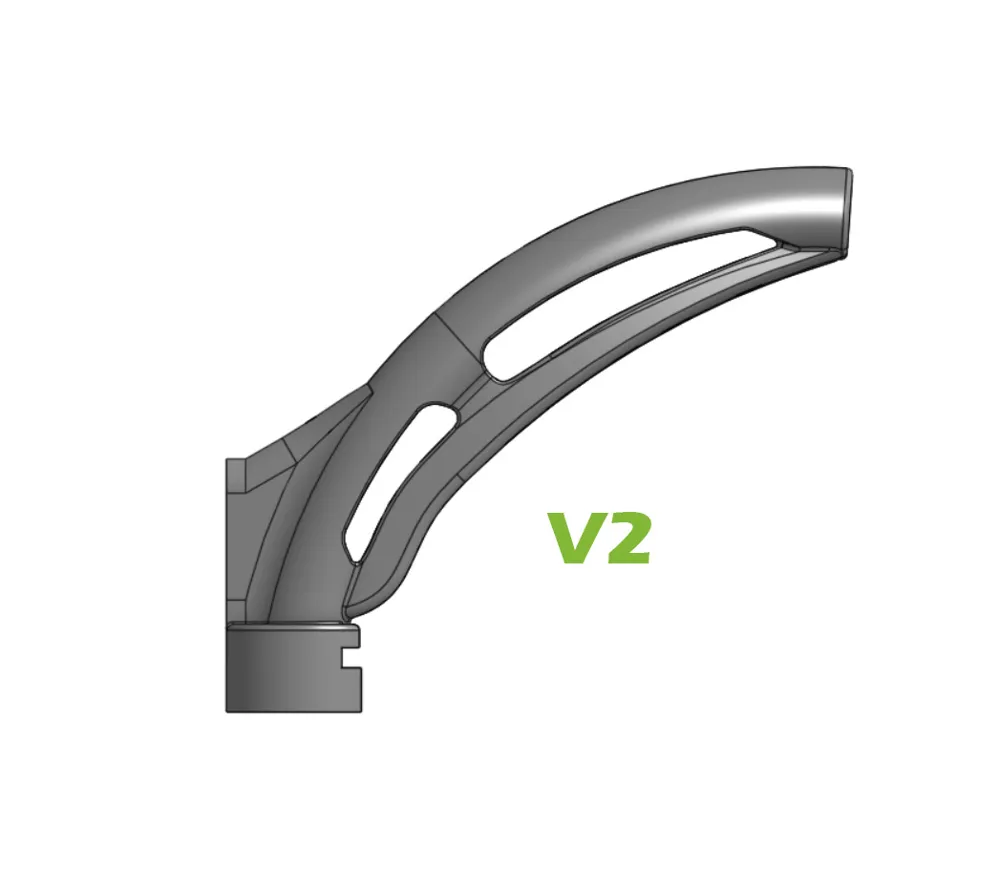

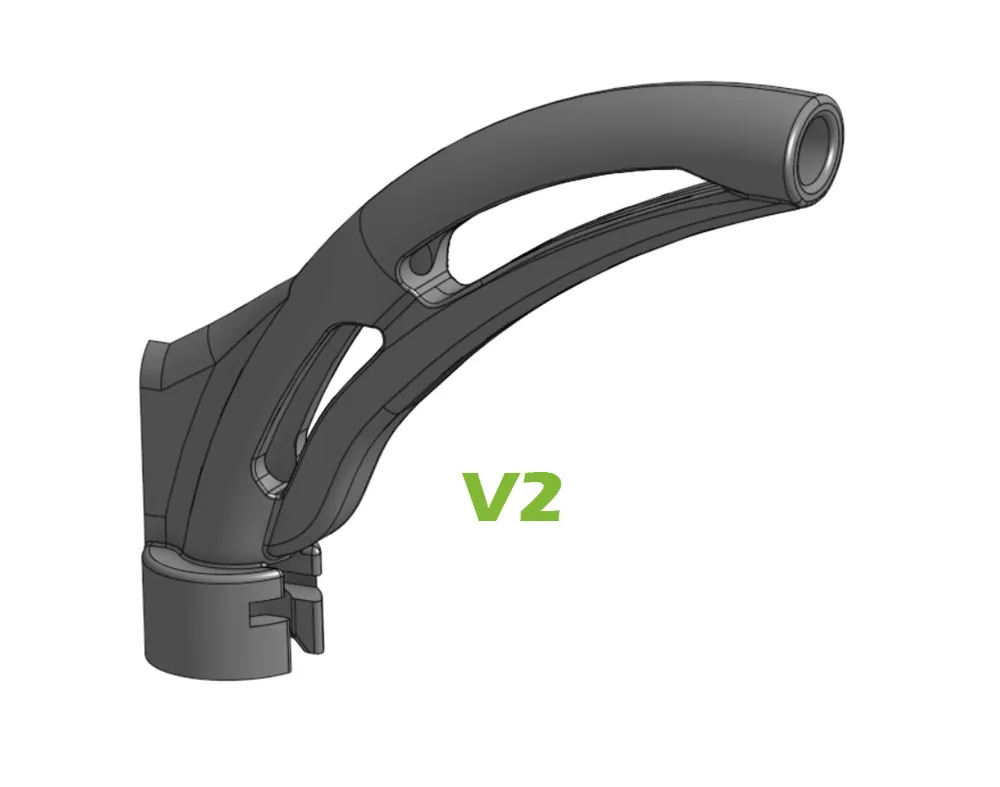

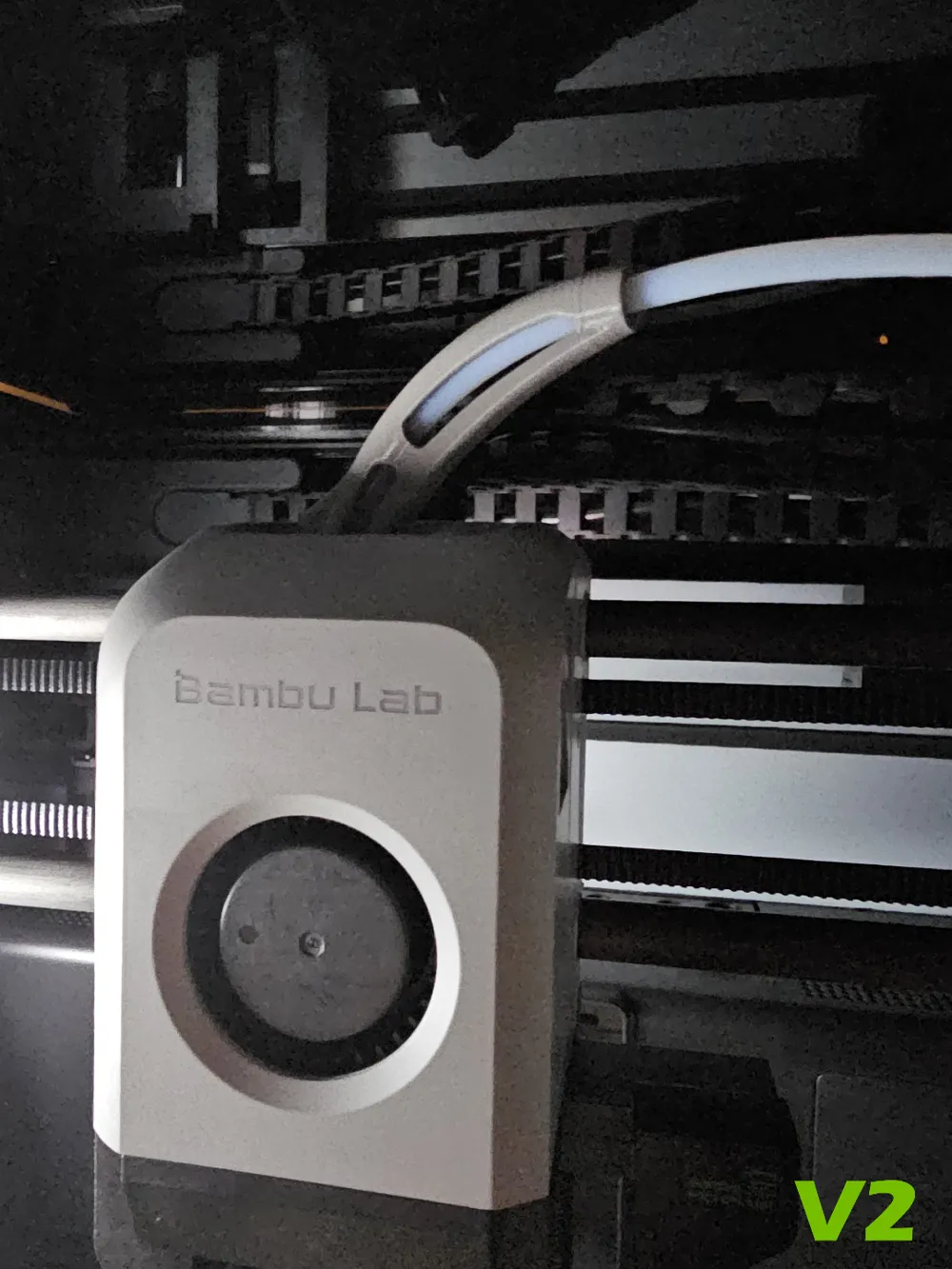

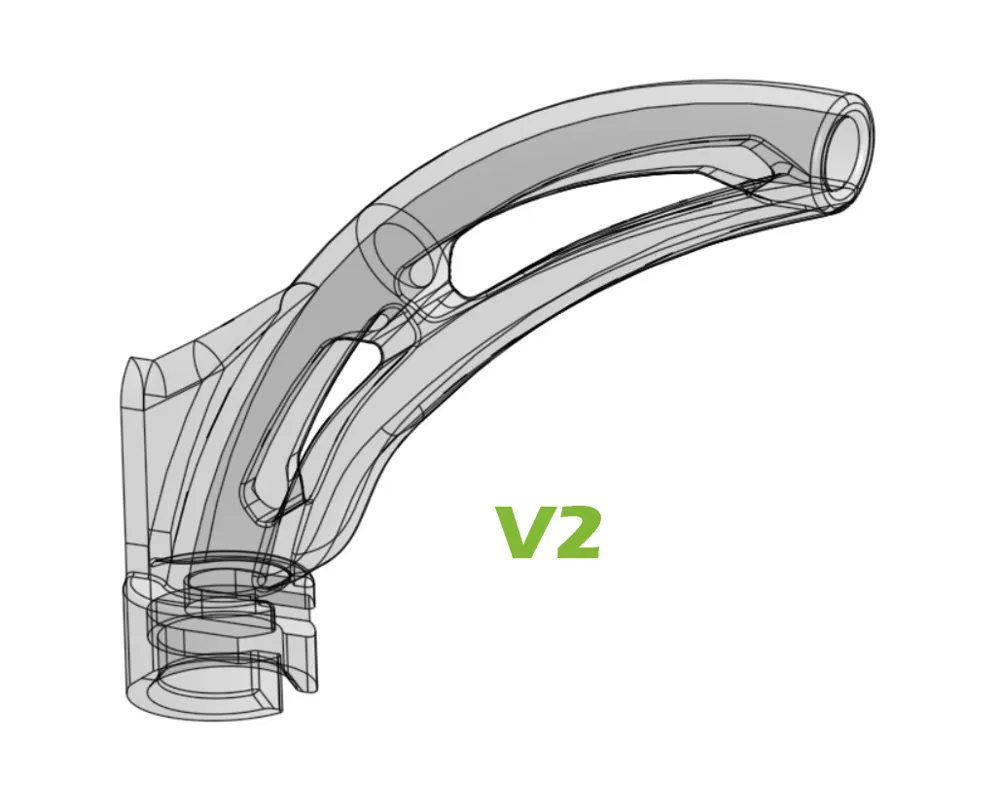

I modified the original support structure to add a bit more clearance to the wire chain. In my opinion it is a minimal improvement, but atleast it looks cleaner ;)

It would be nice if someone give me feedback. I will try to help or adapt the model.

Comment & Rating (150)

@Pretzel3D

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

printed well and brings my ptfe tube down lower so it doesn’t rub on the top when closed

@fr3chdachs

Print Profile

0.2mm layer, 2 walls, 15% infill

Printed in petg with 50% speed. Install IT tomorrow

@BigBlueBoy3

Print Profile

0.2mm layer, 2 walls, 15% infill

Great design but adhesion could be improved (printed via app with PETG)

The designer has replied

@starfalk

print on engineering plate should solve the problem. In my opinion the texture pei plate, especially the gold one, has a very bad bed adhesion. I have a very bad experience using this plate.

(Edited)

@gecko001

Print Profile

0.2mm layer, 2 walls, 15% infill

Super 1A in Petg gedruckt

@_Crosswerx_

Print Profile

0.2mm layer, 2 walls, 15% infill

Perfect Print with PETG, thanks.

@apt3d

Print Profile

0.2mm layer, 2 walls, 15% infill

Printed perfectly, it I broke it putting it on. Printed in PETG. Will print another as I like this one a lot more than the previous one.

@LuemmelLegolas

Print Profile

0.2mm layer, 2 walls, 15% infill

Printed well. Fits perfect

@schiko

Print Profile

0.2mm layer, 2 walls, 15% infill

Printed in Bambu ABS silver. TYVM!

@njkenn20

Print Profile

0.2mm layer, 2 walls, 15% infill

I constantly had this film on the top glass of my P1S and i did research and i found i needed to have a piece added to my printer like this and i chose this one because it looked easy and simple to print and looked durable.
