An overlapping circles grid is a geometric pattern of repeating, overlapping circles of an equal radius in two-dimensional space. Commonly, designs are based on circles centered on triangles (with the simple, two circle form named vesica piscis) or on the square lattice pattern of points. Patterns of seven overlapping circles appear in historical artefacts from the 7th century BC onwards; they became a frequently used ornament in the Roman Empire period, and survived into medieval artistic traditions both in Islamic art (girih decorations) and in Gothic art.
The name "Flower of Life" is given to the overlapping circles pattern in New Age publications.
It is convenient to print the lamp from PETG material. When using PLA, deformation could occur if a more powerful LED strip, which heats up more, was used.

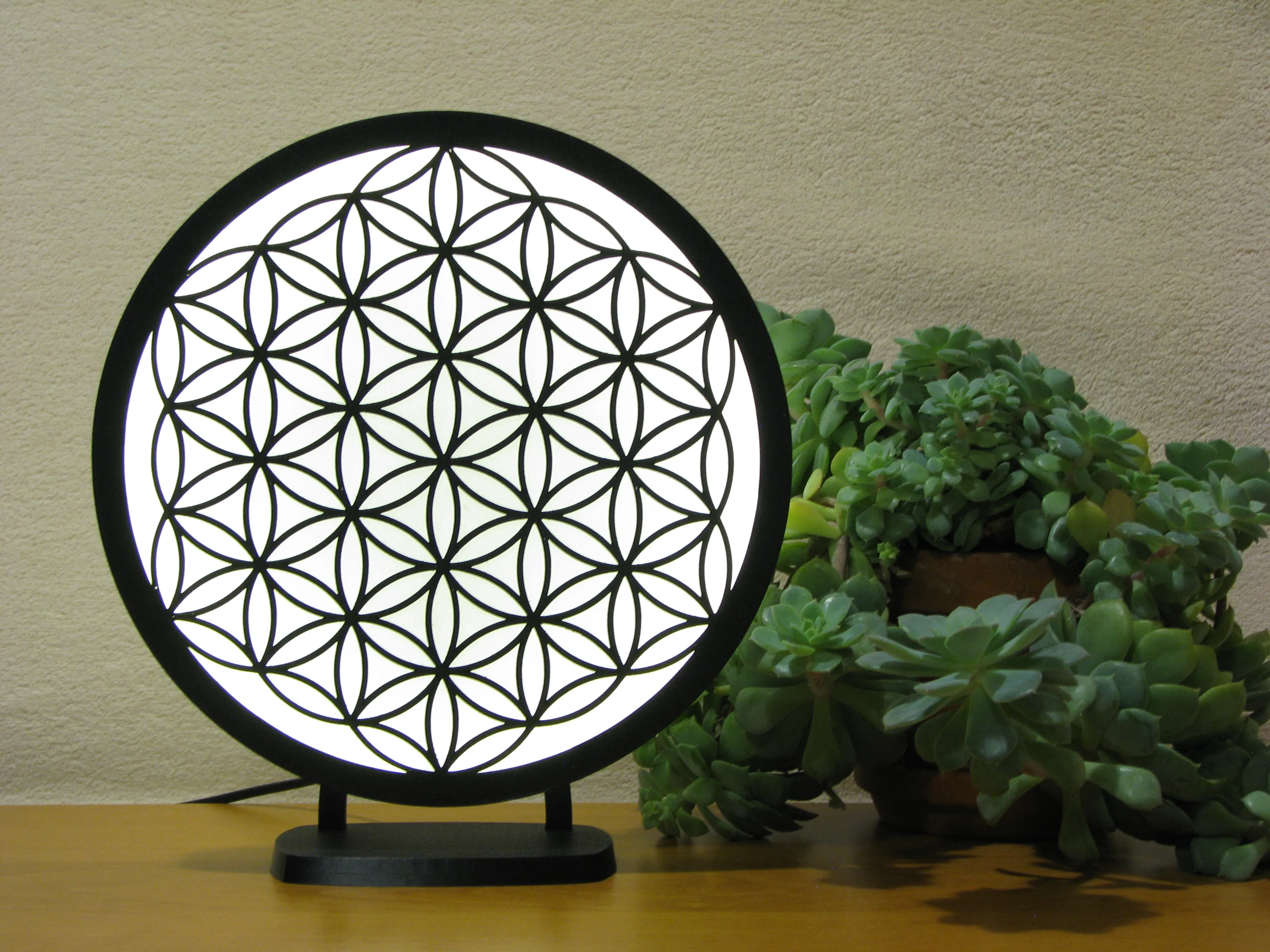

Lamp parameters:
Lamp diameter: 20cm
Total height with stand: 22.5 cm
Removable stand
Possibility of hanging on the wall
Continuous regulation of lighting intensity
Light color: warm white
Power supply from USB adapter: 5V/ 1A
Length of power cable: 150 cm
Connector type: USB A
Can be used as a standing or wall lamp
5V 5mm COB Light Strip or 5V USB LED Strip - warm white
4x screw 2.9x13 mm
2x M4x8mm screw
USB adapter 5V 1A
USB Port Power Supply Cable DC 5V LED Dimmer 2pin
Start assembling the lamp by threading the power cable through the back cover and screwing it to the back wall with four screws. Stick the LED strip around the perimeter of the lamp. Insert the "glass" into the front part and put the whole thing on the back part. The latches must fit into the recesses in the back part. Nothing needs to be glued. If you want to use the lamp as a table lamp, assemble the stand by inserting the parts into each other and screw two M4x8mm screws into the holes in the upper part, on which the lamp will hang. You must not tighten the screws completely, there must be a gap under the head. If you want to use the lamp as a wall lamp, you do not need to print the stand and hang the lamp directly on the wall.
With its pleasant light, the lamp will create a pleasant and relaxing atmosphere for moments of relaxation, rest or meditation.
