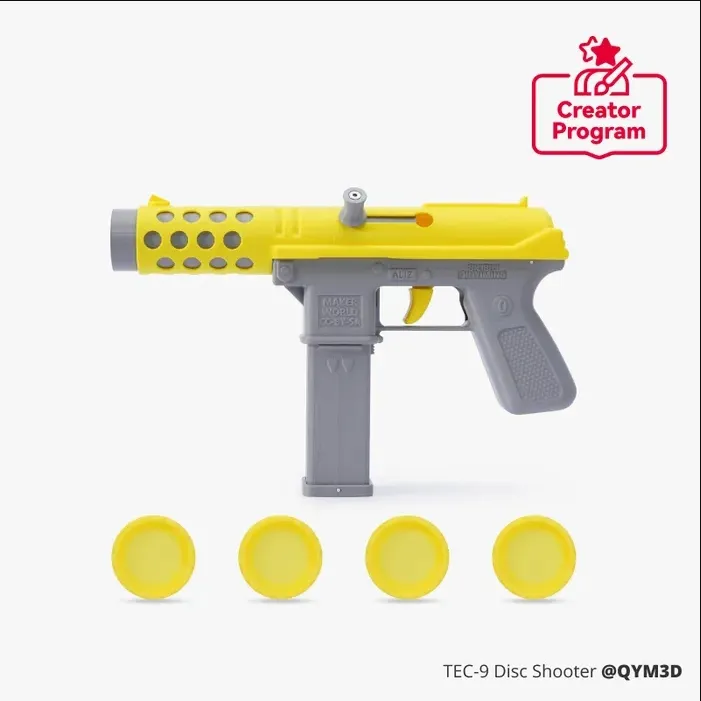

TEC-9 Disc Shooter飞盘发射器 by 脑洞造物秦一鸣 QYM 3D

脑洞造物秦一鸣 QYM 3D

Props & Cosplays>Replica Weapon

Print Profile(6)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

X1、P1、A1-Two colors

Designer

8.9 h

3 plates

4.6(20)

A1mini (PLA) 0.2mm layer, 3 walls, 15% infill

9.2 h

4 plates

5.0(5)

PLA DISC ONLY

17 min

1 plate

5.0(4)

PETG 0.2mm layer, 2 walls, 15% infill

11.8 h

4 plates

4.4(7)

Click to see more

Boost

834

1399

130

2.2 k

372

Released

Description

此模型已加入CC BY-NC-SA 4.0 共享协议，个人玩耍随意，商业用途请联系本人获取授权。

Following the trend, the launch mechanism refers to the popular 6-Shot Disc Shooter
Appearance reference TEC-9 submachine gun (semi-automatic)
Default support required (support hanging angle 10 °, tree shape)

It is best to use PLA printing for the trigger, as PETG has insufficient toughness and is prone to damage

If the trigger is stuck, please lubricate the slide rail or remove the pull handle and baffle

Assembly process: https://www.bilibili.com/video/BV166421Z7jL/

Update:
1、The printing configuration has added a segmented model (Split 2) of the gun barrel that is compatible with A1 mini. You can print it separately and use glue to bond it together

2、The pull handle is relatively easy to damage, so I added an M3 screw reinforced version to the original STL model.

3、Three levels of trigger power available

This model has been added to the CC BY-NC-SA 4.0 sharing protocol. Personal play is optional. For commercial purposes, please contact me for authorization

跟风之作，发射机构参考前段时间流行的6-Shot Disc Shooter

外形参考TEC-9冲锋枪（半自动）

默认需要支撑（支撑悬垂角度10°，树型）

扳机最好使用PLA打印，PETG韧性不足容易损坏

如果扳机卡顿，请对滑轨润滑或拆除拉机柄和抛壳挡板

DIY交流群：477845792（QQ）

更新：

1、打印配置增加了适配A1 mini的枪管分件模型（分盘2），你可以分件打印后用胶水黏合使用

2、打印的拉机柄比较容易损坏，所以我加了个M3螺丝加强版本放在STL原模型里。

3、扳机三档威力可选。

Bill of Materials

Bambu parts

M3x25 FHCS Machine Screw (5PCS) - AA090

B-AA090

× 1

List other parts

2cm Rubber bands 直径橡皮筋*3 https://item.taobao.com/item.htm?spm=a1z10.3-c-s.w4002-22649698662.9.409444880Mz9mV&id=14184615448 1.75mm filament 耗材丝*10cm（锁定零件） Optional upgrade 可选升级： M3x25 screw 沉头螺丝*1（Enhance intensity提升强度） https://item.taobao.com/item.htm?abbucket=10&id=652794295662&ns=1&spm=a230r.1.14.65.52bc63b026eYeF&skuId=5175284271085 Lubricating grease 润滑脂 https://m.tb.cn/h.g5PachWAWgryLTx?tk=JktWWziZIMb HU0854 Purchase link for reference only 购买链接仅供参考，参数一样情况下可自由选择。

Purchase from Bambu Store

Comment & Rating (130)

@TacticalKaoz

Print Profile

X1、P1、A1-Two colors

my cats love it 😀

@redheadedstrang

10/10 the reason im making it also xD My cat loves these! My dog on the otherhand eats the disks xD

(Edited)

@TacticalKaoz

Replying to @redheadedstrang :

I keep loosing the disk and printing more. I hope they are not being eaten haha

@TheMiguelBi

Boosted

Replying to @TacticalKaoz :

Does the cat really play with it?! I have to give it a try too! 👌🏻😹

@b6283089

Maybe I just can’t find it, but I cannot find the rest of the model. It only came with these parts. Please help.

The designer has replied

@mar_leo

Boosted

They are not on a build plate. You have to add 2 more plates and arrange the other parts on those plates. (using bambu studio)

@user_947174932

stl model

@b6283089

thank you so much

@DethBringa

Cool but has a few issues. Rubber bands are a nightmare to deal with. You have to have the exact size. Too big and the trigger doesn't return. Too small and they snap when you try to put the trigger mechanism into the body. The slide bolt is threaded but the hole it goes into is not and the fit is REALLY tight. I gave up and used a screw I had spare. Otherwise its great. Looks awesome and works well (except to needing to push the trigger forward manually).

The designer has replied

@user_947174932

A little lubricating oil can solve the reset problem

@RED_PRINTS

can you please make a English/youtube review / install 😃

@Myshka2024

yes an English assembly video would be helpful

@Nachtsicht

Print Profile

X1、P1、A1-Two colors

really nice print here. also great construction afford. but I have an issue, maybe just understanding this a bit wrong, but I cannot bring the trigger in the right position. if the magazine is inserted, the trigger blocks it from fully entering. it can’t be moved more forward and also the backwards position is locked due to the filament insert on the back. maybe someone can give me a hint to understand what I did wrong

The designer has replied

@user_947174932

The direction of the magazine is reversed, make sure to open it in the right direction and think ahead

(Edited)

@Nachtsicht

Replying to @user_947174932 :

LOL, thank you. Just not smart enough to think about that. XD

(Edited)

@user_760599274

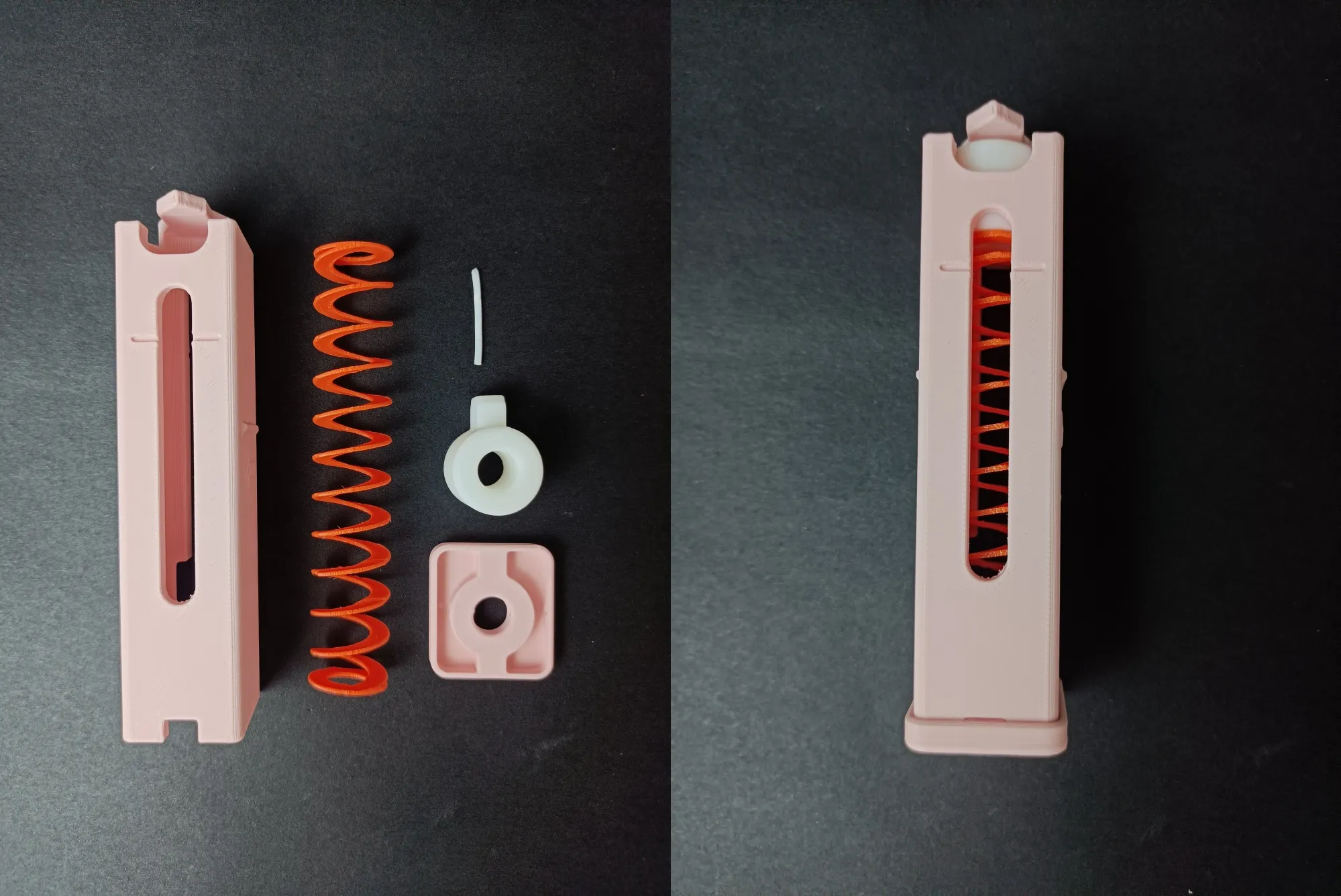

cool 我设计了一个弹匣改弹簧模型

The designer has replied

@user_947174932

弹簧小了点吧？

@user_760599274

Replying to @user_947174932 :

没问题的我测试刚刚好

@happydude

Boosted

Print Profile

X1、P1、A1-Two colors

printed perfectly on my Bambu Lab P1S no assembly instructions in English but you can watch assembly video. little screw knob didn’t fit for me. going to tap it to make fit. overall fun build.

@Antny286

where can I see the assembly video

@RED_PRINTS

with this download I cannot pull back the trigger like you do, all the way. I don’t think this is the right model. can you please check? Great design

The designer has replied

@user_947174932

Have you ever used lubricating oil? Please ensure that the elasticity of the rubber band is sufficient

@user_947174932

Please provide a specific description of the problem and what is preventing the trigger from resetting

@RED_PRINTS

when trying to pull back all the way it hits end of the gun which causes it to be blocked. I wonder if the version I downloaded was the old one. what version did you use?

@WorkShop3D

Print Profile

X1、P1、A1-Two colors

Cool design, liked it a lot. Printed without issues. The assembly was easy, followed the video. however, the trigger works perfect right until I load the magazine. Then the trigger gets stuck and doesn’t load correctly the discs. First time i tried to load a disc, the side load stick broke. I had to force a screw to replace it. The discs get stuck inside the gun, and will shoot one out of many tries. overall good looking prop but it did not work for me. mag also broke.

Strength Issue

@explodes

Print Profile

X1、P1、A1-Two colors

Very happy with the appearance, but I've run into lots of jams on both of these prints. There are three holes that aren't the right size for standard filaments, but they can be drilled wider.

(Edited)
