Description

Hello,

I printed out the great adaptation of the sunlu s4 cover for the ams lite made by Mr_X:

https://makerworld.com/en/models/155592#profileId-170306

Except that I had difficulty holding the lid and at the same time changing a coil, here is my addition a foot + something to put the lid in the open position.

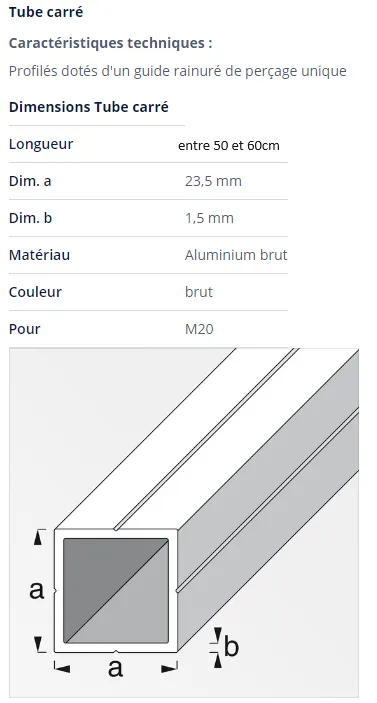

You need two square aluminium tubes measuring 23mm x 23mm outside (1.5mm thick) and 60cm long (or 50cm).

https://www.bricomarche.com/p/tube-carre-pour-m20-23.5-aluminium-brut-2.5m/4001116251900

https://www.manomano.fr/p/profil-en-aluminium-49093259

The feet are simply placed under the sunlu s4. I had planned to fit two screws, but they are forced in, so they are optional.

I printed with an A1 in 0.2mm nozzle 0.4mm PETG.

thank you ;-)

Comment & Rating (10)

@Obecny75

23mm square tube is more difficult than necessary to find the the US

The designer has replied

@benjibenji45

Give me the size of your tube and I can adapt it to your needs. Or would you like to try a 100% PETG version?

(Edited)

@Obecny75

Replying to @benjibenji45 :

Well thats a personal question :) joking. 1"x1" .125" thick (aka 25.4mm x 25.4mm 3.175mm thick) Though I am trying to figure out a way to make it easy to make it so its not a "permanent" fixture on the S4. For example, I only attach it when I change spools so its not super obvious since my printer is in a general living area so my wife will have to stare at it.

@benjibenji45

Replying to @Obecny75 :

indeed! xD! I'm making this for you in 25.4mm, so removing it is very quick, it just sits on the s4's feet, you just have to lift it up to remove it, it's not forced into the s4's feet.
