Bench Vice

The bolts used are m5×20 m5×10 m5×15. They need to be self-tapping. The screw and slider are connected by bolts, and they do not need to be tightened too tightly. Just connect them. Other places are the same, they do not need to be tightened to the end.

Note: The xy hole compensation needs to be calibrated. After calibrating, add +0.2.

Reference configuration (based on general petg standard):

petg hole compensation 0.3

Infill strength 50%

Infill pattern cubic

Wall thickness 4

2024.6.13

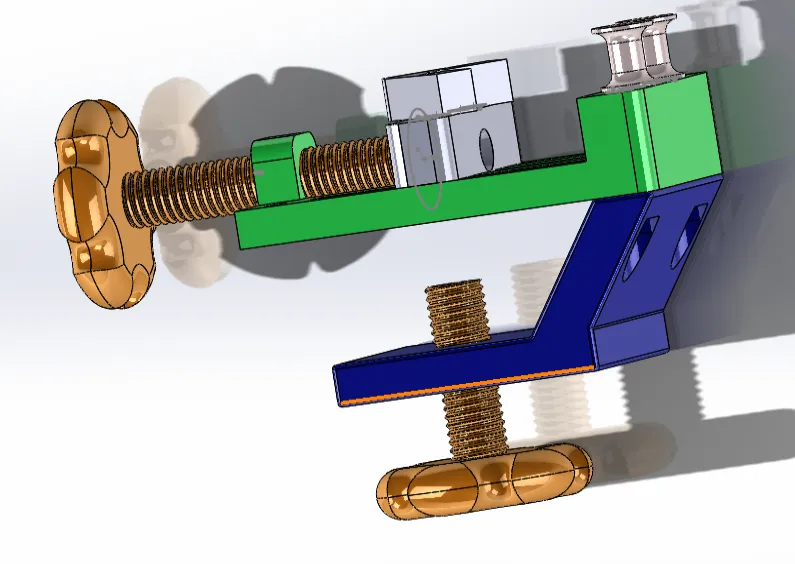

Update: Added a fixed module and a tightening screw that can be locked on the desktop. The bolts are still using m5.

Suggestion:

You can stick non-slip pads or double-sided tape on the table for the foot pads.
