Godox V1 Diffuser

A diffuser for the Godox V1.

Credit for the original design has to be given to @stevenlelham for the idea:

https://makerworld.com/en/models/33525?from=search#profileId-30457

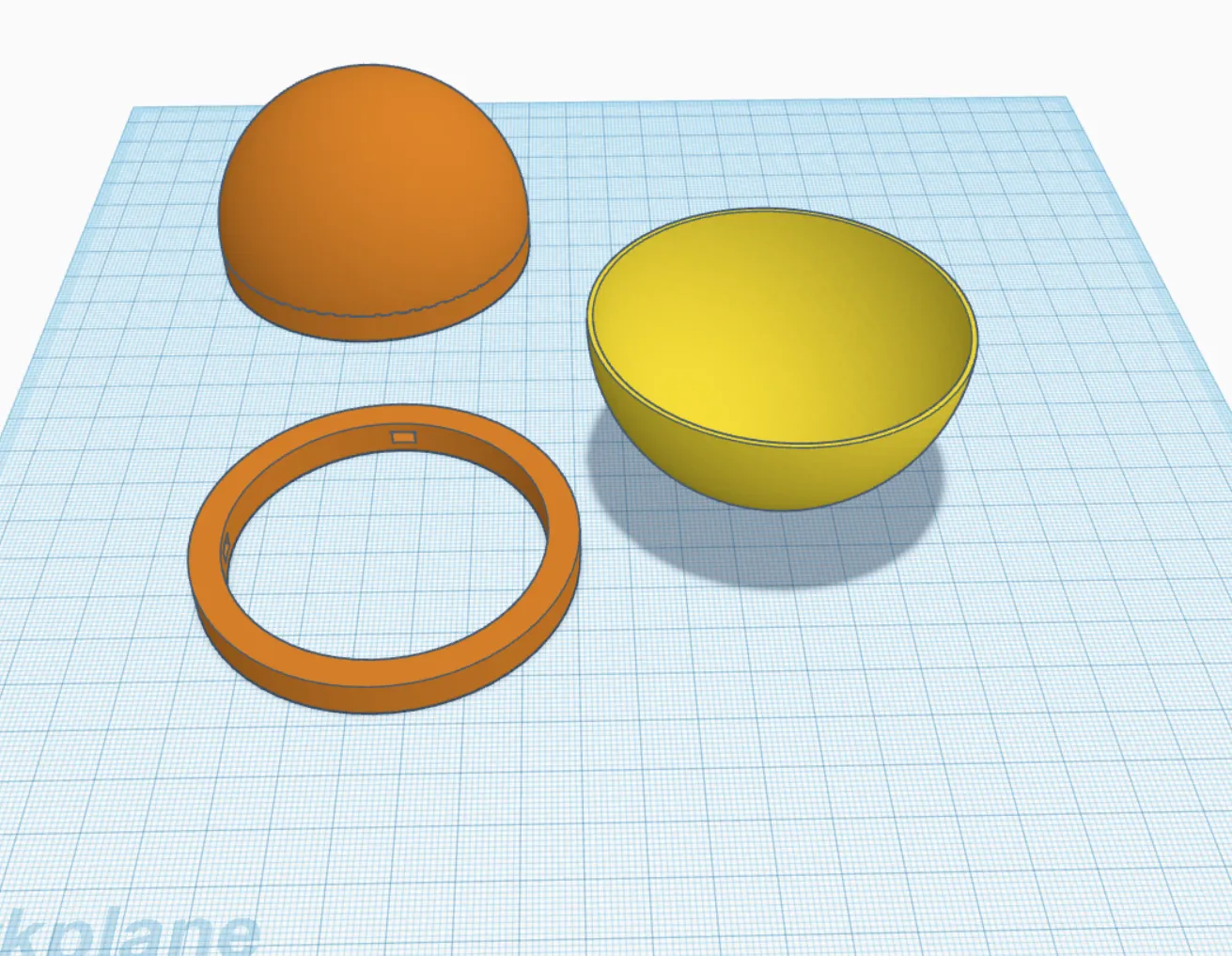

Please note: This is not a remix as I have redesigned it from scratch using Tinkercad:

I originally wanted to just remix it supporting larger magnets that I had in, but I ended up re-making it from scratch with the following adjustments:

Optimised the diameter (slightly larger) to better fit the Godox V1

Added maximum edges for a smoother circle

Optimised the space for the magnets so they fit perfectly

Now supports larger 6x3mm magnets

To print I recommend using:

.2mm layer height until at least the magnets are placed in (the 3mf has a pause automatically added)

After magnets are placed in you can use the adaptive layer near the top for a smoother finish (included in the 3mf)

Supports needed in the middle but use blockers for the magnet holes (adjust threshold angle to 23)

6x3mm round magnets can be purchased here:
https://www.amazon.co.uk/HHOOMY-Neodymium-Magnets-Refrigerator-Permanent/dp/B07Z8XRBNB
