Multi-position consumable box
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.4 h
1 plate
Open in Bambu Studio
Boost
18
65
0
5
53
7
Released
Description

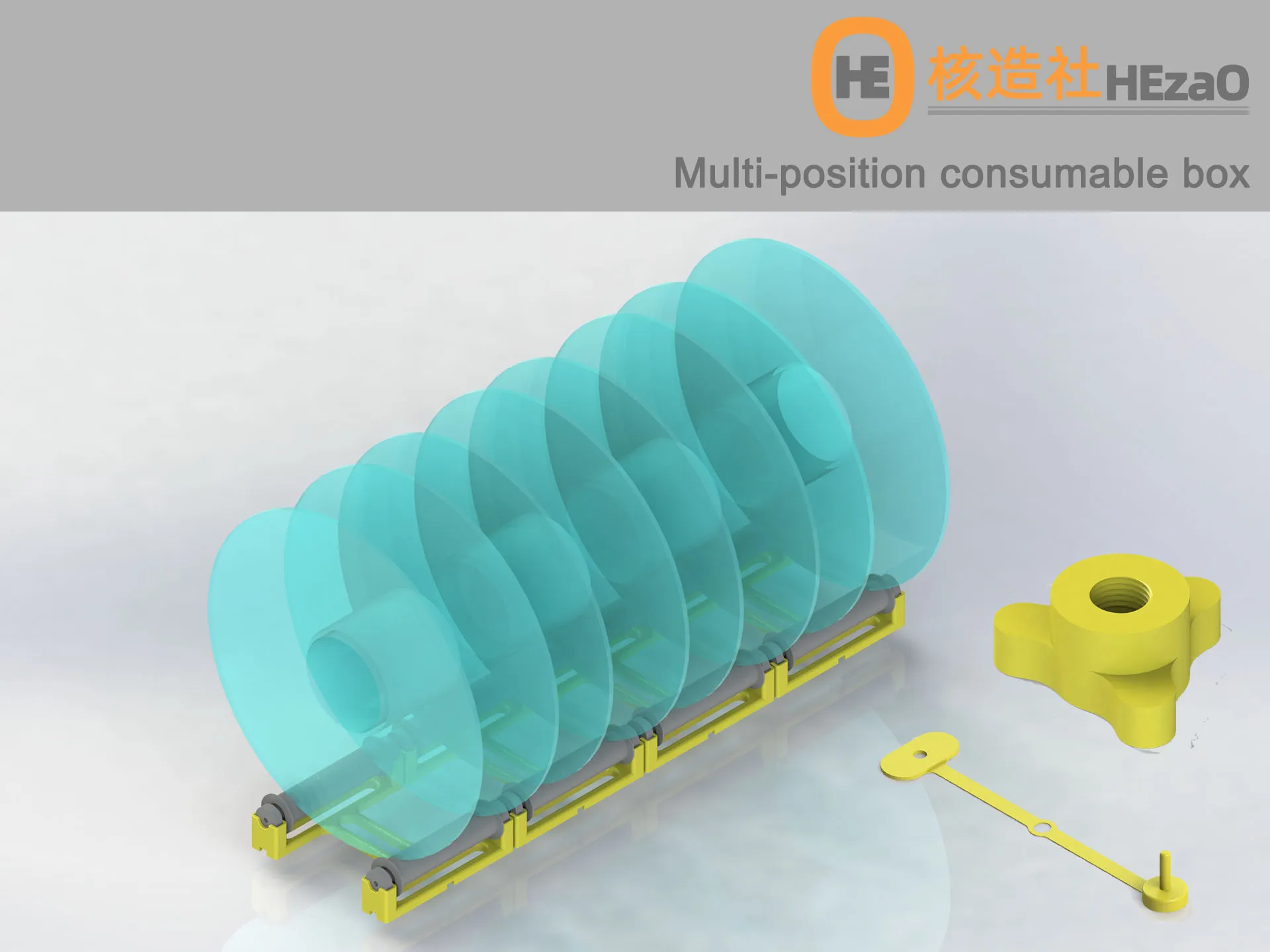

Multi-position consumable box
多盘位耗材密封盒
You need to purchase the following accessories:
1. Bearing, model: R188 (4 for each bracket).

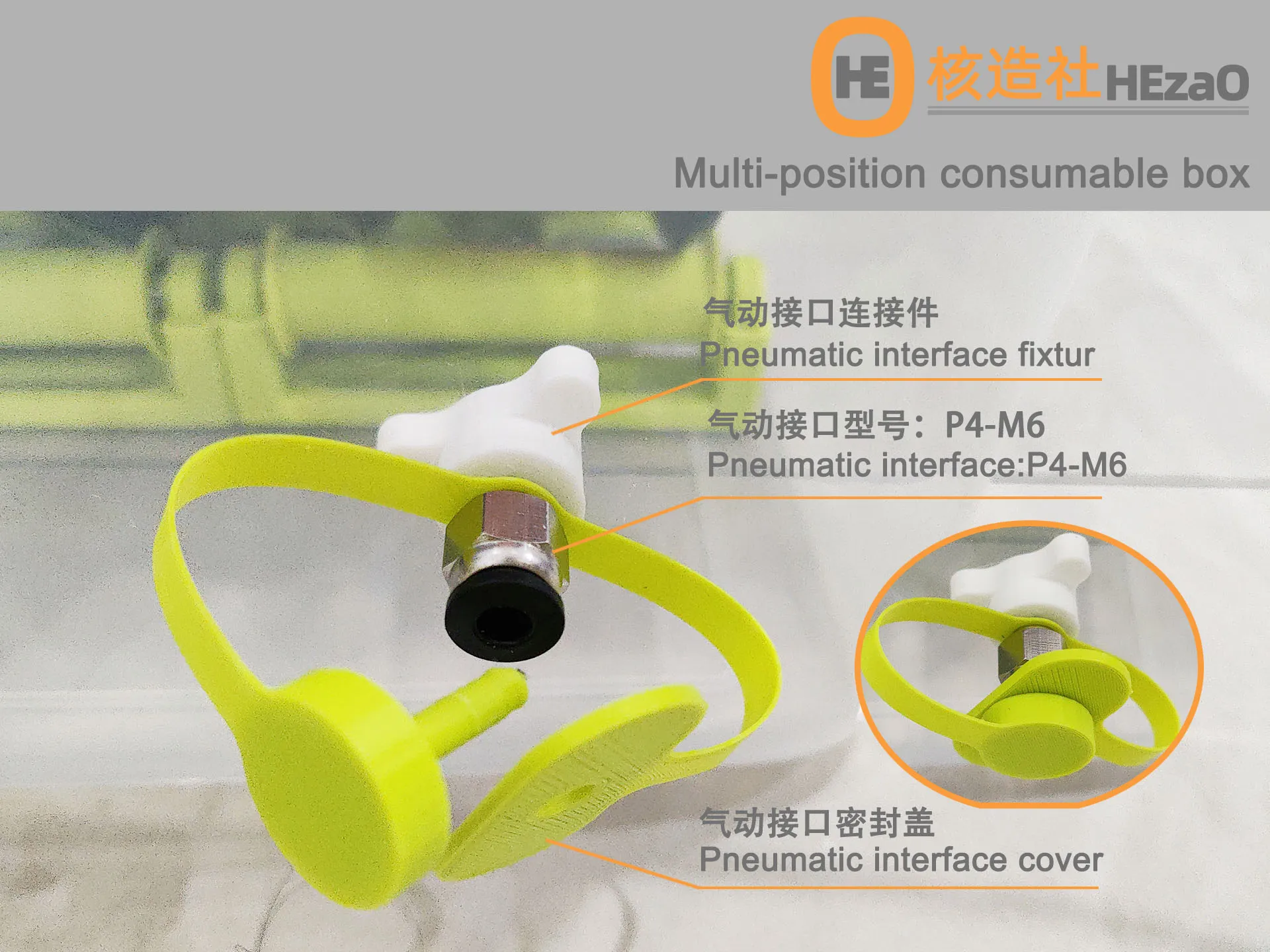

2. Pneumatic interface, model: P4-M6
你需要额外购买以下配件：
1、轴承，型号：R188（每个支架需要4个）
2、气动接口，型号：P4-M6

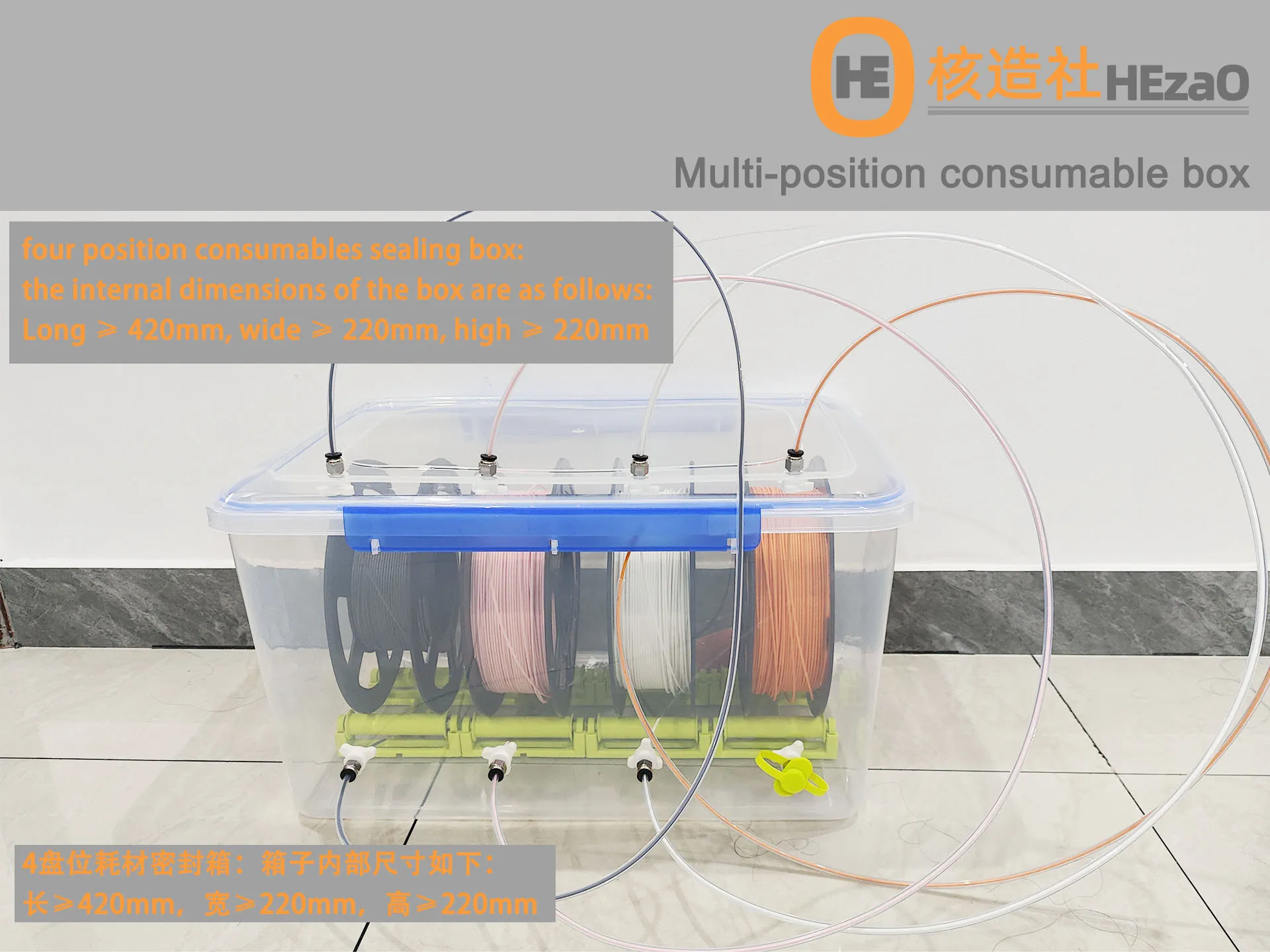

In this project, a total of 16 bearings and 8 pneumatic interfaces are needed for 4 tray sealing boxes.
本项目为4座料盘密封盒共计需要轴承16个，气动接口8个
The number of printed files for this project is as follows:
本项目打印文件数量如下：

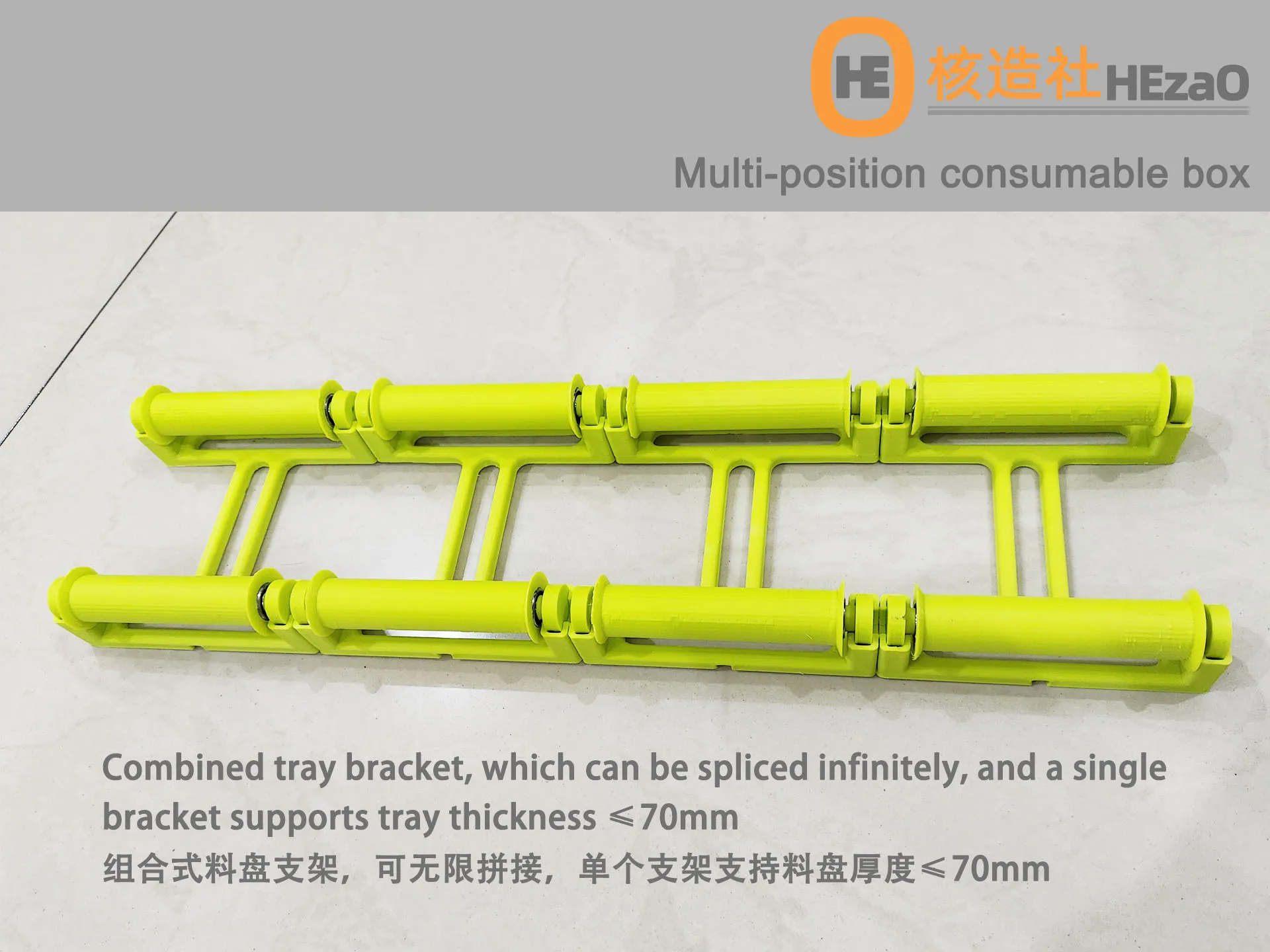

Pedestal V3.0 X4
Bearing V3.0 X8
Bearing fixing seat V3.0 X16
Base connector X6
Base connector 60 X4（You don't need it.可以不需要）
Pneumatic interface fixture X8
Pneumatic interface cover X8（Print the corresponding quantity according to your environment。根据你的使用环境打印相应数量）
