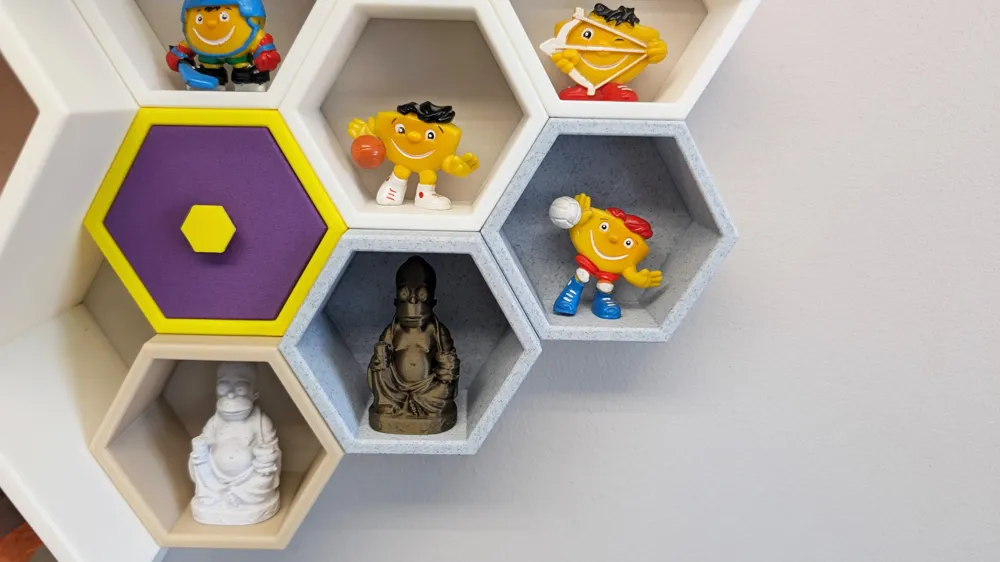

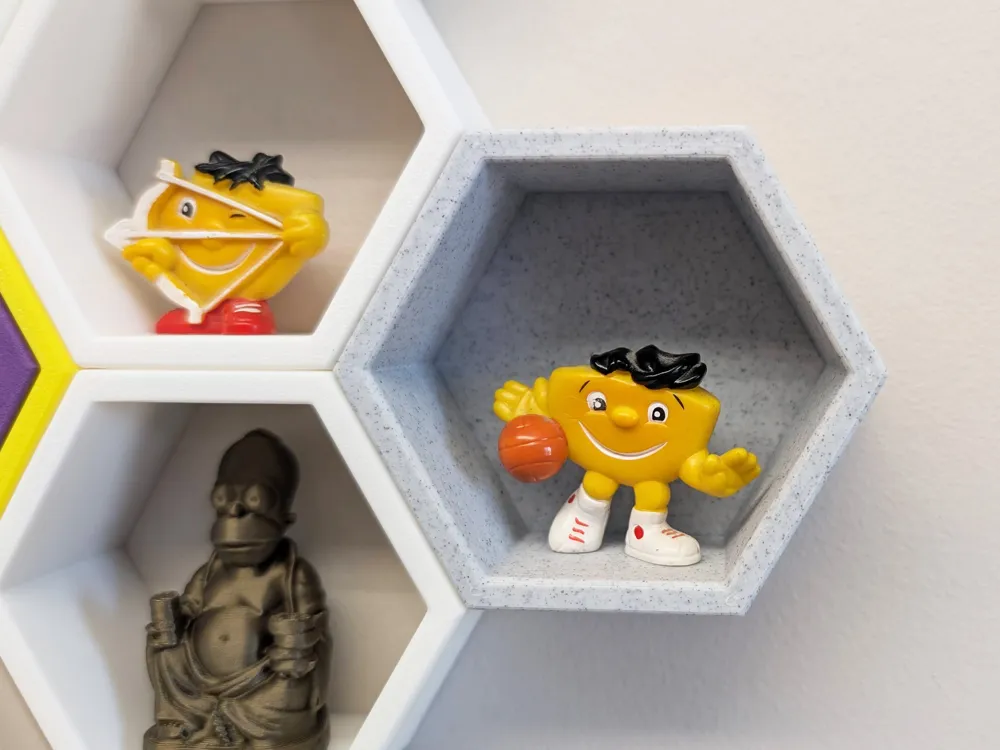

Mini Hexo Shelf
Print Profile(2)
Description
While there are many honeycomb shelf designs available, I couldn’t find one that fully matched what I had in mind.
My goal was to create a truly modular system that can be expanded over time without drilling additional holes and, most importantly, without any visible screws.
With this design, just two nails or screws can securely support multiple shelves and significantly more weight than you might expect.
Printing details
Support is required for the Solid Shelf, but only on the bottom part. I’ve added a support blocker for the top section, since supports there would only ruin the print.
I also enabled ironing on the top surfaces of the Solid Shelf to improve the appearance. Feel free to disable it if you prefer a faster print or a different finish.
For the best print quality, please follow the settings in the print profiles.
Required Components

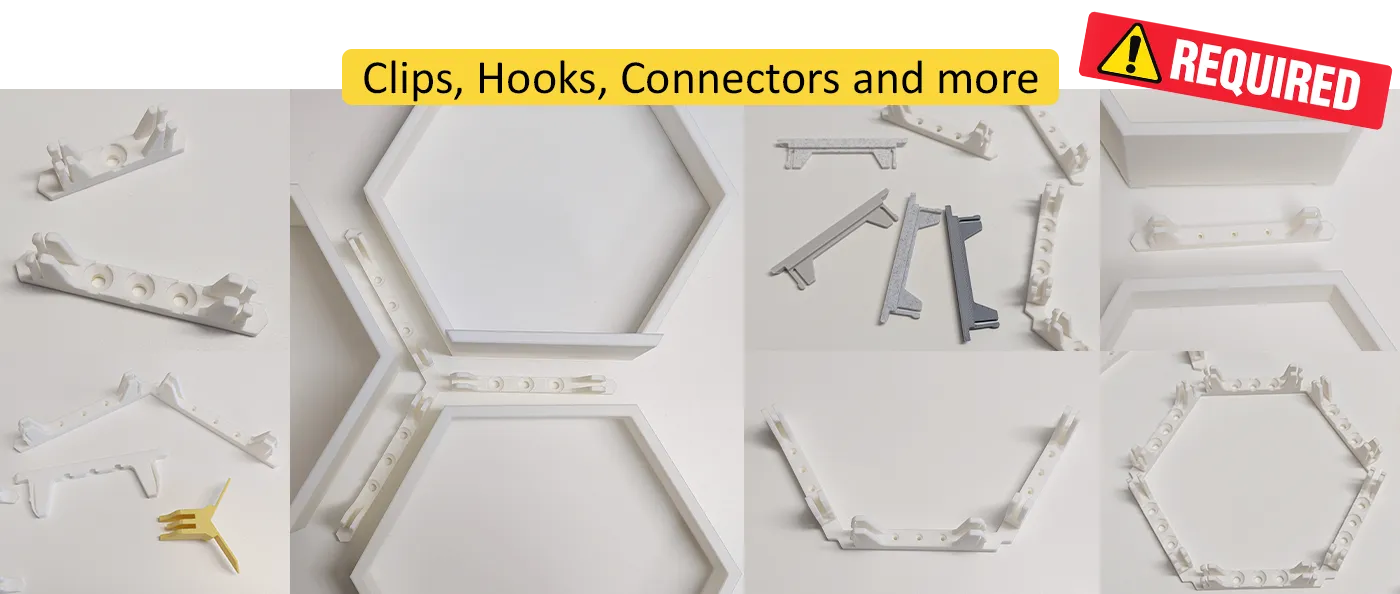

Important: Hexo Clips are required to assemble the shelves.

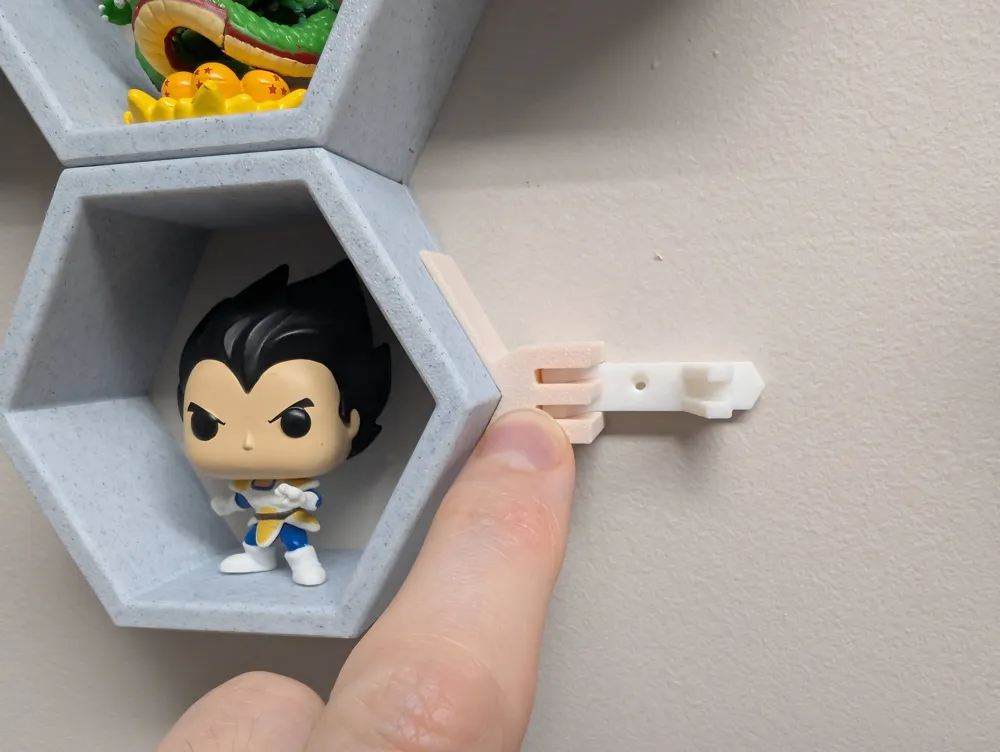

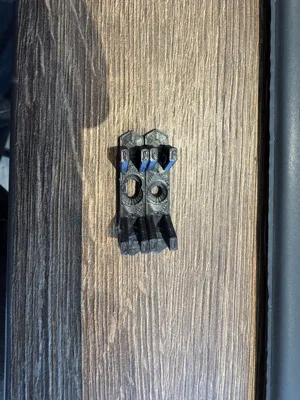

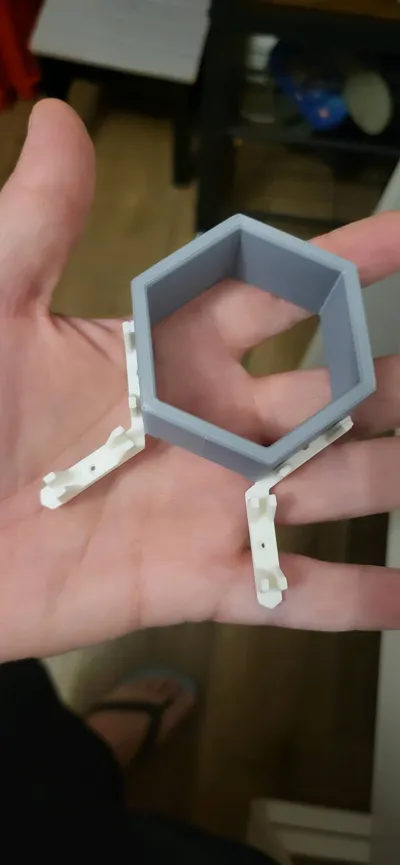

Use the Clips to cover the external edges of the shelves, and the Connectors to join multiple shelves of the same size. The same Connector can also be used as a wall Hook to fix the shelves to the wall.
You can use either nails or screws. Print the version that best fits your needs.
- All the Clips are available here: https://makerworld.com/en/models/2352863

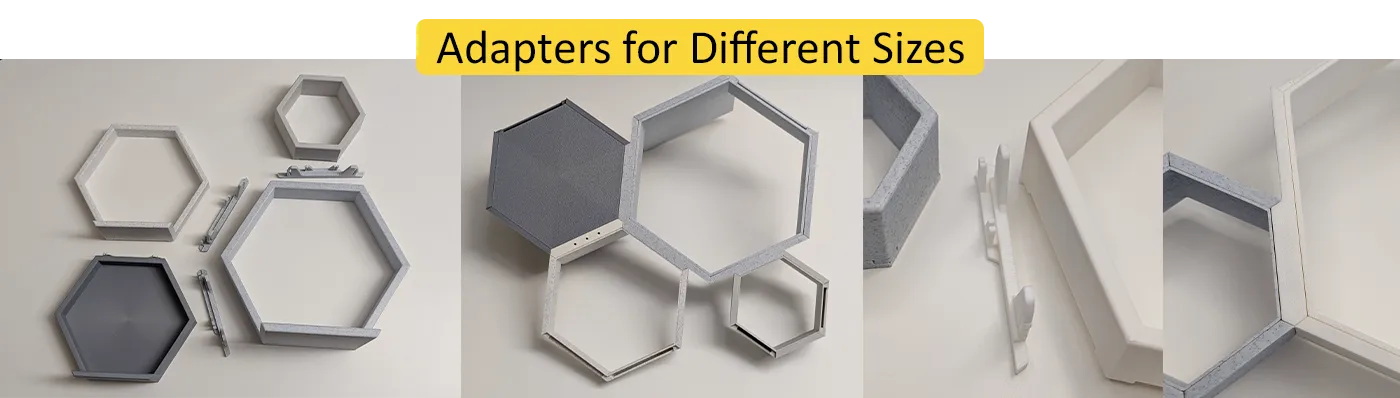

Adapters are only required if you want to connect Hexo shelves of different sizes.

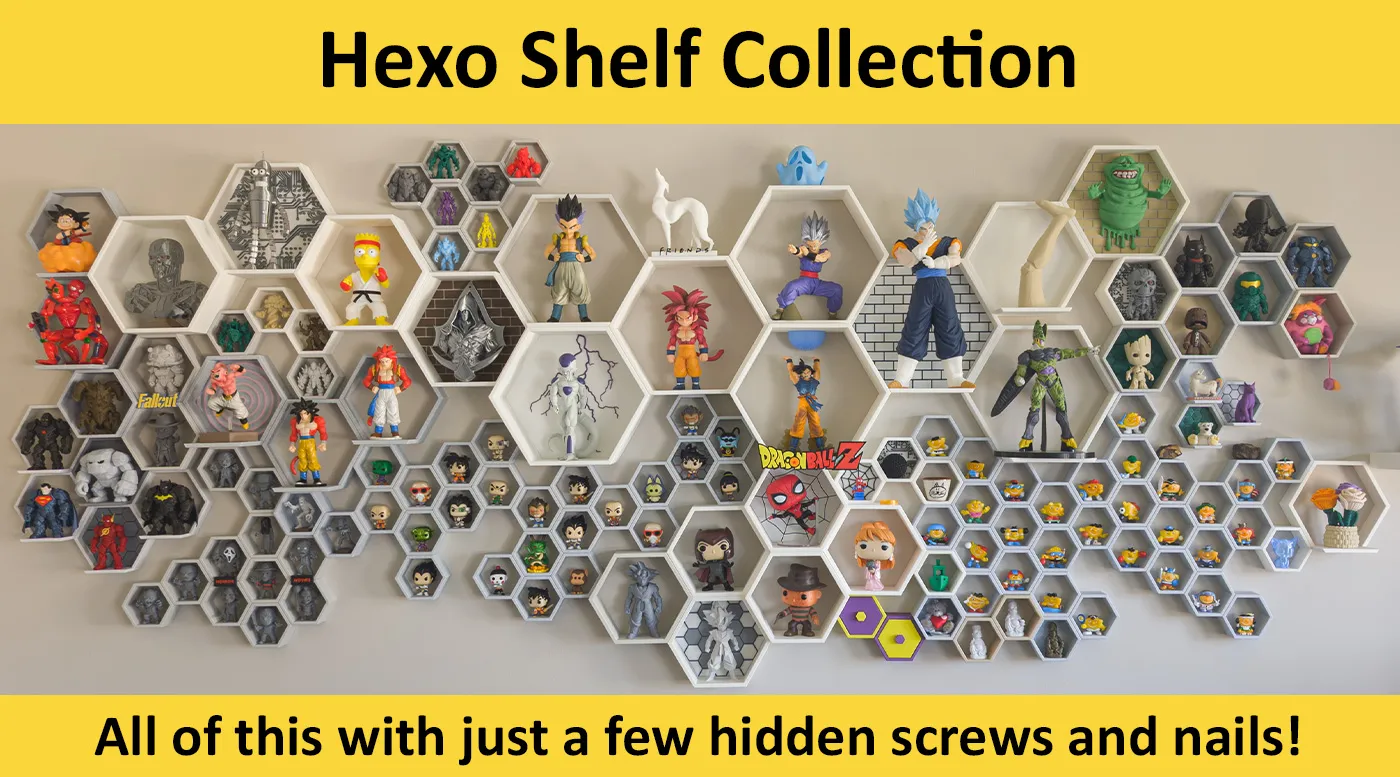

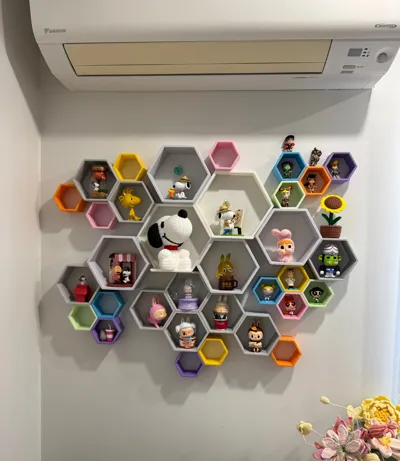

Combine different variants to build your own unique and spectacular display.
- Size Adapters are available here: https://makerworld.com/en/models/2115832

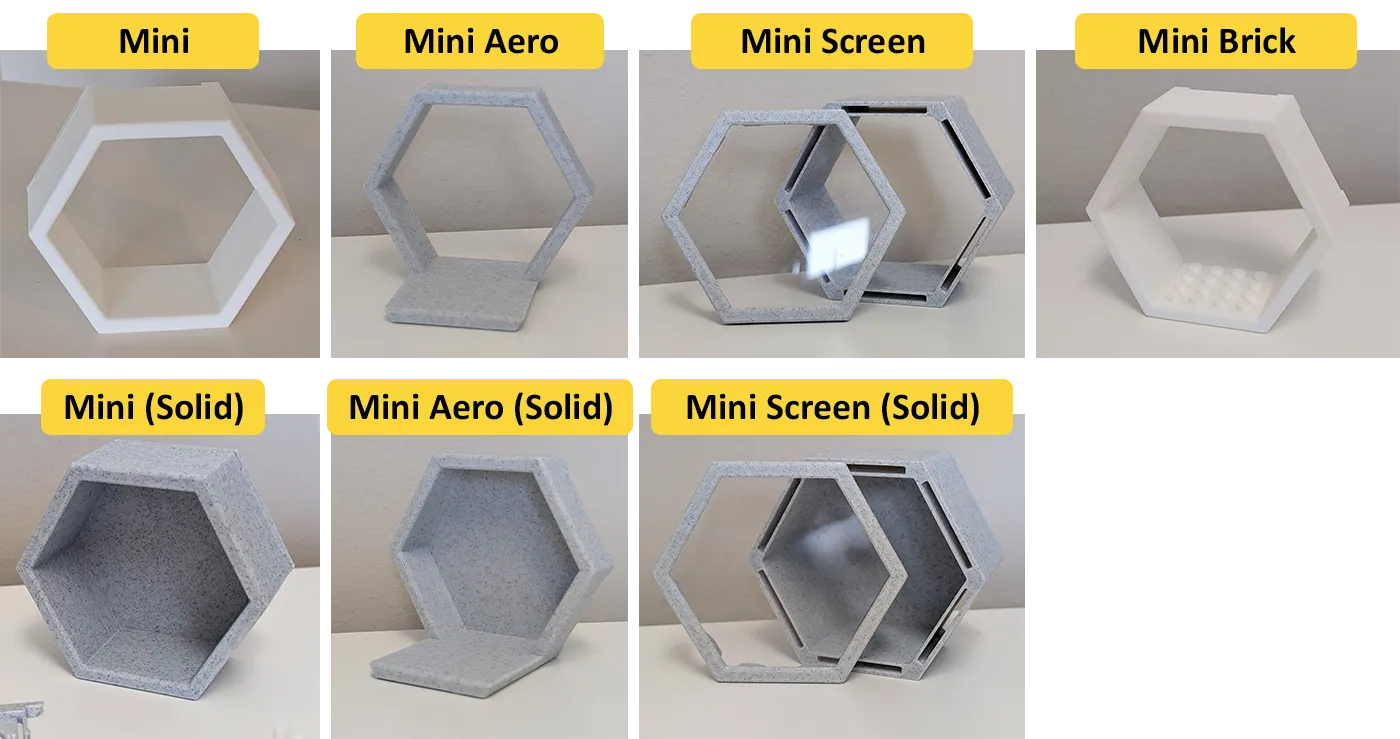

Here are all the available versions of the Mini Shelf
- Mini Choose the print profile you prefer, with or without the Solid back panel.
- Mini Aero is available here: https://makerworld.com/en/models/1672266
- Mini Screen is available here: https://makerworld.com/en/models/1763414
- Mini Brick is available here: https://makerworld.com/en/models/1842821

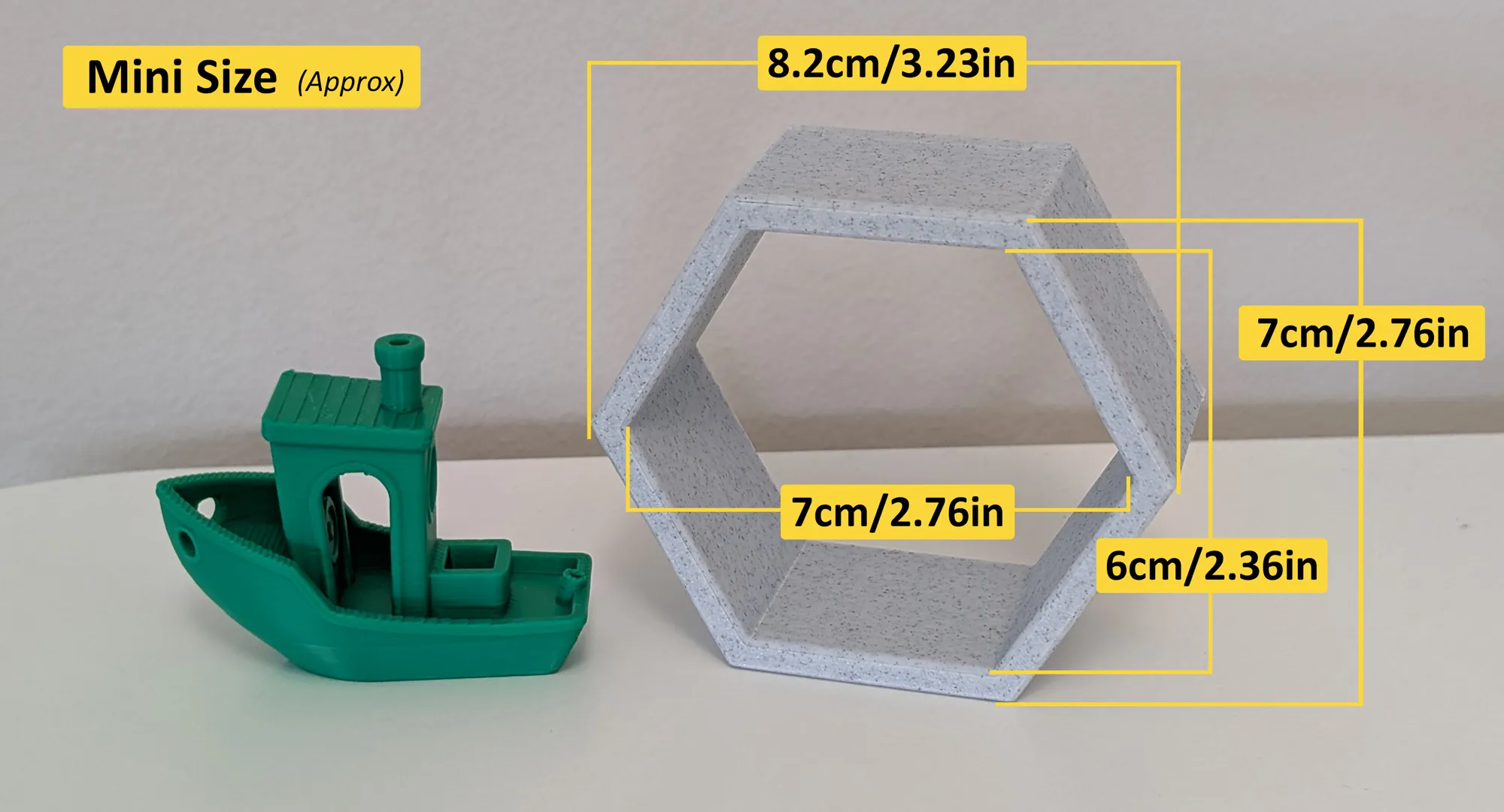

Available Depth Sizes:
- 20 mm / 0.79 in
- 35 mm / 1.38 in
- 45 mm / 1.77 in
- 55 mm / 2.17 in
Follow us on
 |  |  |
Assembly instructions
https://makerworld.com/en/collections/2285984

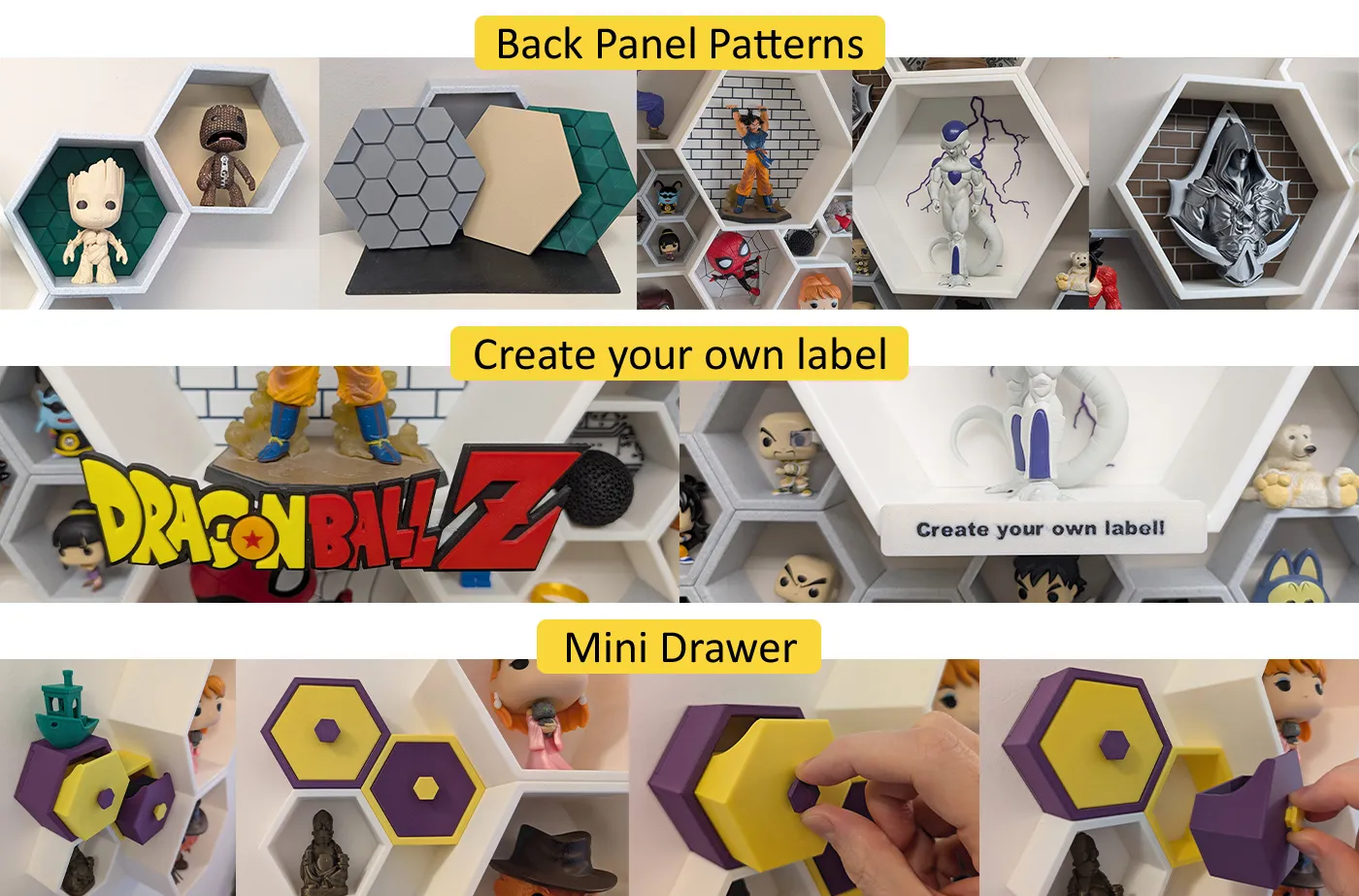

Optional Components
- Back Panels are available here: https://makerworld.com/en/models/1654320
- Labels are available here: https://makerworld.com/en/models/2253931
- Mini Drawer is available here: https://makerworld.com/en/models/626189
Membership
By subscribing to the Hexo Display Case Models Membership, you gain the right to sell physical prints of these models, or simply support me with a small donation.
If you’d like to support my work, you can offer me a coffee here:
Boost Me (for free)
A Boost is another great way to support this project.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
