ThirdReality Button Case

Please comment, rate, and post a make!

Be sure to check out my other models!

11/11/2023: Updated to switch from a friction fit for the back to snap fit joints.

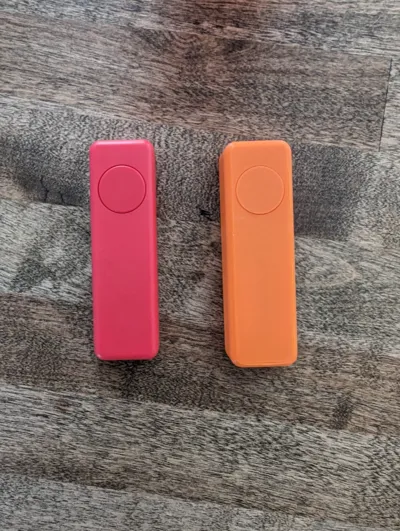

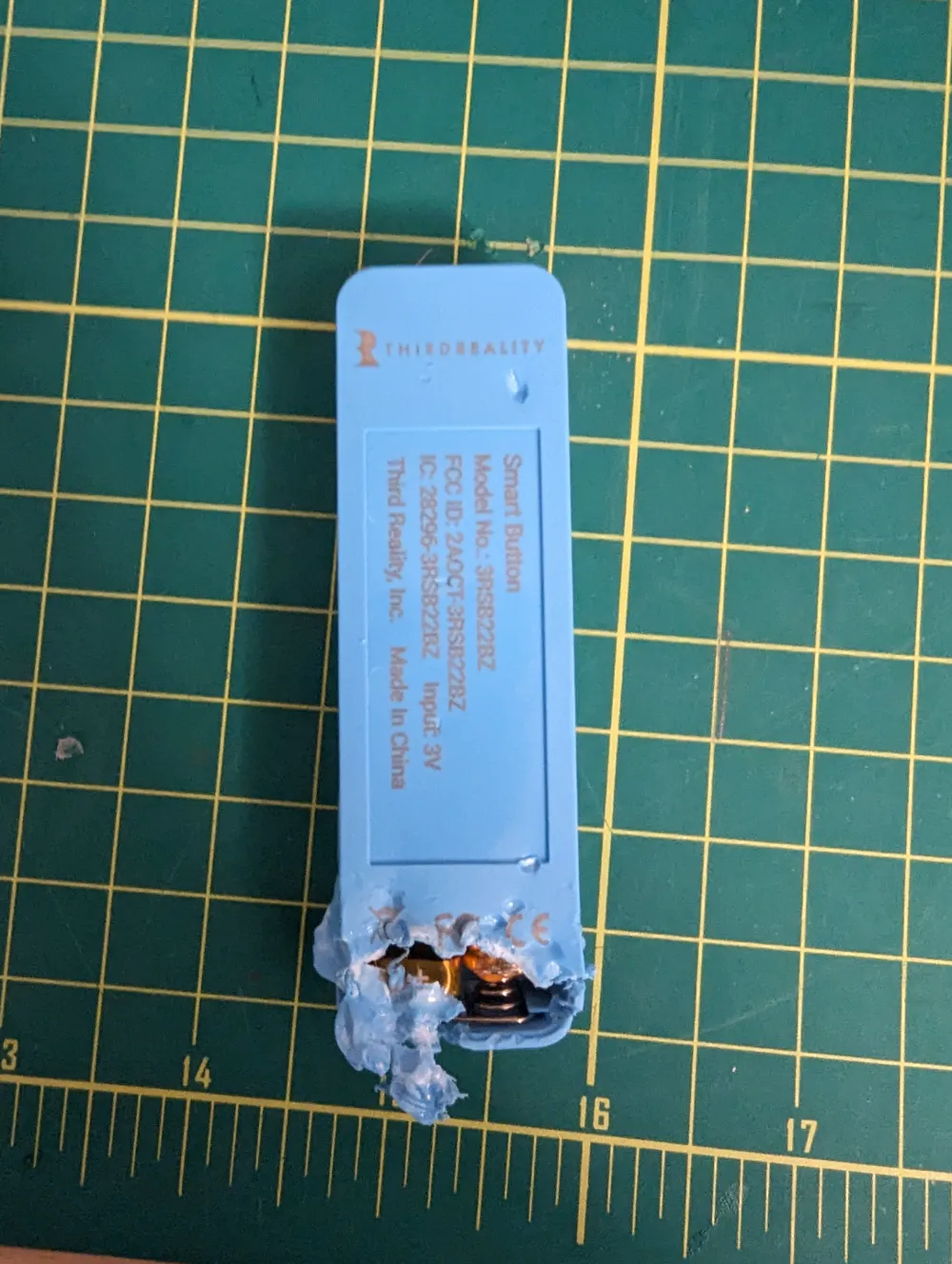

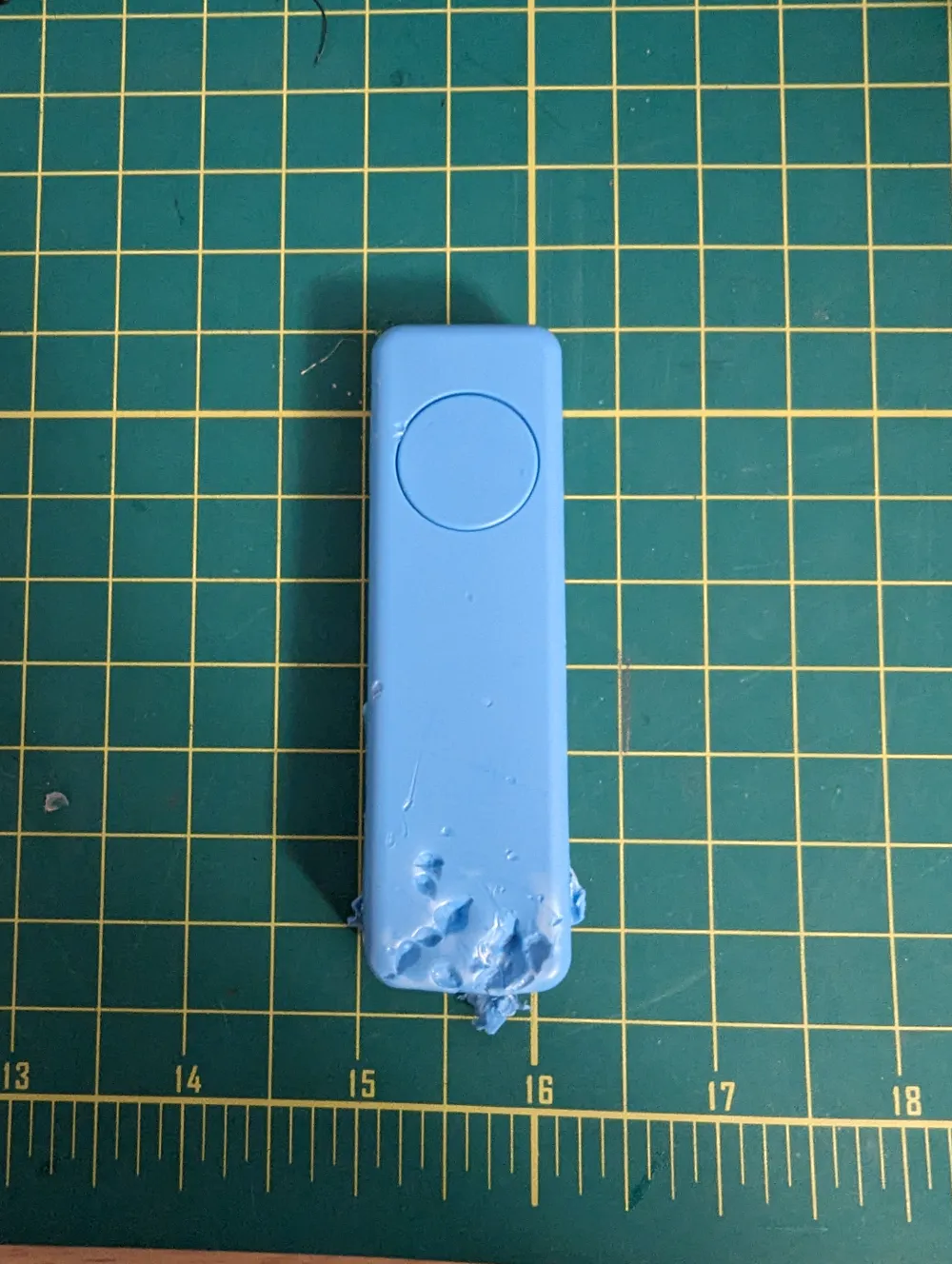

This is a replica case for the ThirdReality smart button. My dog decided to turn mine into a chew toy so I modelled up a new one.

BOM:
Smart button

Disassembly:

1. Pop the back cover off the remote.
2. Remove the two screws holding the board in.
3. Remove the board by pushing the button while lighting lifting the battery terminals connected to the board.
4. Pry the other battery terminals out while pulling up.

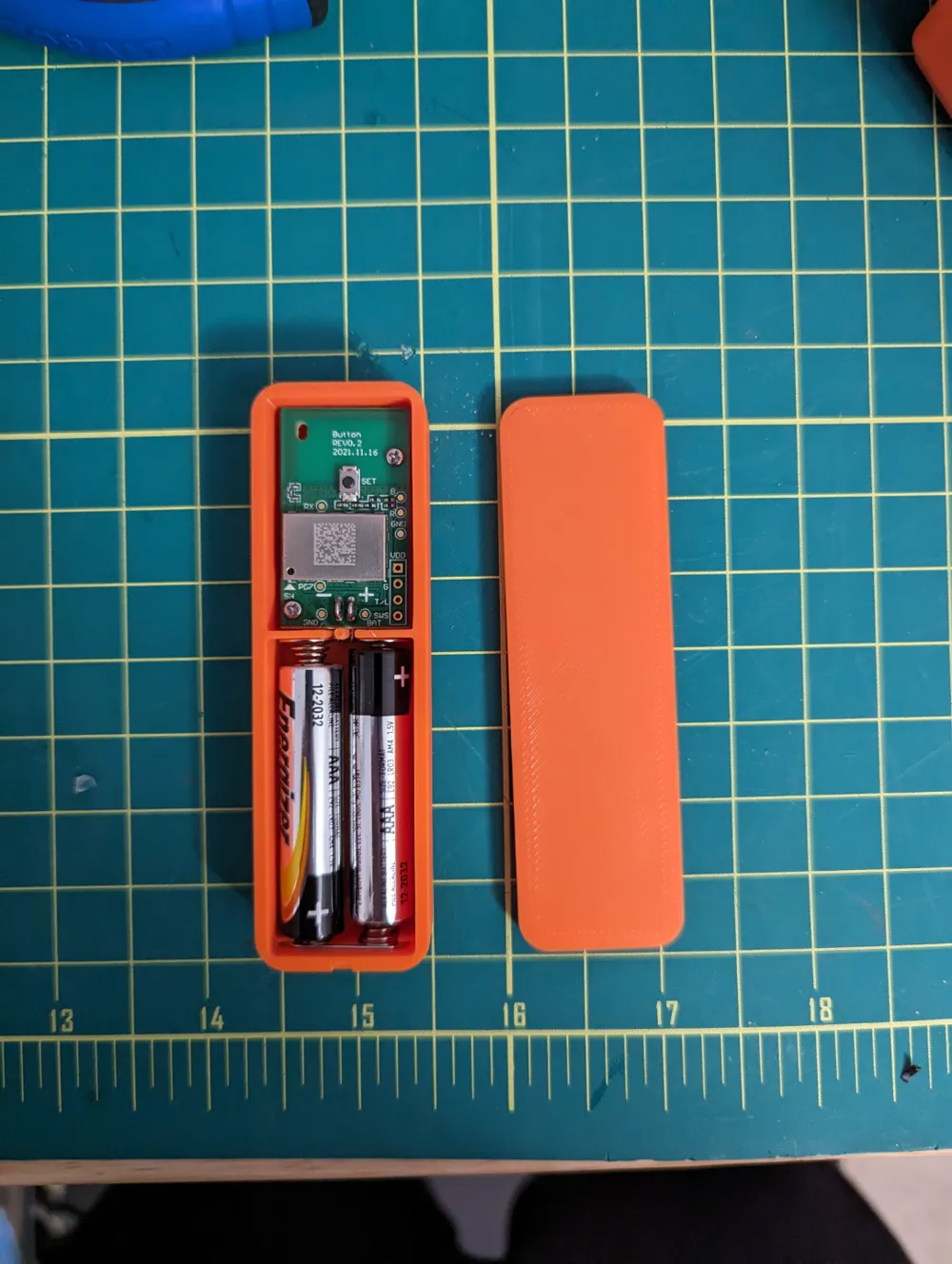

Assembly:

1. Put the button in.
2. Put the board in with the battery terminals slotting into the little slot.
3. Reinstall the two screws to secure the board.
4. Install batteries.
5. Pop on the cover.
