Vacuum hose adapters for all common sizes by ostat

ostat

Tools>Other Tools

Print Profile(2)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

0.16mm layer, 2 walls, 15% infill

49 min

1 plate

5.0(1)

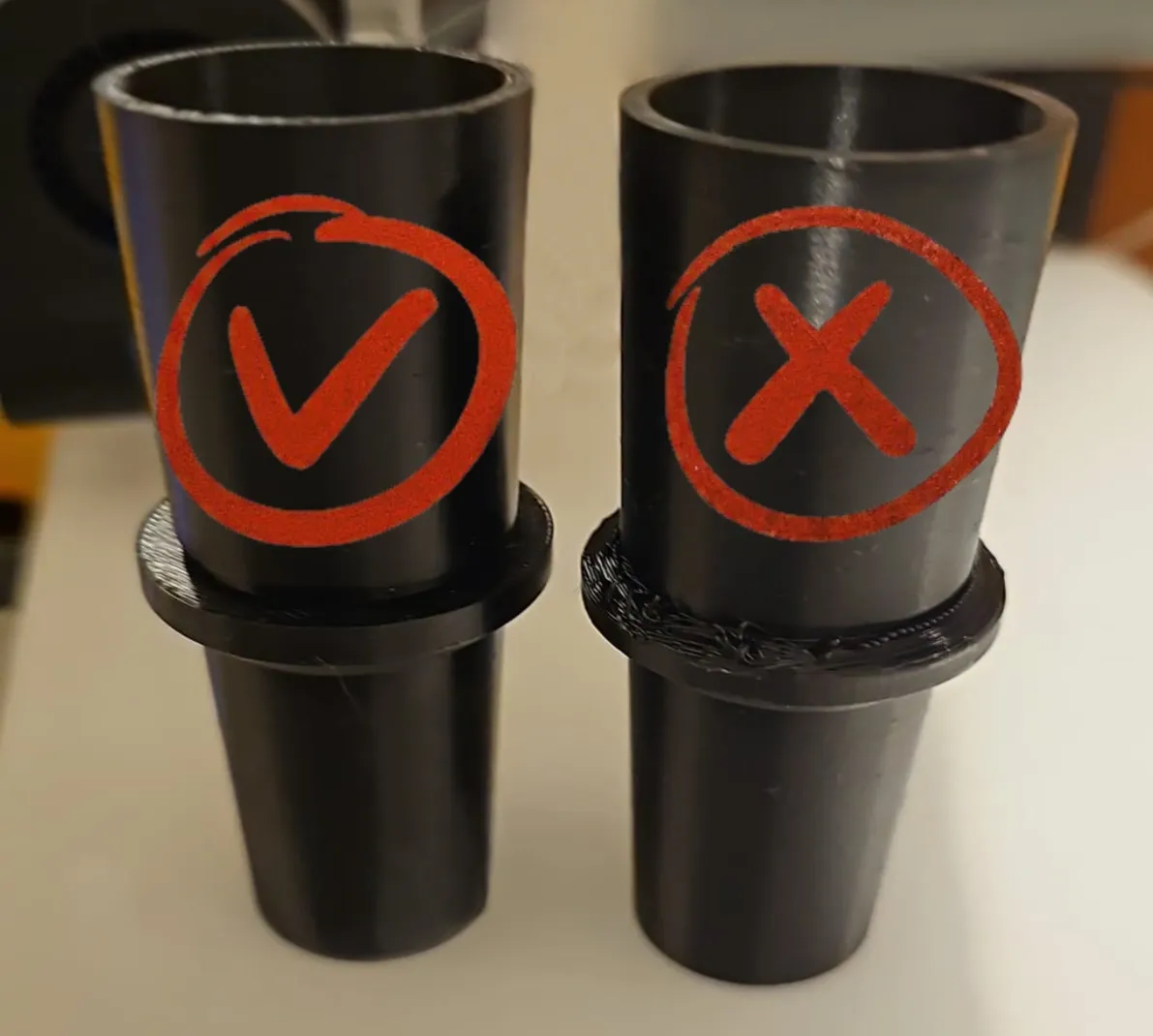

correct way to print, 0.2mm layer, 2 walls, 15% infill

3.5 h

2 plates

Boost

211

419

203

Released

Description

Hose adapters for all common (at least what I could find online) hose sizes.

All adapters have:

Each size has an option of Outer Diameter measurement or Inner Diameter.
- Outer Diameter (OD): Intended for the printed tube to go inside your existing hose.
- Inner Diameter (ID): Intended for the printed tube to go over your existing hose or nozzle.
40mm long connector at each end
3mm taper on each connector, from -1.5 to +1.5
Wall thickness of 2mm
A hose stop on the large end
Designed so supports are not needed

Printing

Perimeters 5:
- The model should be printed so that its all walls, (except for the stop if you want). Increasing the number of perimeters to 5 should do be enough but check in the slicer
Orientate so stop is tapered side
Supports are not needed

These were all generated with this OpenSCAD Parametric model. If any of these don't suit you can customise your own, or let me know and I can generate it.

Related models
Hose Fittings collection
Parametric model (used to generate all the below models)

edit 2023-02-11

Added sizes, 4.5", 5", 120mm, 125mm, 150mm

edit 2023-02-02

Added Internal Diameter (ID) connections. Previously I only supported Outer Diameter (OD) only. Now there is ID-ID, ID-OD, OD-OD.
Removed redundant sizes where the Metric and Imperial sizes are very close. I.E. 1.25in is 31.75mm, so 32mm is not needed.
Included connectors for connections two of the same size hose together.

edit 2022-12-06

Added hose size 1 7/8in

vacuum

vacuumadapter

vacuumhose
