ESP32 WLED Case
Print Profile(5)
Description
Update - 11/25/2024

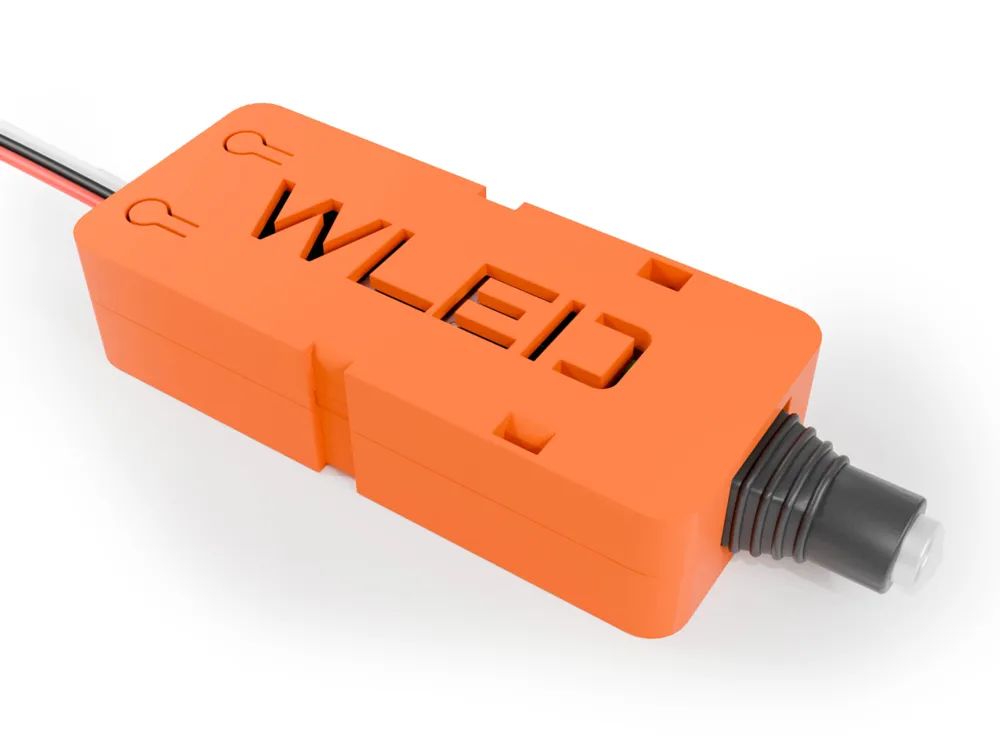

Added a case variation with a panel mount plug. If you want a different plug variation please feel free to request it in the comments.
Update - 10/29/2024
Changed the design to incorporate changes from Sabedje's remix such as integrated buttons and a cutout underneath for the case zip tie to allow for flush mounting as well as a few minor improvements.
Update - 4/10/2024
Changed the design of the case to snap together better and added a little more clearance to the top so the wires fit better.
Design

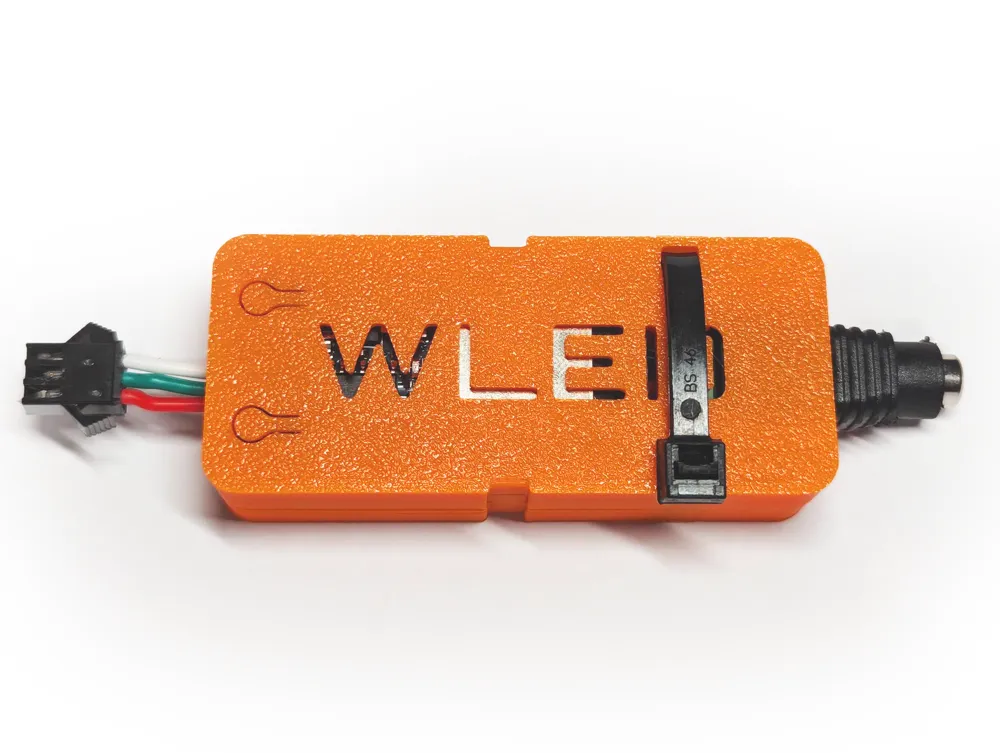

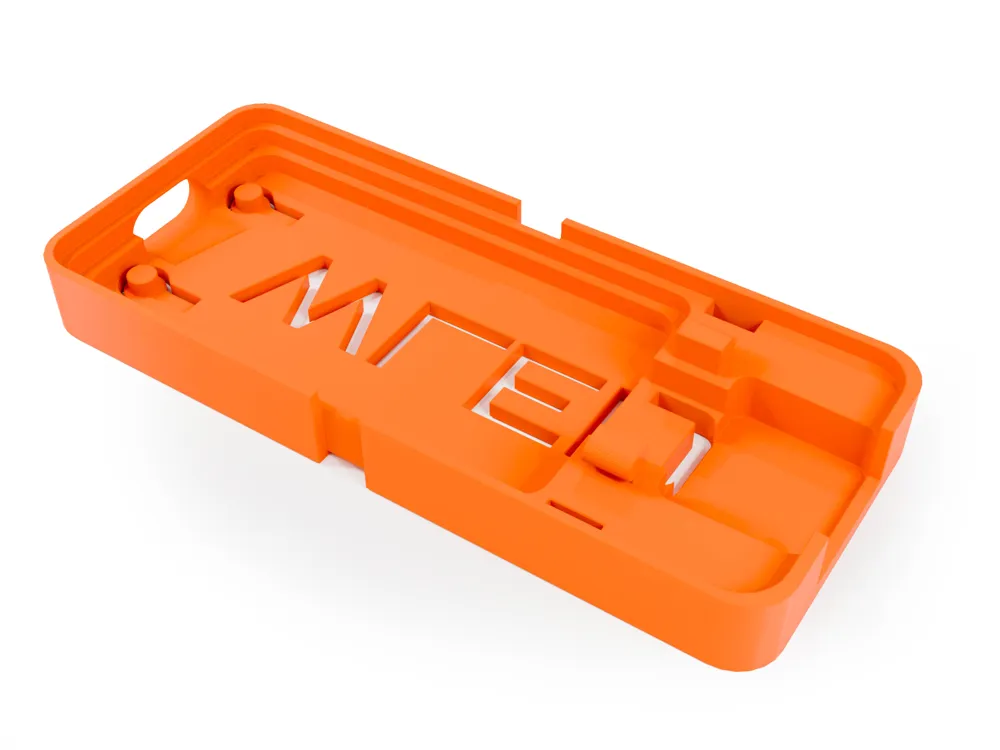

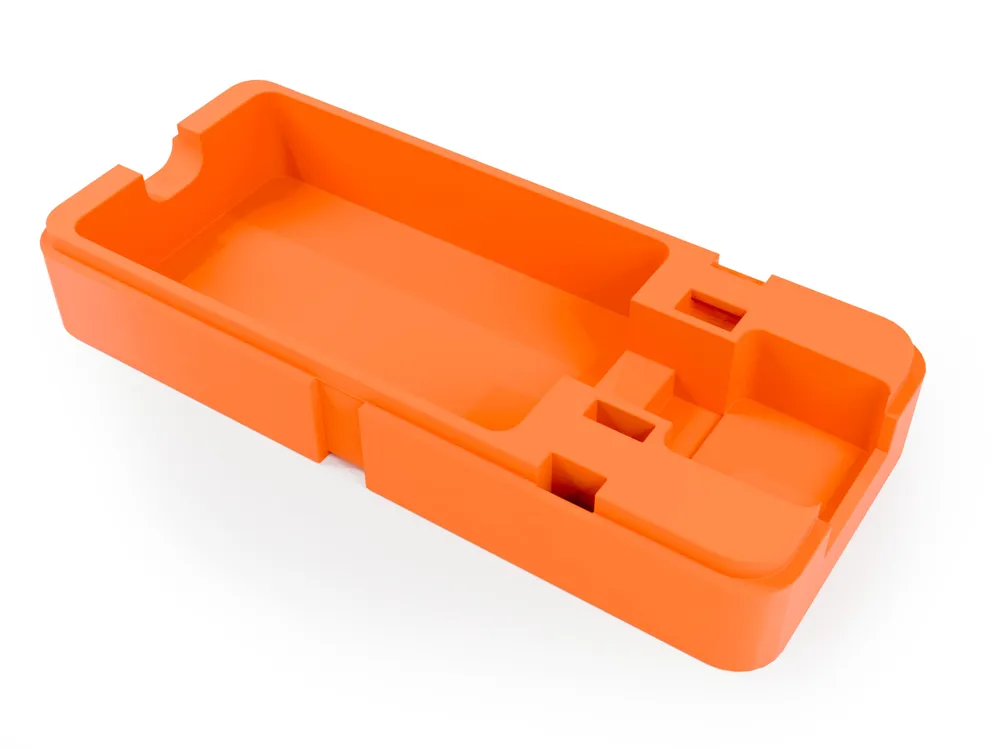

This compact case houses the esp32 and barrel jack to control and power your LED strip. This case fits the ESP32 WROOM-32 TYPE-C CH340C and may work with other boards but it has not been tested. This case features slots for mini and regular zip ties to fasten or keep the case closed as well as access to the USB-C port and buttons.
For a larger barrel jack version check out this remix made by Sabedje.
NOTICE
Please note that since this type esp32 can only handle 3.3 to 5 volts your LED strips and power supply should be 5 volts since both the strip and esp32 are running off the same power. Also, not all the barrel jacks are the same size so you may need to apply force to get it in or shave off a bit of the port casing or use the remixed case linked above.
