Collapsible Katana - Revoluted / 活拆式伸缩刀 / 伸縮式カタナ by niltsh

niltsh

Toys & Games>Other Toys & Games

Print Profile(5)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

0.2mm layer, 2 walls, 15% infill

Designer

8.8 h

5 plates

4.7(206)

sheath added / 增加刀鞘 / 鞘を追加

Designer

9.7 h

3 plates

4.7(37)

TPU "rubber" band

12 min

1 plate

4.9(8)

0.2mm layer, 2 walls, 15% infill

8.8 h

4 plates

3.7(26)

Click to see more

Open in Bambu Studio

Boost

1137

1885

343

4.5 k

4.7 k

Released

Description

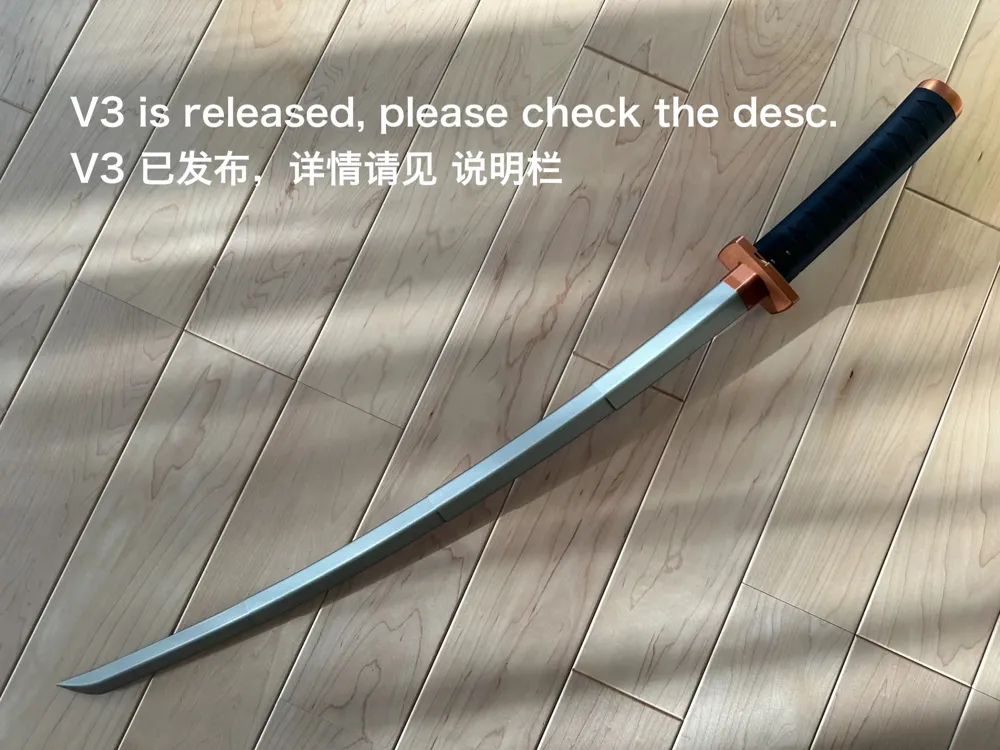

I made a upgrade version, please check it out! https://makerworld.com/zh/models/440341#profileId-346004

Inspired by https://www.printables.com/model/442829-collapsible-katana-v2/files

---------------------

My kids are big fans of the collapsible swords. I have made tens of models for them.

Since the blades are easy to drop and relatively weak, and in addition, the original model is a glued up model, It is easily got broken and each time I have make a whole new one for them, much of waste.

So I decided to make my own one to address the issues, by introducing a rubber ring tensioned blade lock and disassemble structure for exchanging the blades.

Also, considering the rubber ring might break in the future, I added an anchor structure that make the rubber ring could be exchanged from outside.

To drag the rubber ring easily, a puller tool is also included into the 3mf file.

The assembly guide is listed in the thumbnails and not very hard to assemble.

Have fun!

------------------

Updated on 2023/11/03

The folding diameter of the rubber ring is 60mm, please check out the thumbnail for reference.

As the holes in Handle and connector are built w/o support, the diameter of the hole is not as perfect as other surfaces. This could cause the filament being hard to insert. I recommend to use a Hex Key T1.5 to clean the hole, then it will be much easier.

Comment & Rating (343)

@bhipbip01

Print Profile

0.2mm layer, 2 walls, 15% infill

thanks. Printed this as glow in the dark. 👍🏻

(Edited)

@CaliJune

🔥 🔥 🔥

@rohan.soc

Print Profile

0.2mm layer, 2 walls, 15% infill

I painted the handle in the slicer.

The designer has replied

@niltsh

the red color looks elegant, which filament did you use?

@azretracr

I was going to do the same but that took the print from 2 hours to 17 hours so I said "nah this is good enough". Looks great though!

(Edited)

@rohan.soc

Replying to @niltsh :

It’s not really red, but a red orange mix filament. Amolen is the brand name. Got it on Amazon.

@user_1102914928

Very beautiful model design! Where is this structure installed? What is its function? Thank you!

The designer has replied

@niltsh

This is used when the rubber ring, inside of the Guard, is broken. As the guard is glued up, once the rubber ring is broken, it will be hard to install a new ring without any tool. This little one plays as a hook, to carry the rubber ring, then guide it through the Guard, so will be easier to replace the rubber ring.

@user_1102914928

Replying to @niltsh :

Thank you very much for your reply. Your design is great!

@Bryan_TK

Replying to @niltsh :

where do i get a rubber ring?

@ABScreationsEU

Print Profile

0.2mm layer, 2 walls, 15% infill

Amazing model, but i have an issue with the pummel. it’s falling off even after glueing.

The designer has replied

@niltsh

you could take a look at my version 2, it is under my model list and I have made several improvements

@ABScreationsEU

Replying to @niltsh :

alright, will do that! thank you!

@user_1102914928

How to connect here with glue?

The designer has replied

@niltsh

Please check the photo. please do not apply too much, it might glue the blade lock too.

@user_1102914928

Replying to @niltsh :

Okay, I initially thought it was stuck through the buckle and struggled for a long time without finding a solution. It turns out that it needs to be glued together, I understand. Thank you!

@teglgaard

Print Profile

0.2mm layer, 2 walls, 15% infill

giving up now, trying to print this. wasted enough filament. A1 with Sunlu Pla+ in black. tried glue, lower print speeds (those are the two taller ones.) beware.

(Edited)

@dryfiredude

The scabbard printed well with my settings. I do wish the sword fit a little further into it though. It should go all the way flush with the handle. it would be more secure and look better. I may modify for myself. Sword is the V2 model.

(Edited)

@dryfiredude

As I looked to remix the scabbard for myself, I noticed that the blade guide is different. Looks like it would fit fine with the V1 sword. I Guess I will see how the remix goes.

@Catalogicat203

Print Profile

sheath added / 增加刀鞘 / 鞘を追加

Looks nice, but the blade had a tendency to snap and made assembly a bit difficult. Good as a display piece. Edit: reply is correct, the filament I used is more prone to breaking. (20/feb/2024)

(Edited)

The designer has replied

@niltsh

it is the issue of the filament rather than the model. here PLA silk is fairly easy to break as its layer adhesion is weak.

@user_2958940426

Print Profile

0.2mm layer, 2 walls, 15% infill

when it got to the top it started messing up we had no idea what happened

@DomiiCatiti

Print Profile

0.2mm layer, 2 walls, 15% infill

ottimo
