Based on these amazing designs:
https://www.printables.com/es/model/409347-spool-weight-holder-for-bambulab-ams
https://www.printables.com/es/model/422882-spool-weight-for-bambulab-ams-spools
I designed, from scratch in Fusion 360, this variant.
Is intended to use with used ball bearings (my sons destroy a lot on their roller hockey skates) but you can use any cylinder weight you want.
With 21 ball bearings (7x3), the total weight is around 350 grams
The size is for a Bambu Lab spool filament and 22mm ball bearings (with 1mm tolerance) but you can easily change the size on Fusion 360:
In Sketch1:
In Extrusion2:

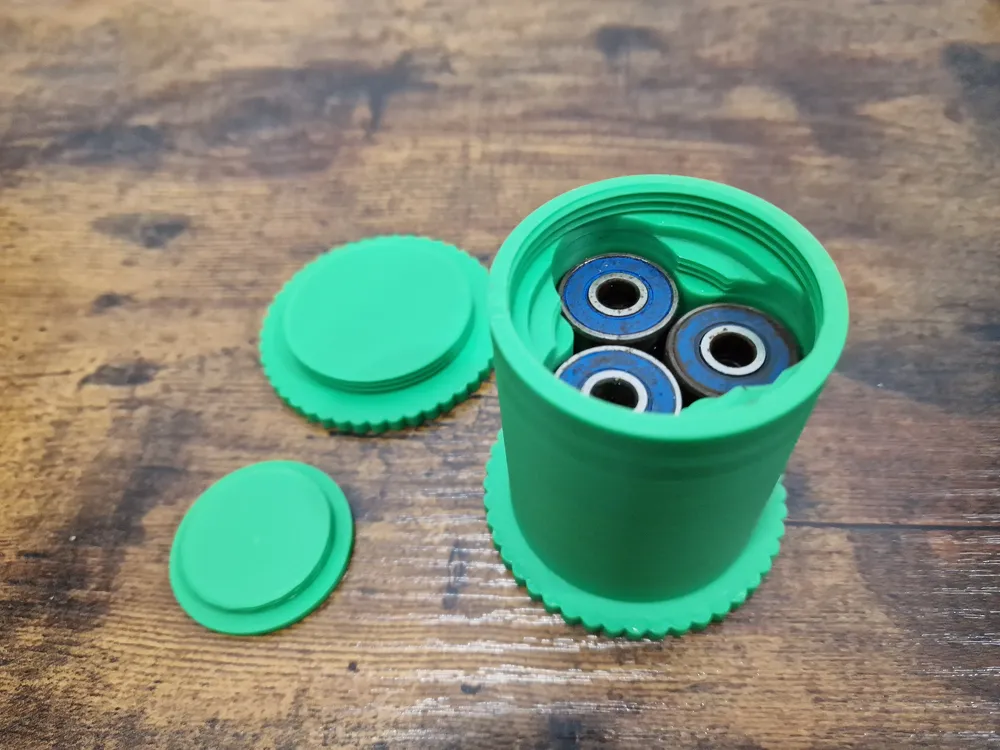

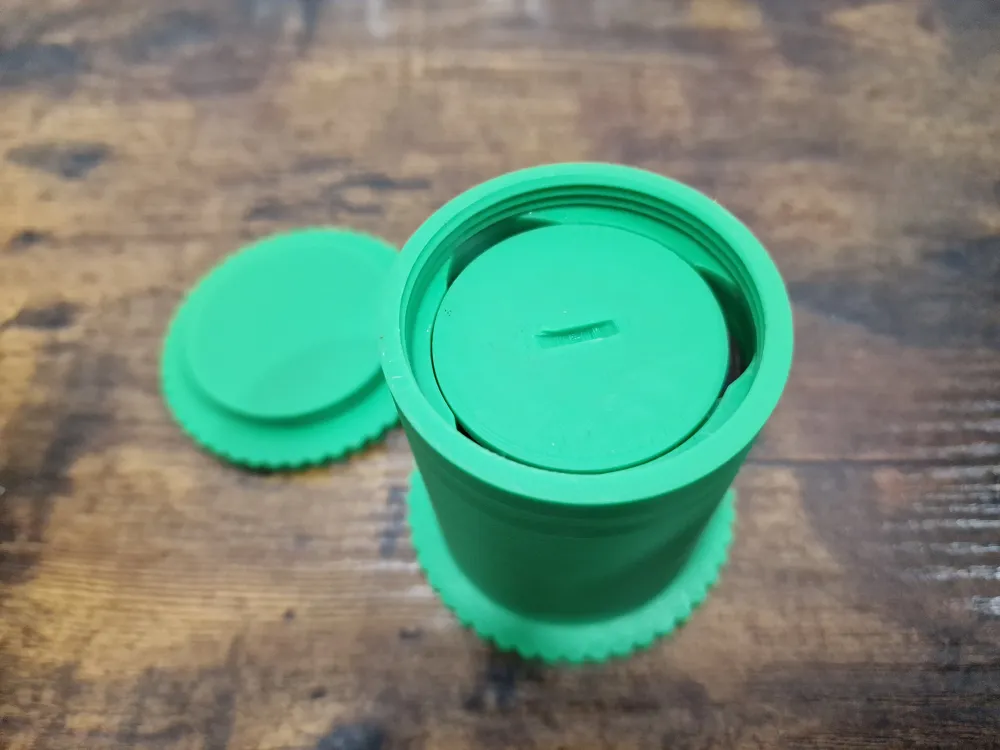

Instructions: Put 7 ball bearings on each hole, close with the bearings lid, then use on any spool you need.
Printing instruccions:
- Use adaptative layer height
- Print well in PLA
- 3mf file is provided for Bambu Lab Studio (be aware! I use cool plate)
Edit (2023-09-03): Added tolerance to Body Lid and change turn to be more intuitive
I hope can help anybody
