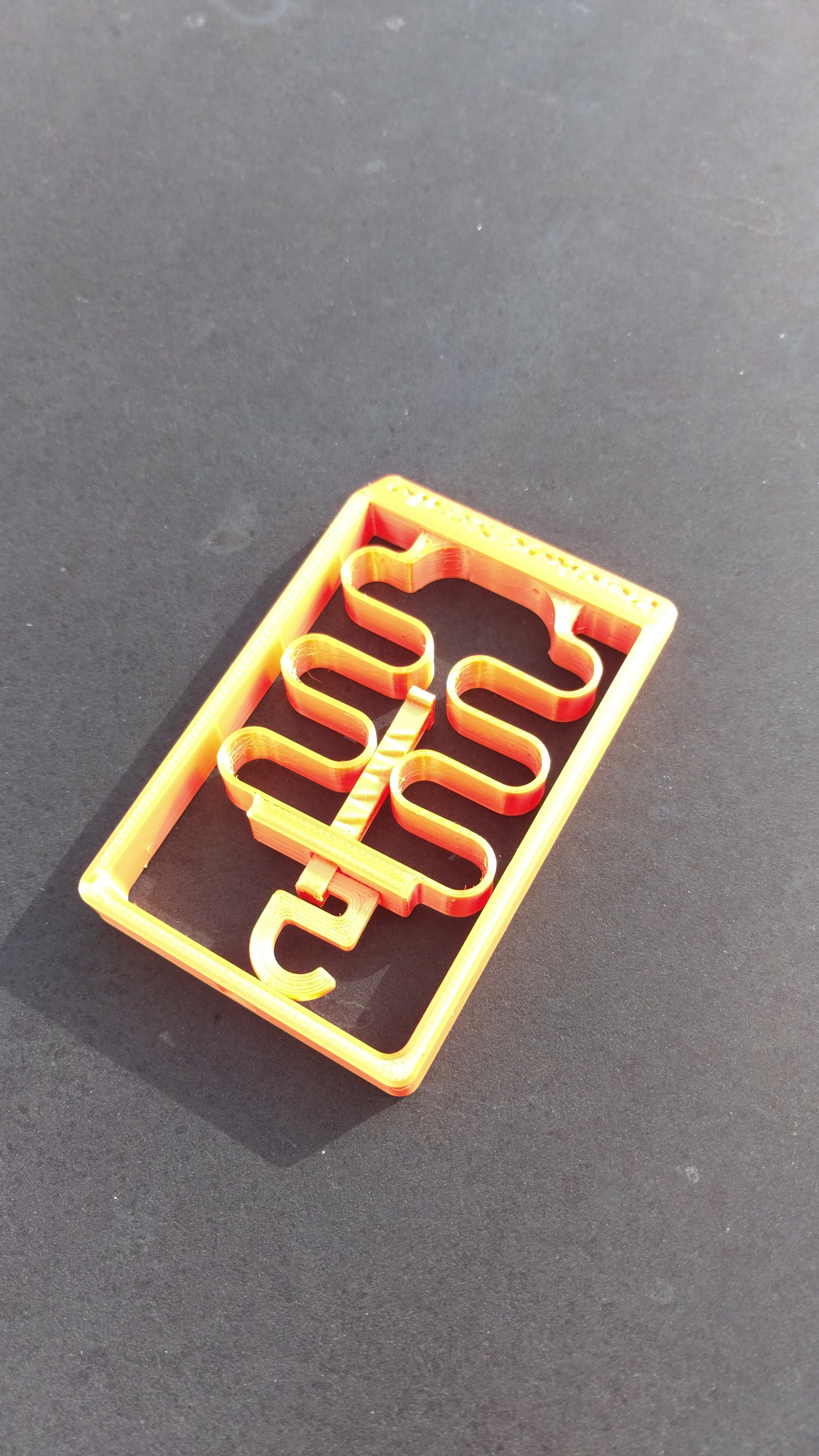

This is my approach to build a little travel scale in the size of a credit card (it's a little bit thicker ;-) )
it is possible to measure up to 2 kilograms and you can distinguish between 0,5 - 1- 1,5 and 2 kg
It is printed in some no-name Silk PLA+, 0.2mm layer hight, 20% infill

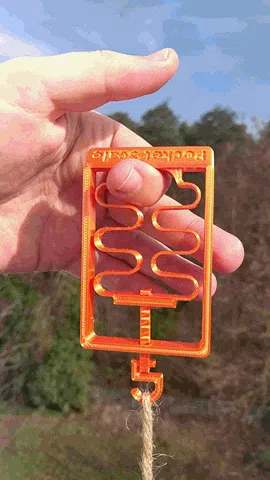

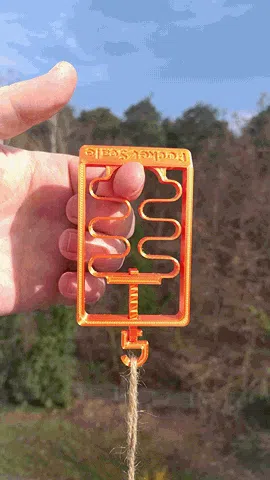

Measurement of 1kg | Measurement of 2kg |
There are 5 markings on the pin:
0 | 0kg |
1 | 0,5kg |
2 | 1kg |
3 | 1,5kg |
4 | 2kg |
weights larger than 2 kg will be blocked by the frame to avoid damage of the spring
If you use your own material the scale on pin has to be adjusted.

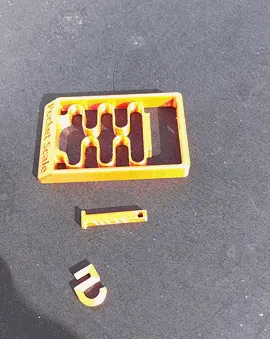

simple assembly:
you can store it for transportation
