Designed this 250mm tall lamp using Solid Edge (i am still learning)

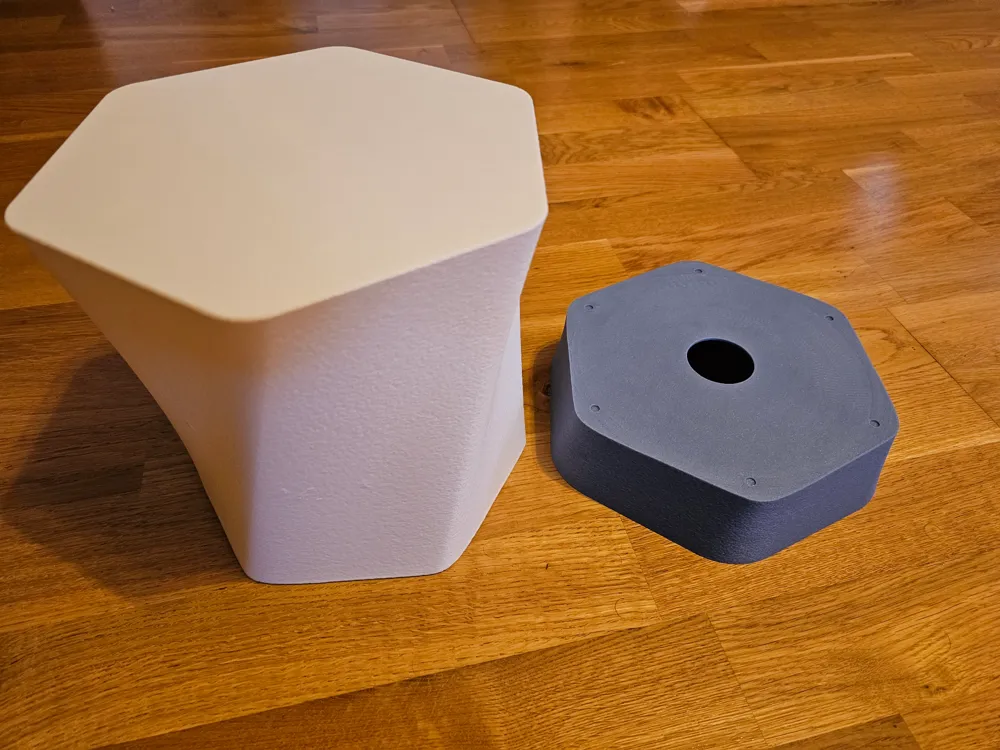

It consists of a 50mm tall base to fit a E27 socket with a switch and the upper 200mm hat. The hole model is printed using the fuzzy surface.

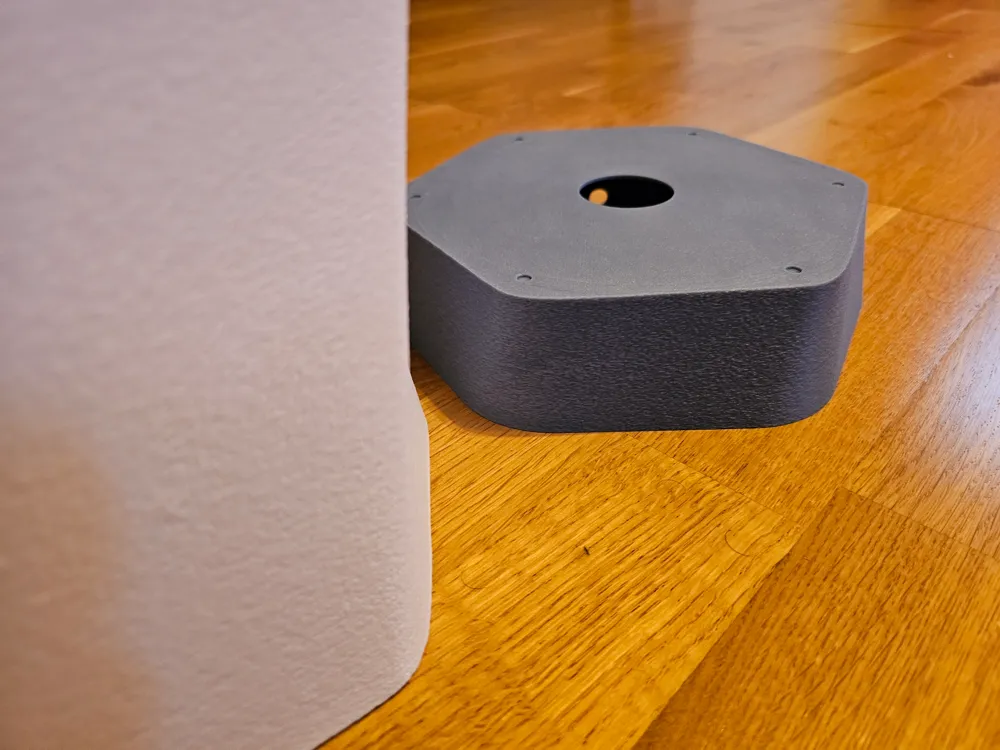

I modeled 6 pockets into the base to fit:
3 * 5x1mm magnets glued (weak ones to just hold it in place)
3 * pockets to fit the 3 pins on the hat
The hat also has pockets for 3*5x1mm magnets and also 3*5x0,9mm pins to align the whole thing. Magnets arent really need but help keeping it together.
There are supports in the hat and can easily be removed.

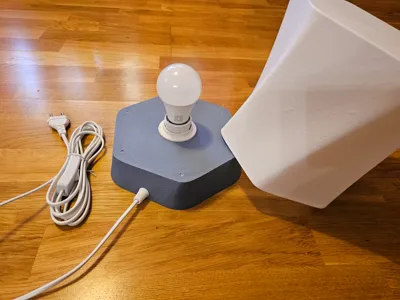

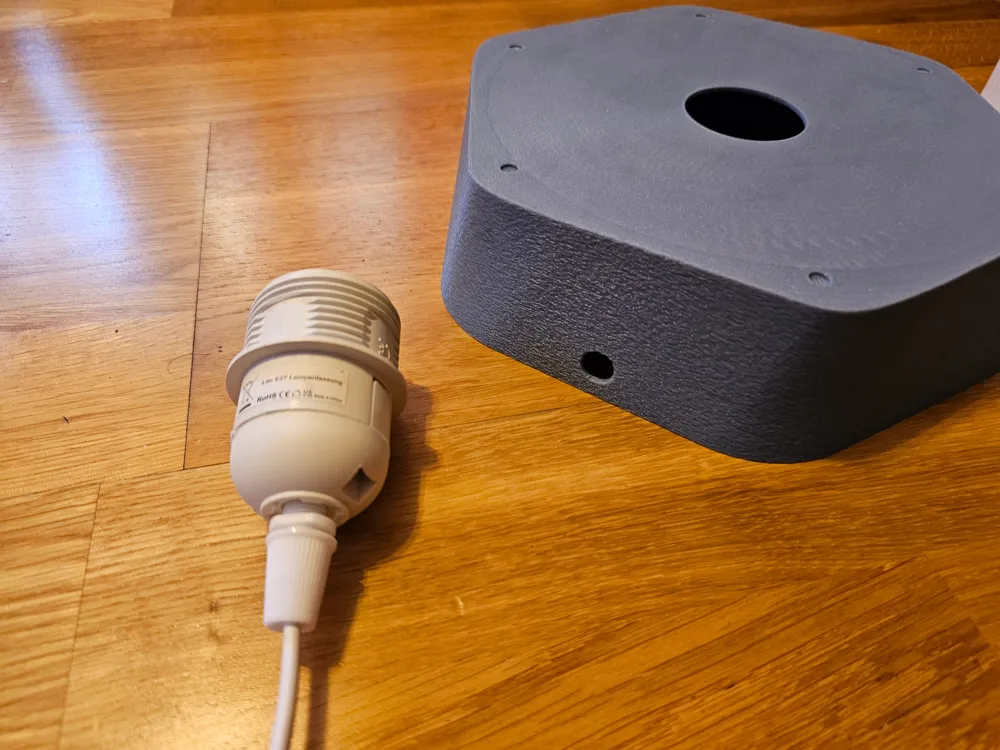

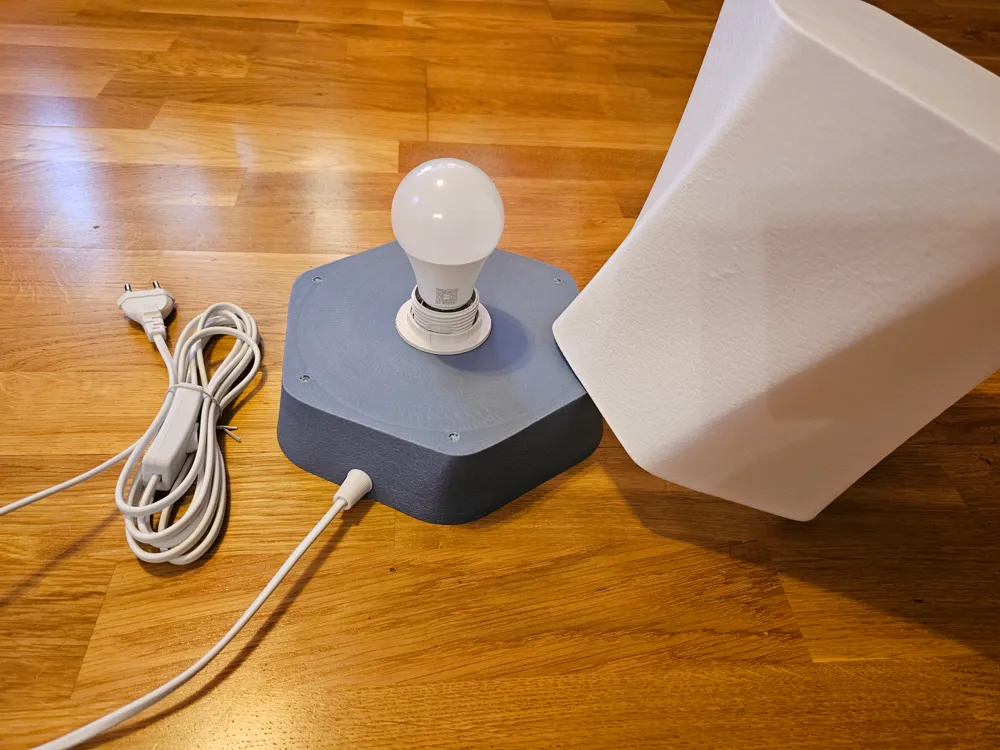

It is made for an E27 socket as seen in the pictures. I unscrewed the bottom part of the socket to fit it into the small 10mm hole in order to secure the cable. I had to disassemble the socket and detach the cables to route through the hole, but i guess you could simply cut open the hole from the bottom. The base has a 40mm hole for the E27 socket ( used these but others should be similar (?): https://www.amazon.de/gp/product/B0BY1234NN/ref=ppx_yo_dt_b_asin_title_o03_s01?ie=UTF8&psc=1 )
