XTouch Screen Mount

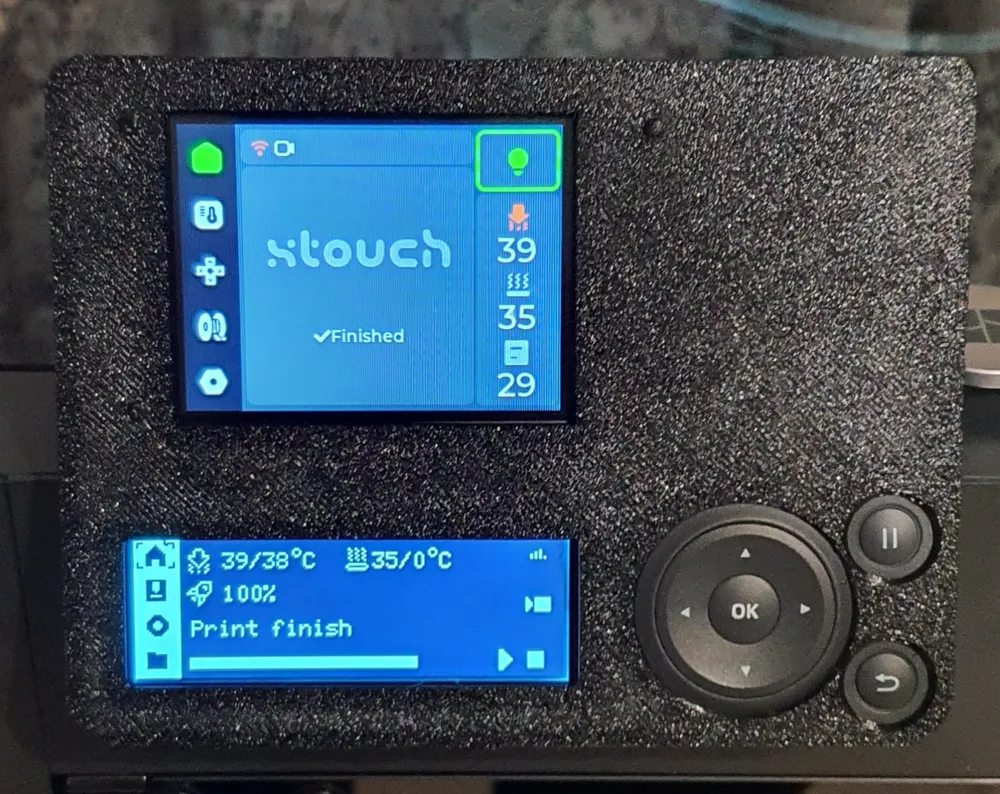

This is a mounting bracket for the XTouch (P1 Touch)

The front mount is based on Dallasstarsfan V3 Mount so already has the required cutouts for SD Card and Temp Sensor wiring.

The X Touch gives P1 Series users a touch screen to give faster and better access to the many features of the P1 Series Printers. To learn more about the project, head to the GitHub GitHub - xperiments-in/xtouch

This design incorporates a reset button into the design, so you may reset the screen without physically disconnecting it from the power.

All it requires is 4x 3M 16 mm long screws.

I have included the preferred print profile. If you choose to create your own, my recommendation is to have the button at 100% infill with a 10mm brim.

The final picture on this file shows how the reset button should be orientated.

No supports required.

If you plan to add the Chamber Temperature gauge, I have also created the following model which requires 2 small magnets and no screws.

Temperature Gauge Mount for DS18B20 (XTouch Screen) by Aussie 3D Makers - MakerWorld

Link to purchase screen Aliexpress The below link is an Affiliate link from the developer's GitHub page any purchase $$ from the below link goes back to the developer of XTouch not myself.

https://s.click.aliexpress.com/e/_EwiGjNZ

While not obligated here is my buy me a coffee link :) https://www.buymeacoffee.com/aussie3dmakers

This has been relisted as an issue was identified where the original maker for the front cover was not appropriately credited. My sincerest apologies Dallasstarsfan
