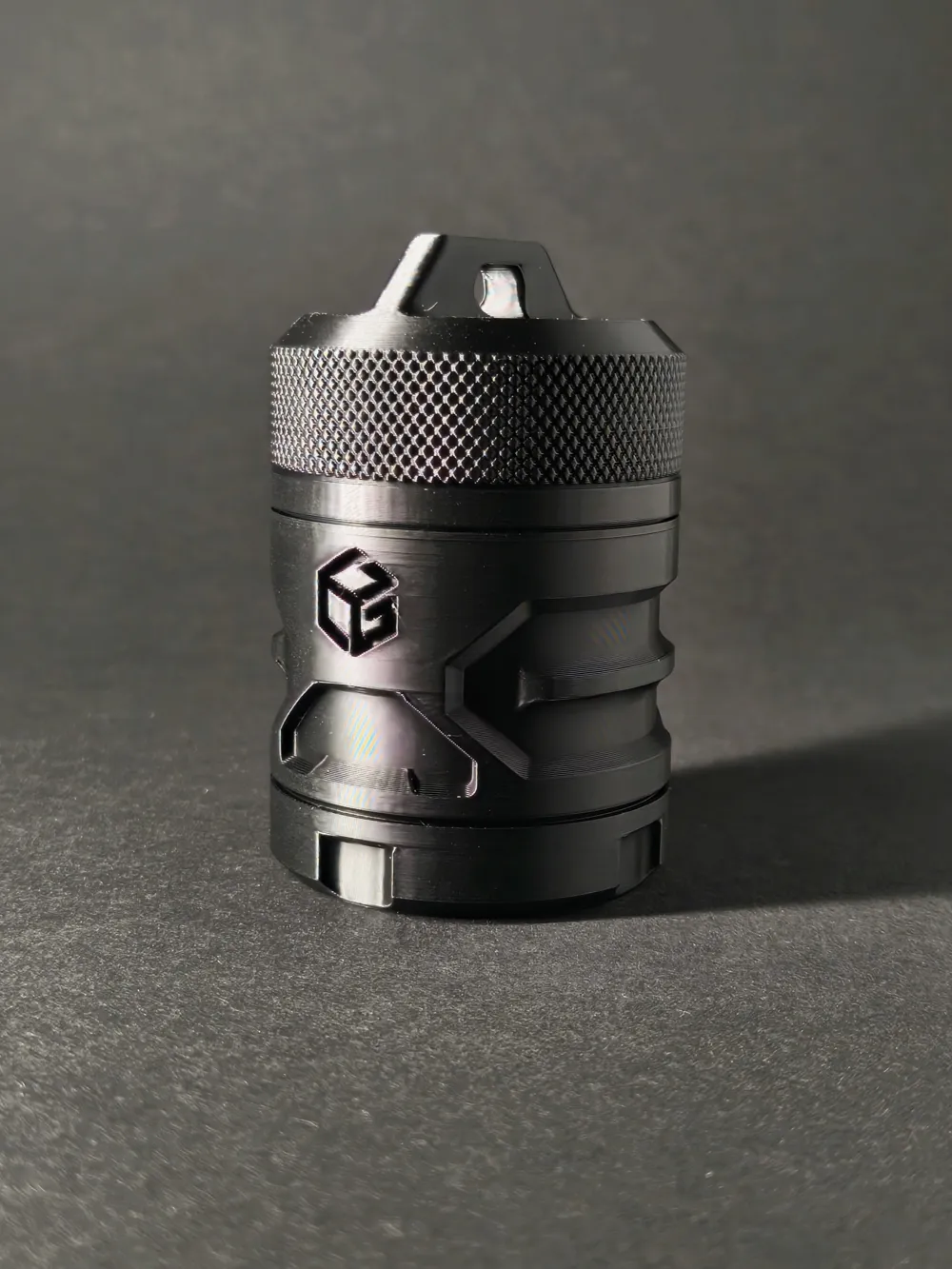

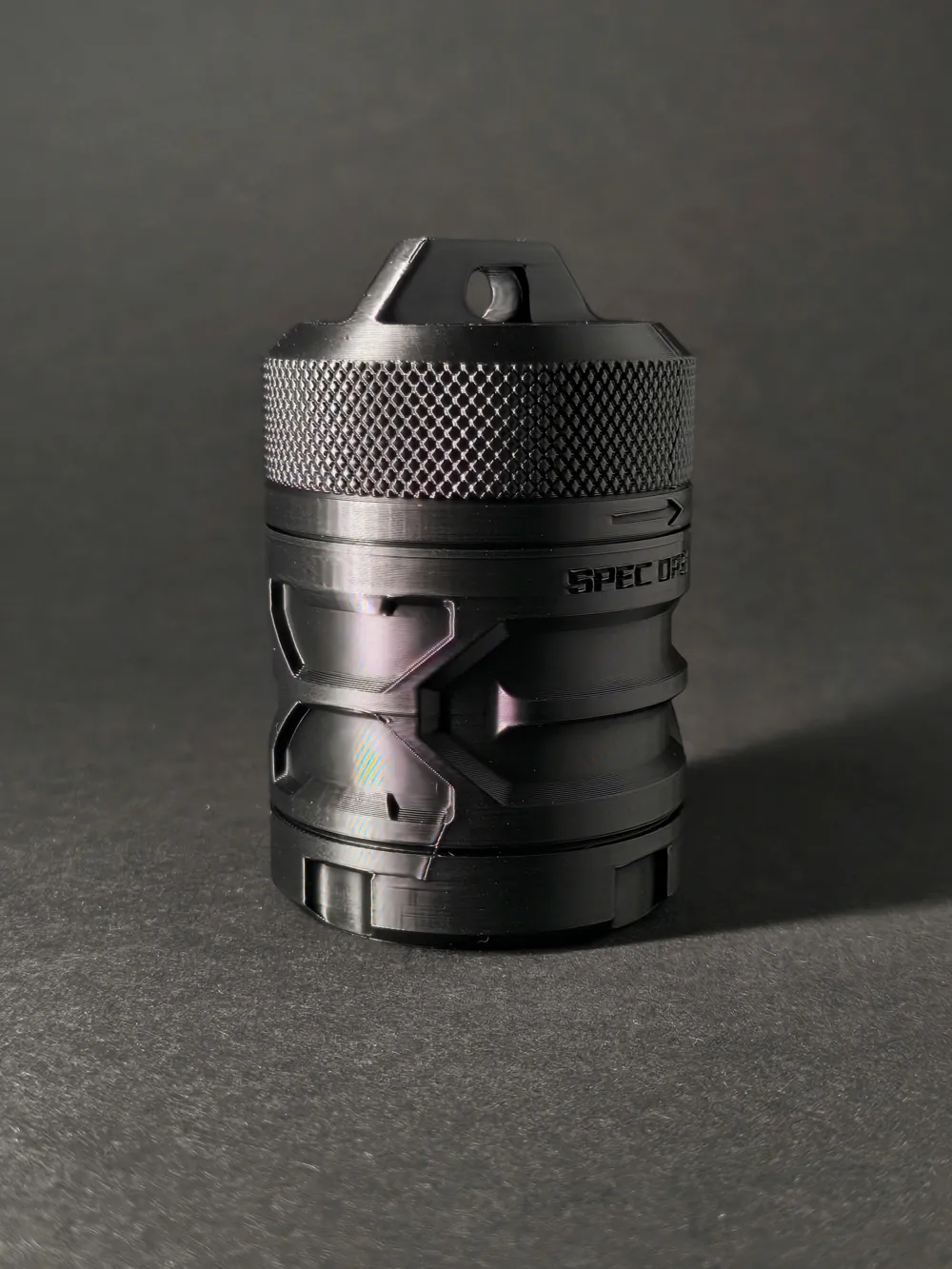

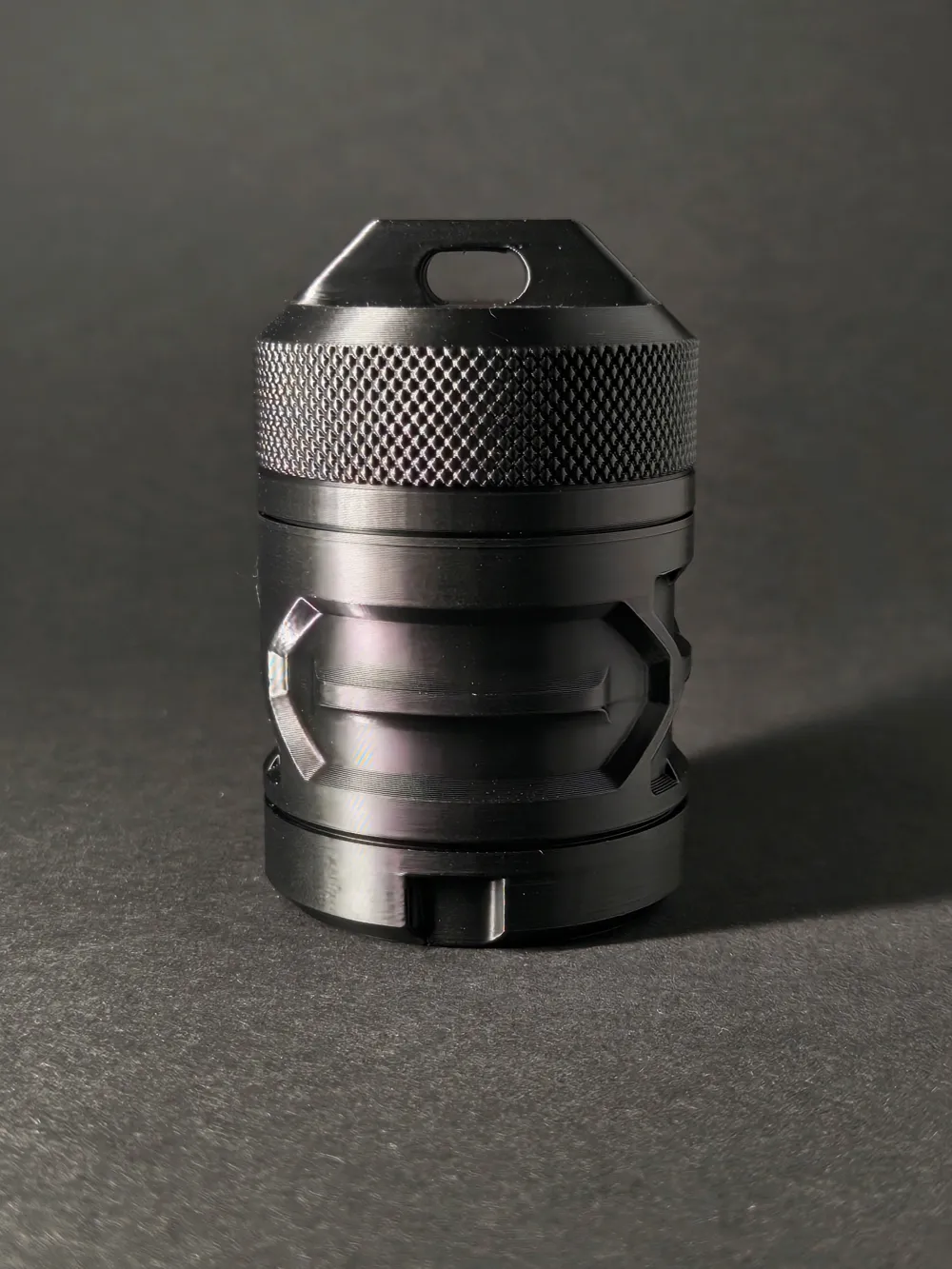

[Heavy] Tactical Carrier MK2 // RT-42 IP67
Print Profile(1)
Description

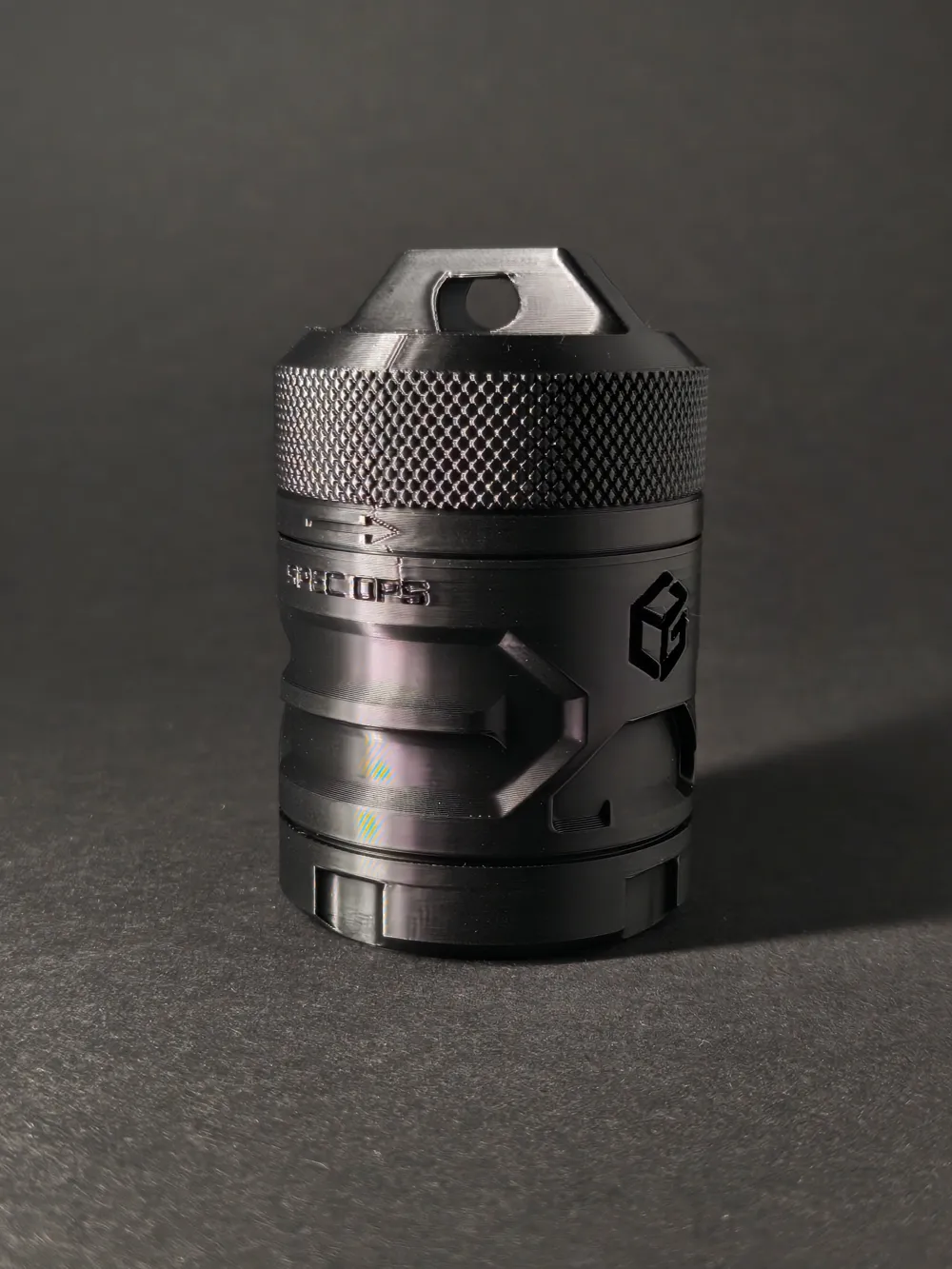

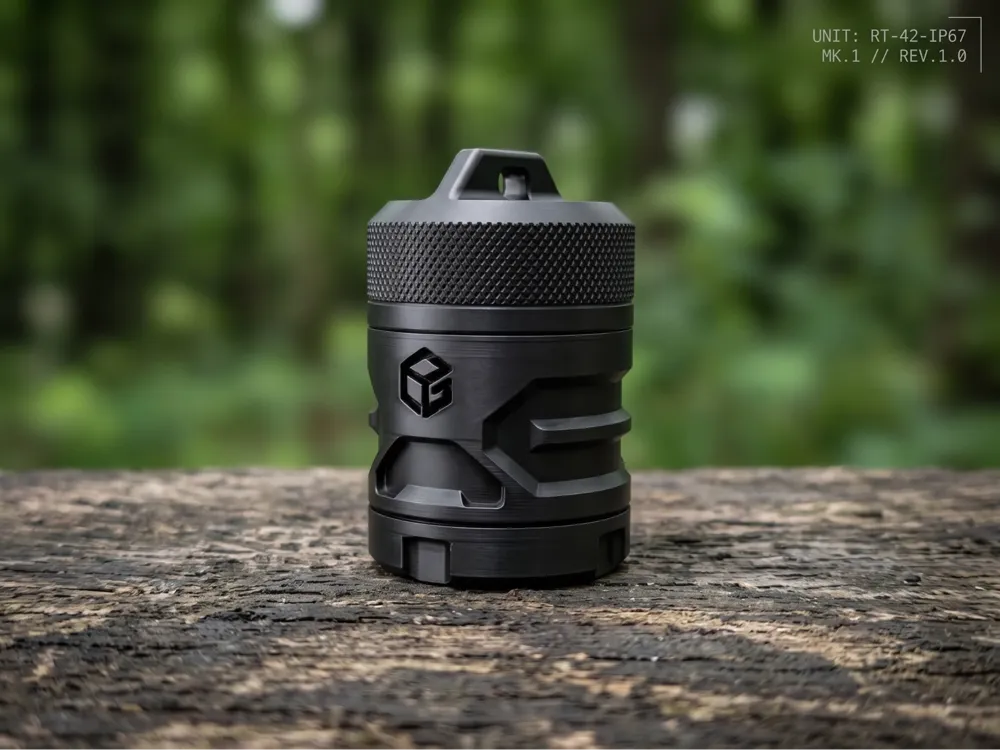

UNIT: RT-42-IP67 MK.1
[ SYSTEM DECODER // TECHNICAL DESIGNATION ]
- R — Round (Geometry Spec)
- T — Thread (Locking Mechanism)
- 42 — 42mm O-Ring ID (Internal Seal Caliber)
- IP67 — Ingress Protection (Dust-tight & 30 min waterproof spec)
- MK.1 — Mark 1 (First Generation Airframe)
▲ ▲ ▲ ───────────────── ▲ ▲ ▲
Design & Performance
REQUIREMENTS:
O-ring: Requires one ID 42x2 mm O-ring for proper sealing
⚠️Note: Designed for a 42mm nominal size, but fully compatible with 42–44mm O-rings.A smaller diameter provides a tighter initial stretch, while a larger diameter (up to 44mm) snaps in easier with less preload.
SPECIFICATIONS:

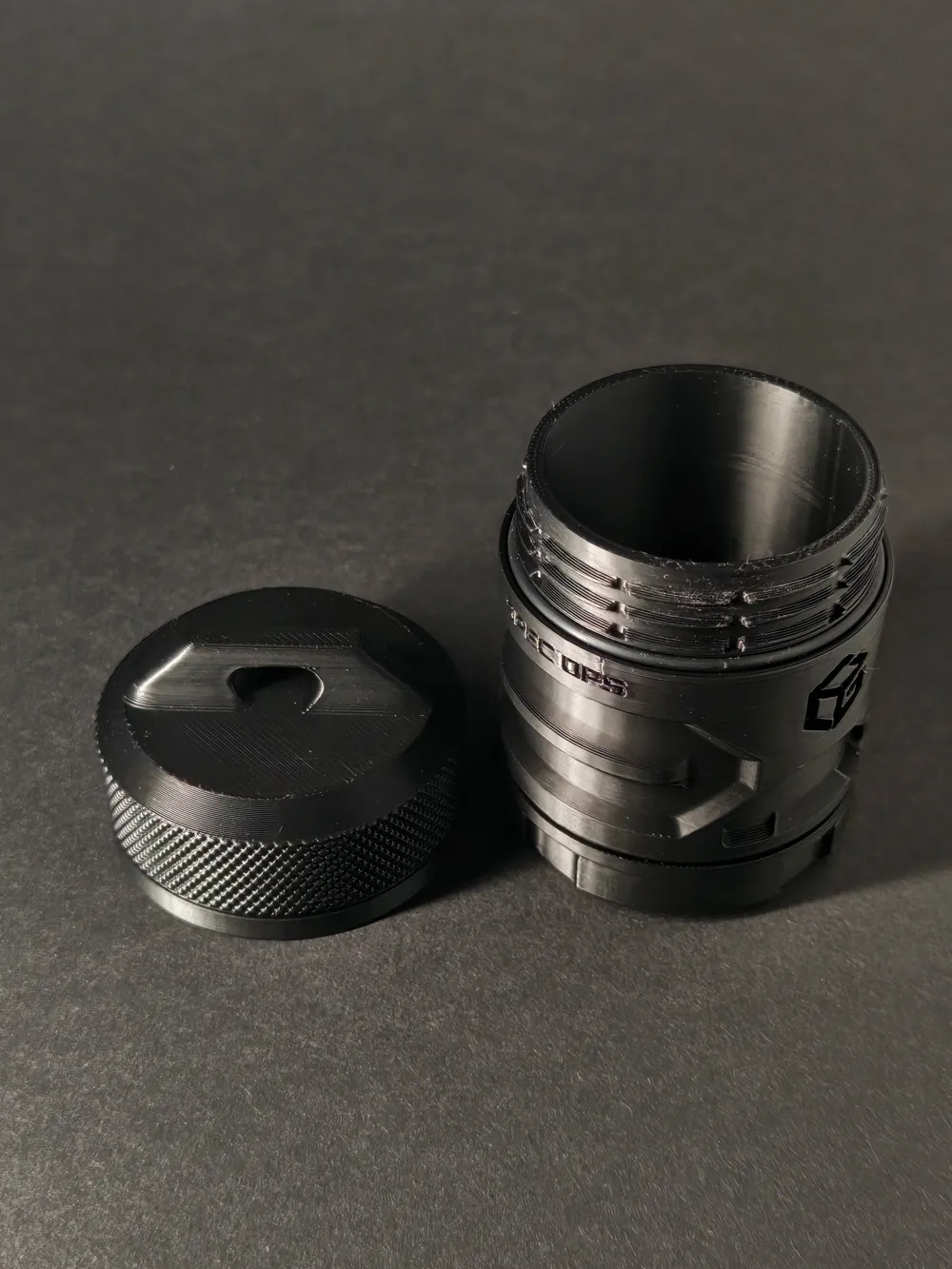

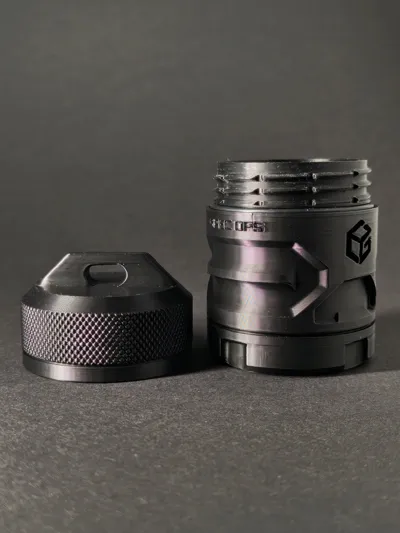

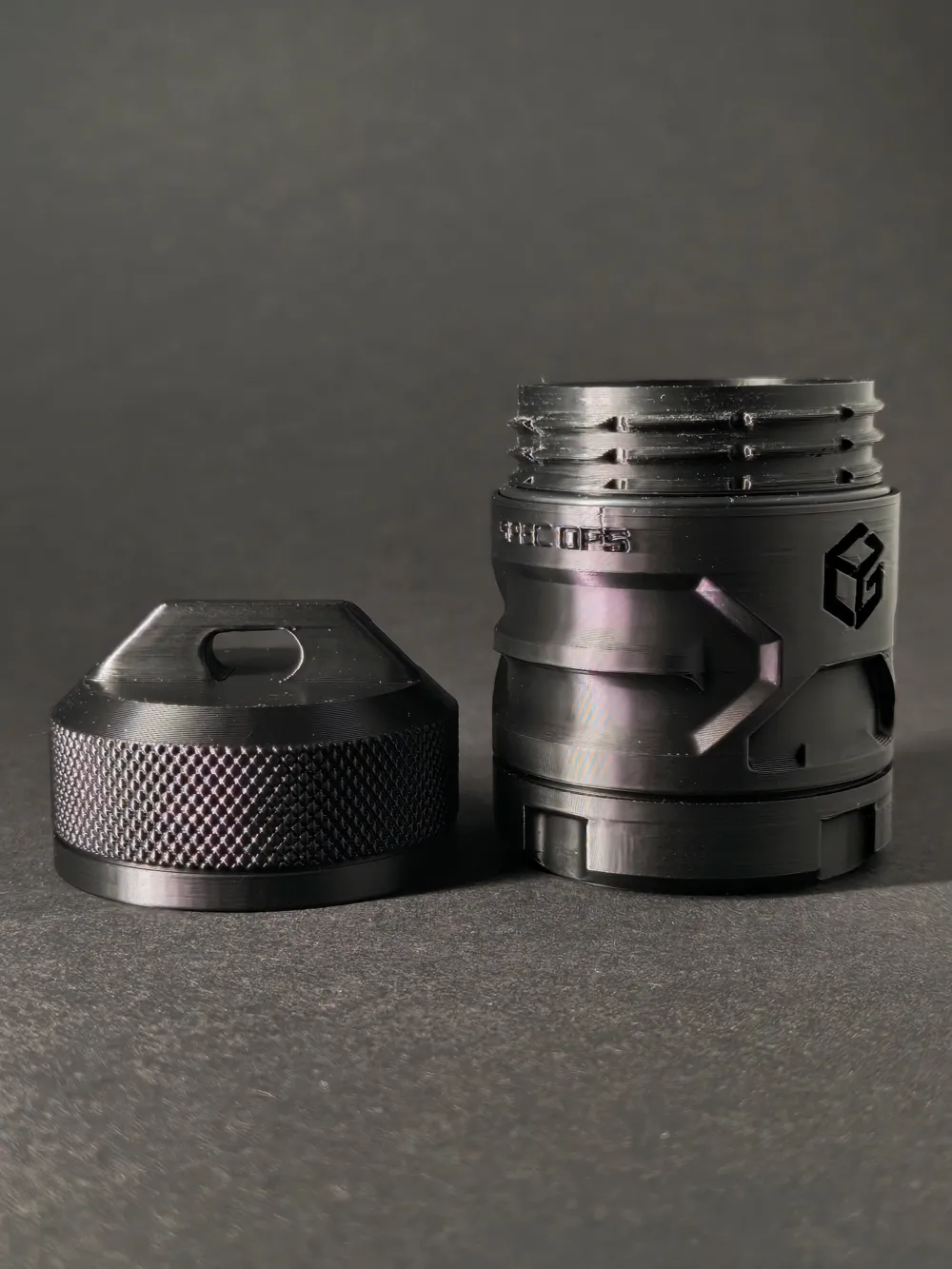

- Mechanism: Radial sealing system based on military-grade standards.
- Protection: Rated for IP67 (dust-tight and water-resistant).
- Testing: Successfully tested for 1 hour at 0.5m depth with zero leaks.
- Disclaimer: Perfect for EDC, hiking, and field use. If you are swimming across a river with it, you're good. If you're underwater for more than 5 minutes, you clearly have bigger problems than this container.
▲ ▲ ▲ ───────────────── ▲ ▲ ▲

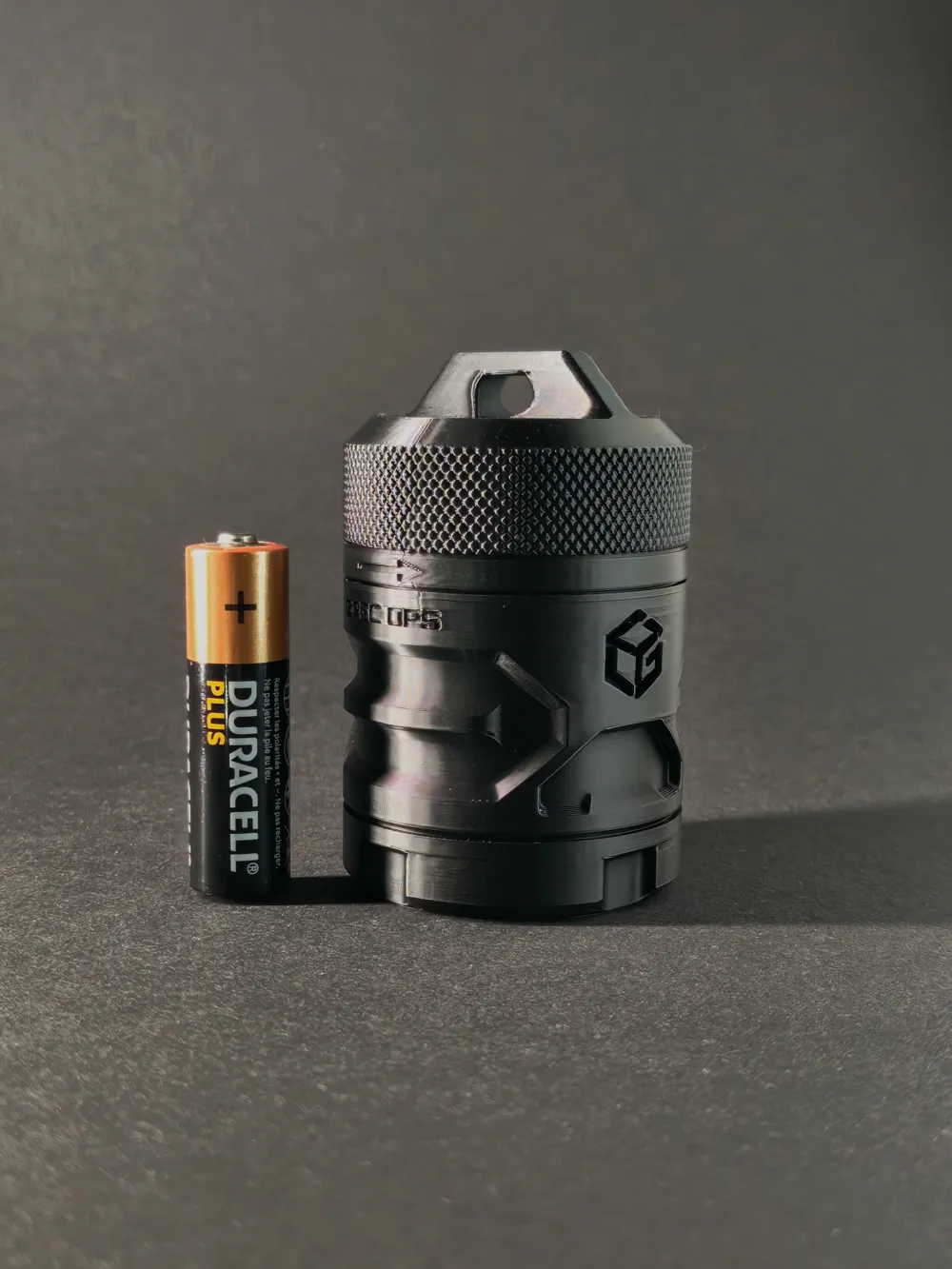

[ DIMENSIONS: METRIC // IMPERIAL ]
- O.D. (Outer Diameter): 49.2 mm // 1.94 in
- I.D. (Inner Diameter): 38.5 mm // 1.52 in
- Throat Opening: 38.5 mm // 1.52 in
- Total Height: 66.5 mm // 2.62 in
- Effective Depth: 55.0 mm // 2.17 in
▲ ▲ ▲ ───────────────── ▲ ▲ ▲
