Parametric Split Monogram Sign — Self-Standing

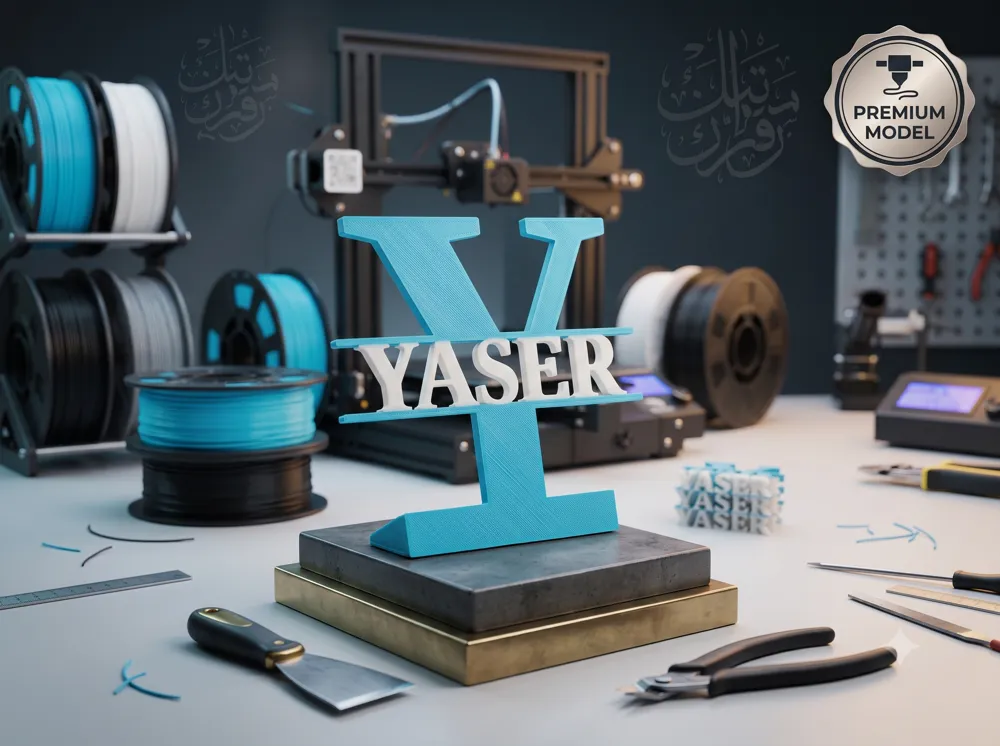

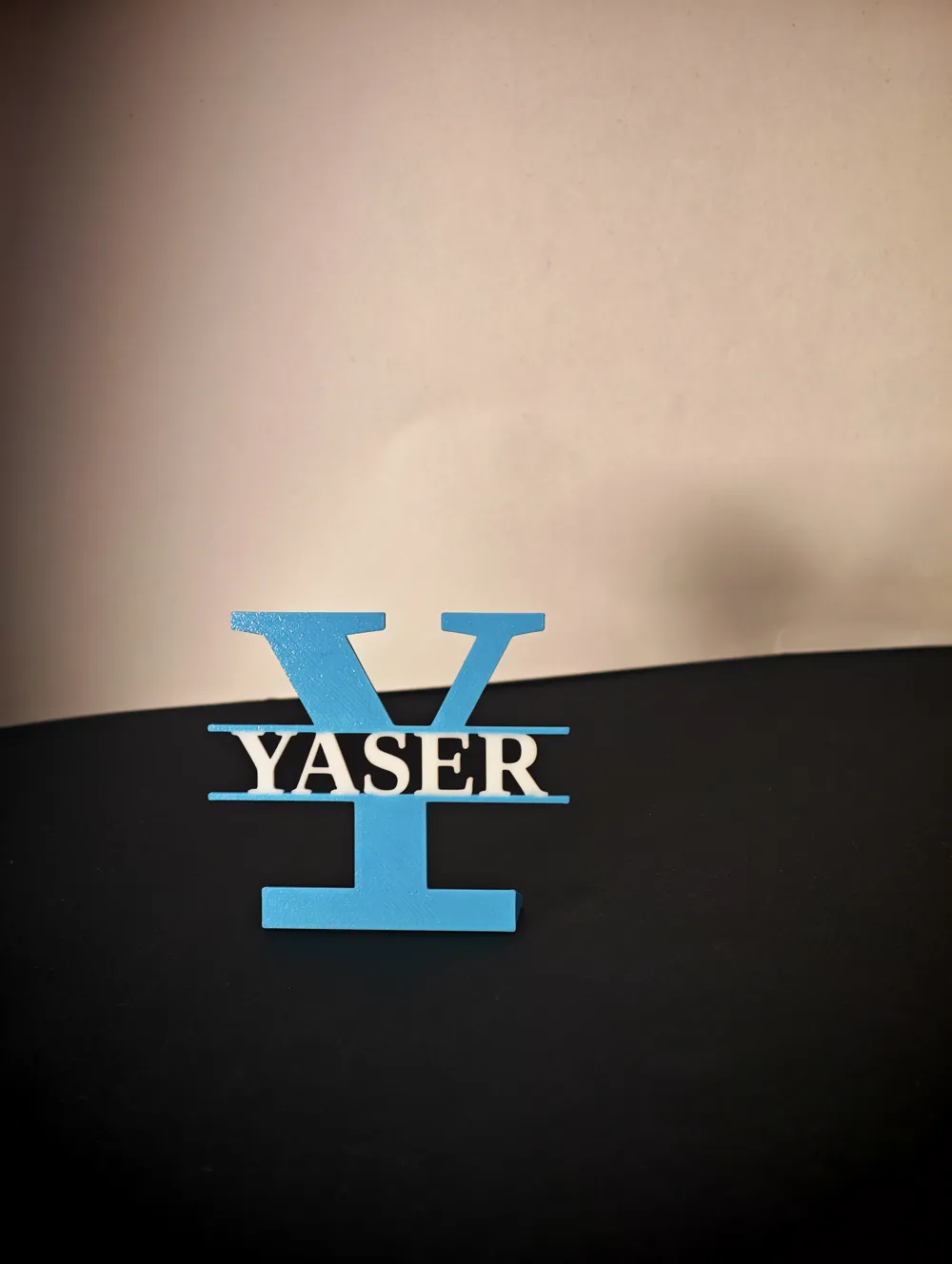

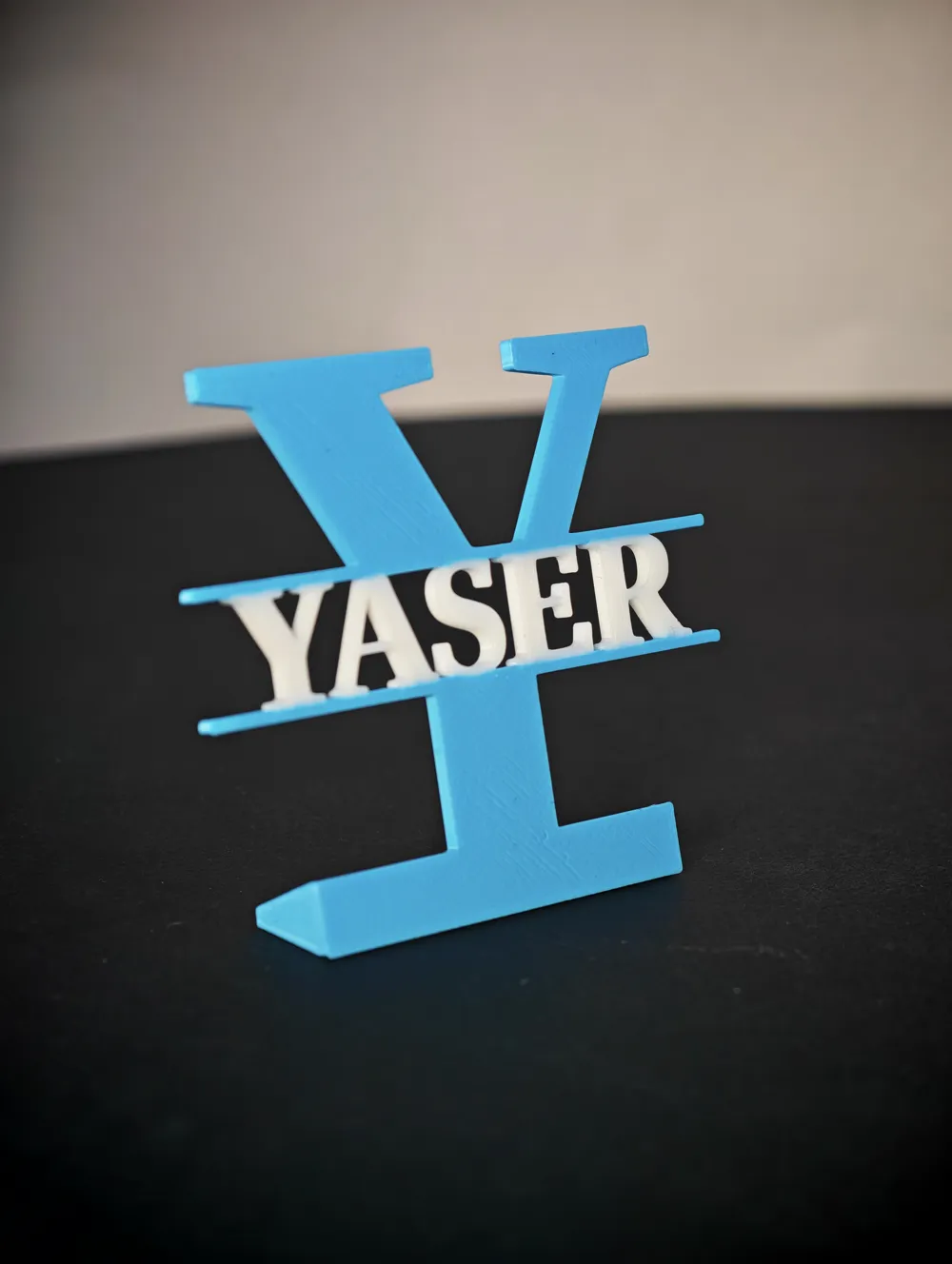

A stunning, fully customizable 3D-printed Split Monogram Family Sign featuring a large initial letter cut with a middle name banner and horizontal accent bars. Perfect for family names, newlyweds, nursery decor, desk displays, and personalized gifts!

Key Features:

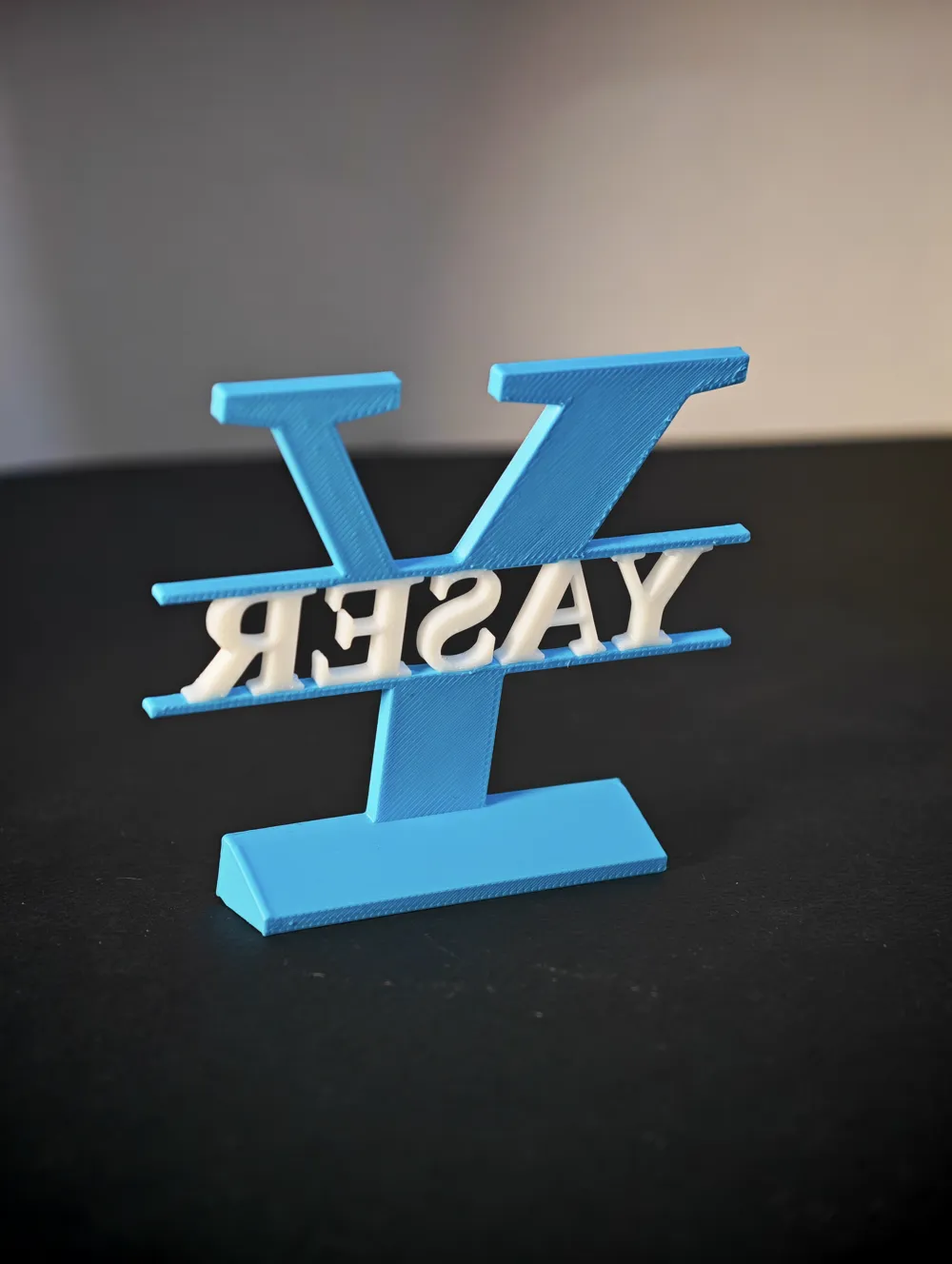

• Self-Standing 1-Piece Design: Integrated rear kickstand foot at the bottom lets the sign stand upright on any desk with a natural 15∘15∘ backward tilt. The bottom edge is sliced at a matching angle so it rests 100% flat and flush on your table.
• 100% Flush Level Front Face: The initial letter, horizontal border bars, custom name text, AND the bottom base foot are extruded to the exact same level (Z=5.0mmZ=5.0mm). Uses 2D difference() cutouts to eliminate 3D volume collisions for seamless 2-color printing in Bambu Studio / MakerWorld Customizer.
• Flipped Face-Down Zero-Support Print (Plate 1): On Plate 1, the model is flipped 180∘180∘ so the 100% flat front face lays face-down directly on the print bed (Z=0Z=0). Printing face-down against a PEI build plate produces a smooth, textured 2-color front surface on layer 1 with zero support material required.
• Clean Font Selectors & Auto-Uppercase: Choose from human-readable font style dropdowns (Serif Bold, Sans Bold, Monospace Bold, Classic Serif, Headline Impact, Modern Sans, Arial Bold, Traditional Serif) without raw string bugs. Automatic uppercase forcing (Force_Uppercase = true) guarantees uniform letter height so every character connects evenly across the split banner!

Print Notes:

• Material: PLA, PETG, or Silk PLA (Silk Black/Dark Gray base frame + Gold/Silver text looks stunning!)
• Layer Height: 0.2mm (0.16mm for extra fine text detail)
• Infill: 15–20%
• Supports: ❌ NONE needed (prints 100% flat face-down on Plate 1)
• Multi-Color Printing (AMS / Filament Swap):
  • AMS: Assign Color 1 to the Frame and Color 2 to the Name Text for automatic 2-color first-layer inlay printing.
  • Single Extruder (Manual Swap): Pause at layer height Z=ThicknessZ=Thickness to swap colors for the rear kickstand leg.
