Description

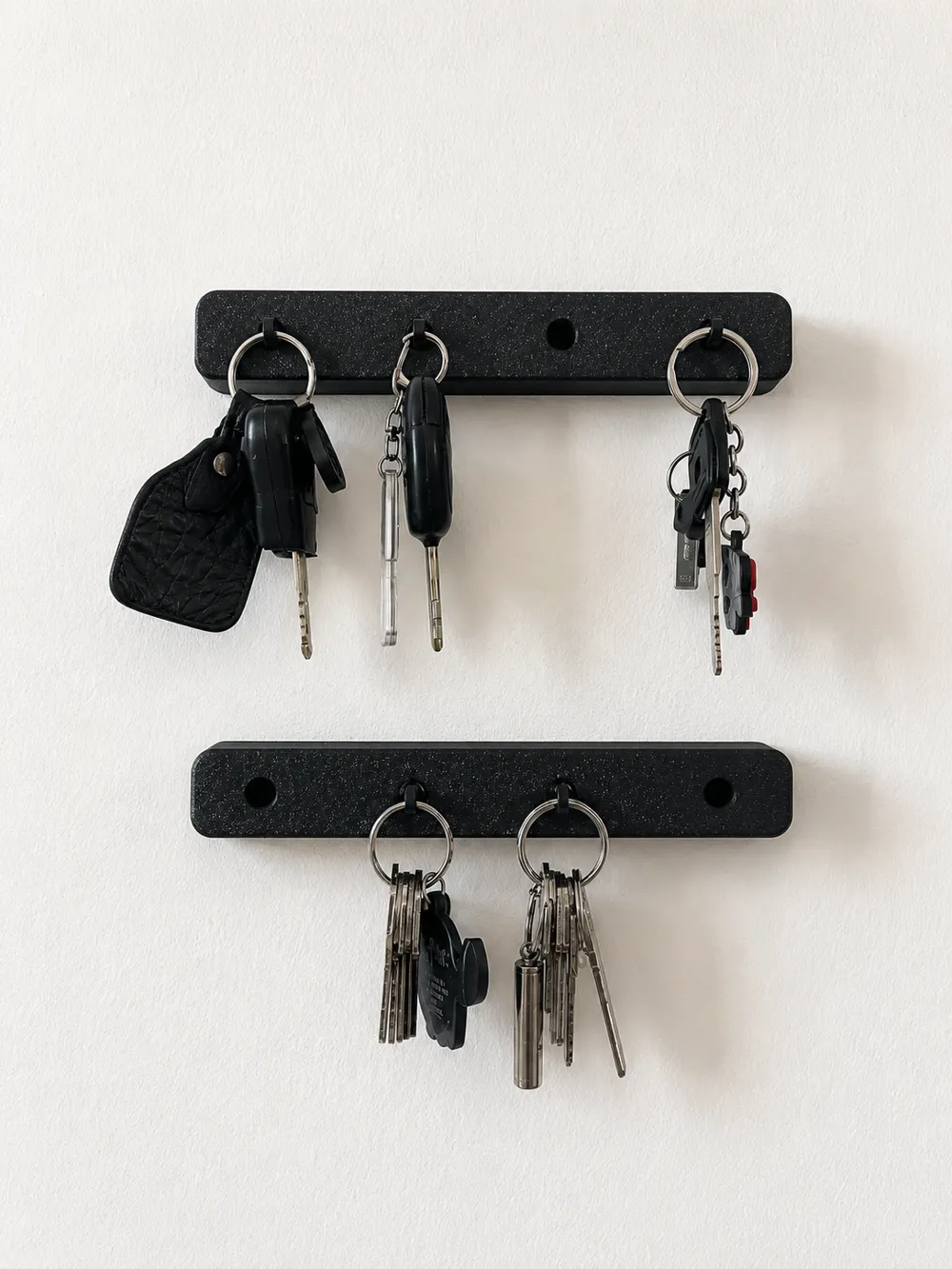

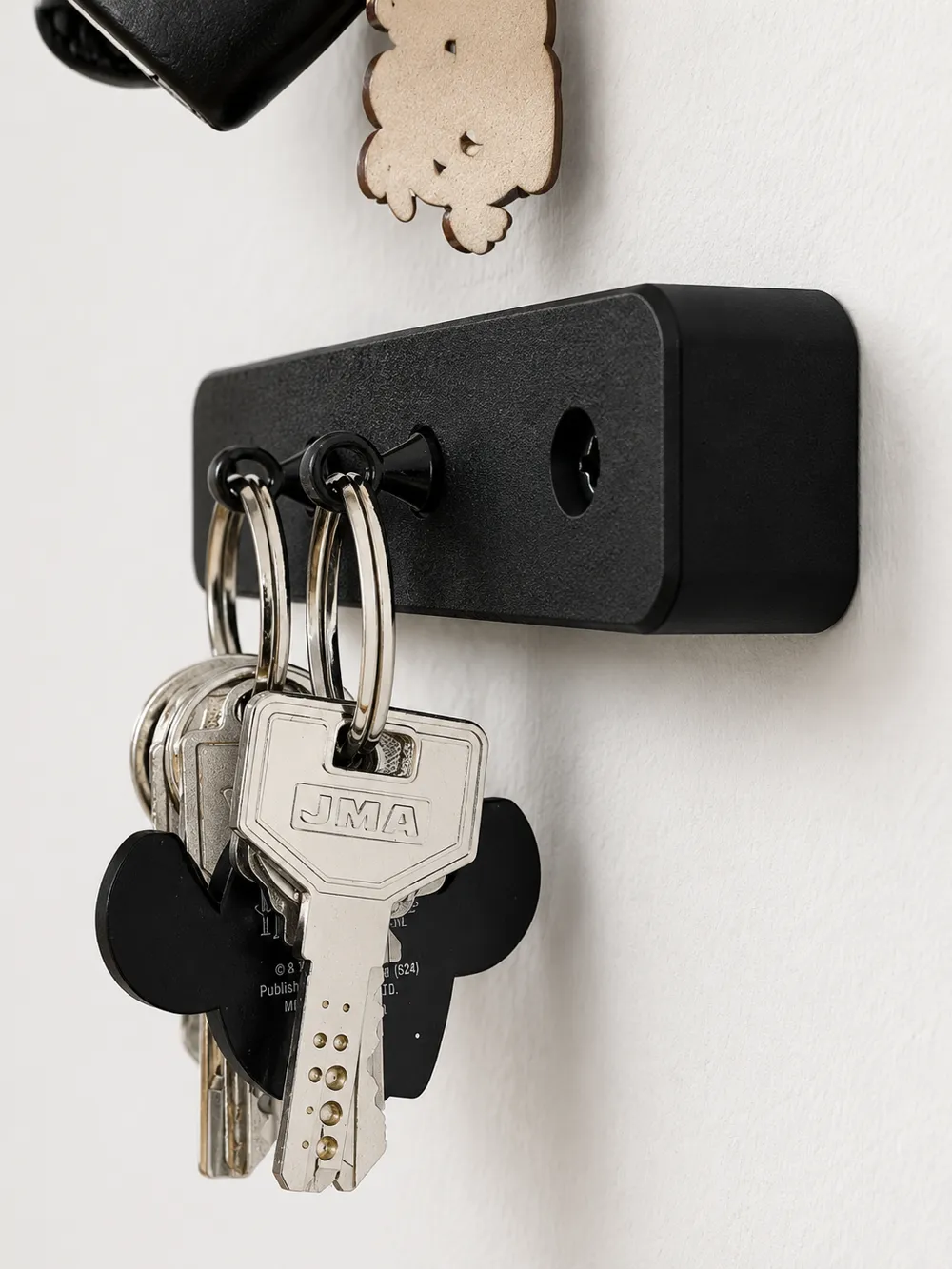

A minimalist magnetic key holder designed for quick and satisfying everyday use.
The system uses hidden magnets embedded during printing to create a secure magnetic "click" when inserting the key fob. Installation is simple using double-sided adhesive tape, making it perfect for entrances, hallways, offices, or garages.
Features
- 🧲 Hidden magnetic click system.
- 🔑 Available in 1, 2, 3 and 4 key versions.
- 🏠 Minimalist and functional design.
- 🛠️ Easy wall mounting with double-sided tape.
- ✨ Front surface printed directly on the build plate for a premium finish.
Available Sizes
| Capacity | Width |
|---|---|
| 1 Key | 50 mm |
| 2 Keys | 100 mm |
| 3 Keys | 150 mm |
| 4 Keys | 200 mm |
Common dimensions:
- Height: 30 mm
- Depth: 20–22 mm

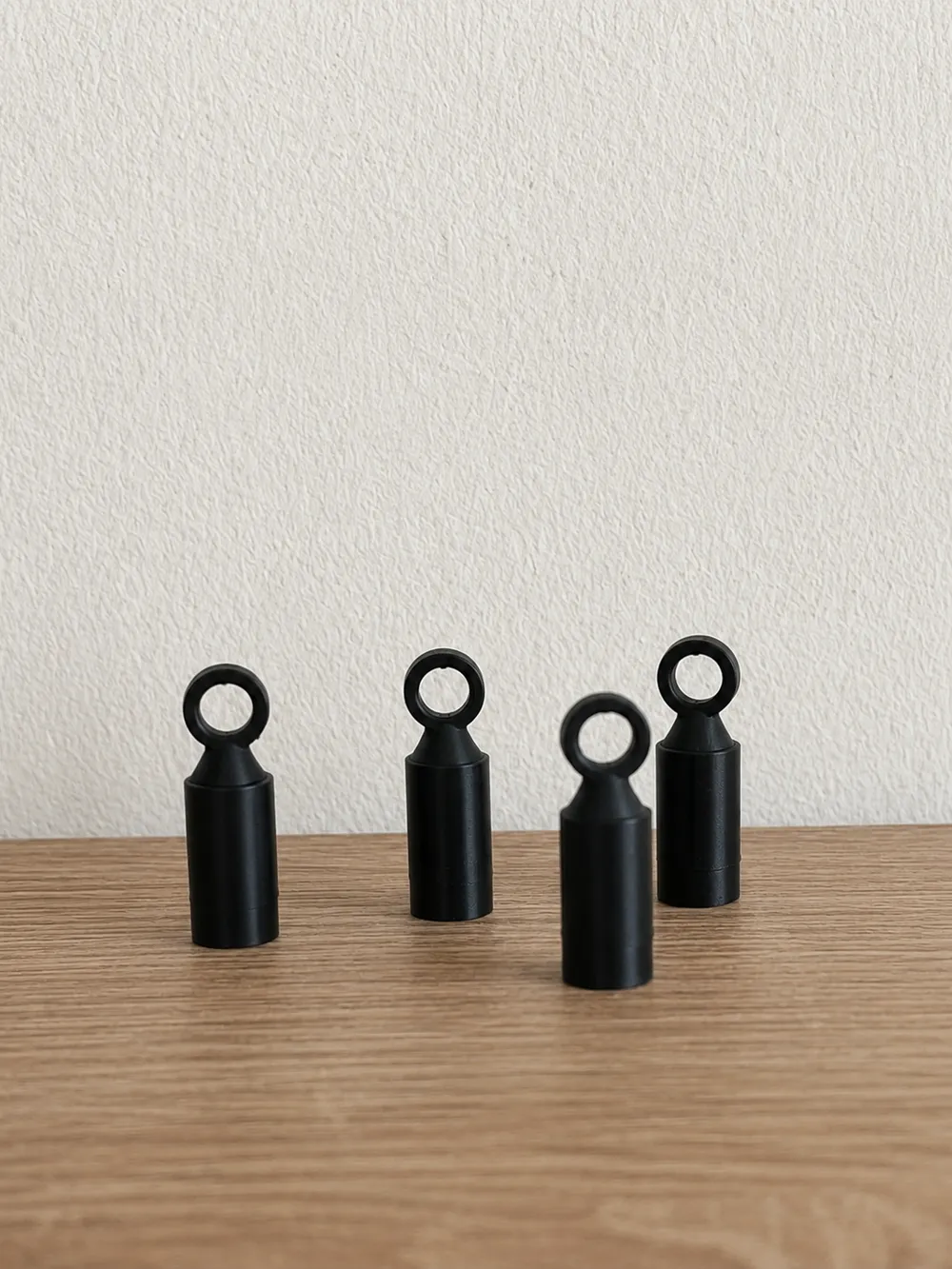

Key Fob Dimensions
- Total length: 26.8 mm
- Insertion length: 15.9 mm
- Diameter: 8.2–8.3 mm
Double-Sided Tape
The rear slot is designed for adhesive tape approximately:
- 20 mm wide
- 0.8 mm thick
Printing Instructions

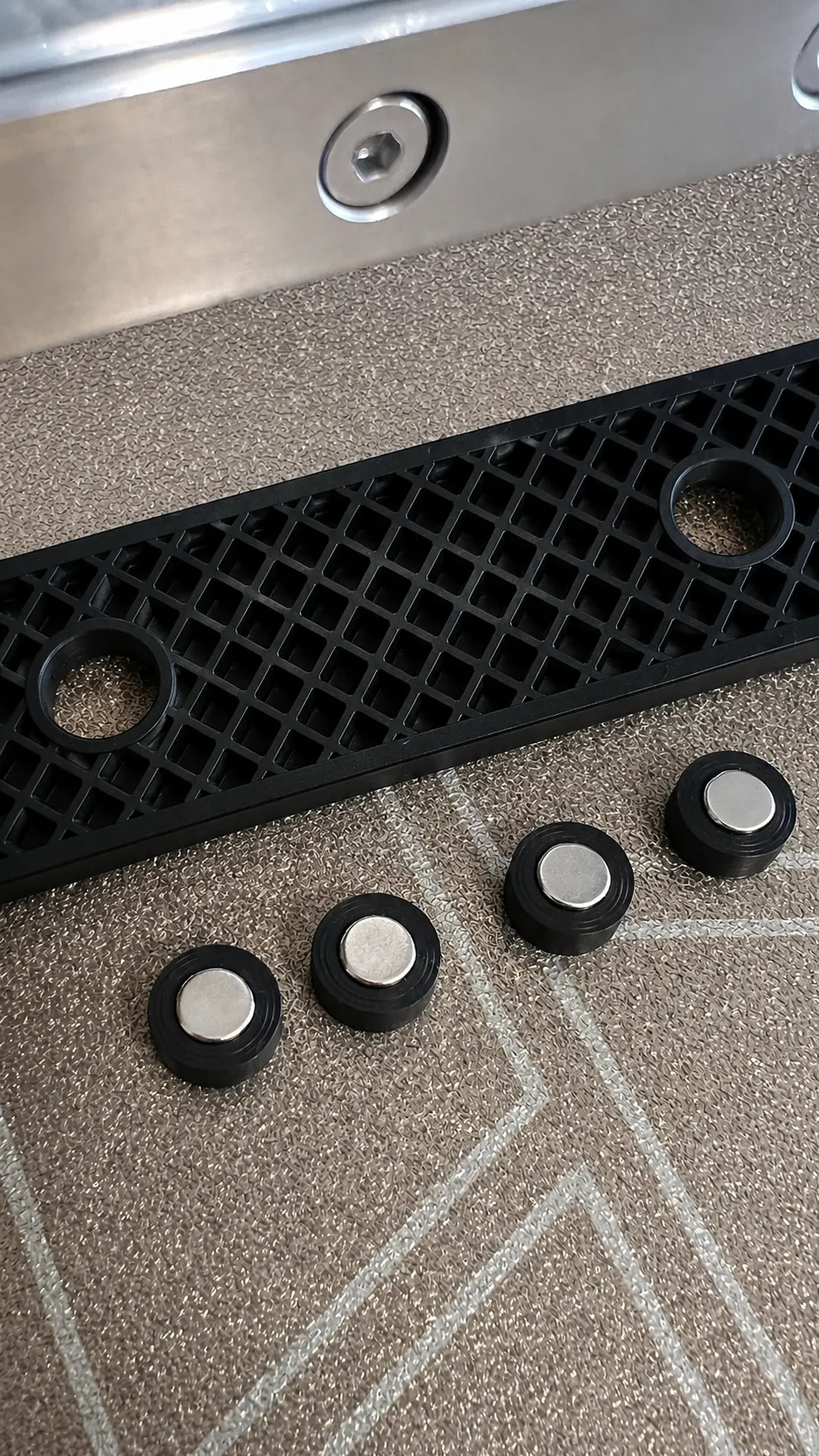

The included print profile already contains the required pauses for magnet insertion.
⚠️ Important:
The parts are printed upside down. Because of this, pay close attention to the magnet polarity when placing them. The magnets must be installed with the correct opposing orientation so the key fobs attract the base correctly and produce the magnetic click.

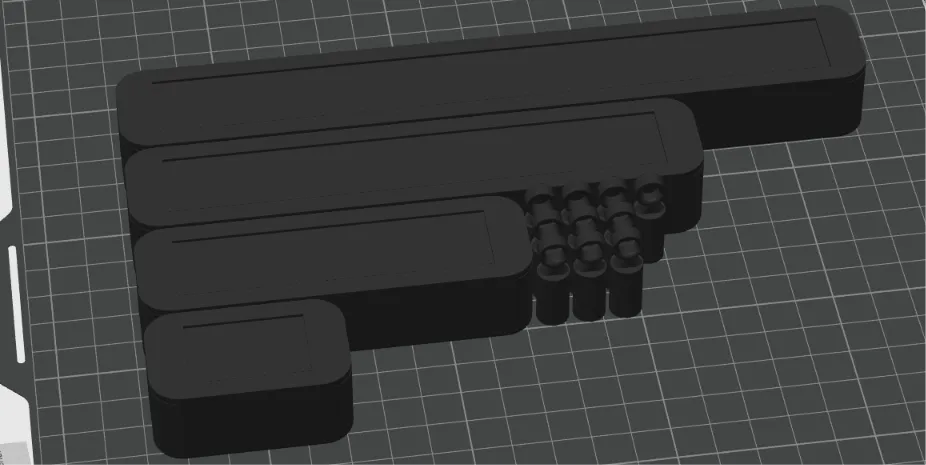

Print Orientation
It is recommended to print all parts upside down.
This orientation leaves the visible front face against the textured build plate, producing a clean, high-quality finish without any additional post-processing.
