Parametric Custom -Compatible Bricks
Print Profile(1)
Description
Parametric and Customizable L3GO-Compatible Bricks and Plates
Create ANY size of L3GO-compatible brick, plate, or smooth piece directly from your browser using the MakerLab Parametric Model Maker from Bambu Lab!

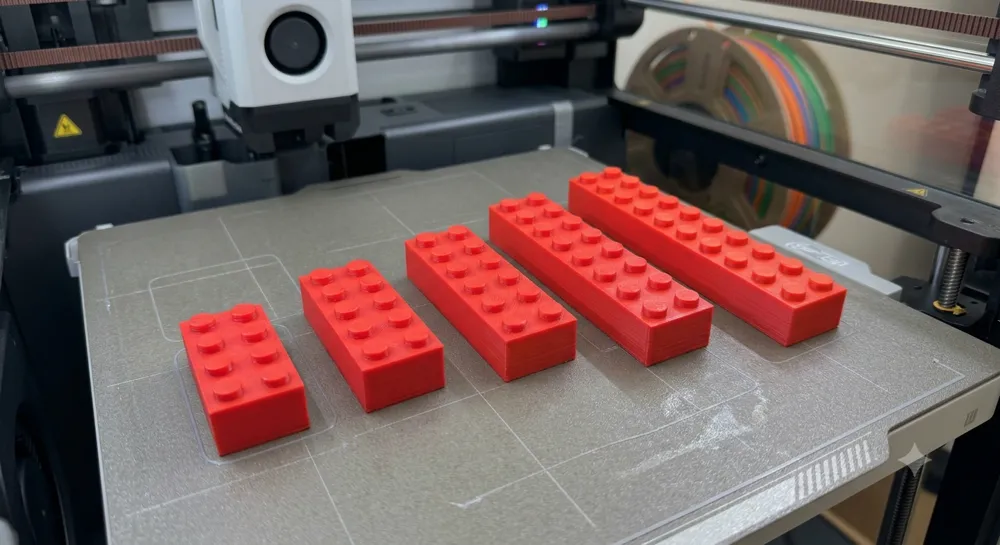

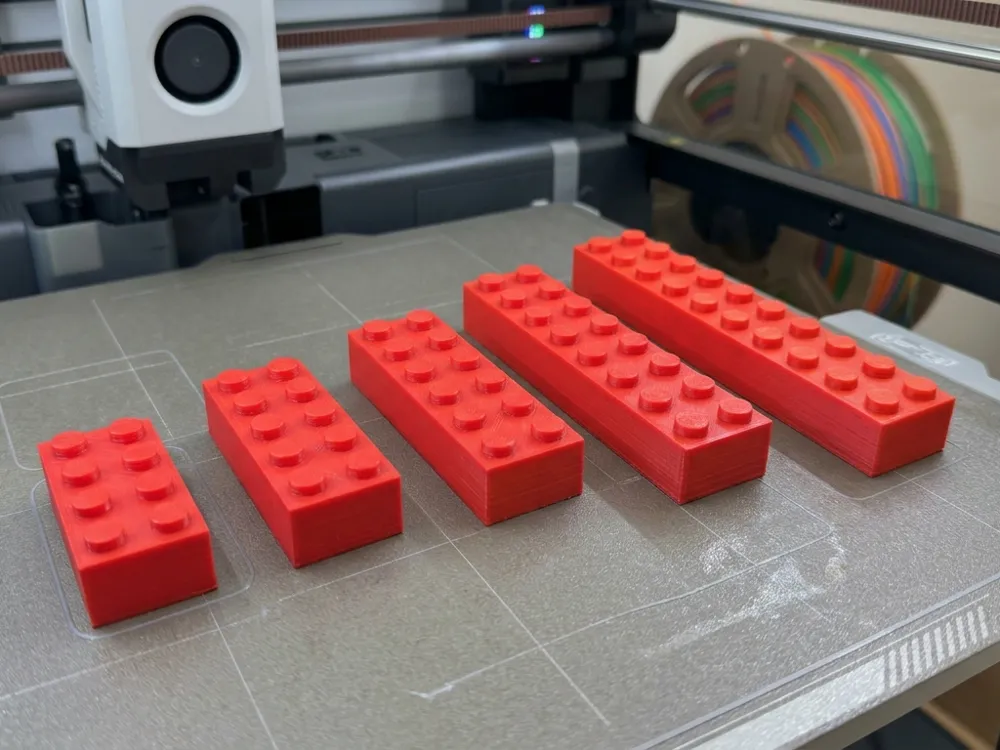

Whether you need a classic 2x4 brick, a large 10x10 base plate, or an extra-long custom piece, this tool generates a print-ready file in seconds.
How to Customize Your Brick (1-Click Generator)
- Click the green "Customize" button on this page.
- Adjust the parameters:
- Studs X & Y: Set width and length (e.g., 2x4, 1x8, 6x6)
- Brick Type: Choose between Standard Brick, Plate (thin plate at 1/3 height) or Tile (smooth flat piece without studs).
- Tolerance: Calibrate the fit precision (0.00 mm by default). Adjust this value if your prints are too tight or too loose based on your printer or filament.
- Click Generate and download your custom .3mf file, or send it directly to your printer via the Bambu Handy app!
Don't want to use the customizer? Download the included pre-configured .3mf print profile
Recommended Print Settings
To ensure perfect fits and smooth top surfaces:
- Layer Height: 0.16 mm or 0.20 mm (0.16 mm offers more precise tolerances for studs)
- Walls (Wall Loops): 3 (Crucial for stud strength and flexibility)
- Infill: 15% - 20% (Gyroid or Grid)
- Supports: NO, no supports needed! (Print-in-place design)
- Brim: Not necessary, but recommended for very long bricks (10+ studs) if you notice warping issues.
NOTE: if the brick does not fit, adjust the tolerance to 0.20 or 0.25
