Description
This cleaning tray was designed to make emptying and cleaning the lint filter of Bauknecht washing machines clean and easy.

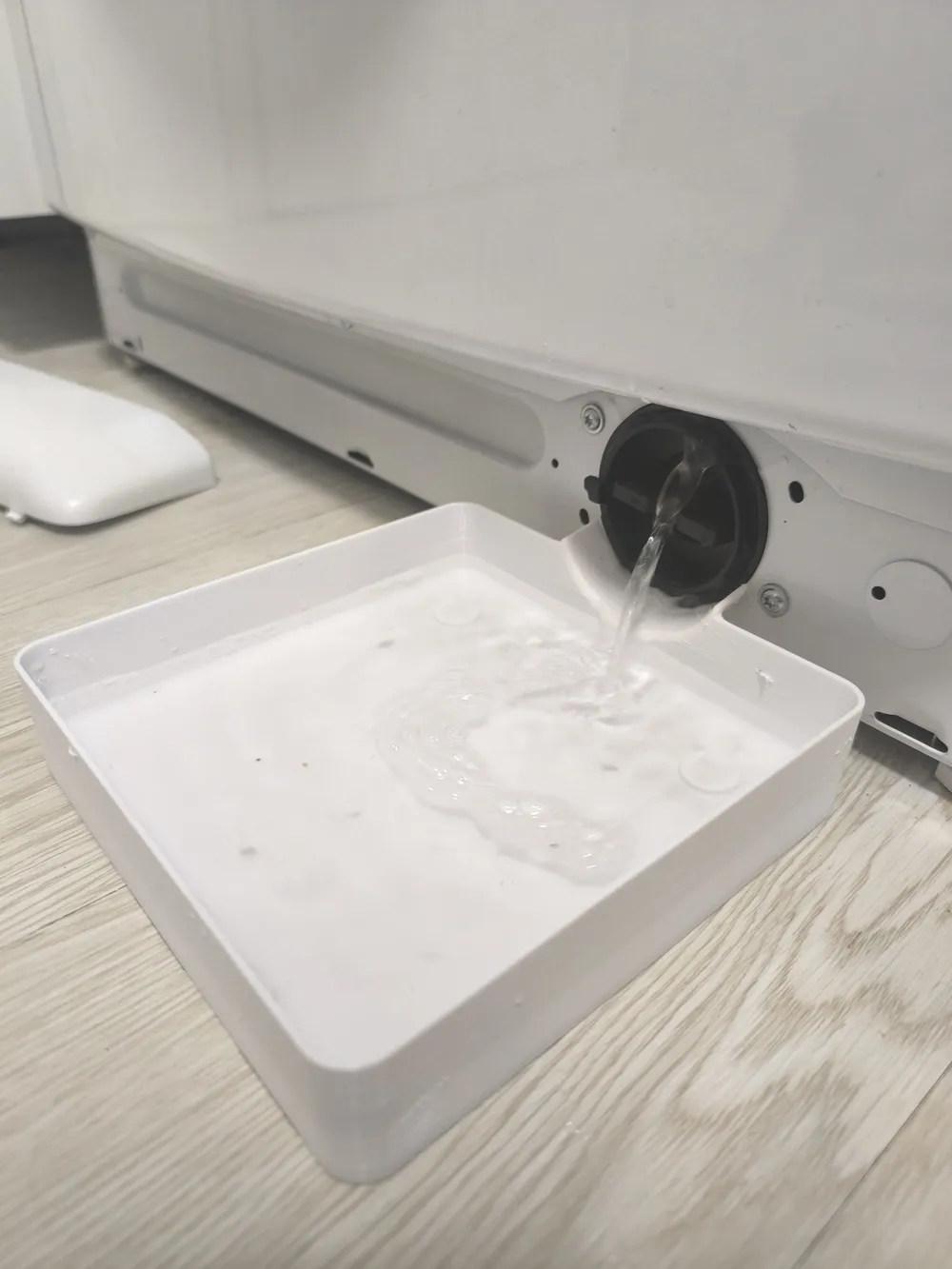

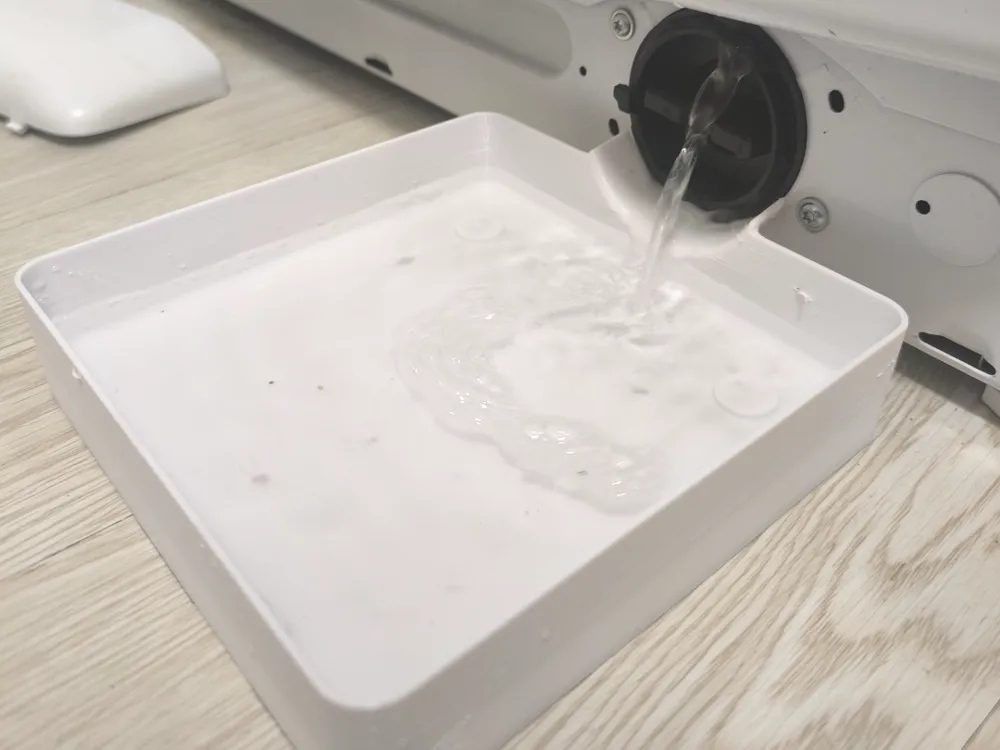

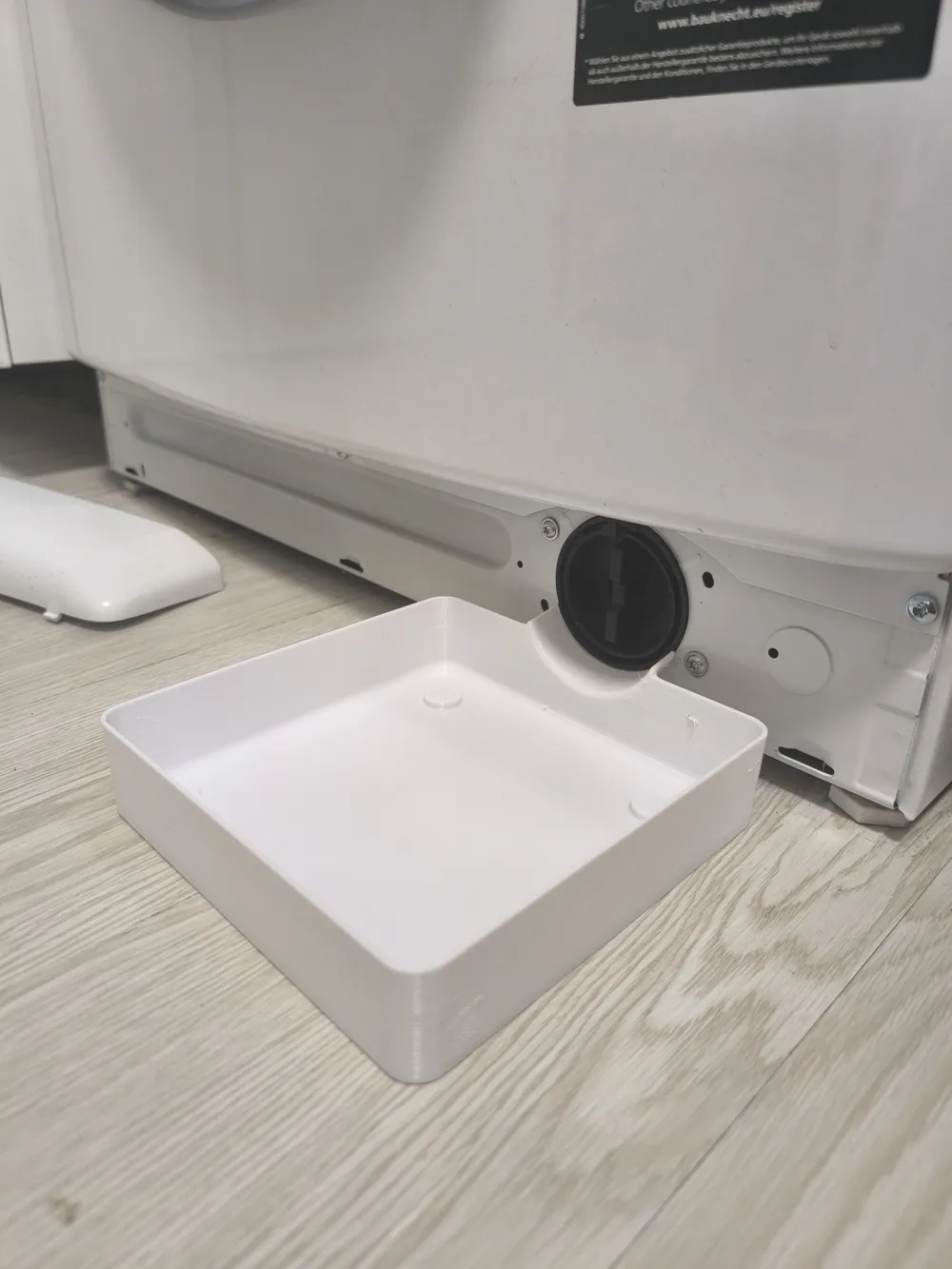

It is pushed under the drain opening and reliably collects the escaping water. This keeps the floor dry and makes opening the lint filter significantly more comfortable.
Suitable for washing machines with the following features:
- Drain opening: Ø 63 mm
- Height of the drain opening: 23 mm
Included Files
Version without magnets
- Ready to use immediately.
- No further accessories required.
Version with magnets
- Designed for 2 round magnets Ø 10 × 3 mm.
- The model includes a print pause so that the magnets can be inserted during printing.
- After insertion, simply resume printing.

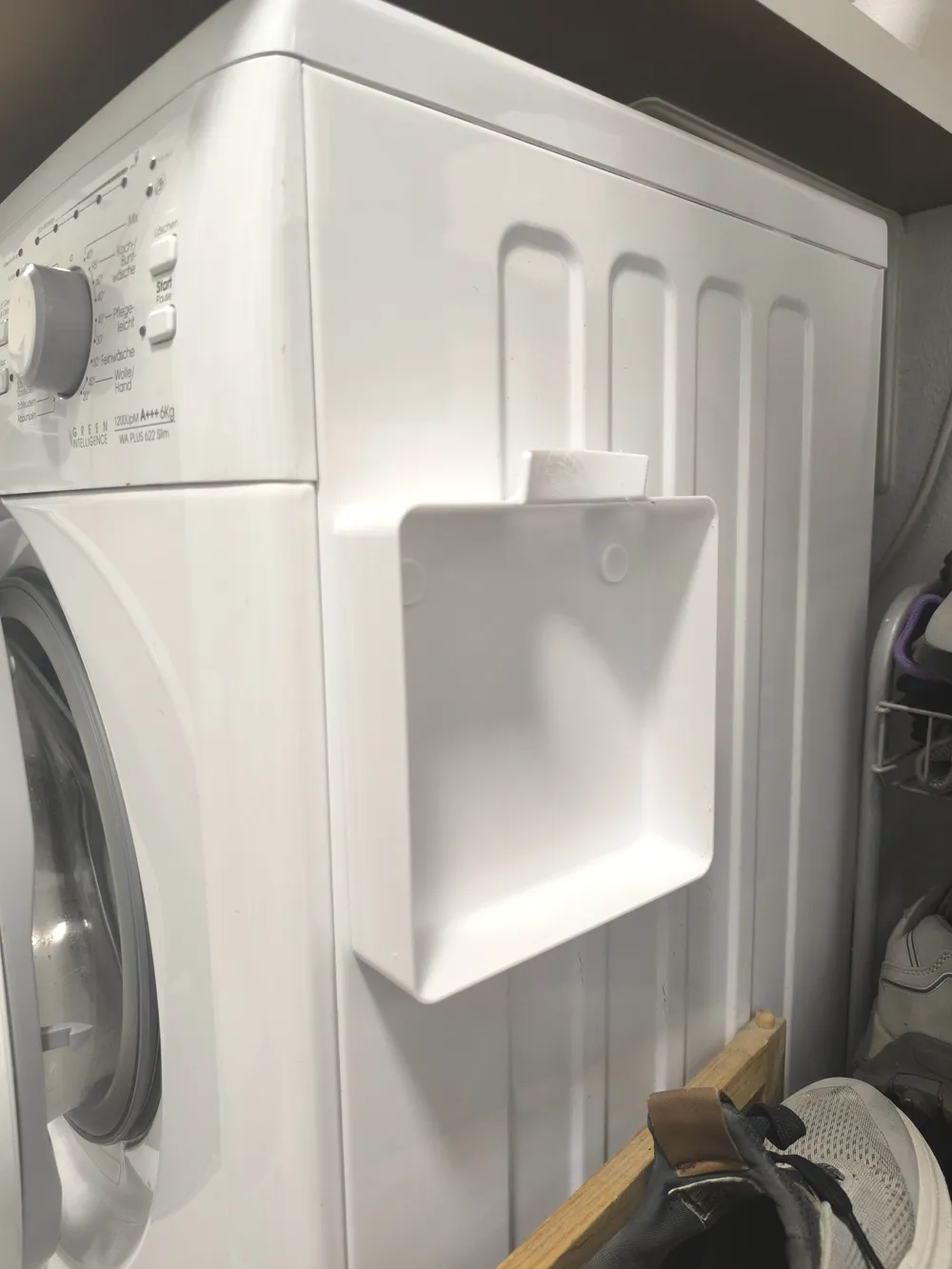

- The magnets securely hold the tray to the side of the washing machine.
If the tray also fits other models with an identical drain opening, I would appreciate a comment.
