Folding Wall Shelf

A fully 3D-printed folding wall shelf that tucks flat against the wall when not in use and deploys a load-bearing support arm when you need it — practical, space-saving, and finished with a honeycomb underside for style.

--Why I made this - Most wall shelves are permanent fixtures. I wanted something that earns its space — a shelf that disappears when you don't need it and holds its own when you do. This design is 100% 3D printed (minus the wall screws and anchors you'll source locally) and built around a real folding mechanism rather than a novelty hinge.

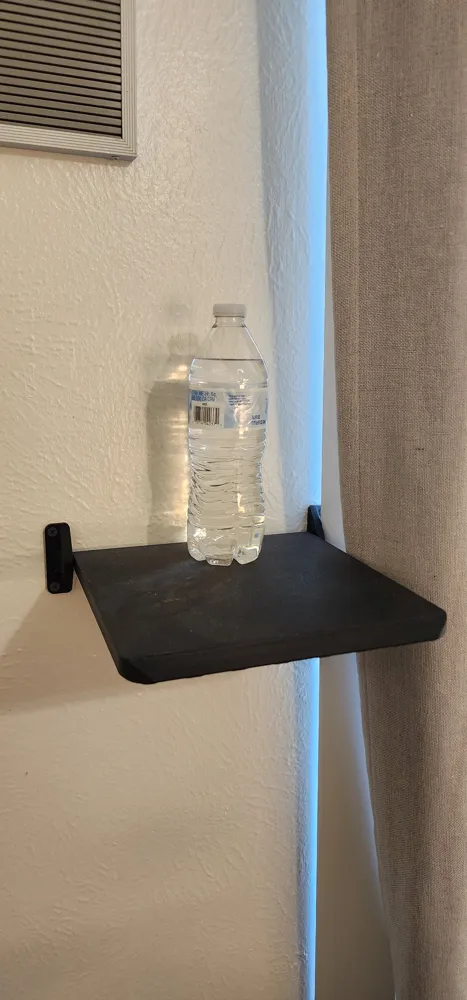

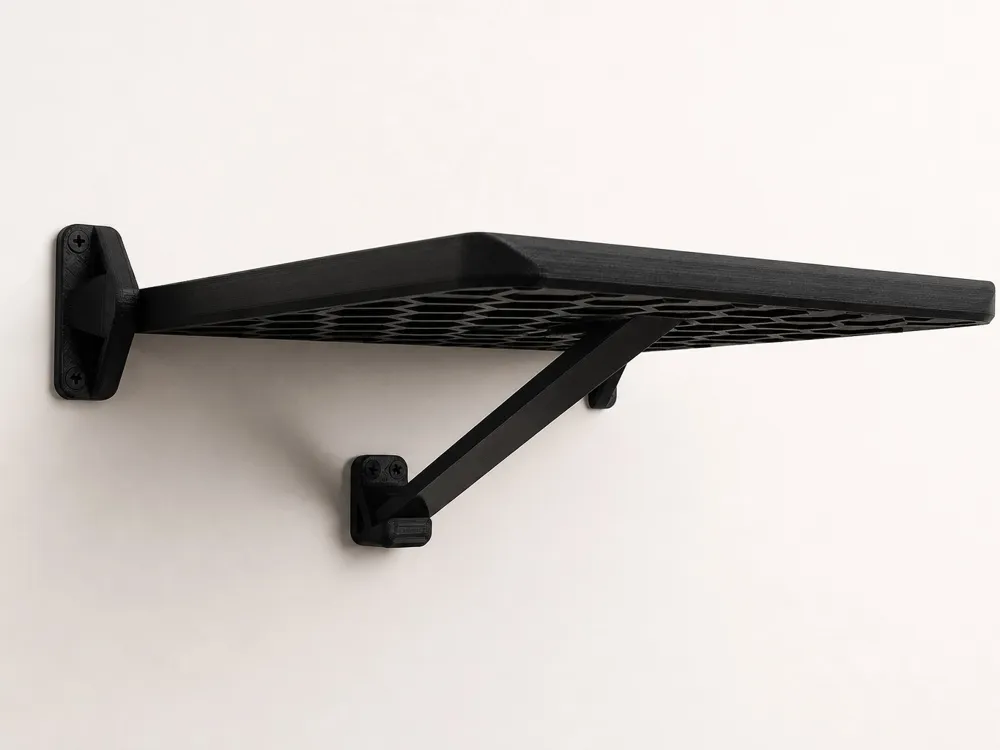

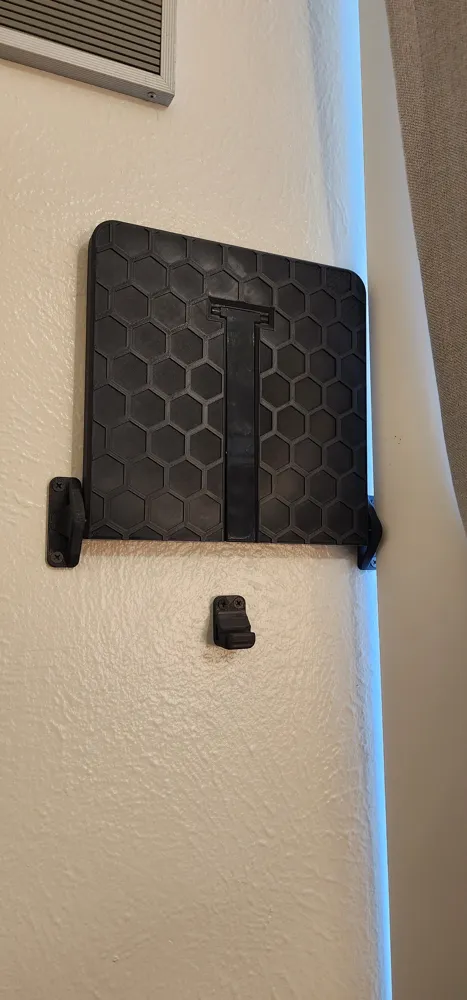

--What it is - The shelf folds on a set of printed hinge knuckles: fold it up and it sits flush against the wall, fold it down and a pivoting support arm locks it into a horizontal position capable of handling real everyday loads. The underside of the shelf panel features a honeycomb pattern — so the face you see when it's folded up looks intentional, not bare plastic. All the structural work is done by the shelf panel, the support arm, and the hinge knuckles. The only hardware you need are wall screws and anchors appropriate for your wall type.

--Design details
**Folding hinge knuckles** — printed-in geometry, no metal hardware at the pivot

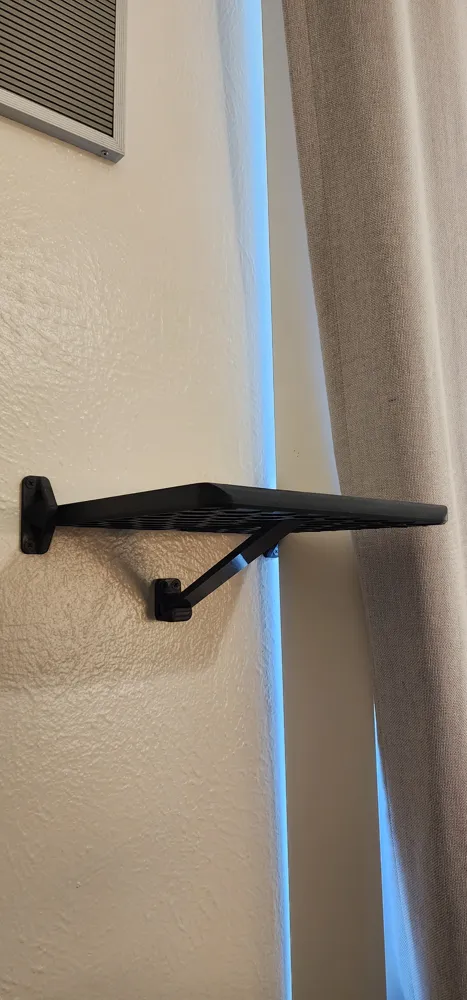

**Pivoting support arm** — braces the shelf against downward load when deployed

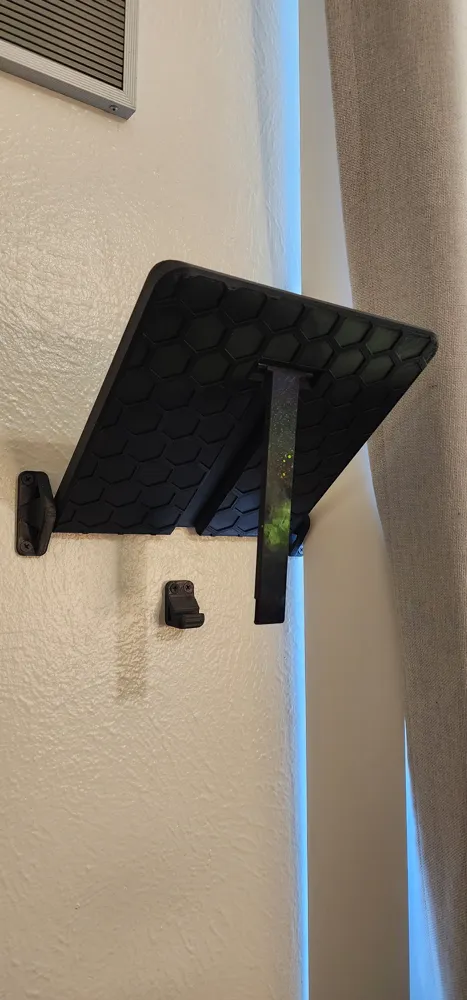

**Honeycomb underside** — decorative and visible when the shelf is stowed


--How to print - Print in PLA+ for a lightweight indoor shelf or PETG if you want better humidity and temperature resistance. Either material works well here.

ORIENTATION MATTERS, ALWAYS ORIENT IN A WAY WHERE LOADS WONT SHEAR THE Z LAYERING OF THE PRINT.
- **Shelf panel** — lay flat on the bed, largest face down.
- **Support arm** — lay flat on face so layer lines run along the arm's length; this puts the strongest layer orientation against bending loads, which is exactly where you need it.
- **Hinge knuckles** — This is the trickier one, check overhanging geometry in your slicer before printing; orientation matters.
- **20-30% infill** on all structural parts and many walls 4-5 (support arm, hinge knuckles, and cradle).

### Tips
- Run a test fit of the hinge knuckles before final assembly — tolerances can vary slightly between printers; a quick pass with a small file cleans things up in seconds.
- When mounting to drywall, use wall anchors rated for at least the load you plan to put on the shelf — the print will hold, so make sure the wall fastening matches.
- PETG is the better choice for garages, laundry rooms, or anywhere with temperature swings or moisture.

### Assembly / Instructions
1. Print all parts: shelf panel, support arm, hinge knuckles/wall brackets and cradle. Check orientation notes before slicing.
2. Dry-fit the wall bracket onto the shelf panel. Verify smooth pivot motion; lightly sand or file any tight spots.
3. Attach the wall brackets shelf panel and place against the wall, level it out and mark the holes for each wall bracket.
4. Drill out marked holes and install anchors.
5. Place shelf with attached wall brackets against wall and screw into newly installed anchors (verify swinging action of shelf before installing)

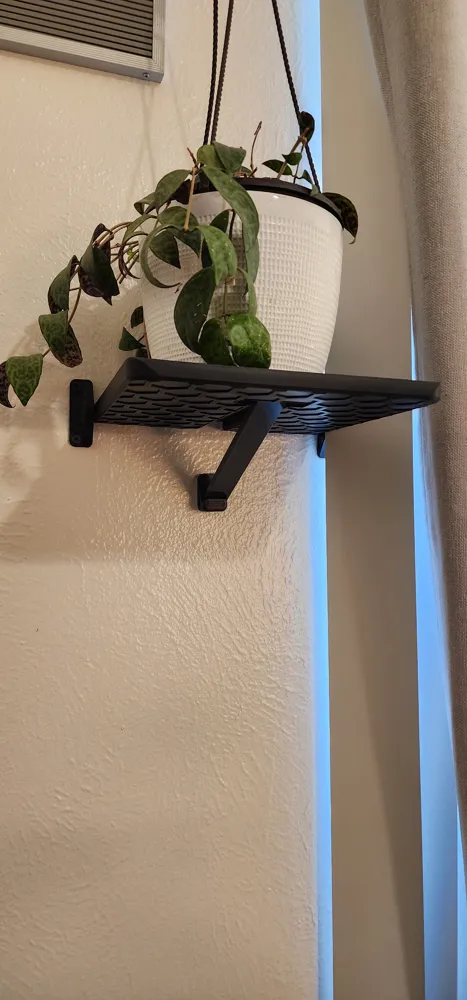

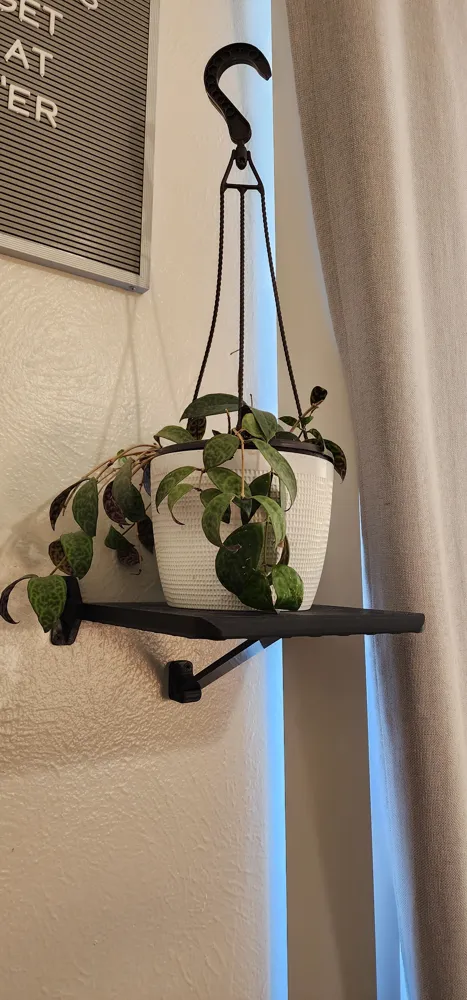

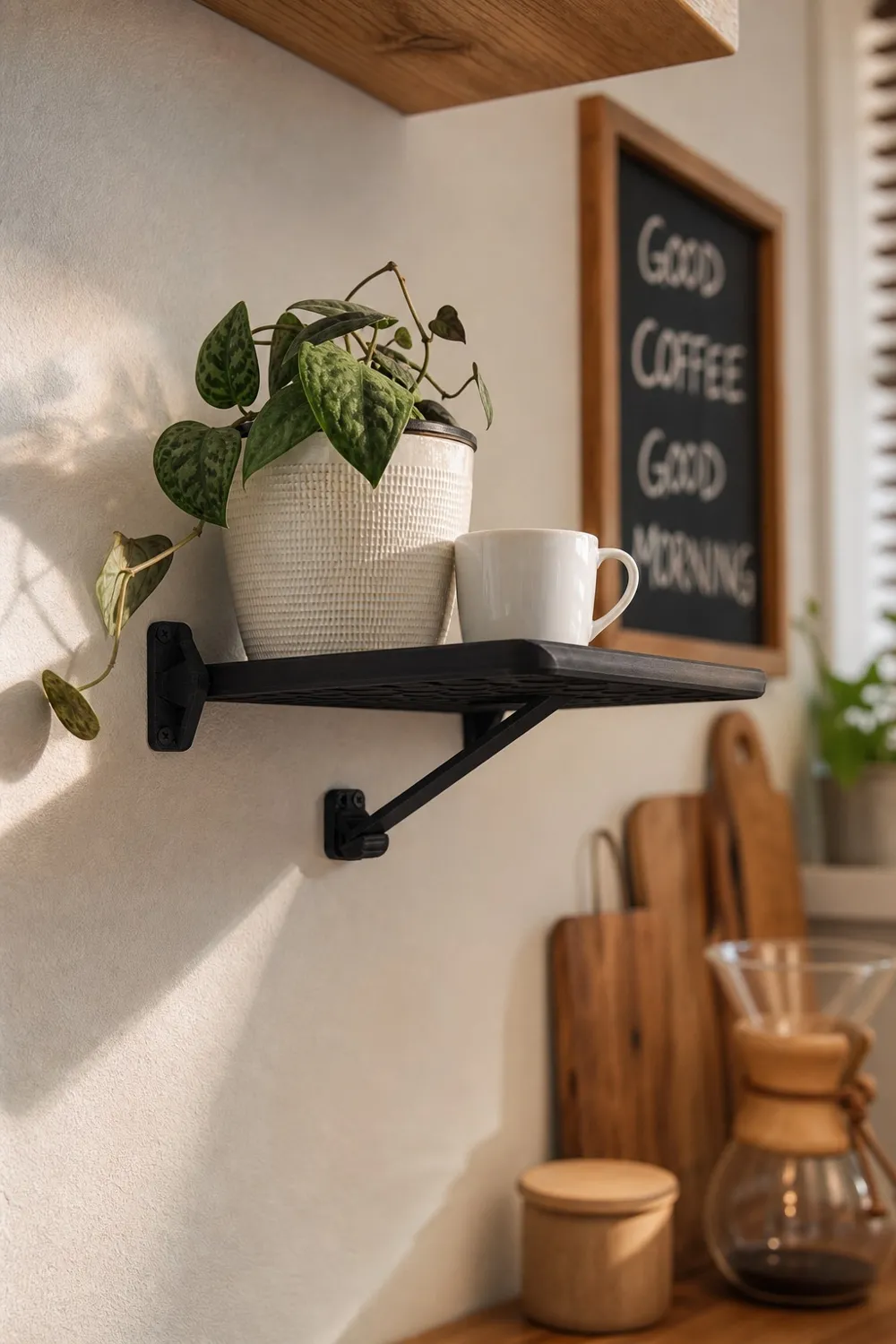

MY SHELF HAS BEEN INSTALLED FOR OVER 2 MONTHS WITH A SMALL PLANTER ON TOP, EVERYTHING IS HOLDING UP WITH NO SIGNS OF DEFORMATION OR STRESS.
I AM IN NO WAY MAKING ANY CLAIMS THAT THIS SHELF CAN BEAR ANY CERTAIN AMOUNT OF WEIGHT, I HAVE NOT FULLY TESTED THE STRENGTH OF THIS SHELF TO BREAKING POINT.
!!!USE AT YOUR OWN RISK!!!
