UIAPduino Development Support Board PCB Cover

Cover for dedicated PCB of UIAPduino development support board

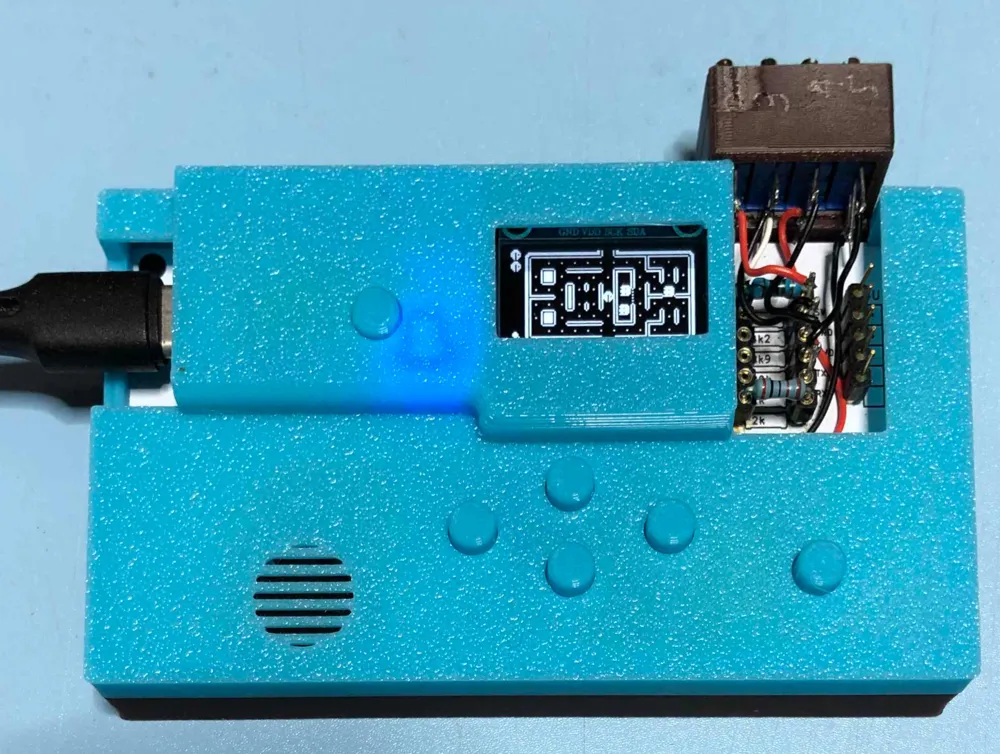

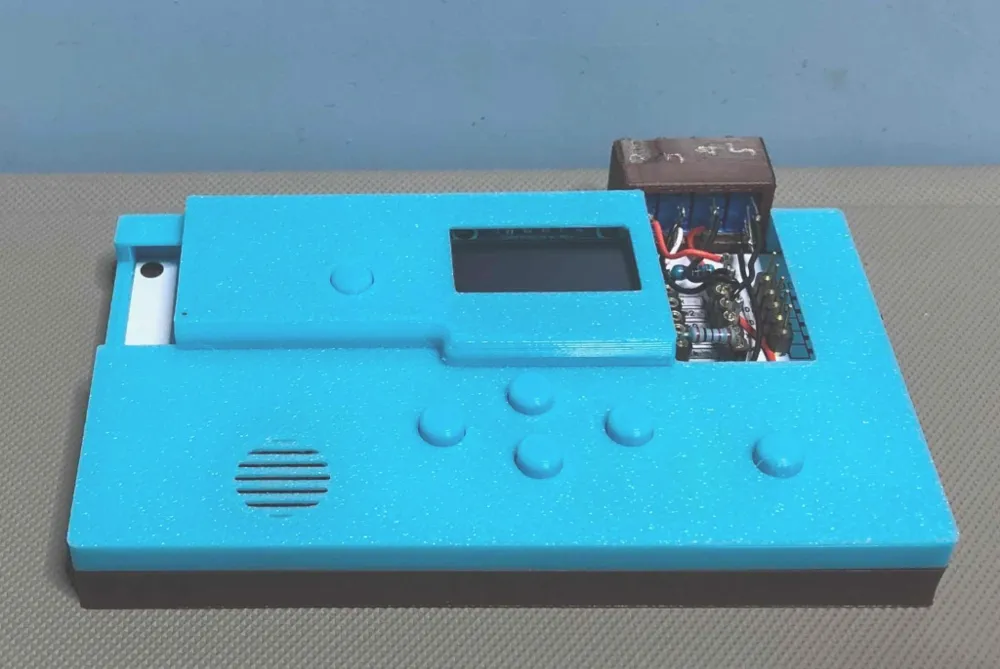

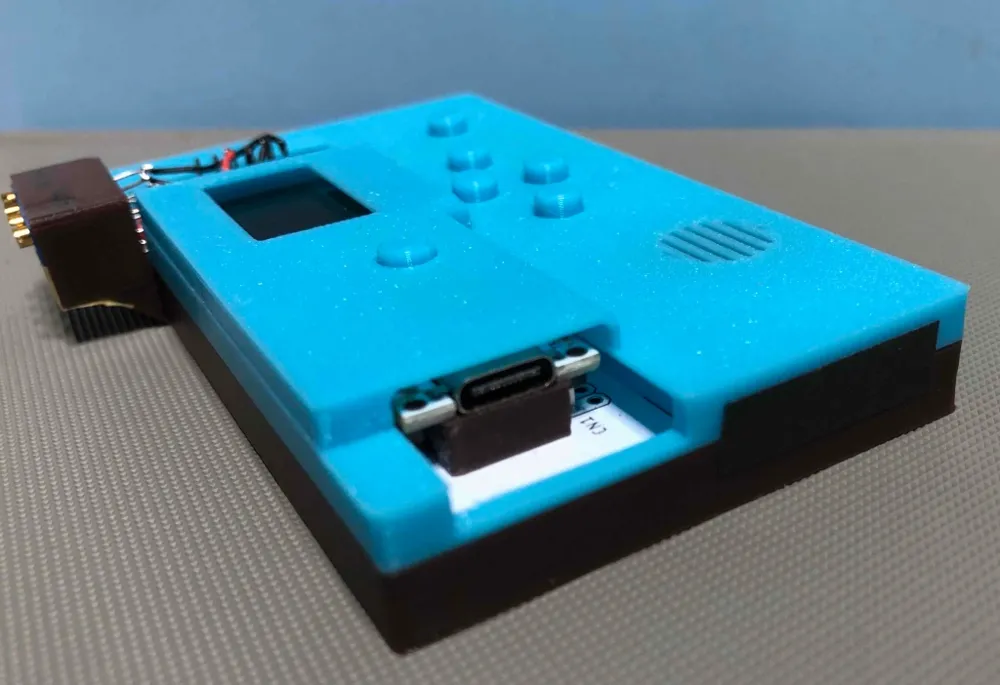

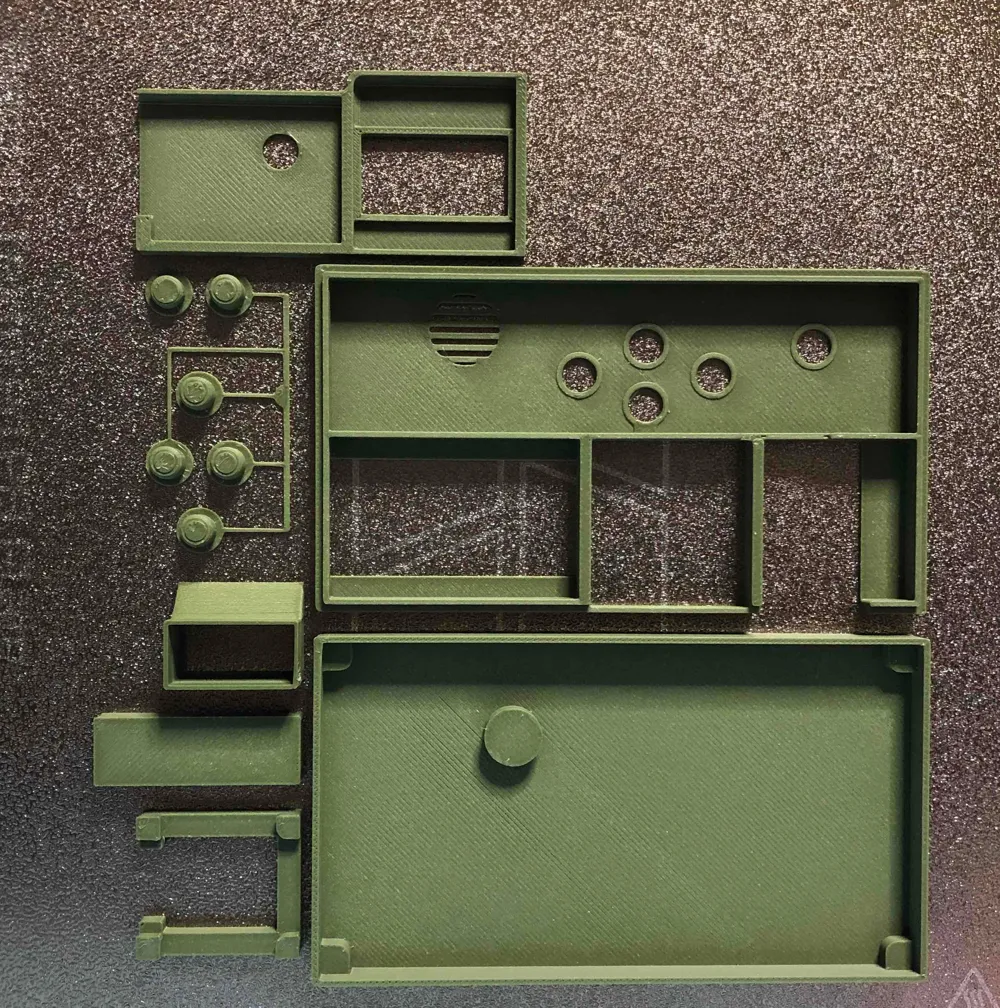

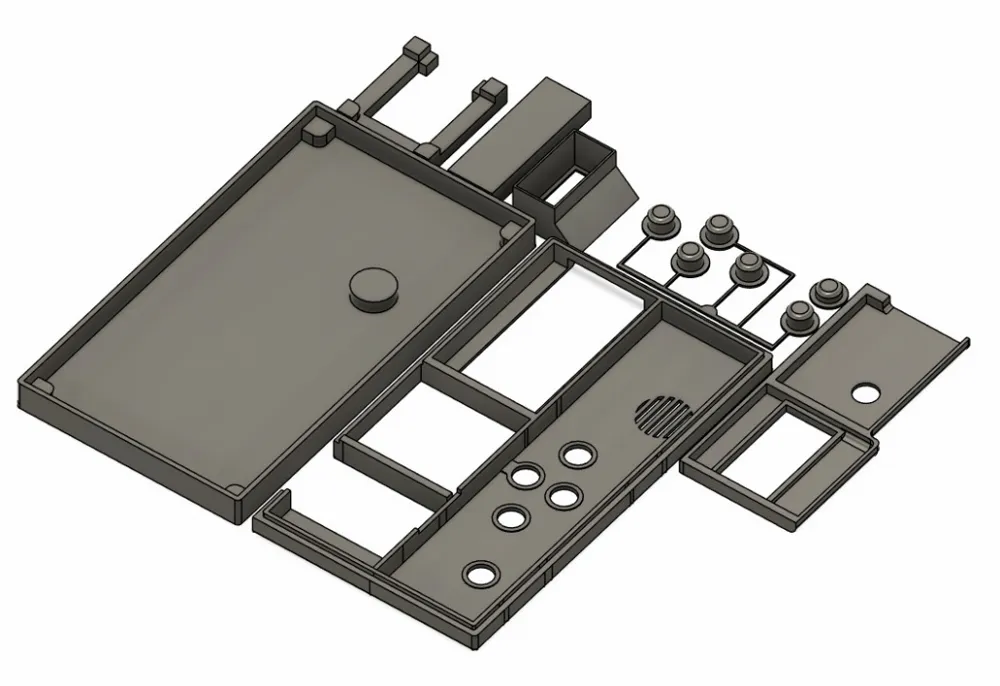

Please assemble referring to the images
For fitting parts together, use adhesive (styrene-butadiene rubber adhesive recommended)

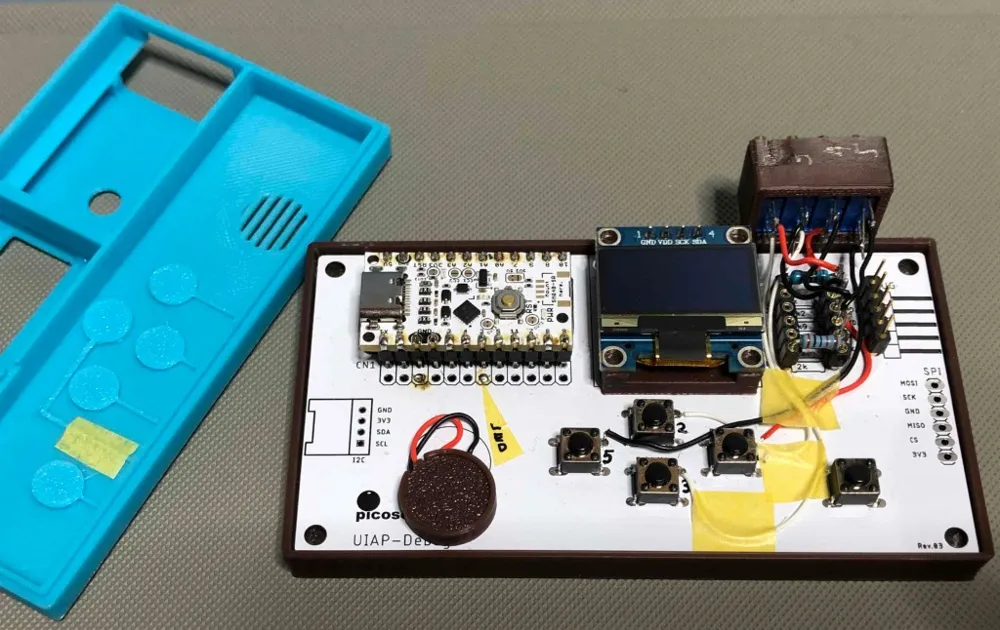

The microcontroller, support board, and OLED were obtained from an online store

Notes
・Due to different pin header heights, attach a spacer part under the microcontroller
・If the microcontroller is socketed, the height will be too great; this design does not support it

・Piezoelectric SPs vary widely, so no housing is included

　For thicker units, they may not fit between the lid, so pull the wiring out through the slit

　and attach it
・The display section is designed for OLED 128x64 LCD panels
　It is designed to match existing parts measured at 24.8mm width and 26.8mm height
　If it's still tight even after adjusting the mounting position, absolutely do not force it in
・If printed in multiple colors and combined, it will result in a colorful machine

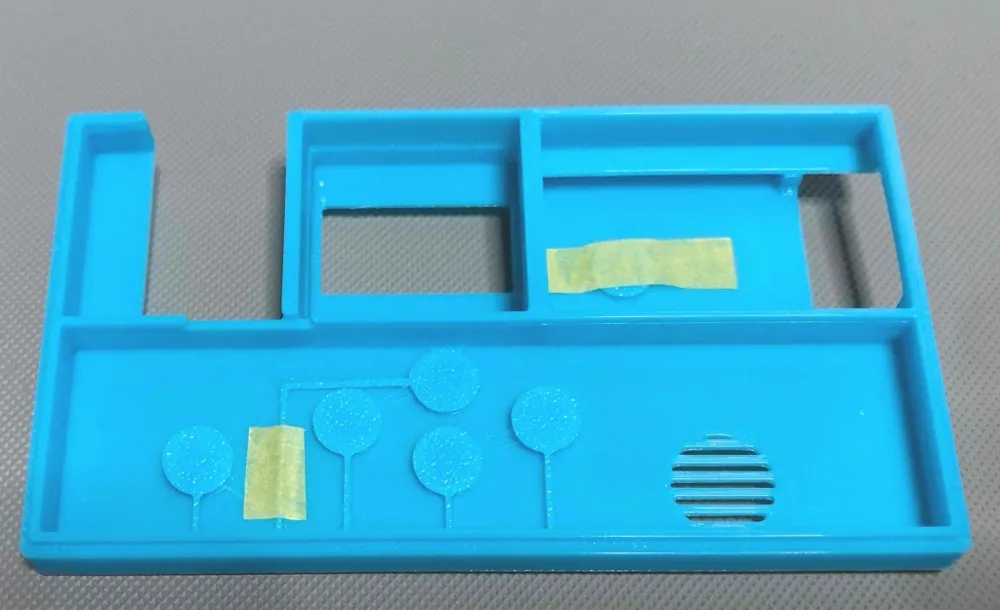

・Buttons will be easier to assemble if temporarily fixed with masking tape
・The bottom part and top cover are "not glued"

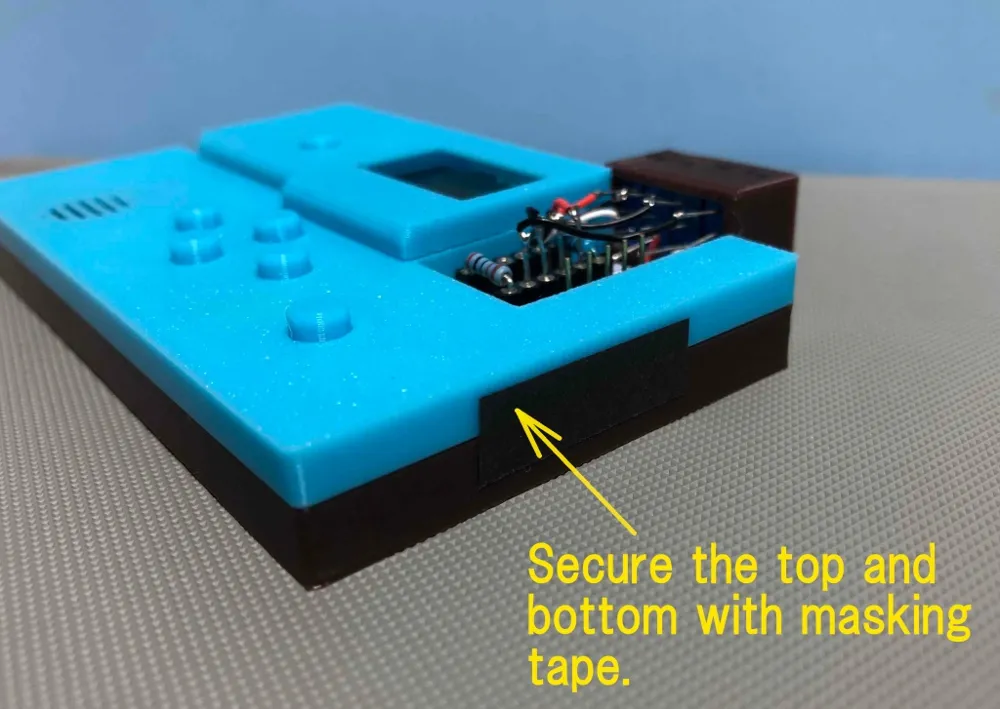

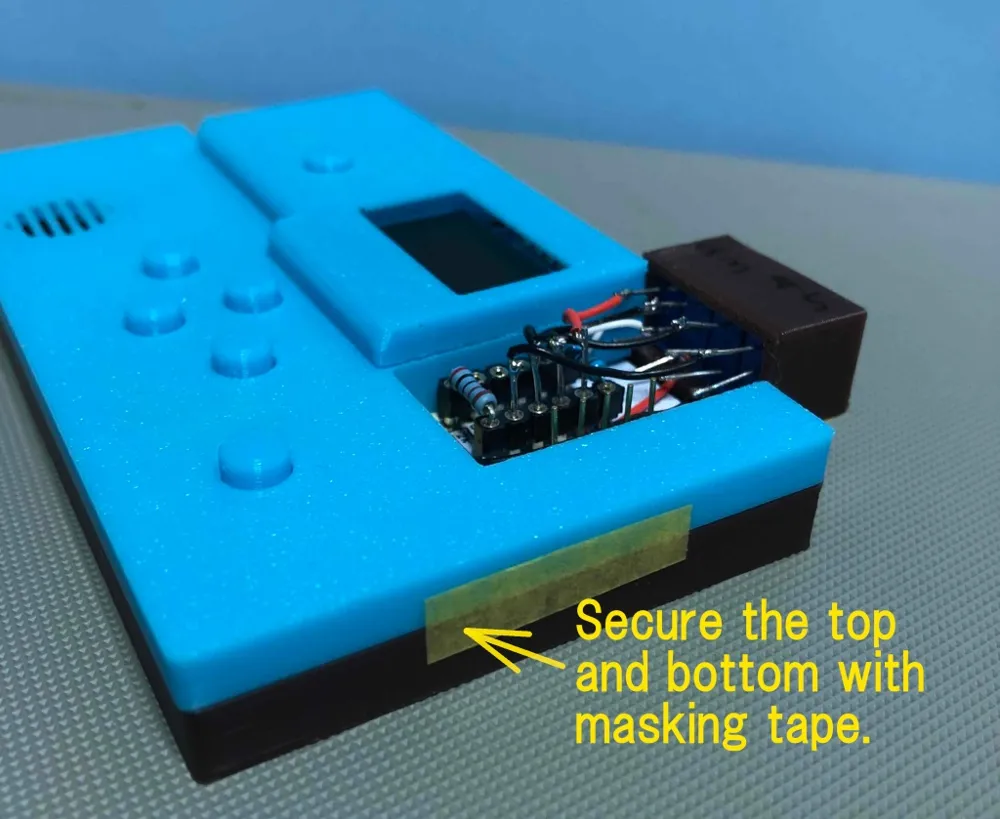

　Due to the nature of a development device, frequent opening and closing occurs, so fix both sides with masking tape

　to secure it

・There is one 20mm bridge. With A1 mini, it is fine without supports, but

　if you want a stable shape, please add support settings

　It may be essential depending on the printer model

Advantages
・Although covers are typically just bothersome for a development device, it makes game playing easier (personal opinion)
・Protects the surface of the microcontroller

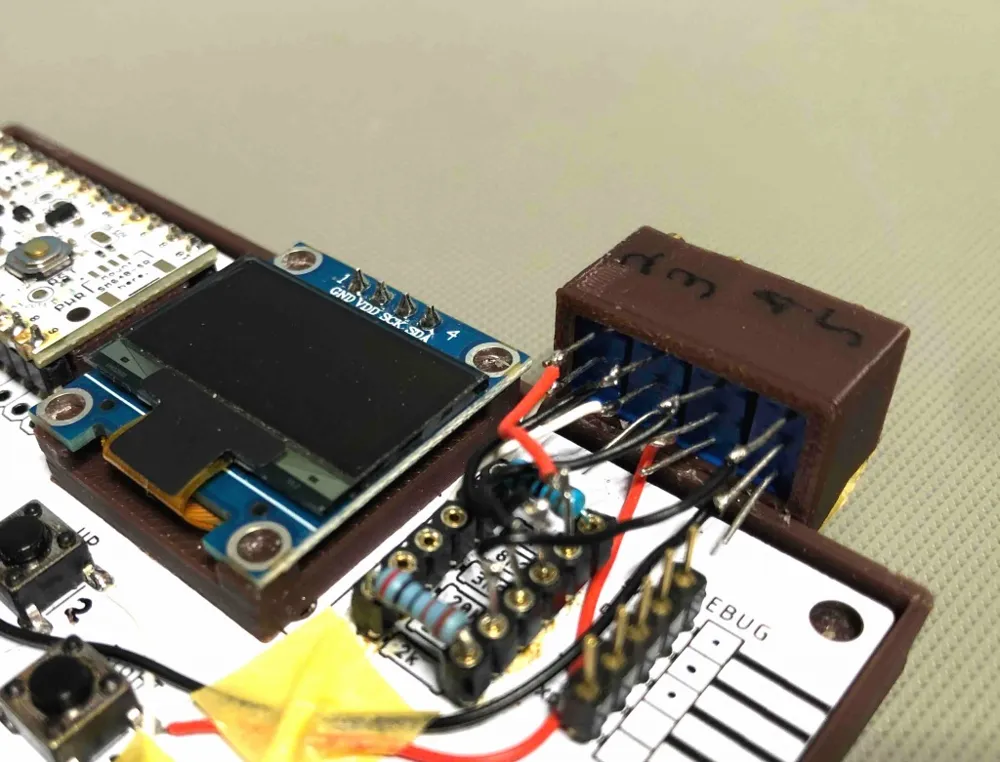

・The bonus storage box for 4 potentiometers is for experiments to vary voltage divider values
　Feel free to place and attach it outside the enclosure
・The appearance has a Showa era feel

We are not responsible for accidents or damage caused by using this enclosure
Please use at your own risk

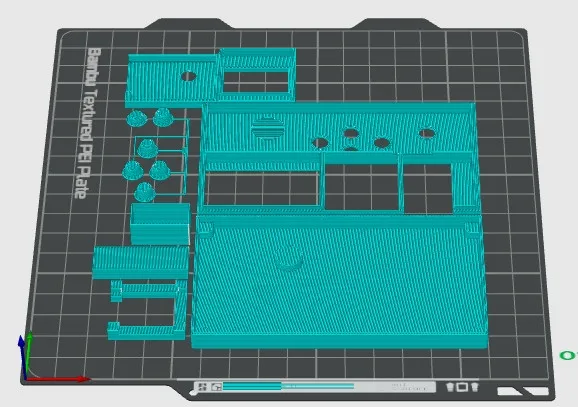

0.4mm nozzle, no supports required

What is UIAPduino Pro Micro CH32V003 V1.4

It is an inexpensive microcontroller board using the CH32V003 microcontroller
Both the software and hardware are open source
