UIAPduino + PDP-style case
Print Profile(1)
Description

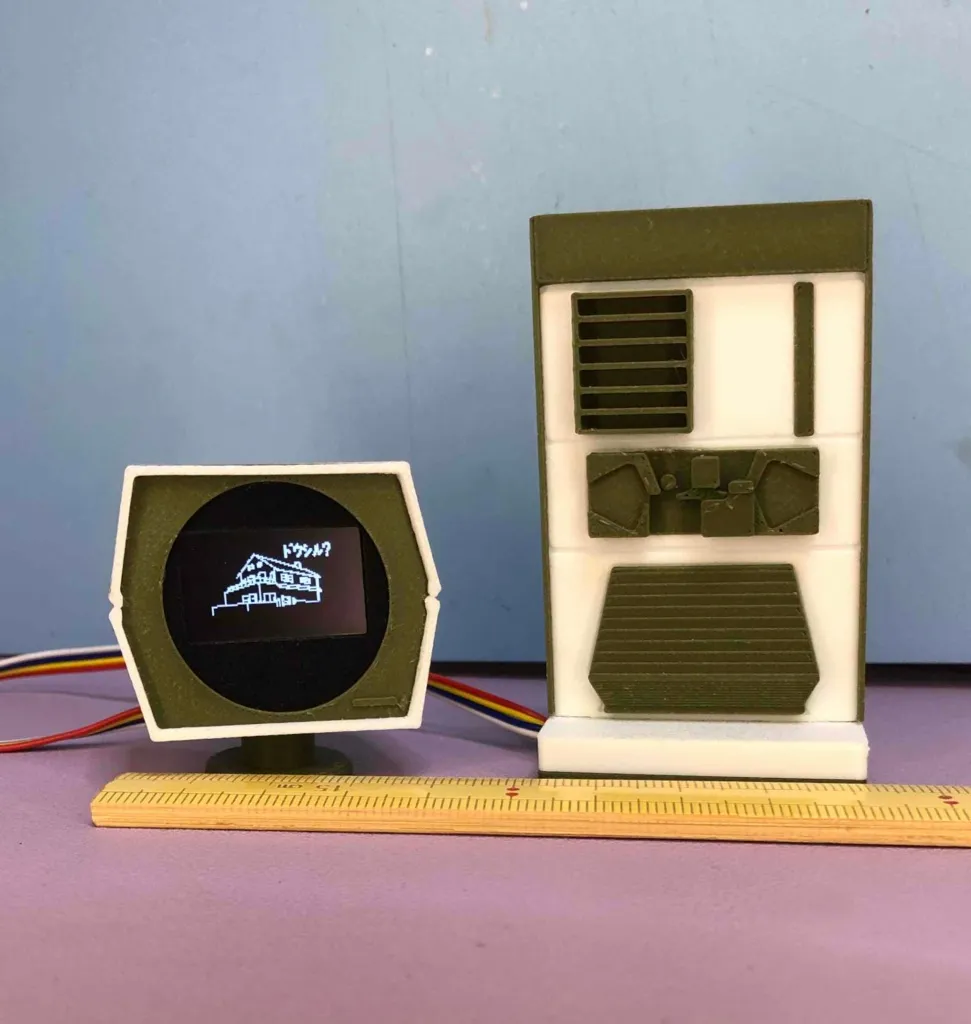

UIAPduino + PDP-style case

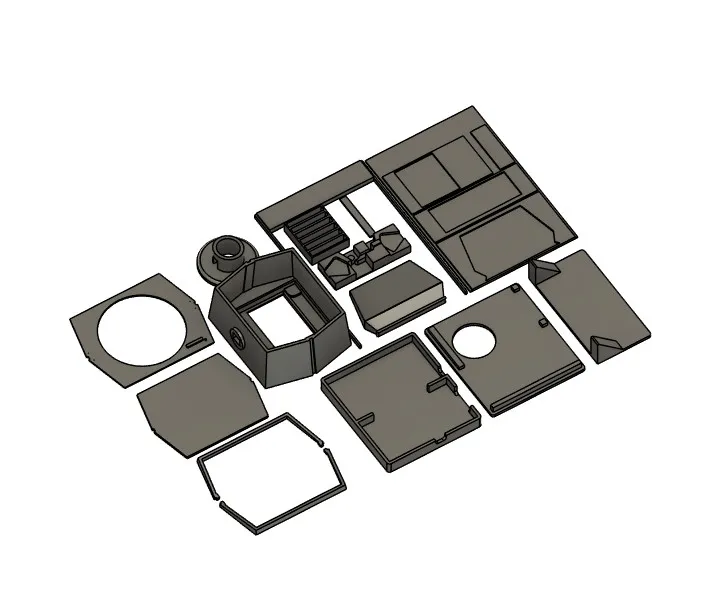

Please assemble by referring to the images
For fitting the parts together, use adhesive (styrene-butadiene rubber adhesive recommended)
Notes

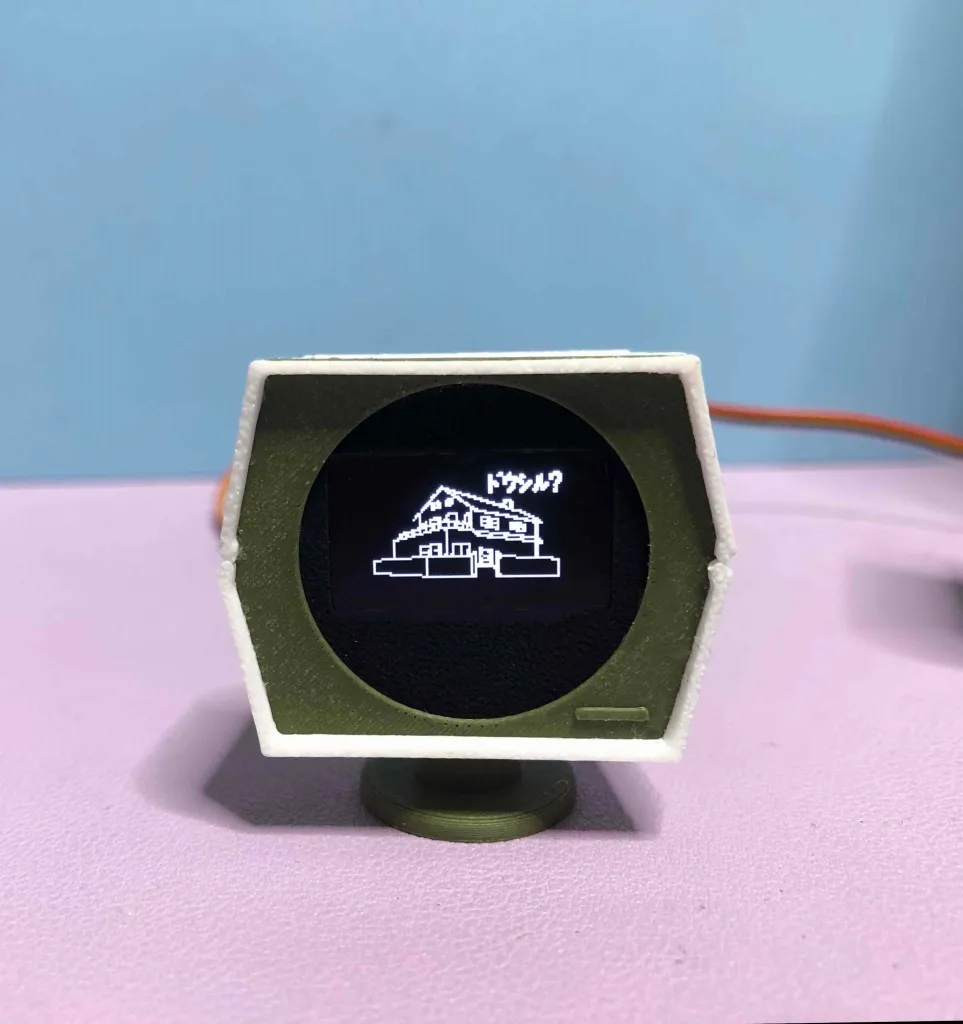

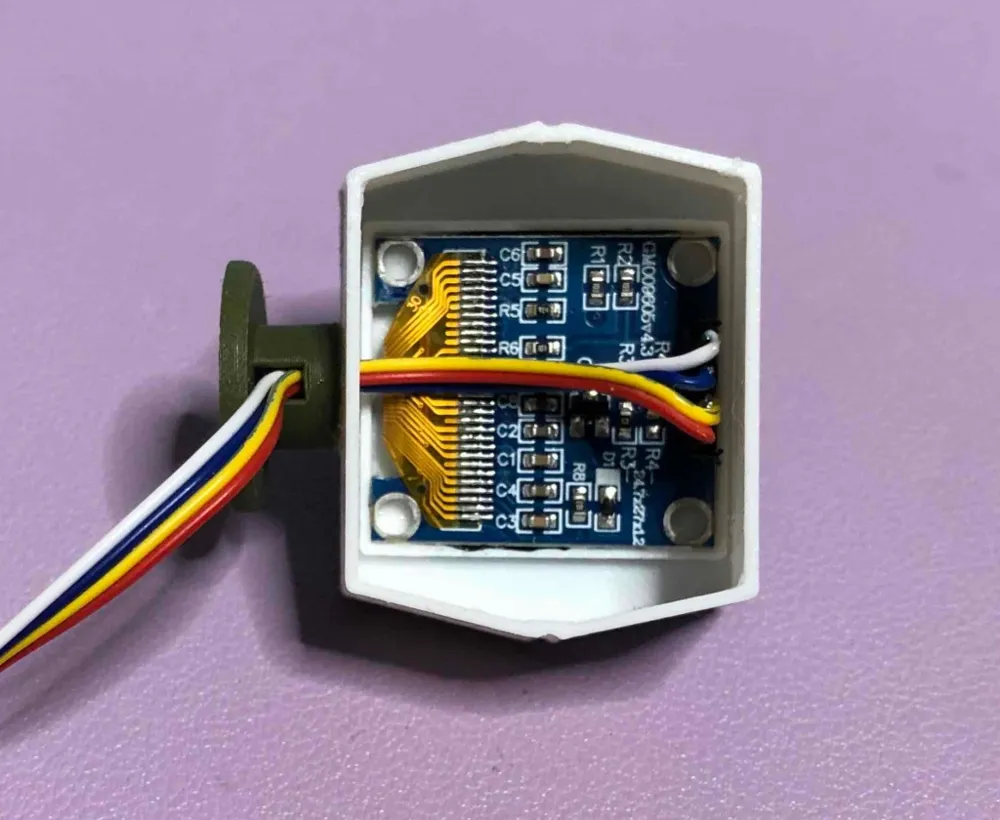

・Designed for OLED 128X64 LCD panel
Measured the parts on hand and adjusted to 24.8mm width and 26.8mm height
If it's too tight even after adjusting the mounting position, absolutely do not force it in

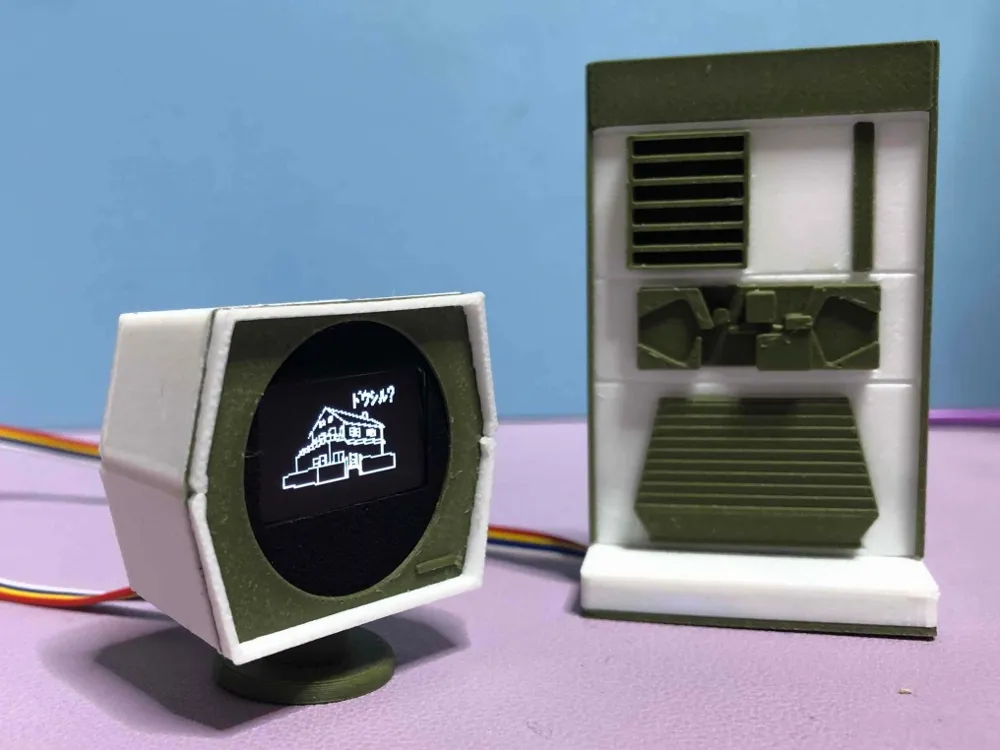

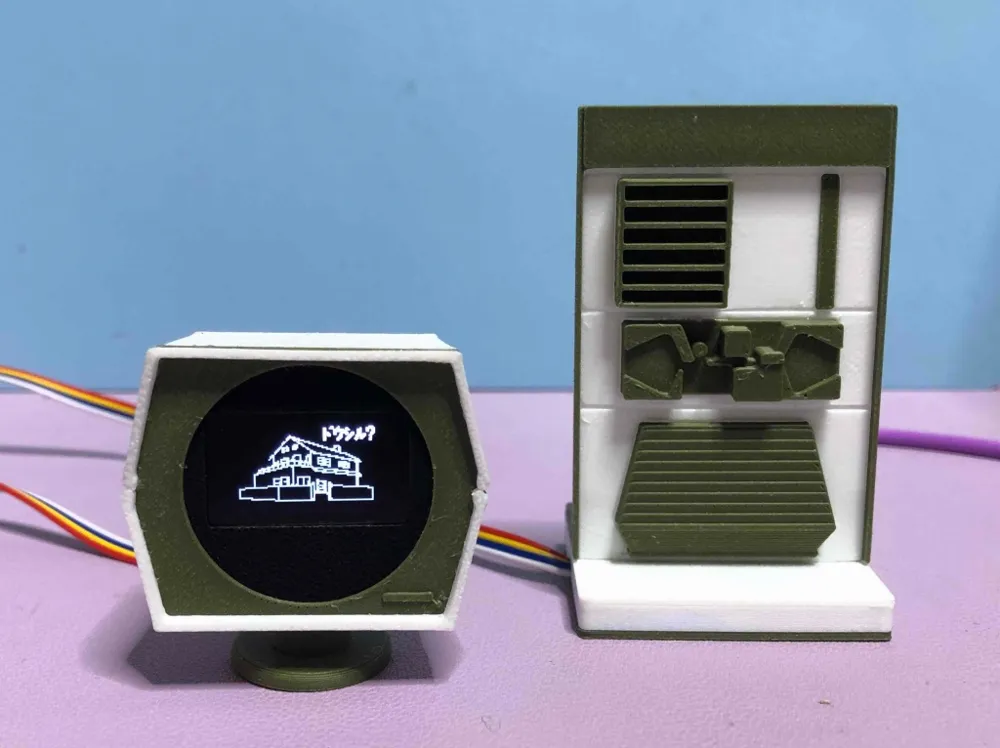

・If you print in multiple colors and combine them, you will get a colorful machine
・The bottom part and top cover are "not glued"

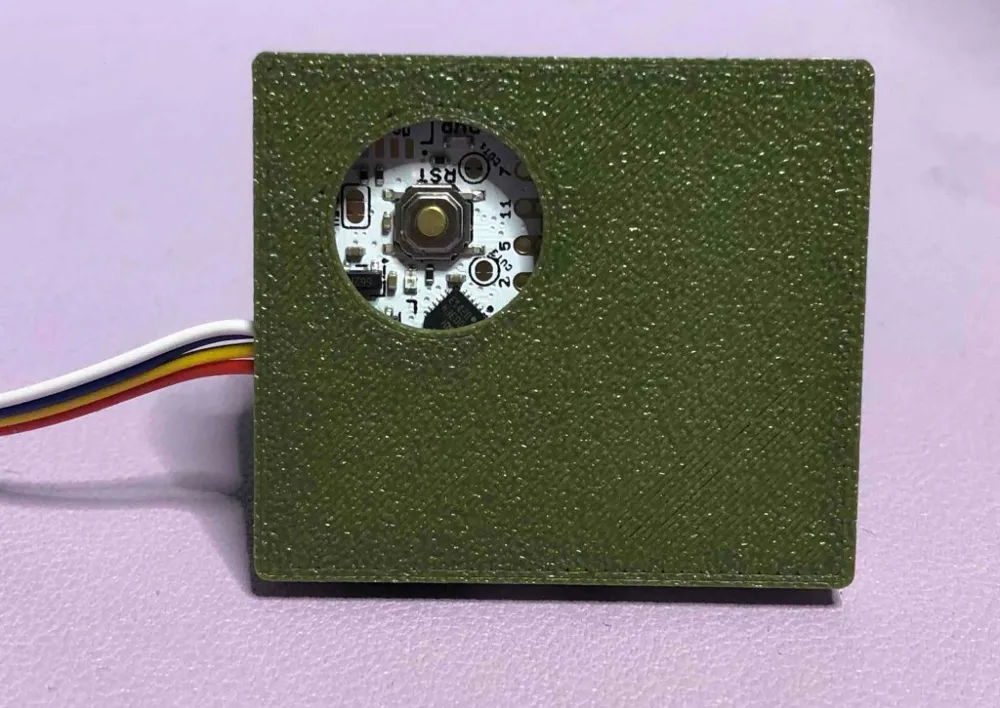

・This work is for protecting the microcontroller board and dressing up the OLED
Please prepare input/output devices, external equipment, software, etc. yourself
We are not responsible for accidents or damages caused by using this enclosure
Please use it at your own risk

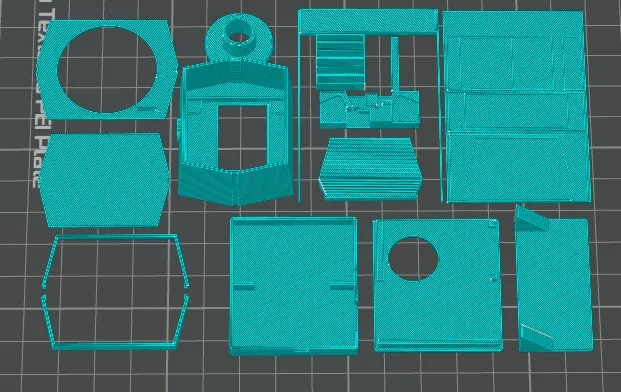

Quick output with a 0.4mm nozzle, no supports needed

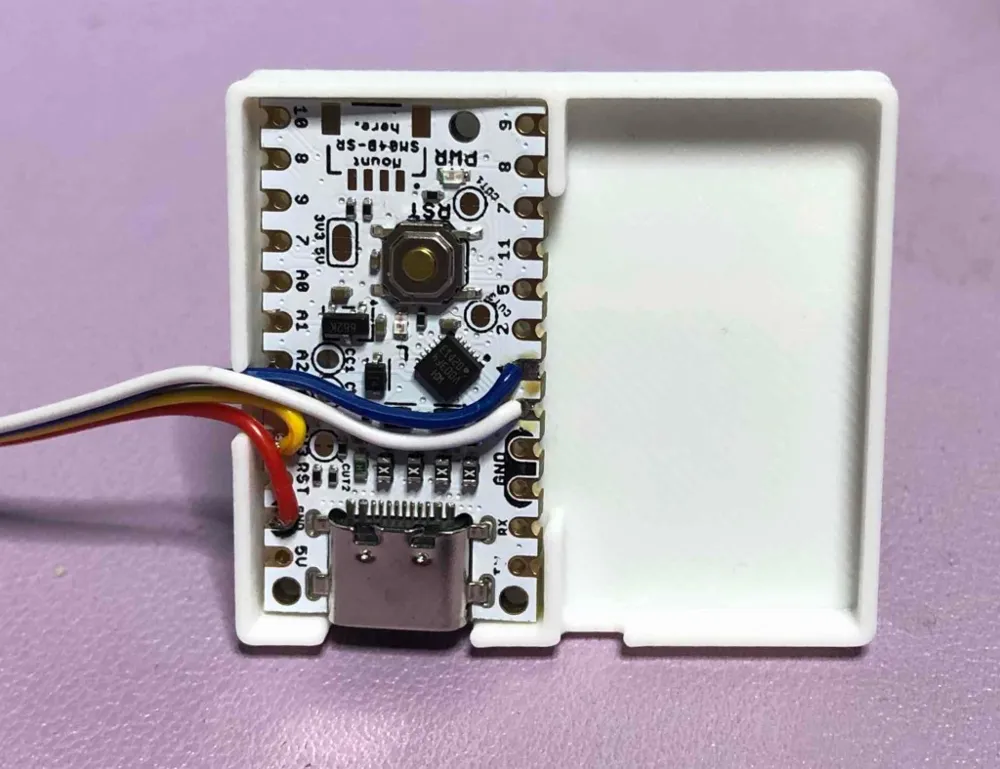

What is UIAPduino Pro Micro CH32V003 V1.4?
It is a microcontroller board using the CH32V003 microcontroller
Both software and hardware are open source
