UIAPduino Microcontroller Board Minimal Case
Print Profile(1)
Description
UIAPduino Microcontroller Board Minimal Case

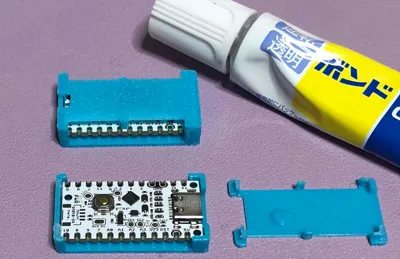

Please assemble by referring to the images
Use adhesive (styrene-butadiene rubber adhesive recommended)
By tacking it at 4 points, it can be disassembled again
You can activate the reset button by pressing the top plate
By constructing it thinly, button parts are reduced
Originally, when conducting experiments or embedding, pin headers are soldered
and attached to breadboards or circuit boards

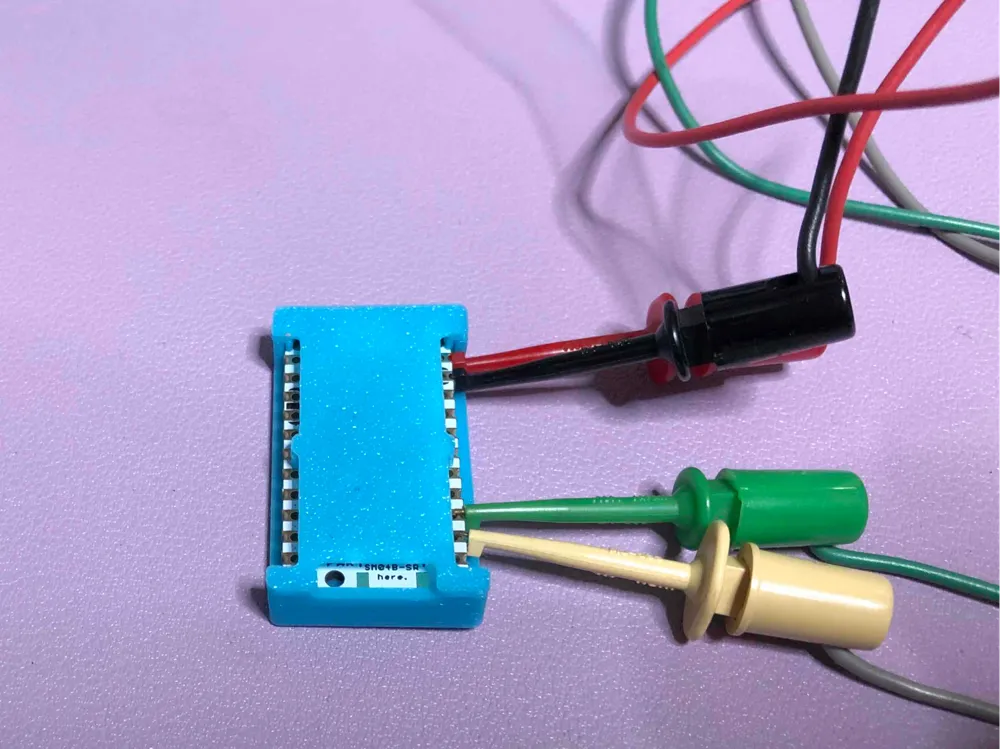

This product is suitable for temporary simple experiments, such as when IC clips suffice,
and protects surface-mounted components
We cannot be held responsible for accidents or damage caused by the use of this enclosure
Please use it at your own risk

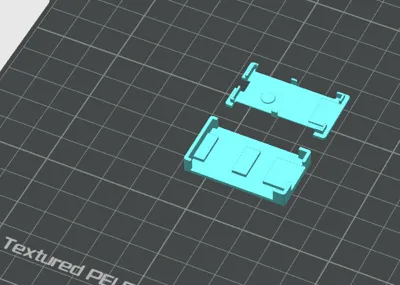

0.4mm nozzle for short-time printing, no supports needed
What is UIAPduino Pro Micro CH32V003 V1.4
It is a microcontroller board that uses the CH32V003 microcontroller
Both software and hardware are open source
