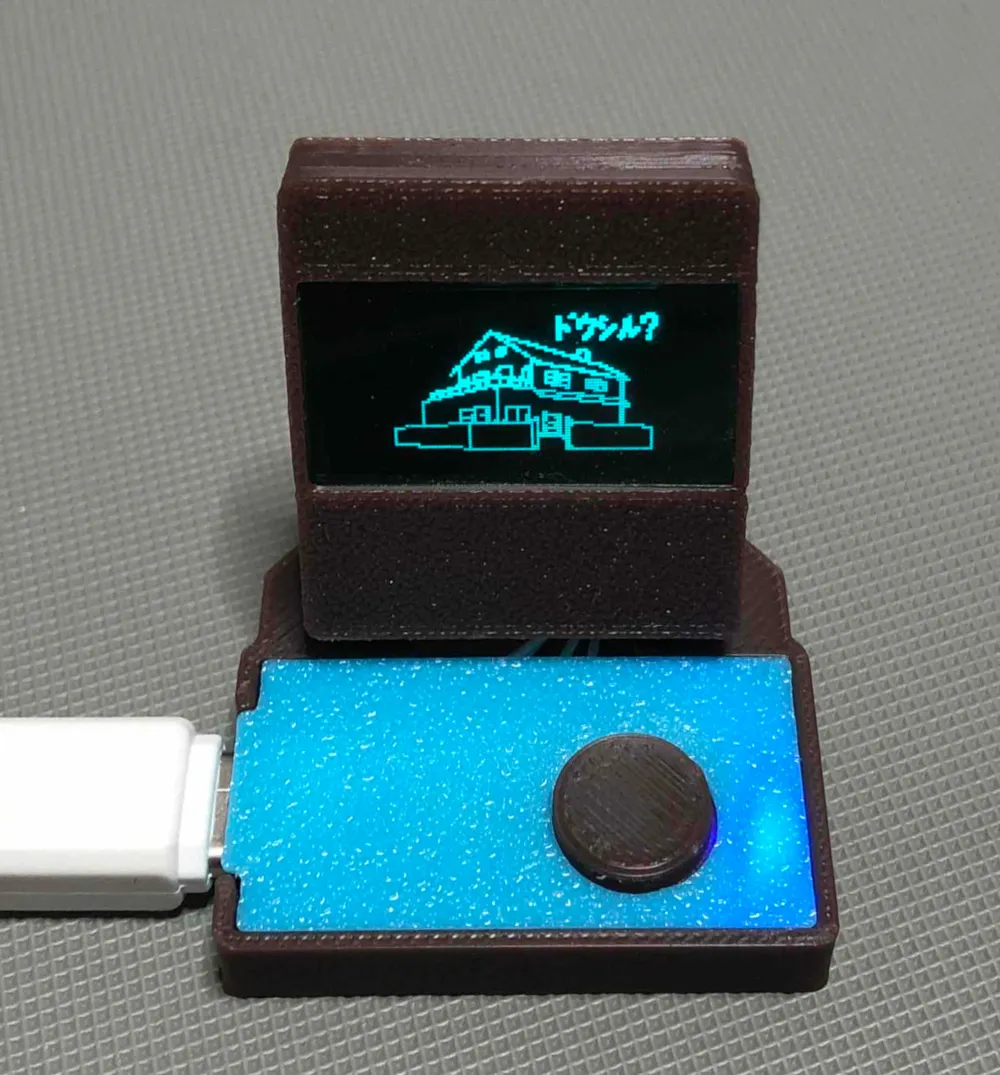

UIAPduino Microcontroller Board TTY-style Case

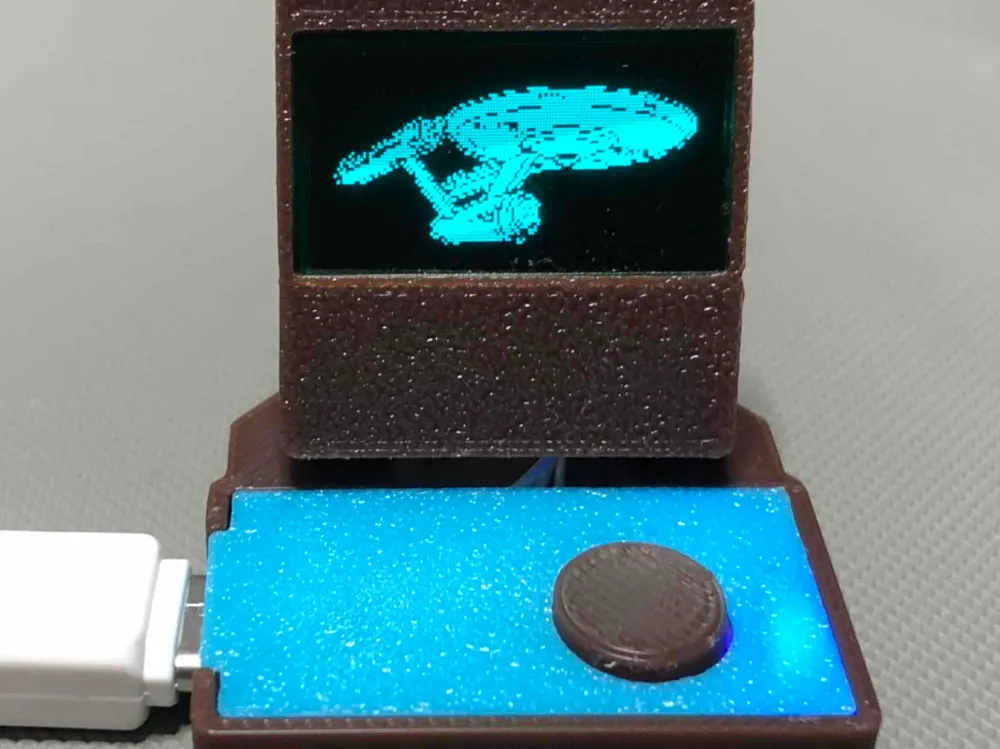

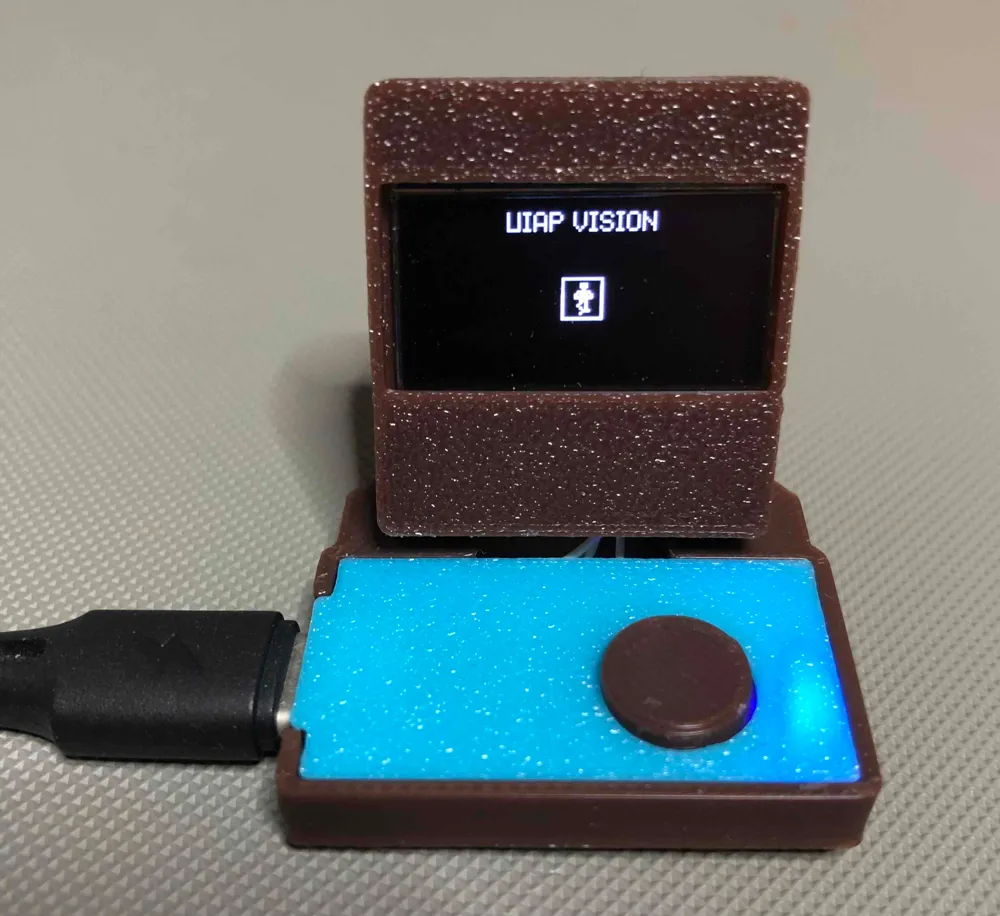

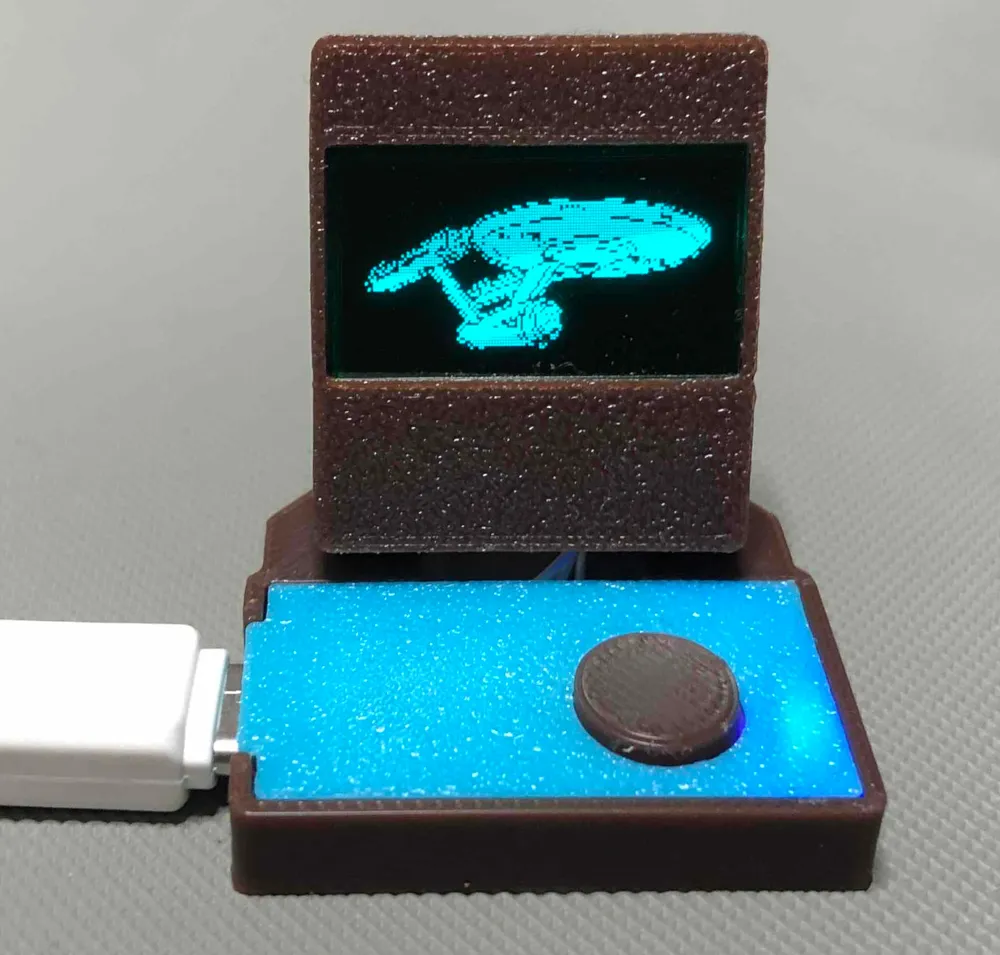

UIAPduino Enclosure (TTY style)

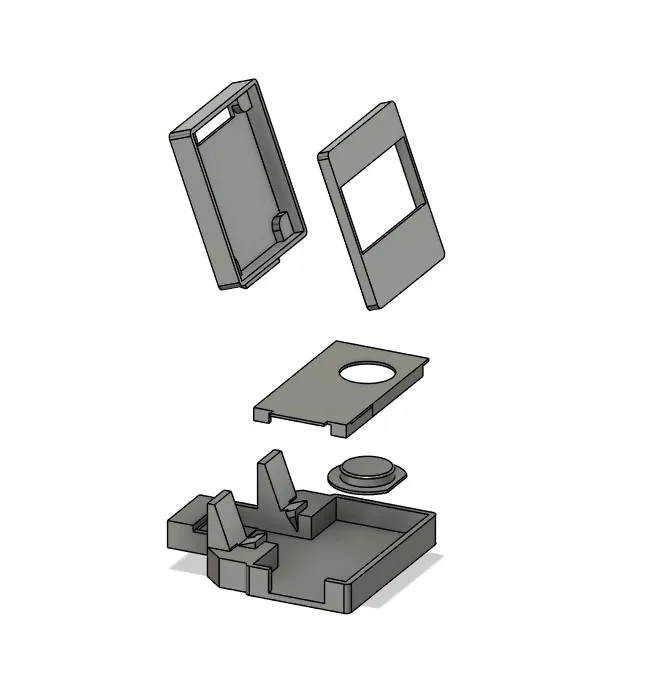

Please refer to the images for assembly
For connecting the parts, except for the UIAPduino lid
adhesive is used (styrene-butadiene rubber adhesive is recommended)

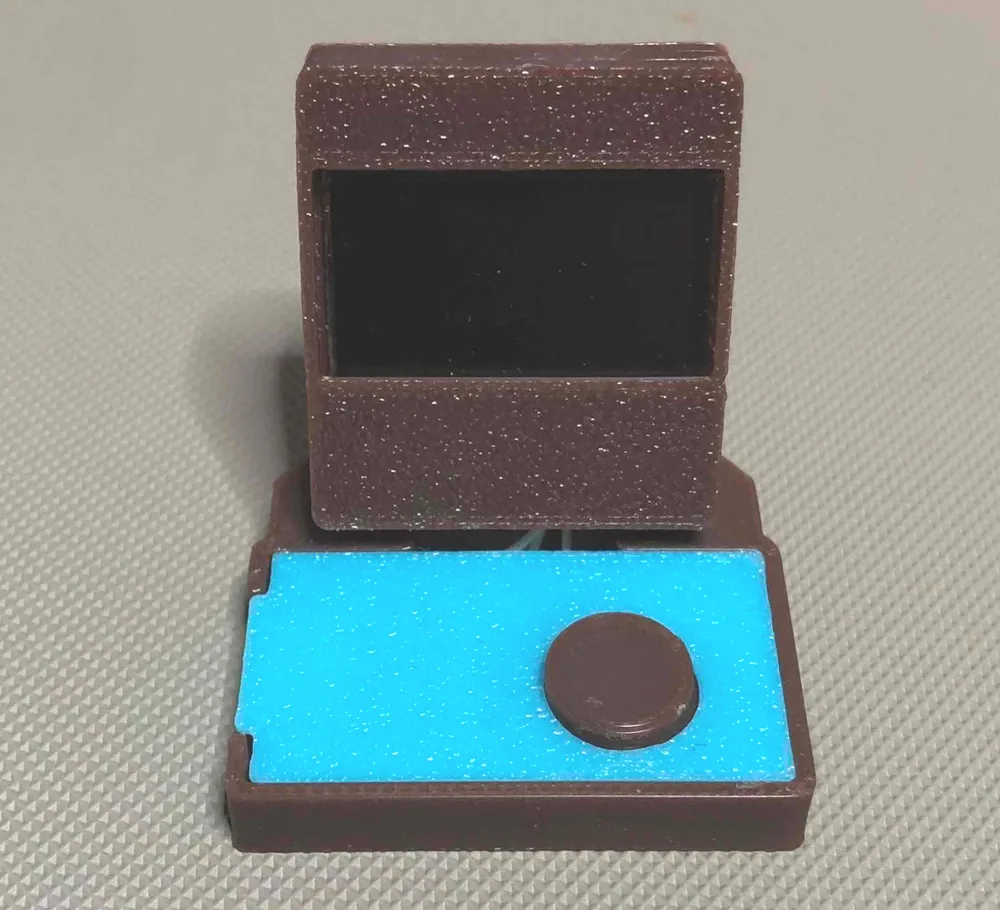

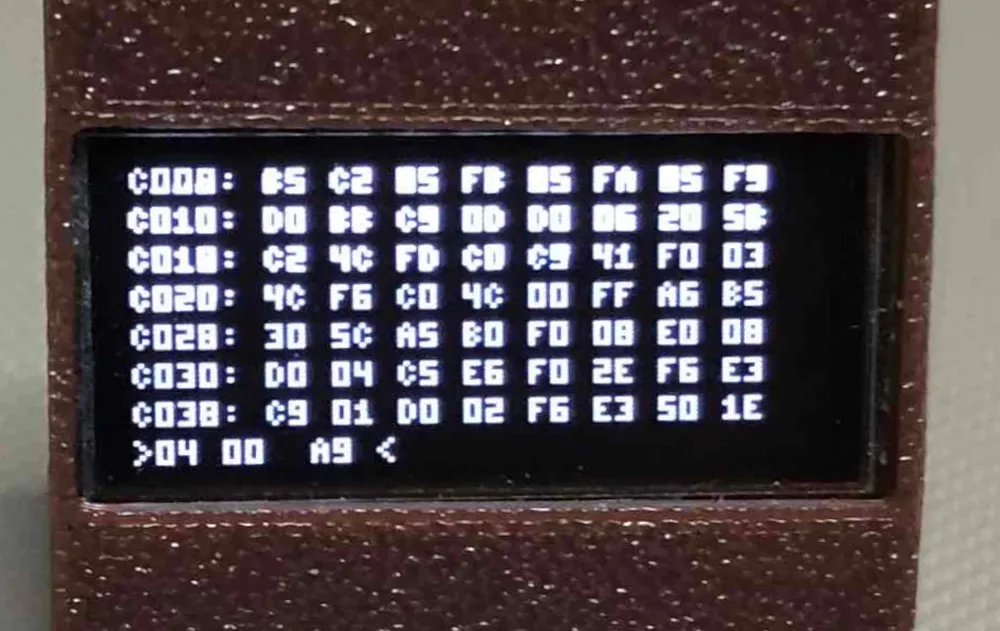

Designed for an OLED 128x64 LCD panel
It is sized to fit existing parts, measuring 24.8mm wide and 26.8mm high
If the fit is too tight, do not force it, as this will surely crack the LCD

Please discontinue use

Printing in multiple colors and combining them will result in a colorful machine

To secure the reset button, place the lid while temporarily taping the button from above
Removing the tape afterward will safely hold the button in place
If printing the button separately as an STL, adding ironing settings to the top layer
will improve its appearance

The current design does not allow for attaching switches (PSW) that send software triggers
However, a small piezo element can be attached to the back of the display area

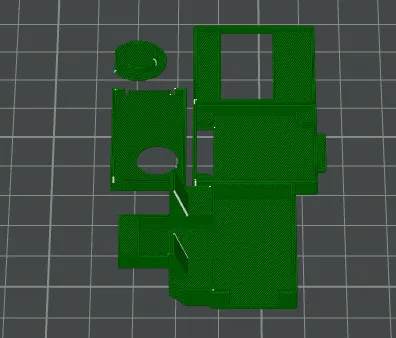

* The slot at the rear of the enclosure base has a bridge structure, so 3D printers
other than the A1 series may require support

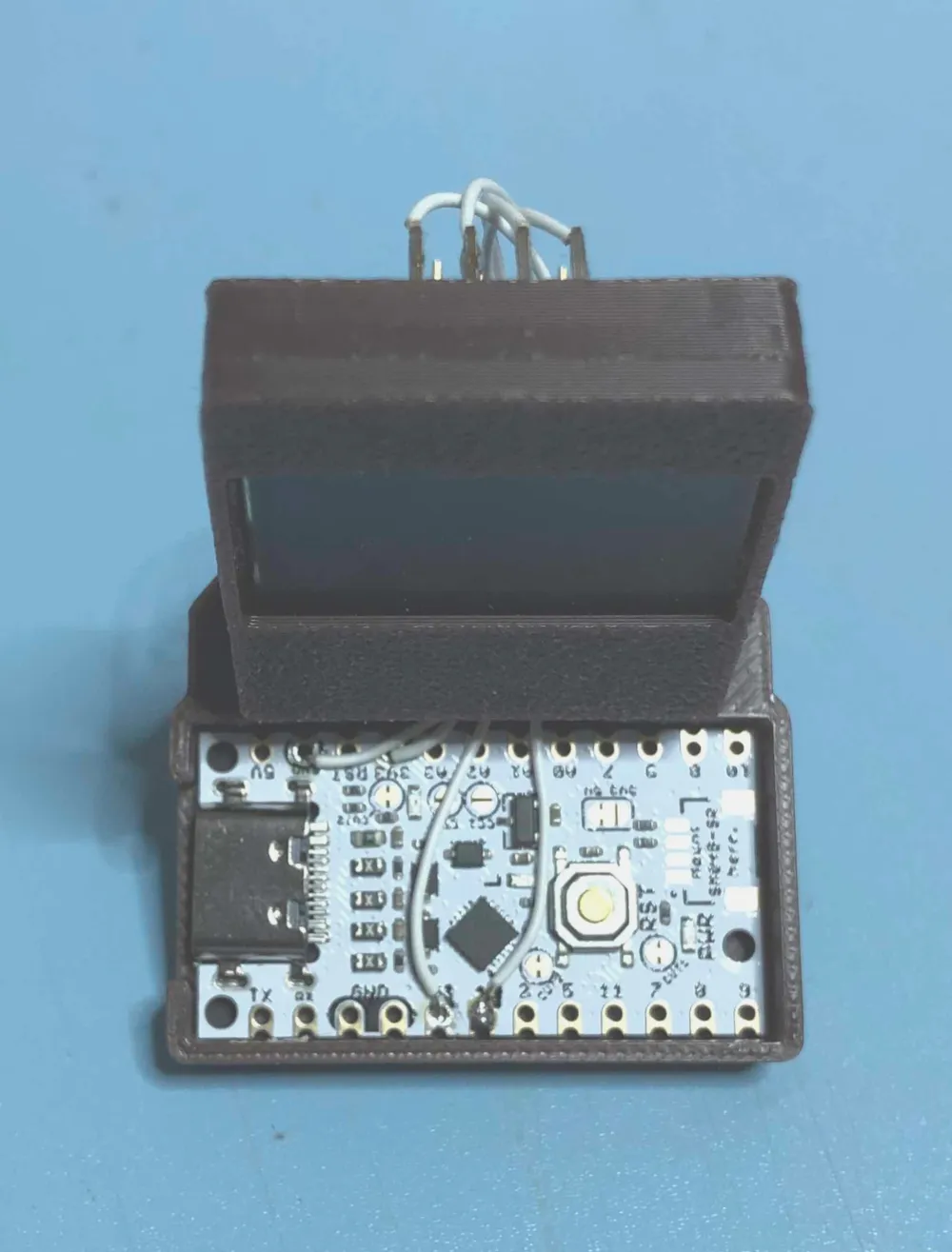

Board wiring is only on the top surface; solder wires to the inner side of the board

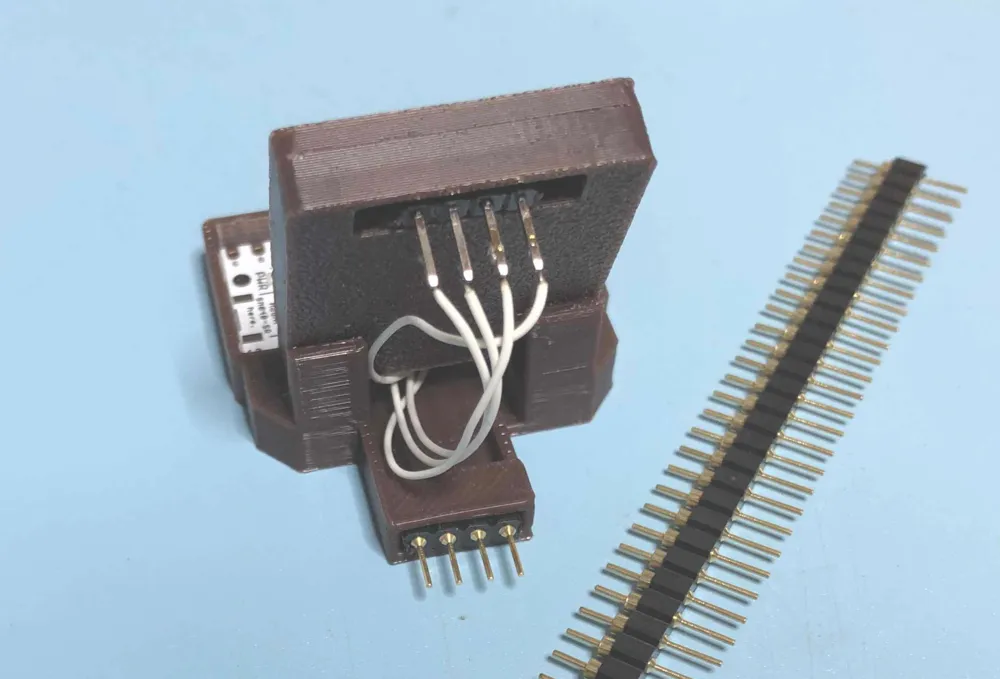

The rear slot accommodates a 4-pin header (2.54mm * 4)
Please use it as needed (e.g., for GND, Vcc, TX, RX)

We cannot be held responsible for any accidents or damage resulting from the use of this enclosure
Please use it at your own risk

What is "UIAPduino Pro Micro CH32V003 V1.4"

It is an inexpensive microcontroller board that utilizes the CH32V003 microcontroller
Both its software and hardware are open source
