Quick Foldable Hanger

A convenient foldable hanger that lets you fold the arms in one quick action.

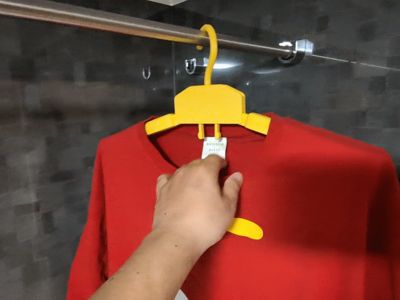

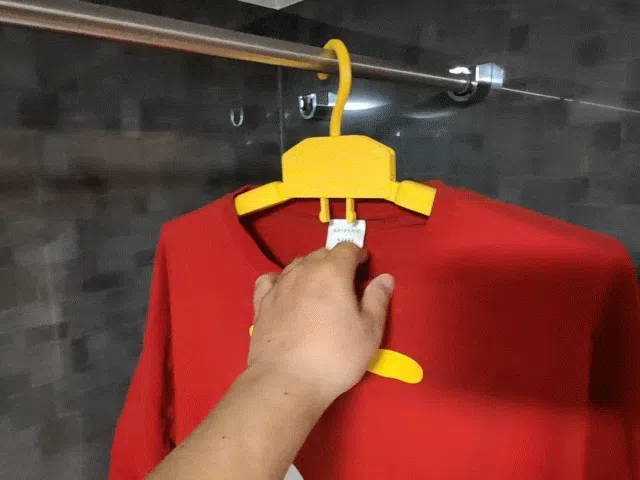

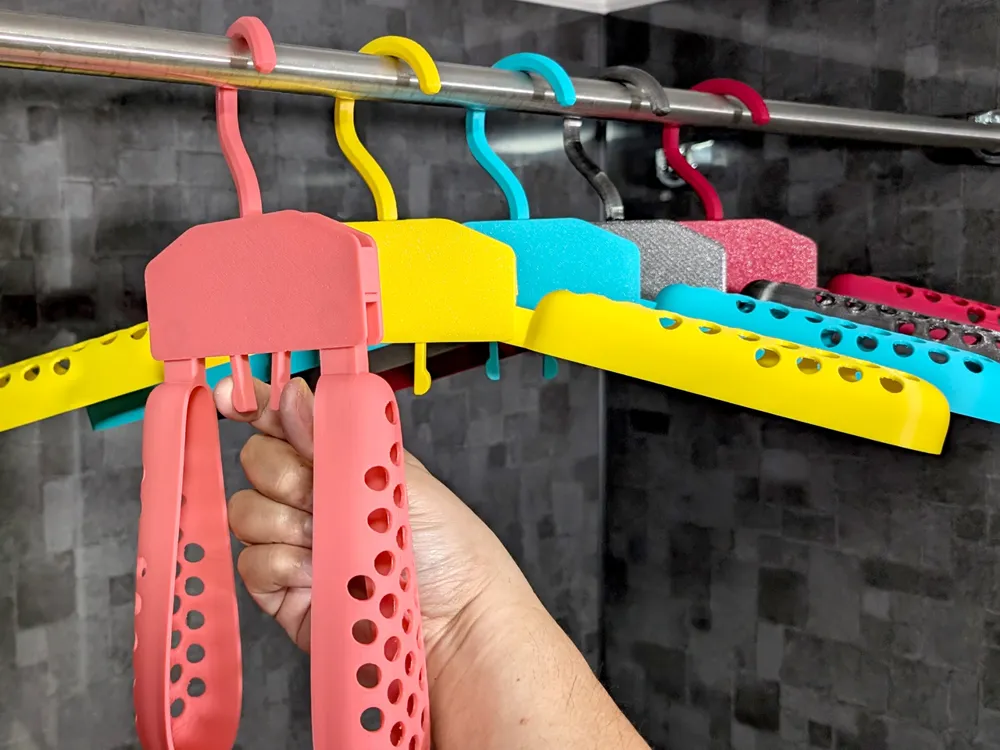

By pinching the center release tab, the arm lock is released, allowing you to remove clothes from the hanger without putting unnecessary stress on the fabric.
It is designed with a simple structure focused on ease of use.

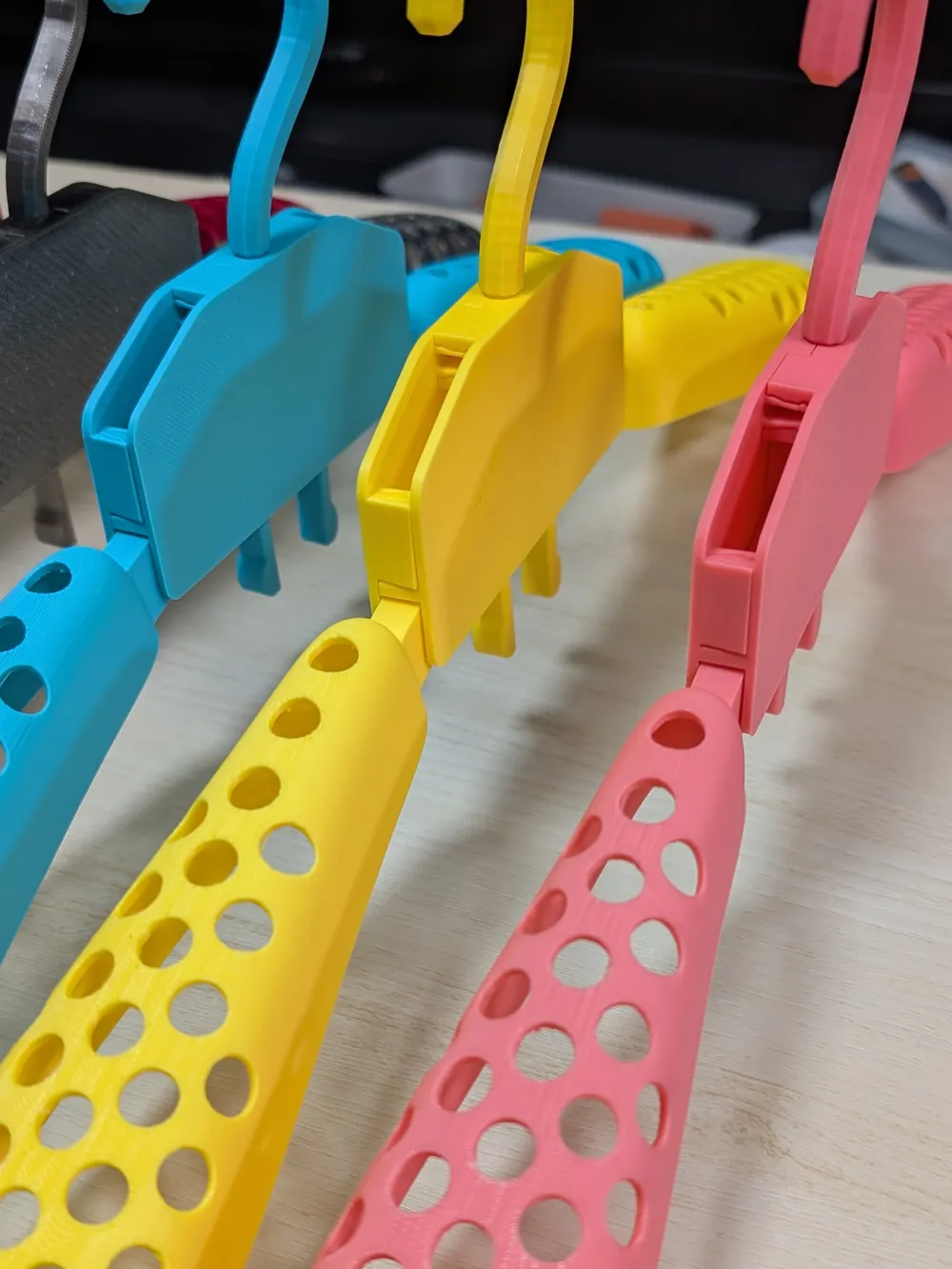

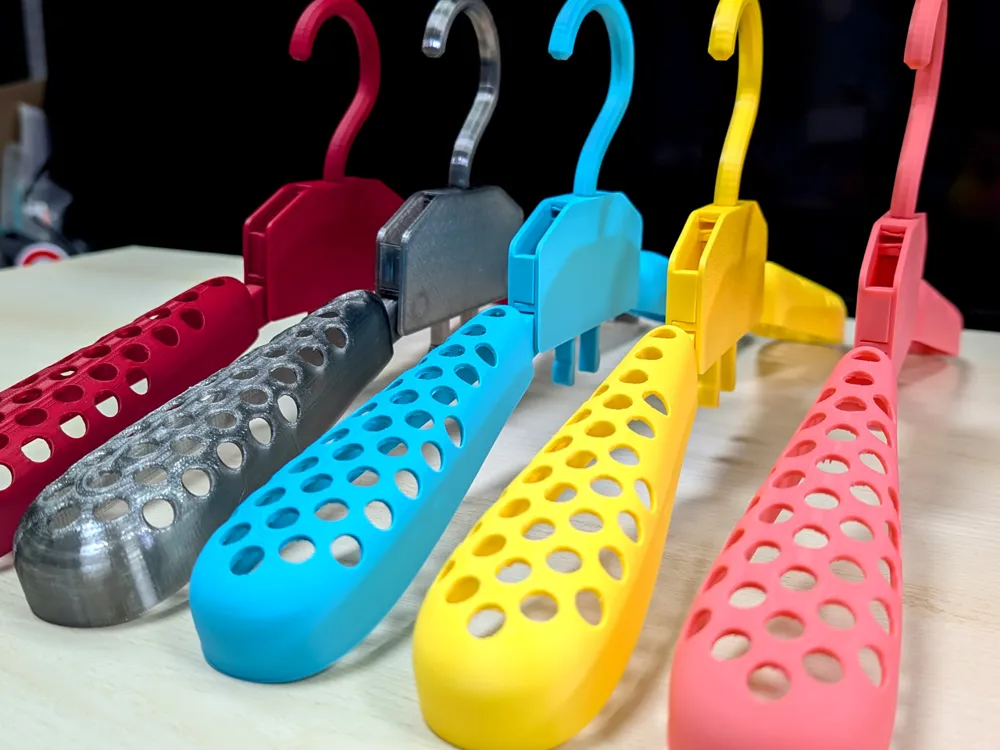

The arms are 50 mm thick, which helps reduce stress on fabric fibers.
The added thickness also improves airflow while drying, which may help shorten drying time.

Assembly

The parts are shown in different colors in the photos to make the assembly steps easier to understand.

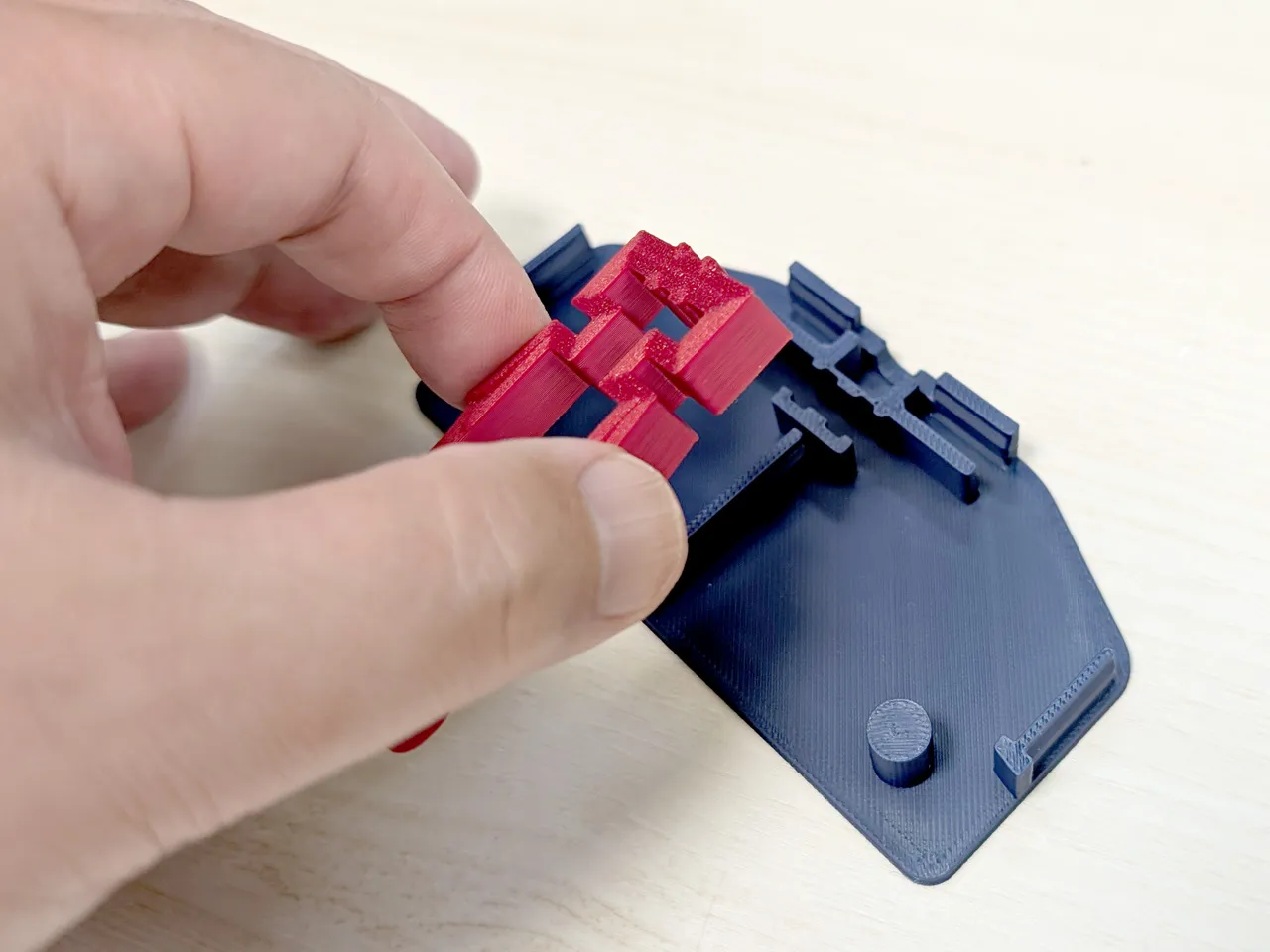

1. Insert the release tab part into the frame

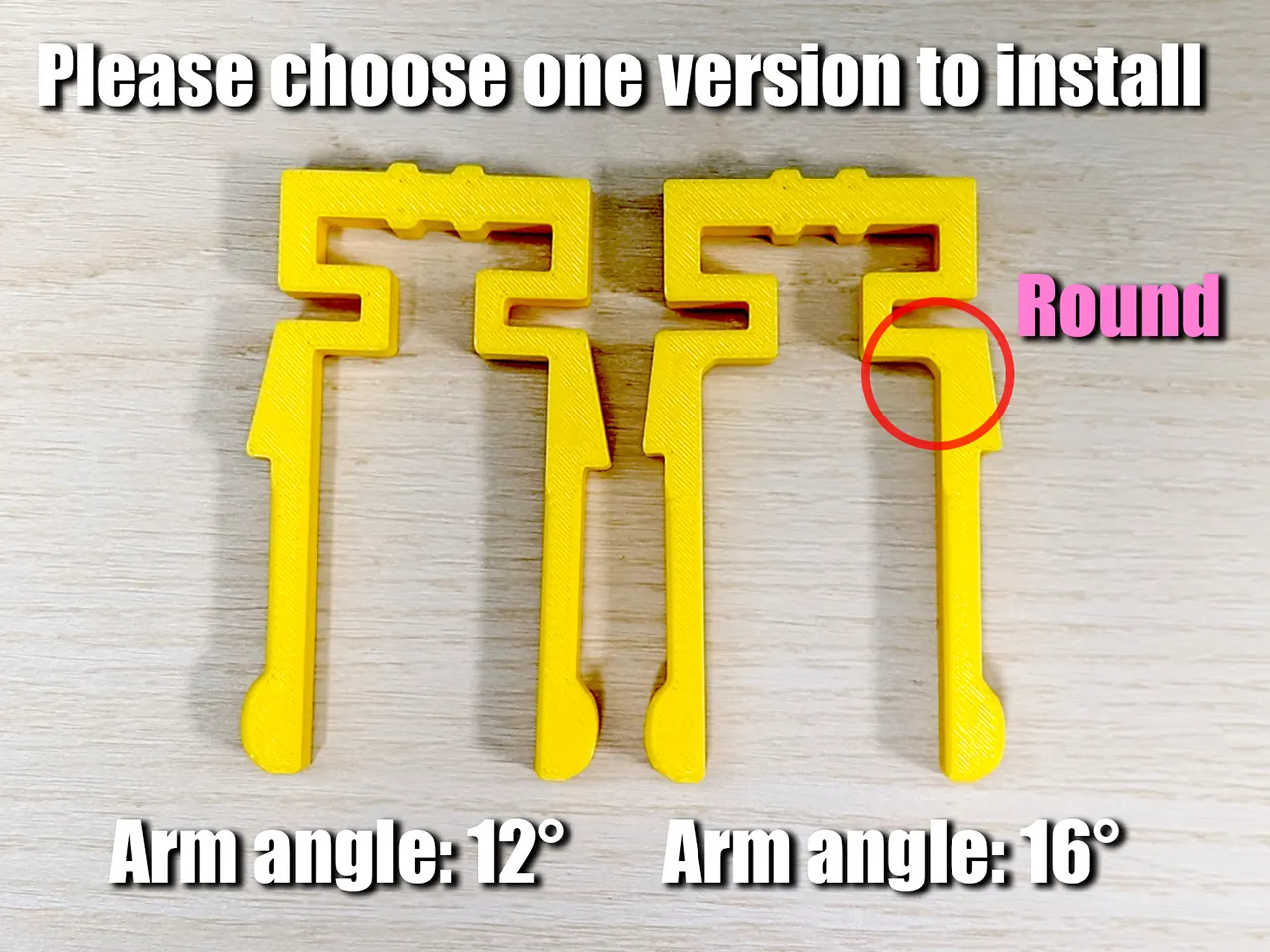

You can choose from two arm angle options: 12° and 16°.
Select the release tab part for the angle you prefer, and install it into the frame.

The part with the rounded section is the 16° version.

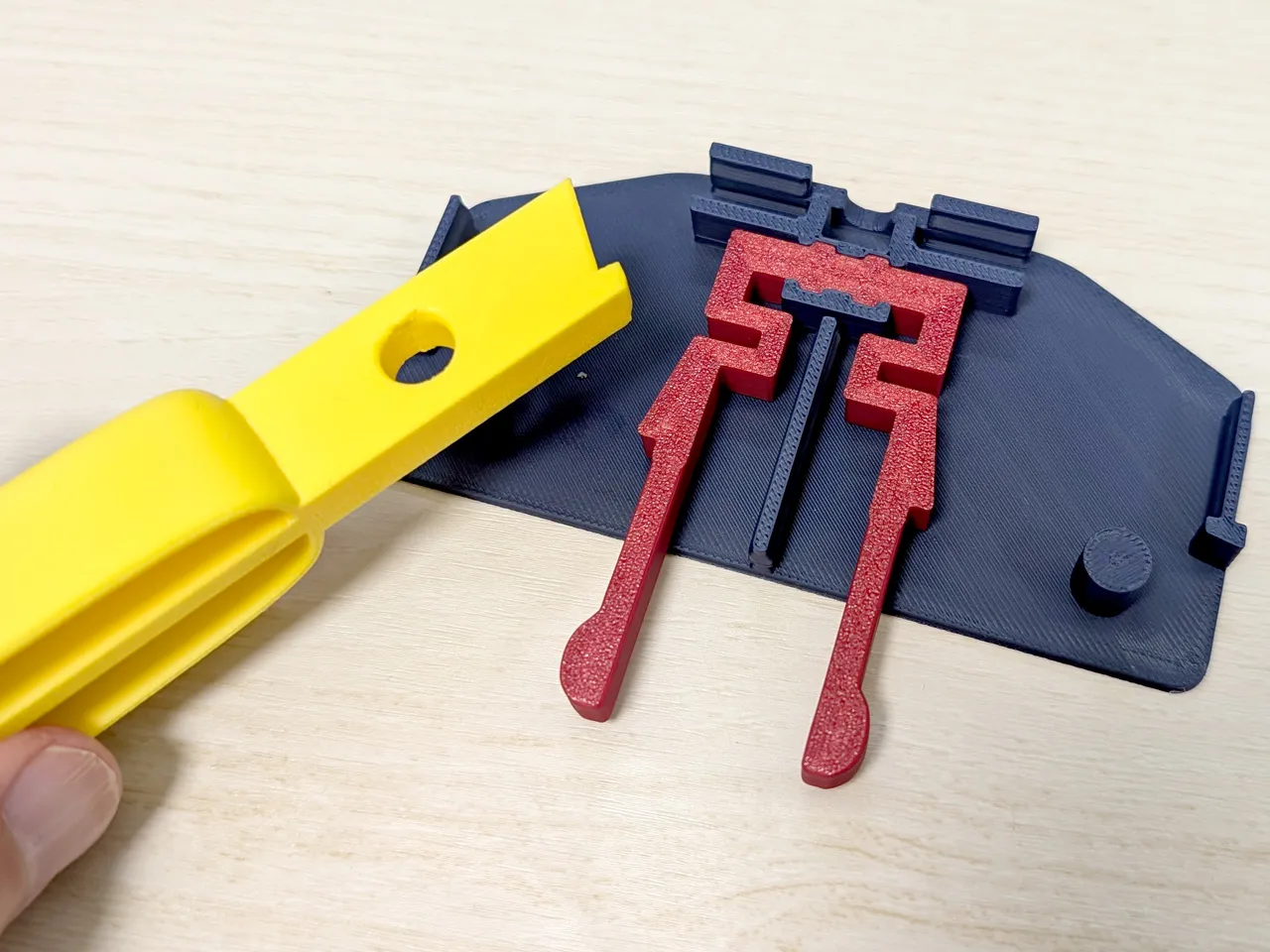

2. Install the arm parts

Attach the left and right arm parts to the frame as shown in the photo.

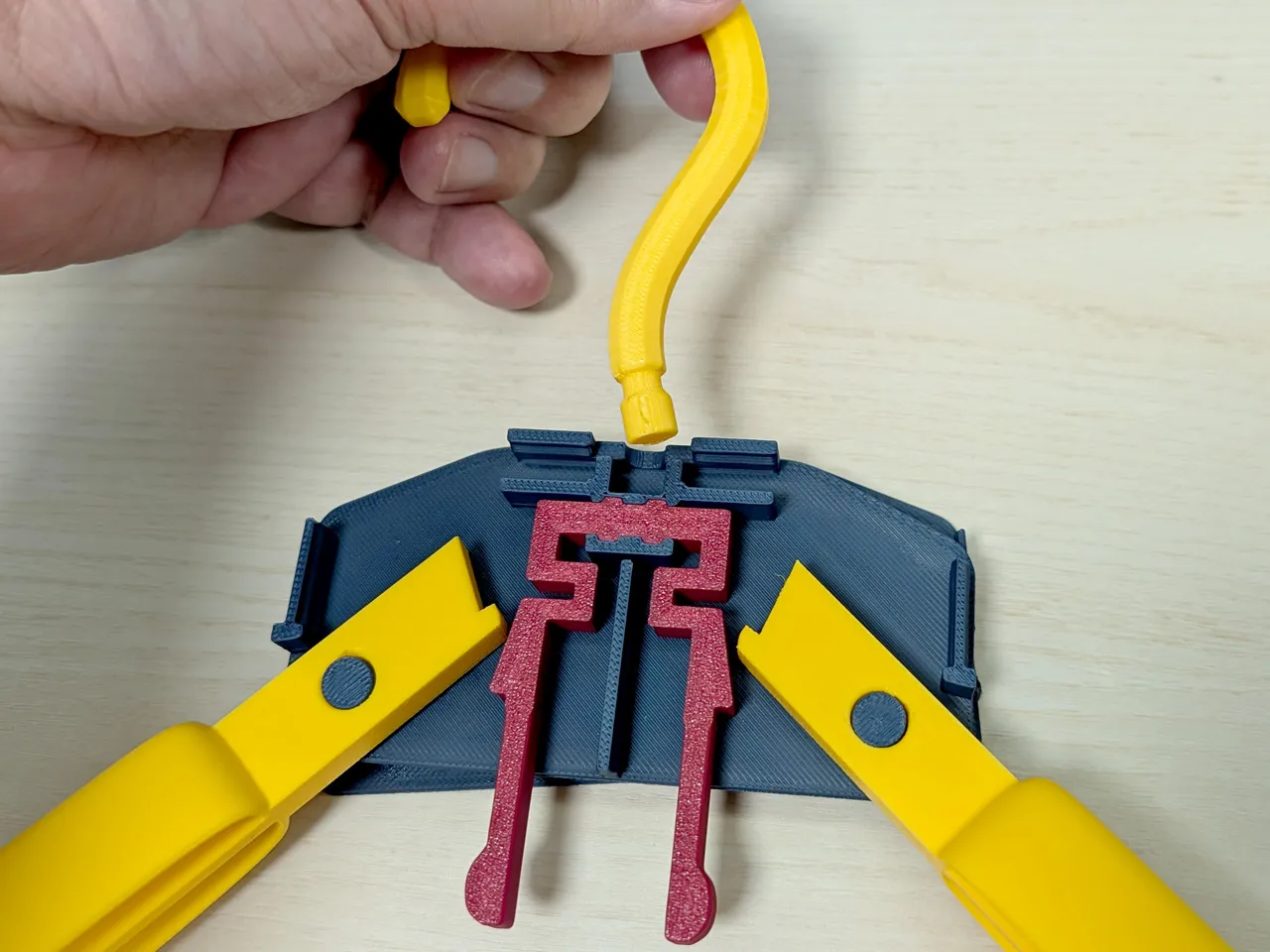

3. Install the hook part

Attach the hook part to the top as shown in the photo.

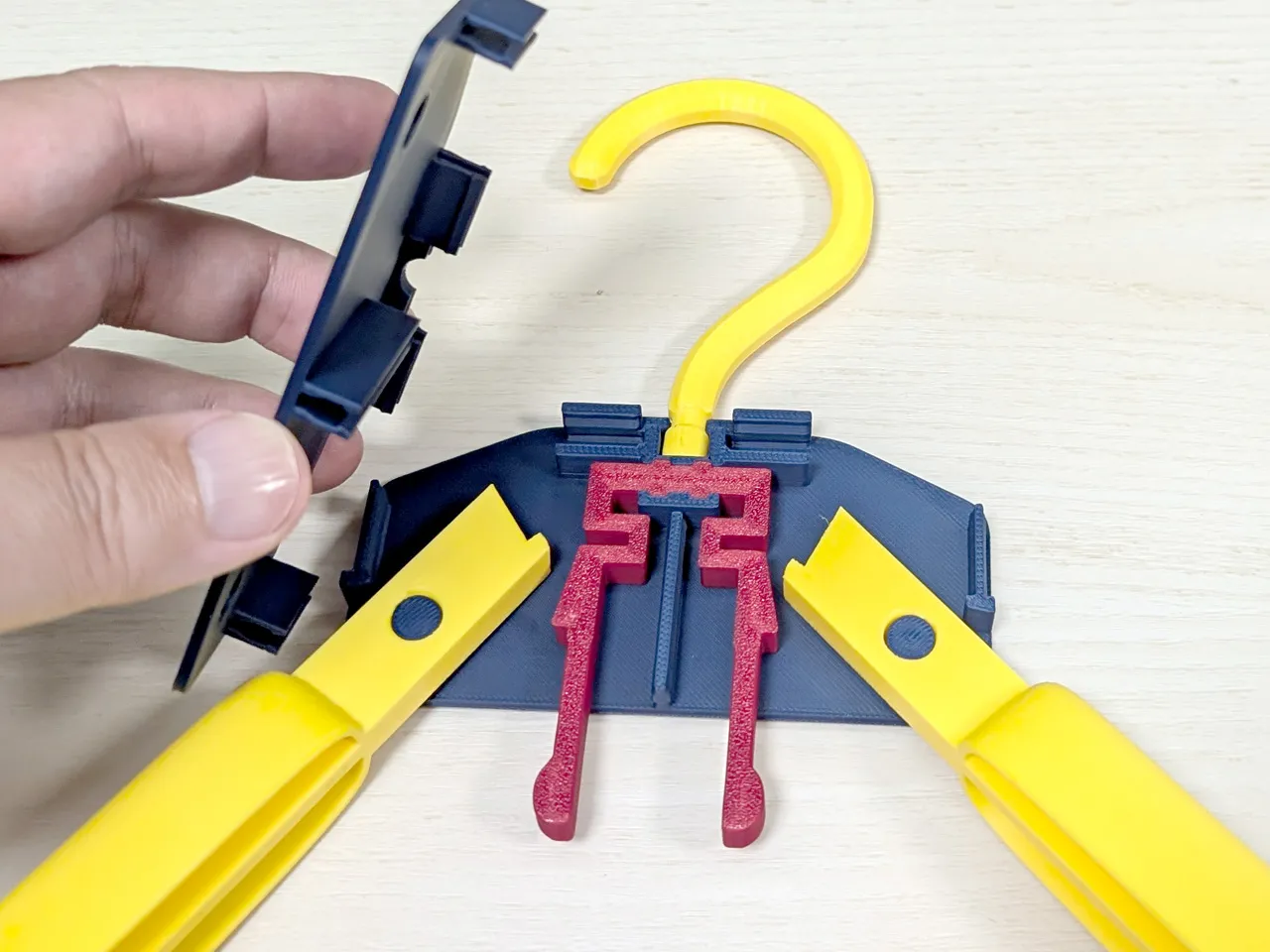

4. Press in the cover part to complete the assembly

Once fully assembled, the hanger is difficult to disassemble.
Before attaching the cover, please make sure that all parts move correctly.

If everything works properly, press the cover part firmly from above, as shown in the photo, to complete the assembly.

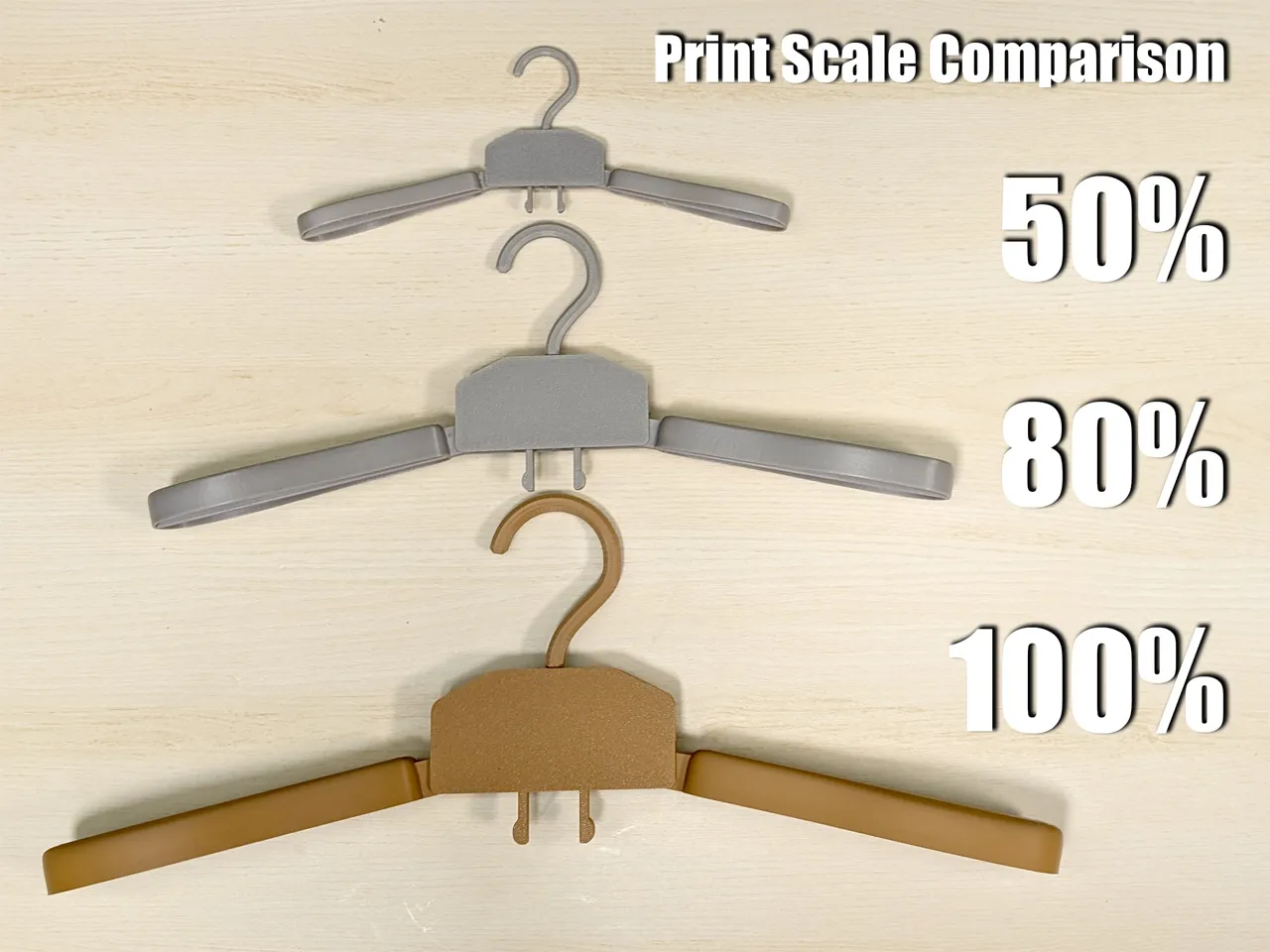

Print Scale

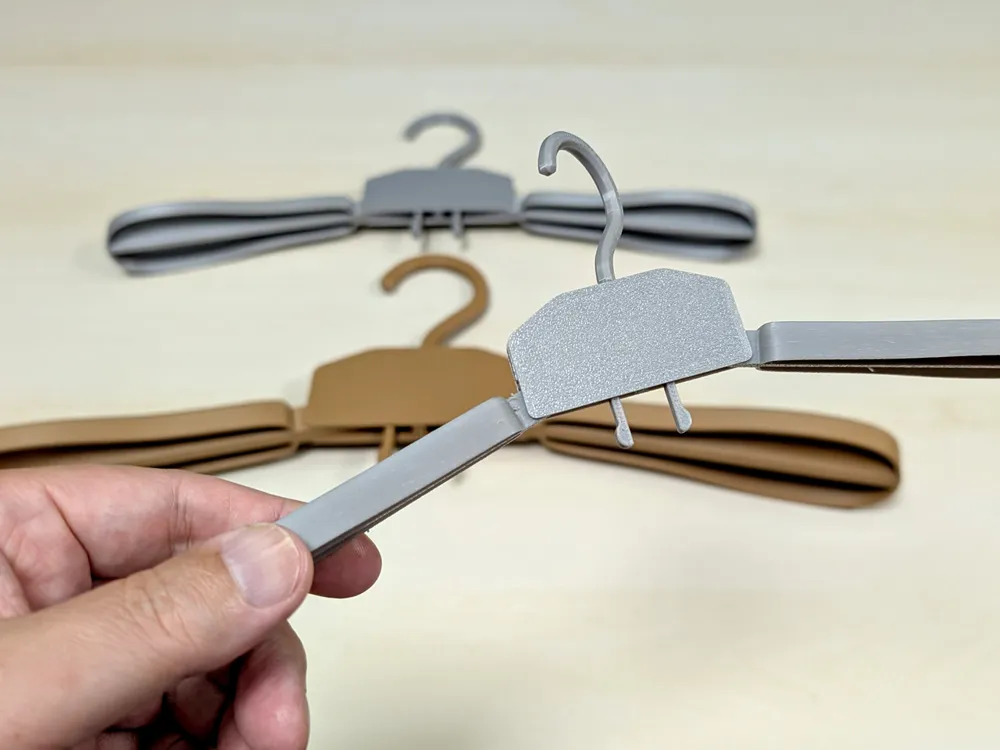

I also tested different print scales.
The hanger worked without problems down to a minimum scale of 50%.

An A1 mini compatible version is also included.
