Materials testing Blank
Print Profile(1)
Description

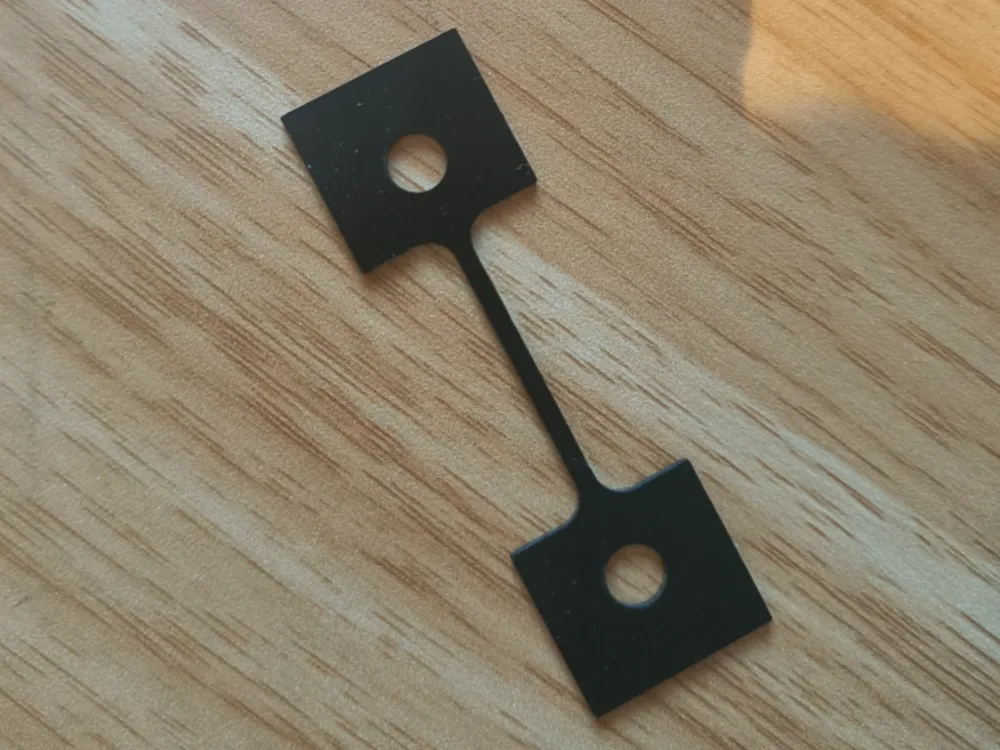

This is a part to go in a tensile testing machine, it uses the mounting point at either which are M6. The dimensions of the testing blank are as follows length 67mm, width 20mm and thickness 1mm. The testing area is a length 31mm, width 2mm with thickness 1mm. This is based on the material testing blanks used in the photos attached.
