LED Light Diffuser

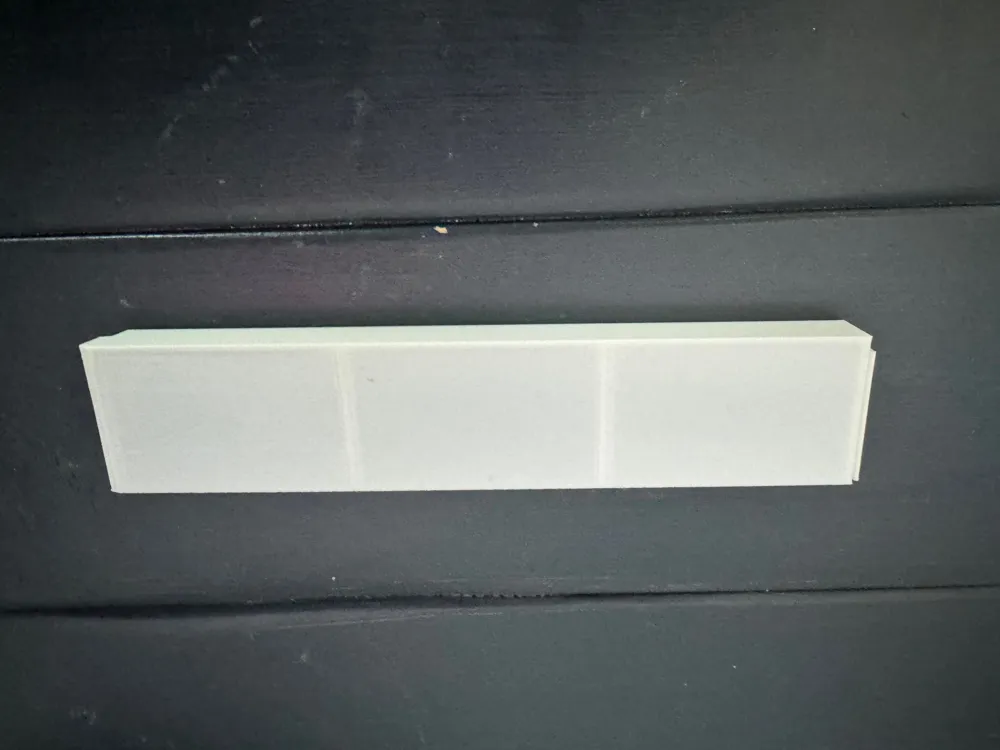

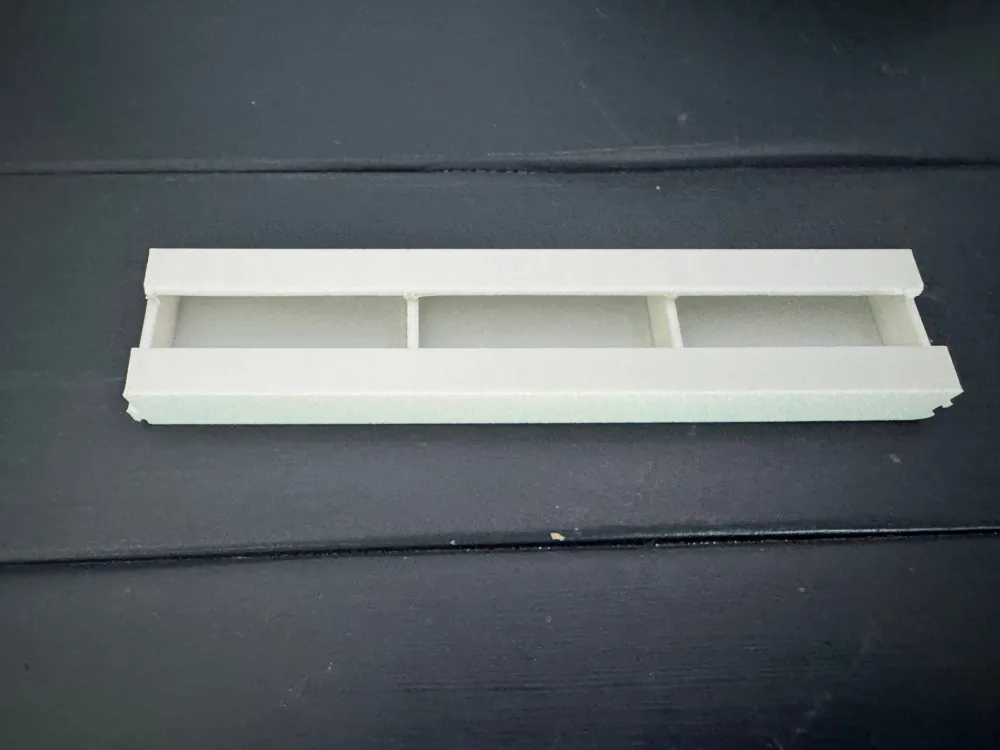

The Diffuser is designed to show off a more pixelated style of LED lights in a project or around a room by separating 3 LEDs at a time (Which are “pixels” in an average LED strip) giving the colors and effects a very cool “separation look”.

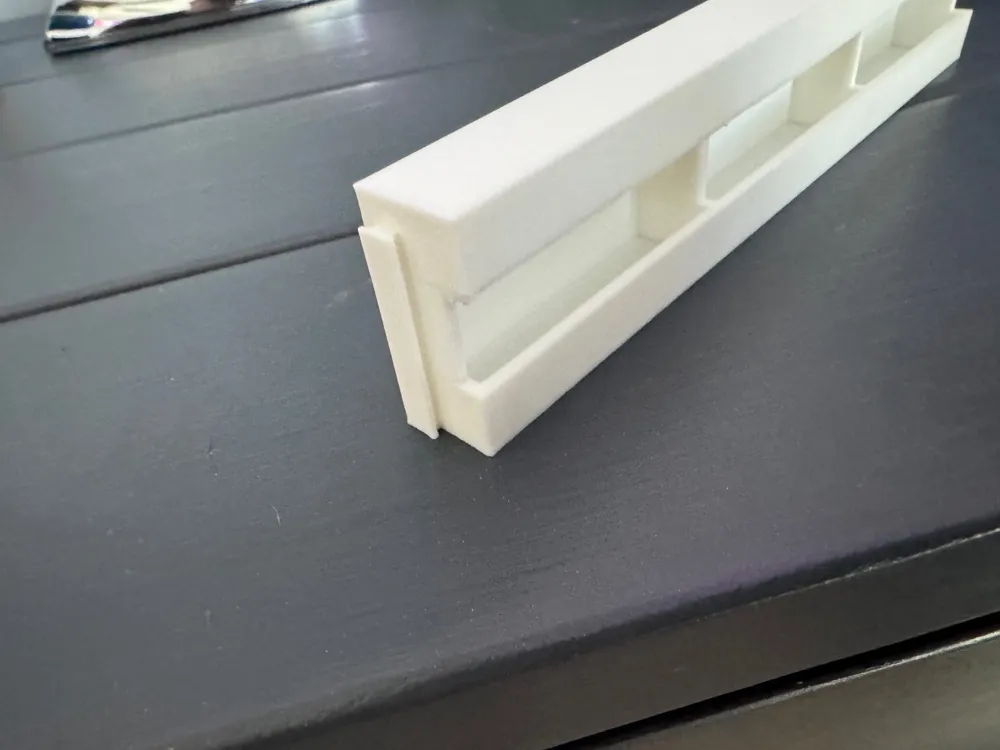

Simply slide one male end into the female end of the next and scale up to your needs.

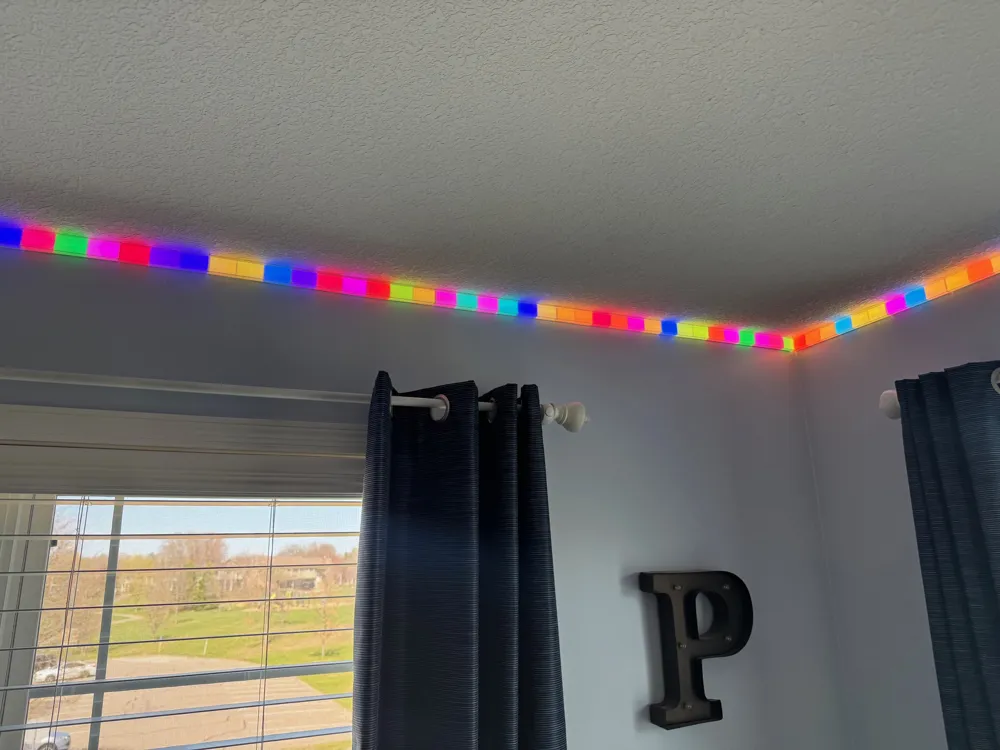

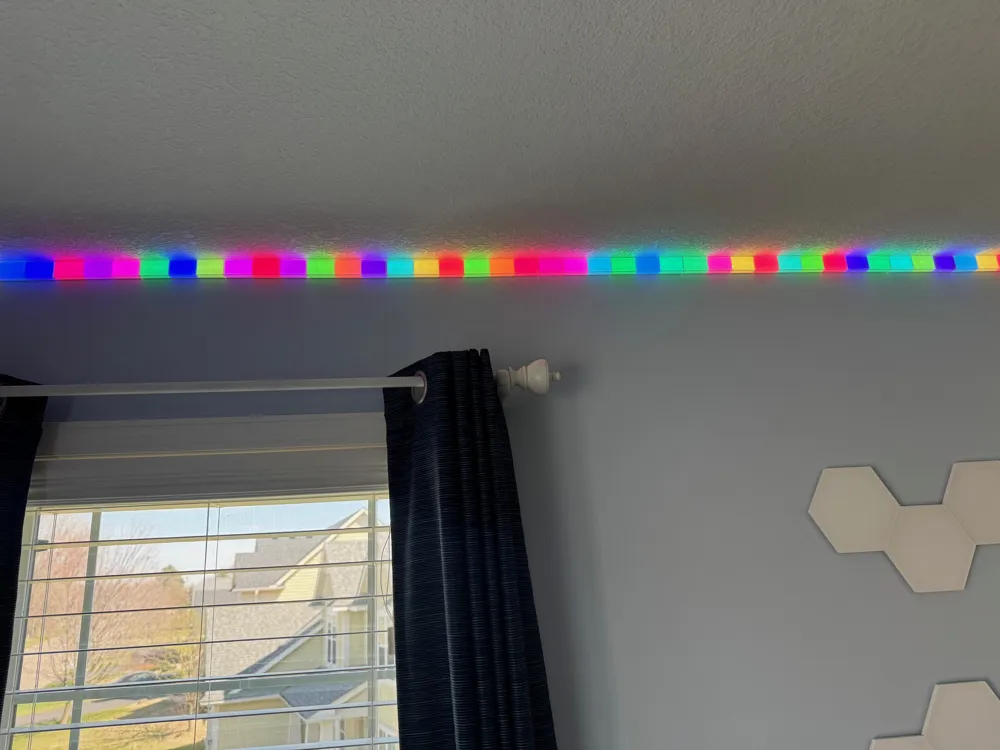

The lights in the pictures and the model is designed for are WS2811 60 led/m but most 60 led/m should work. Also scale of room may effect amount of pixels needed, so simply cut a piece to the wanted length at the closest pixel and check if pixels line up before attaching the Diffuser to the wall. Place the LED strip 0.40" from ceiling (10mm).

I (12 years old) designed these diffusers from scratch on Tinkercad and went through ~15 designs until I was happy with the outcome so please let me know if they work for you, I will be happy to hear. 😉
