Customizable Stacking Box

Customizable Stacking Box (Parametric)

Create your perfect storage solution with this fully customizable stacking box.
Designed for clean prints, easy stacking, and maximum flexibility, this model lets you dial in exactly what you need—whether it's for organizing small parts, desk items, craft supplies, or workshop storage.

Features

• Fully parametric design
• Clean, modern stackable system
• Optimized for easy printing (no supports needed)
• Lid option
• Smooth rounded edges for a polished look

Customize the:

• Length, Width, Height
• Corner Rounding
• Wall Thickness
• With or without lid
• Lid with or without center hole

Recommended Print Settings

For best results:

• Layer Height: 0.20mm
• Infill Type: Gyroid
• Infill Density: 6–10%
• Supports: Not required
• No supports

How to Prepare the File (.3MF)

After downloading and opening the file:

1. Split the model into separate objects
   • Right-click the model
   • Select: Split → To Objects
2. Auto-orient the parts
   • Click Auto Orient to position them correctly for printing
3. Optional: Move parts to separate plates
   • You can keep them on one plate or
   • Move each part to its own plate for cleaner prints and easier organization

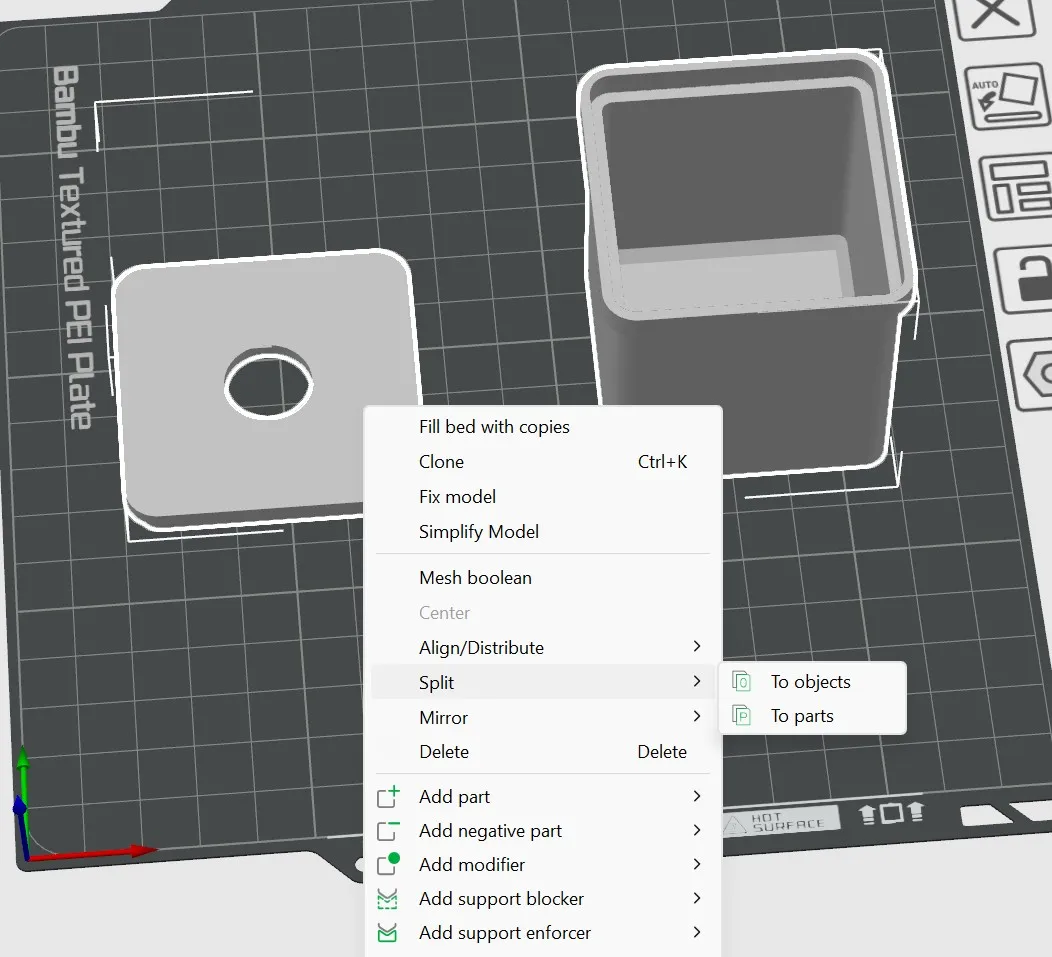

Right click the model to split:

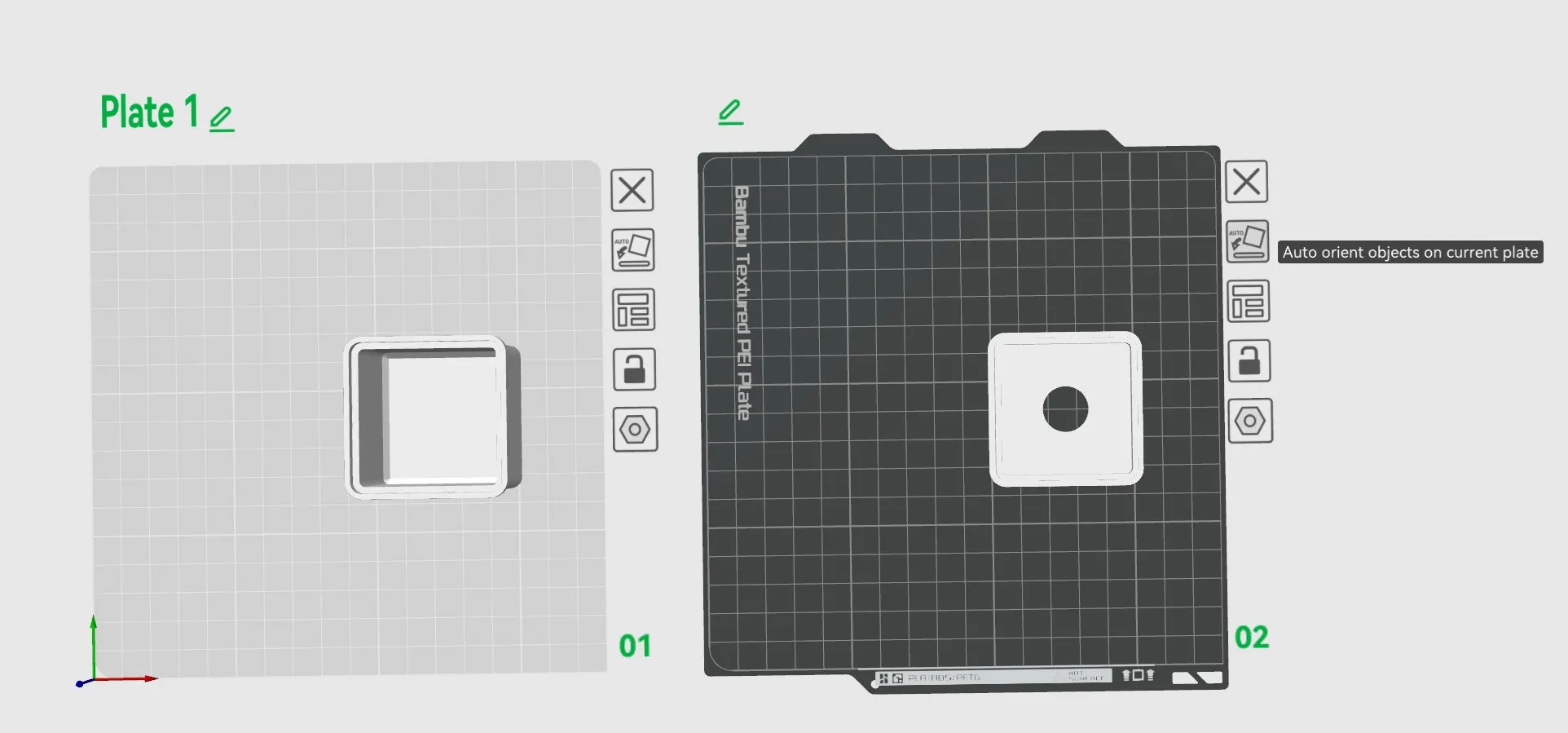

Make sure to auto-orient so the lid prints flat side down:

Thank you for your support.  If you have any suggestions or requests just send me a message.
