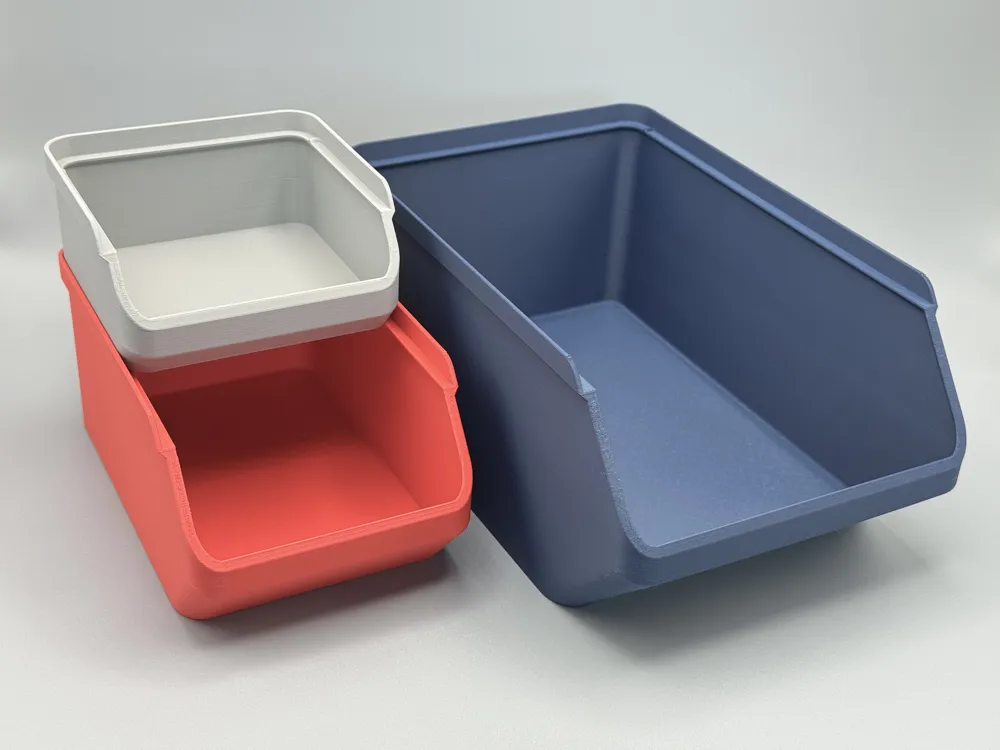

Stackable storage box (customizable)

These stackable boxes came in 3 different heights: 50, 75 and 100mm.

The width, depth and the width of the label plate can be freely adjusted.

Changelog:

01.09.2025: Versions without label plate are available.

Feature overview:

• Stackable
• Stable design with reinforced upper frame
• 3 heights: 50, 75 and 100mm
• The width, depth and the width of the label plate can be freely adjusted.
• Inconspicuous label plate with free text (editable in Bambu Studio)
• The boxes snaped into place when stacked
• With and without label plate

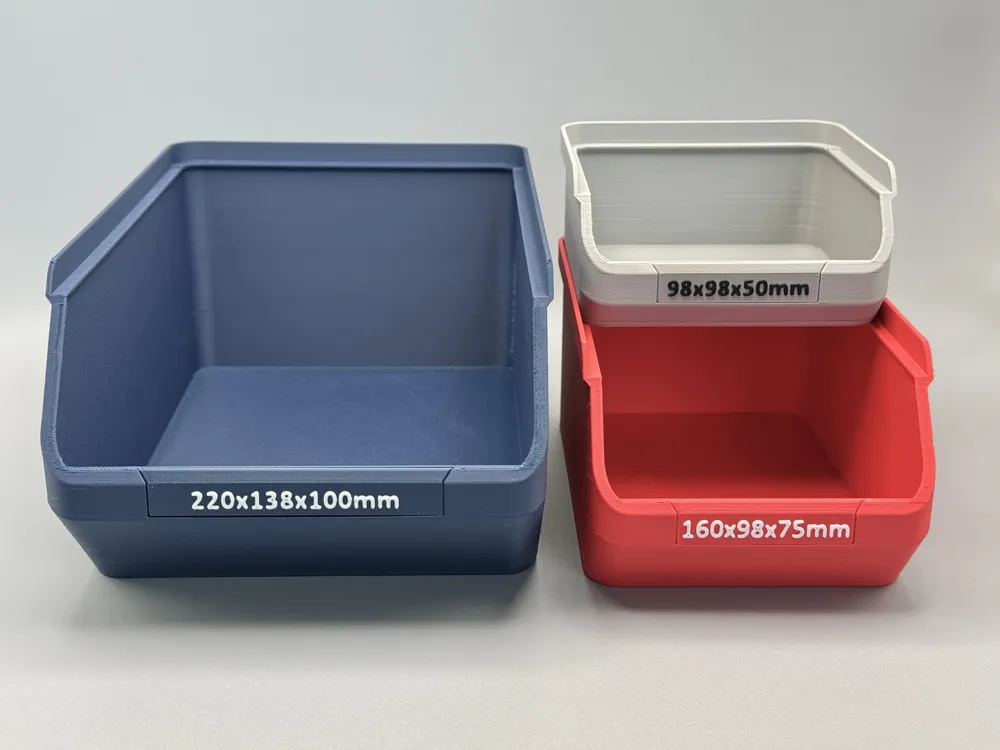

There are 3 standard sizes available as print profiles:

S: 98 x 98 x 50mm (1,6mm wall thickness)

M: 160 x 98 x 75mm (1,6mm wall thickness)

L: 220 x 138 x 100mm (2,0mm wall thickness)

Do you need different width/heights? No problem, read the following instruction:

Customize instructions:

After clicking on the customize button you can choose between the 3 heigths: 50, 75 and 100mm.

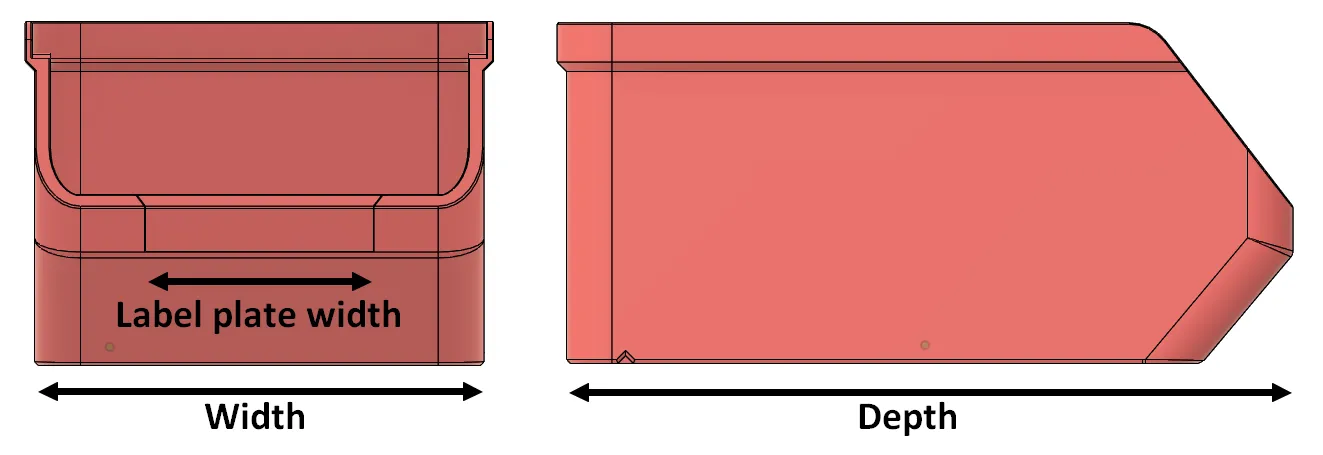

After that you can edit the width, the depth and the label plate width in the specified range.

Important: The label plate width must be at least 25mm shorter then the width.

Print instructions:

If you create your own box:

• Seperate box and label plate with rightclick on the part → Split → to objects

• Pull the label plate onto a new printing plate.

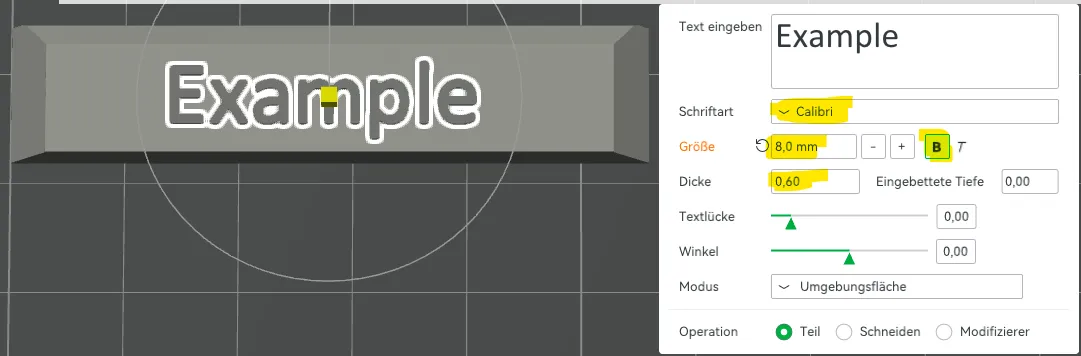

• Click on the label plate and select the text bottom:

You can freely choose the font/size etc.

Here are my recommend settings:

If you use one of the 3 standard profiles, then you only have to right click on the text_shape under “objects” and click on text edit:

Print settings:

Box and plate: standard settings for the box (0,2mm layer heigt, 15% Infill)

Seam position: back

Only label plate: “Arachne” wall generator for better text quality
