Cable Holder

This is a screw-on cable holder designed to securely attach cables of approximately 5 mm in diameter to surfaces such as wood or other materials.

Detailed Description

The component is made from PLA (polylactic acid) using 3D printing, which gives it a rigid and sufficiently resistant structure for domestic or light installation uses.

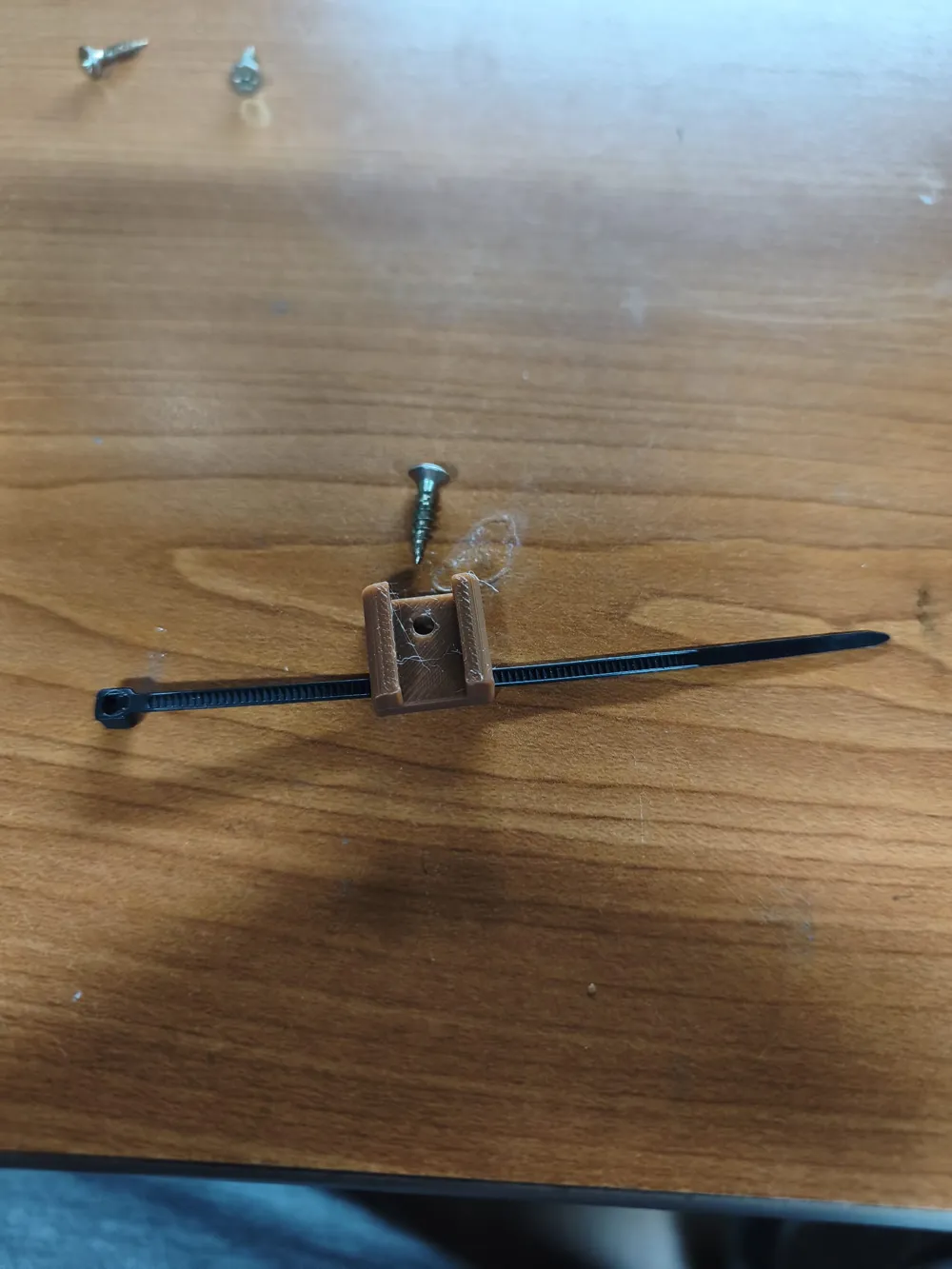

Its design consists of a compact, open-clip shaped base which incorporates:

• Central screw hole: allows the holder to be fixed directly to the surface. The hole is sized to accommodate standard small-diameter screws, ensuring a firm and stable installation.
• Cable tie guide channel: runs through the body of the holder from side to side, allowing a plastic cable tie of approximately 2 mm thickness to be inserted.
• Cable housing: the clip's geometry leaves enough space to position a cable of up to 5 mm in diameter, keeping it aligned against the surface.

Operation

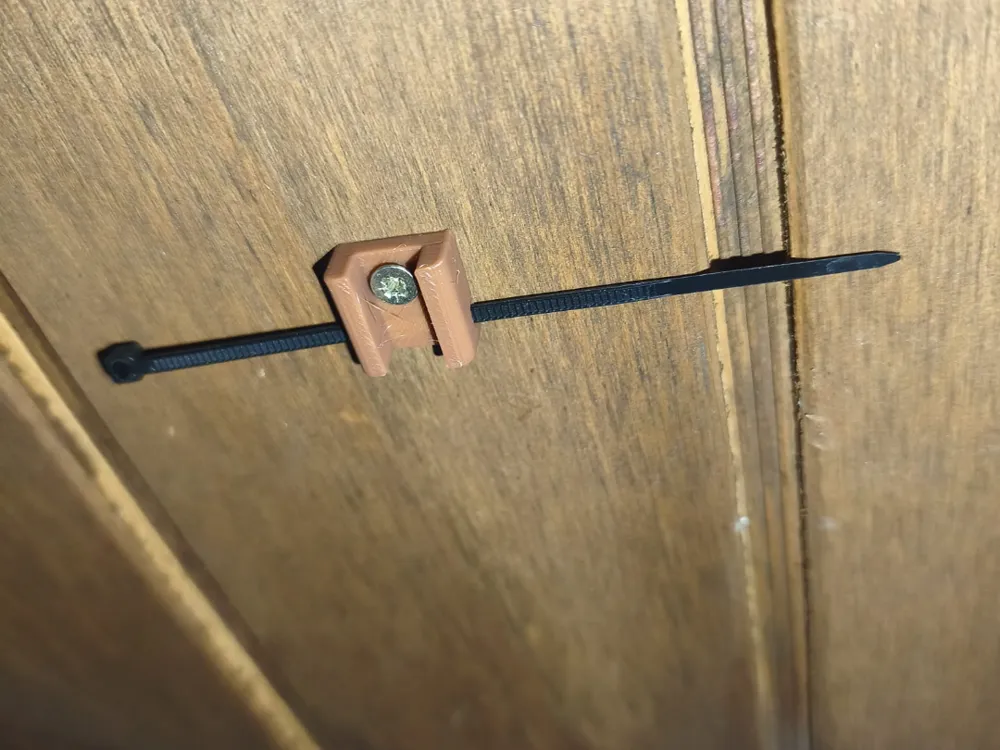

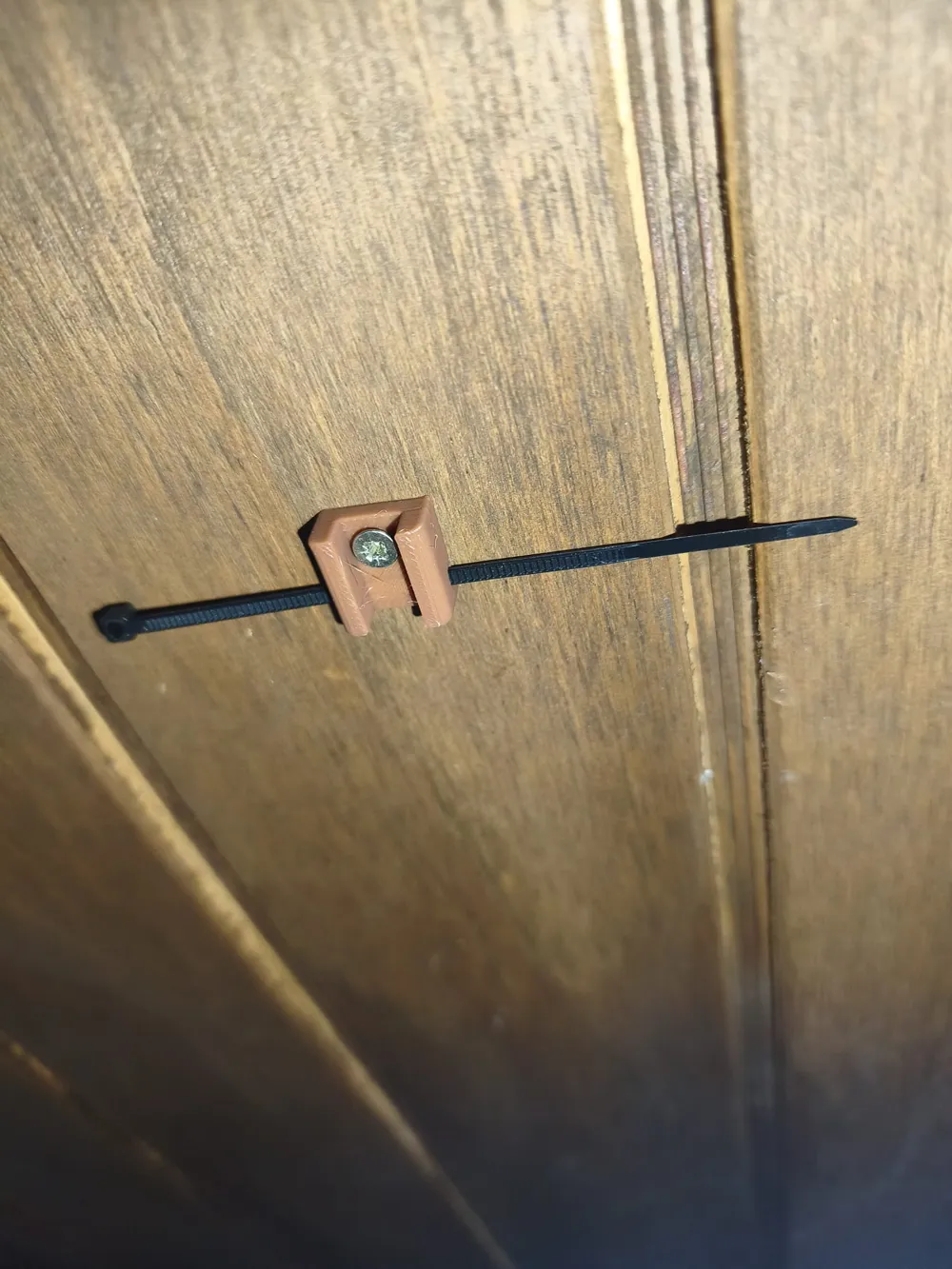

1. The holder is fixed to the surface with a screw.
2. The cable is placed within the designated space.
3. A cable tie is inserted through the side channel of the holder.

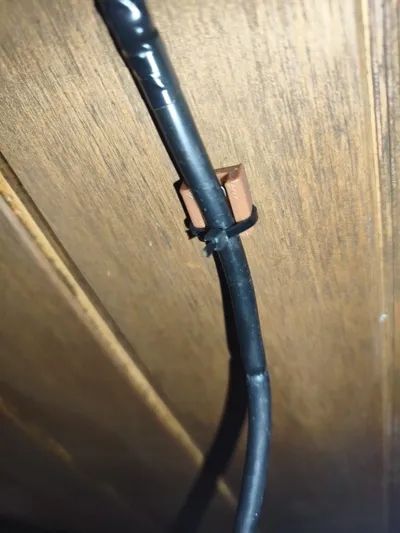

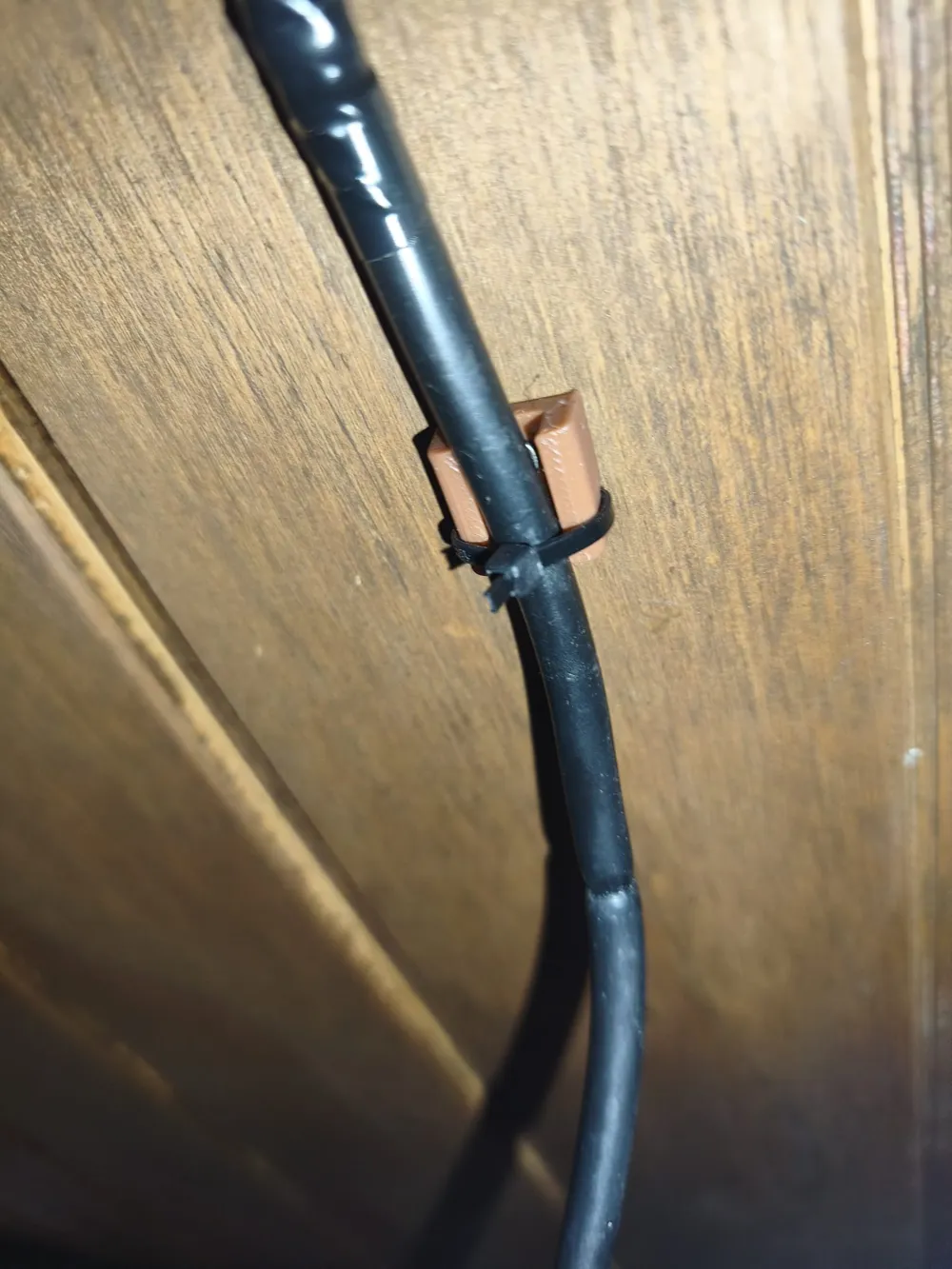

4. When the cable tie is tightened, the cable is firmly secured against the base.

Key Features

• High resistance for daily use thanks to well-dimensioned PLA.
• Simple installation with a single screw.
• Secure and adaptable fastening using a cable tie.
• Discreet and compact design, ideal for cable management on walls, furniture, or panels.

Overall, it is a practical, economical, and effective solution for organizing small-diameter cables, combining the firmness of mechanical anchoring with the versatility of cable ties.
