Description

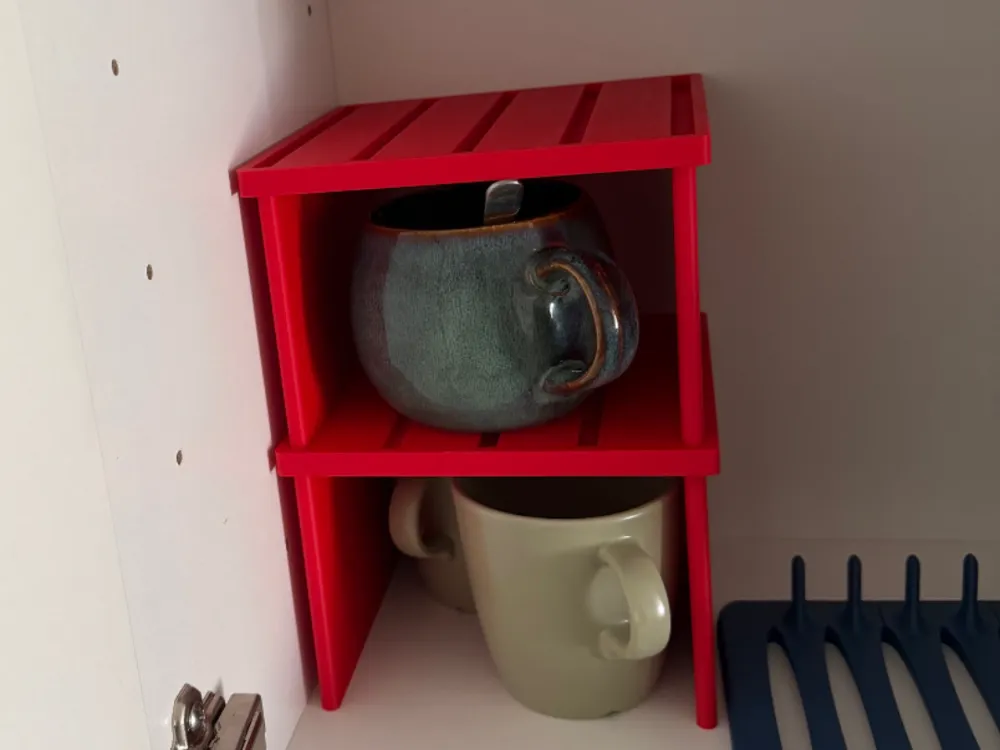

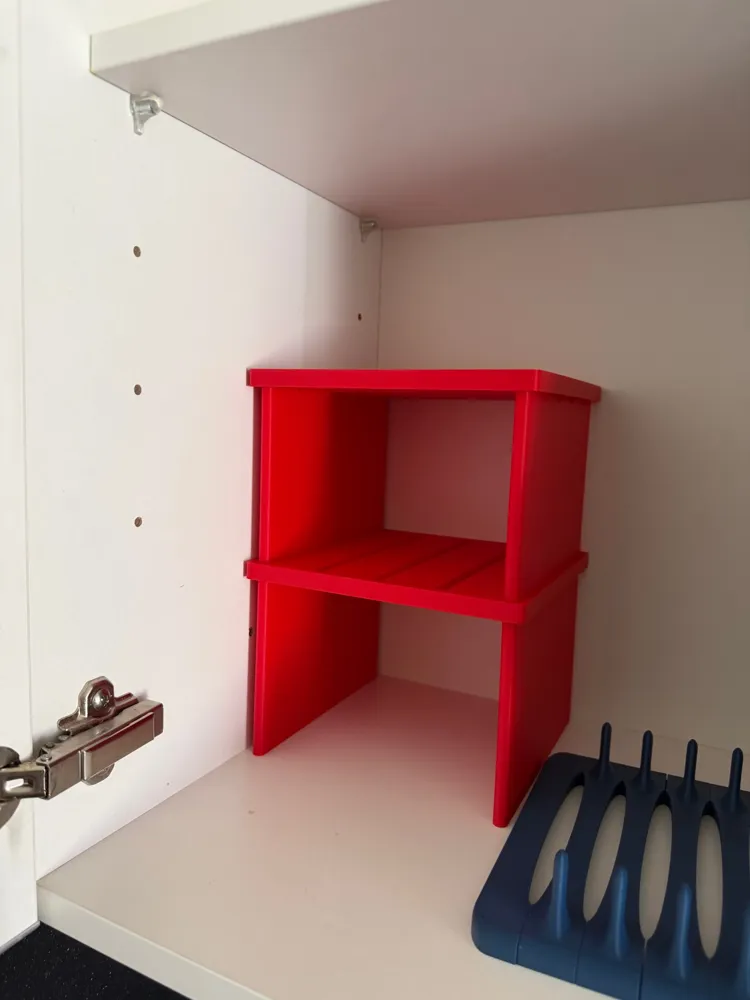

The model was designed as a stackable cupboard rack for kitchen. Obvoiusly it can be used not only as a cupboard rack, but however one wants. So I decided to make a different sizes of racks in case anyone need it for some reason.

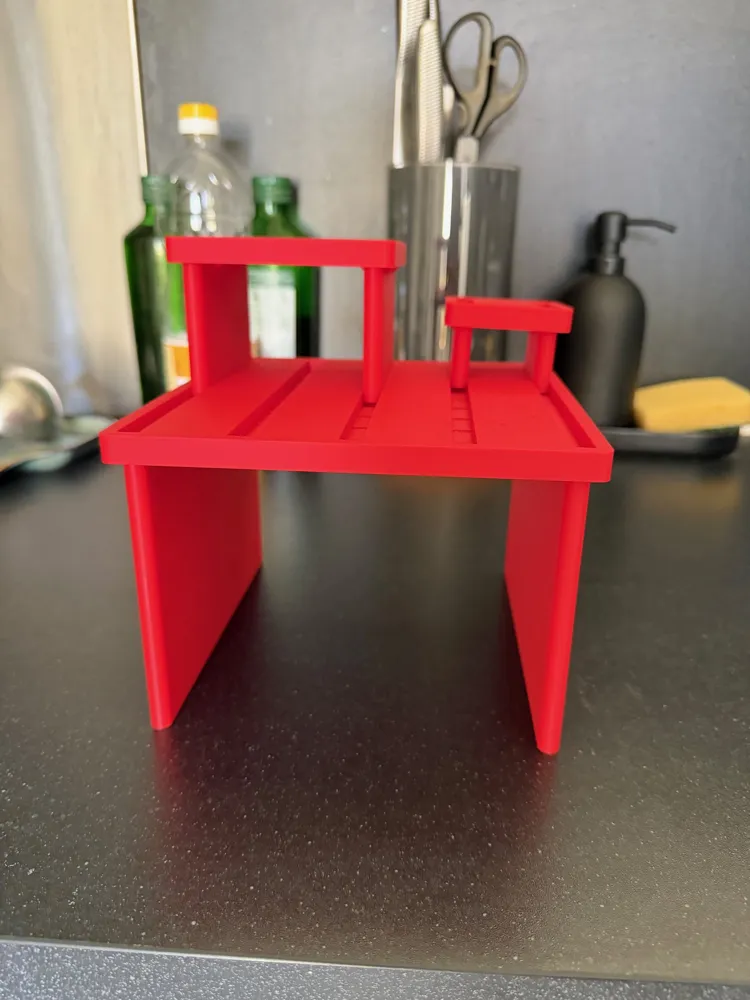

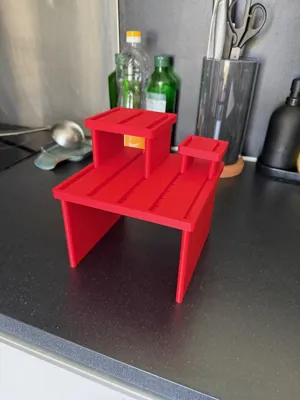

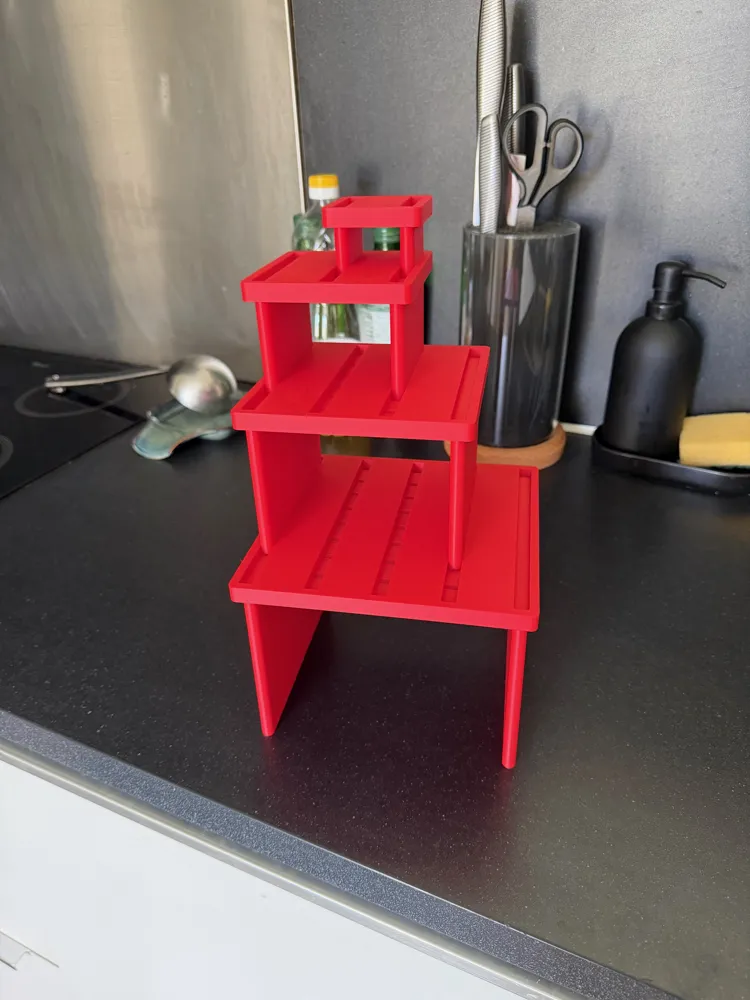

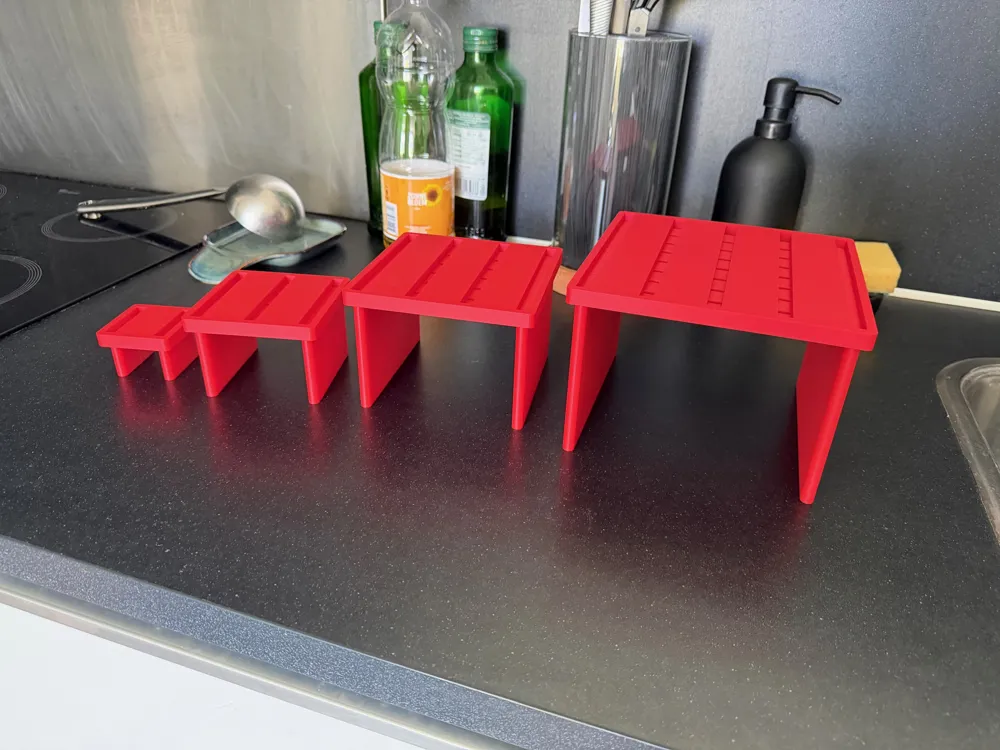

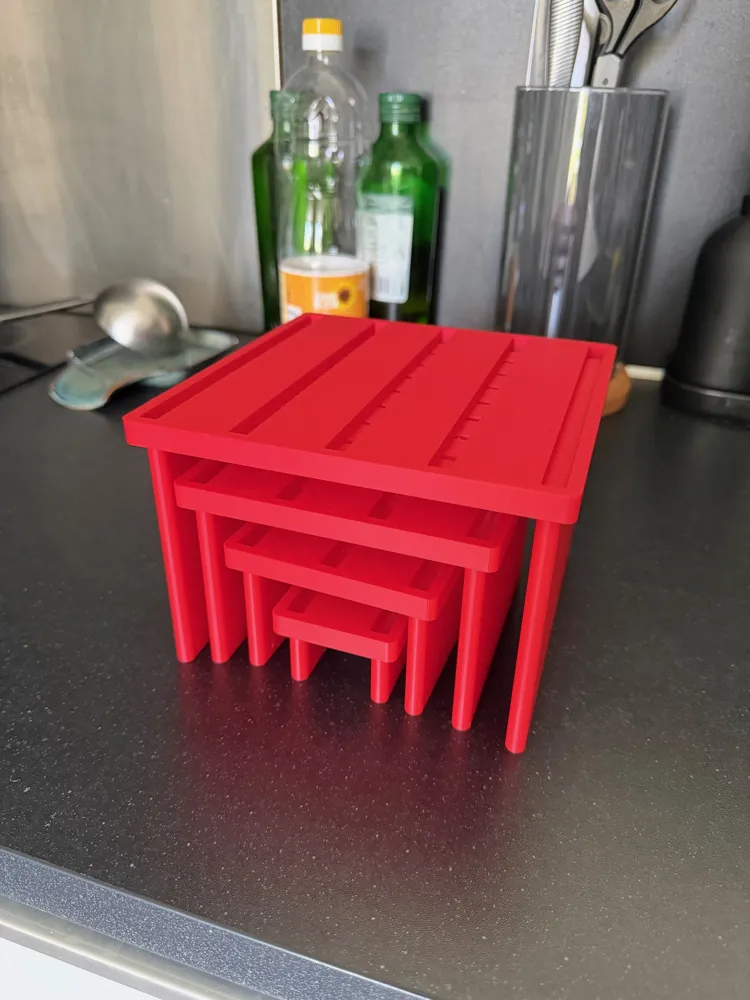

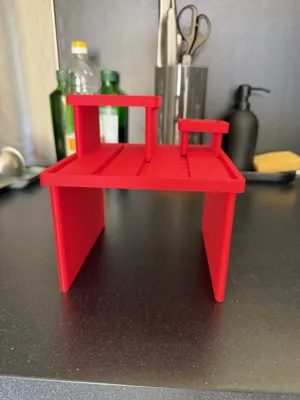

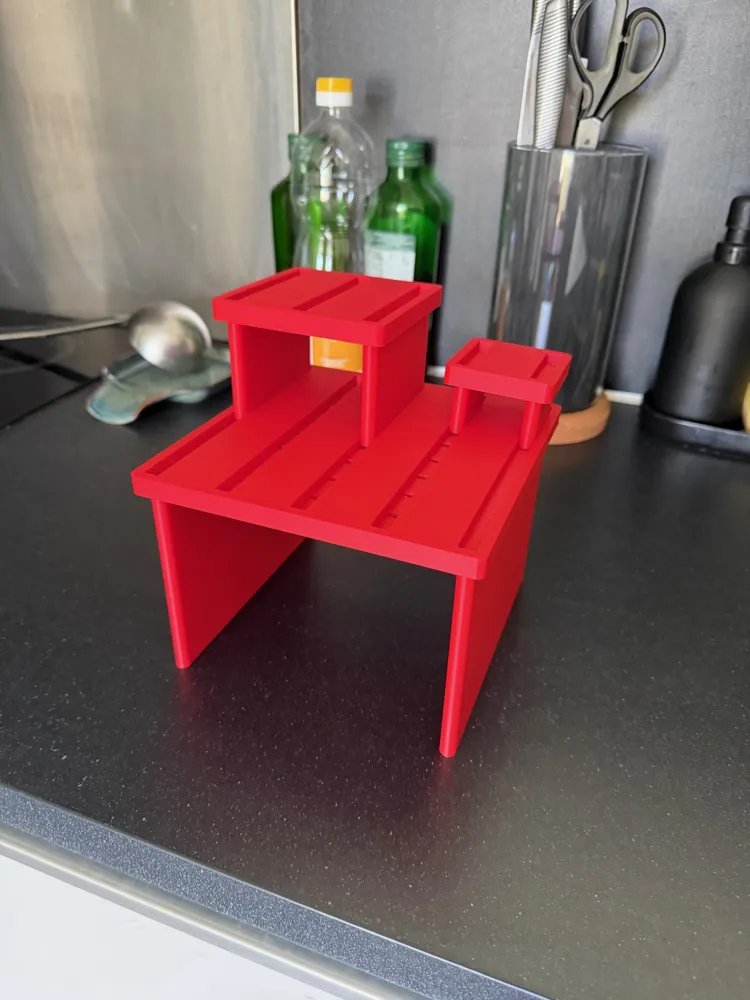

There are 4 sizes of racks (dimensions are in the table below). Each rack can be stacked on top of either a same size rack or a bigger size rack (so M-size can be stacked on another M-size or an L-size rack, but noy S or XS).
Size table (all in mm):
| Size | Inner W × H | Outer W × H | Top Surface W × H |
| L (Large) | 144 × 110 | 170 × 120 | 170 × 170 |
| M (Medium) | 105.9 × 83 | 132 × 93 | 132 × 132 |
| S (Small) | 67.9 × 55 | 94 × 65 | 94 × 94 |
| XS (Extra Small) | 29.9 × 28 | 56 × 38 | 56 × 56 |
Hope someone will find it useful. Cheers!
