TDP Modular Tile System
Print Profile(2)
Bill of Materials
- Steel Dowel x 8: 8 Alignment pins required to connect 4 tiles
Description

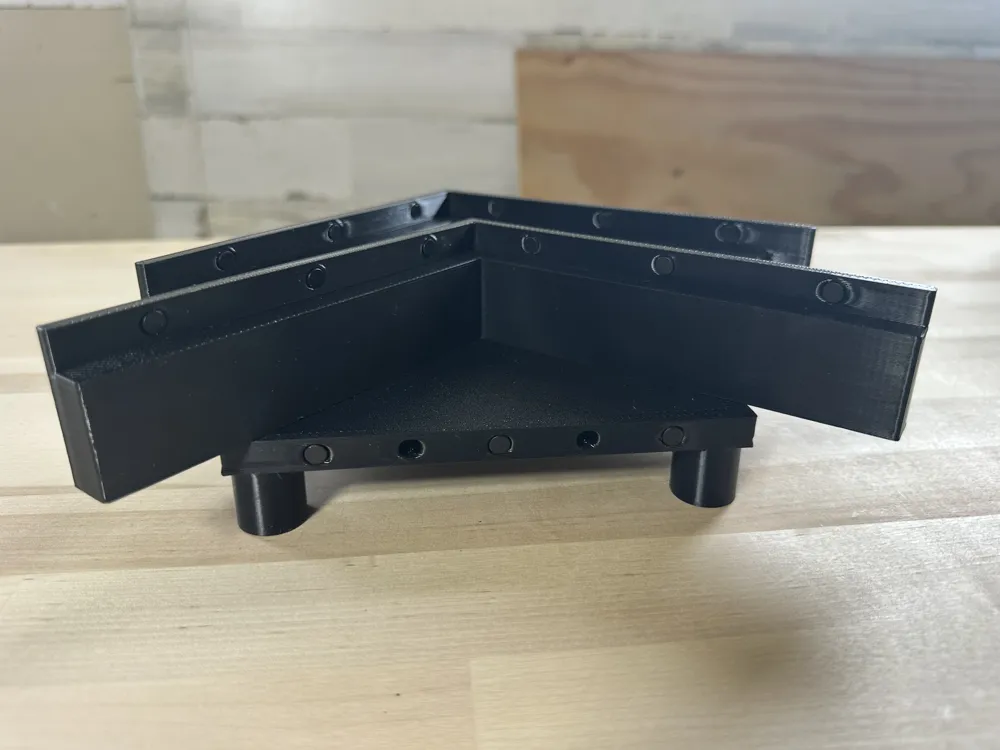

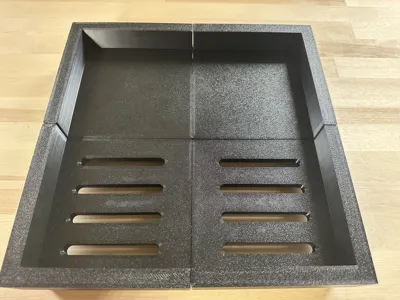

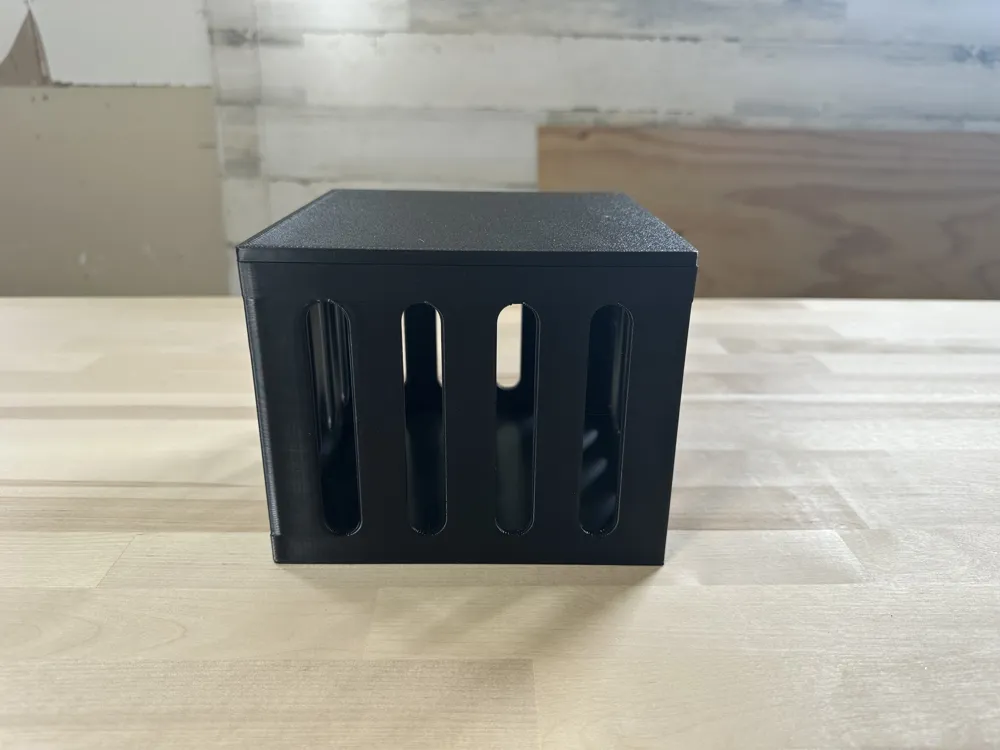

The TDP Modular Tile System is a modular tile platform designed for organizing workspace layouts, staging parts, and improving workflow efficiency.

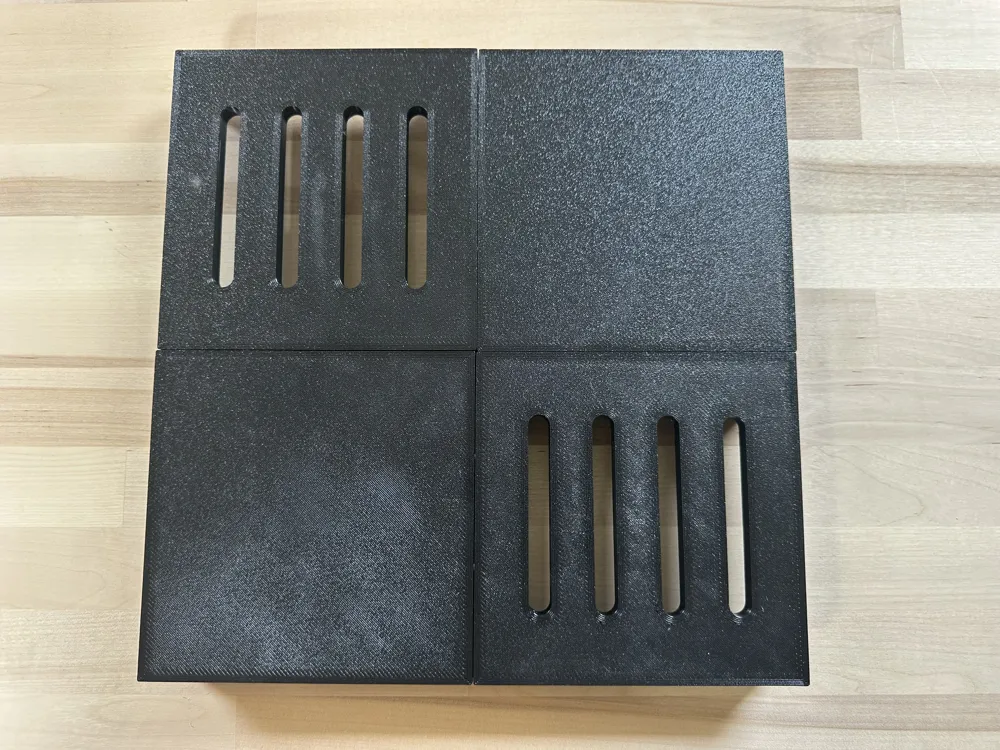

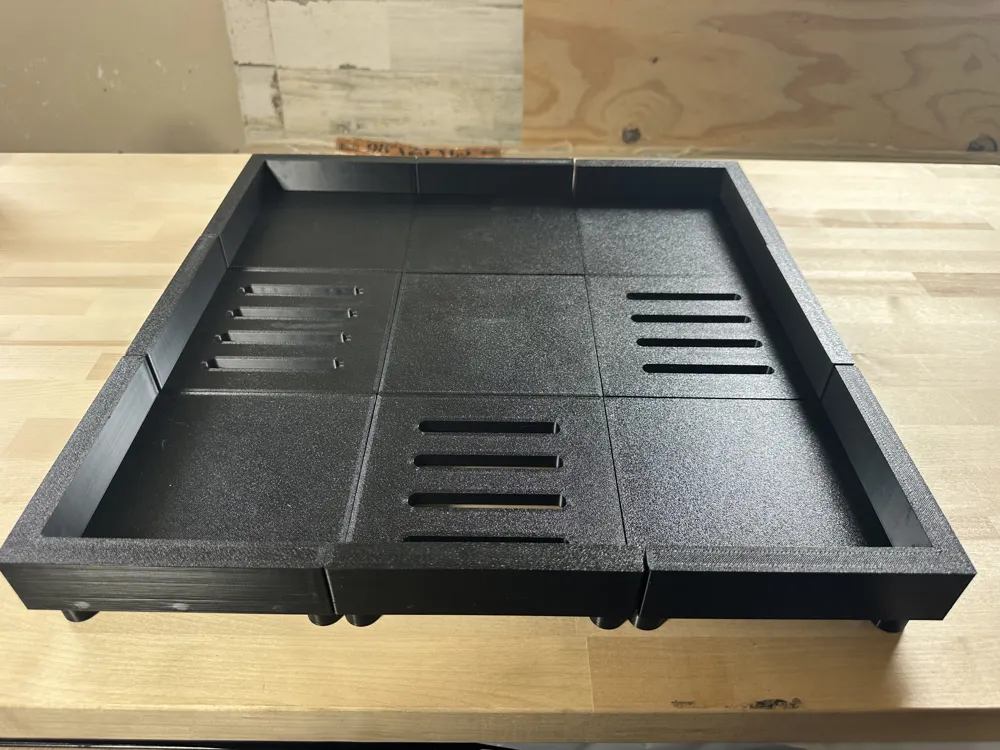

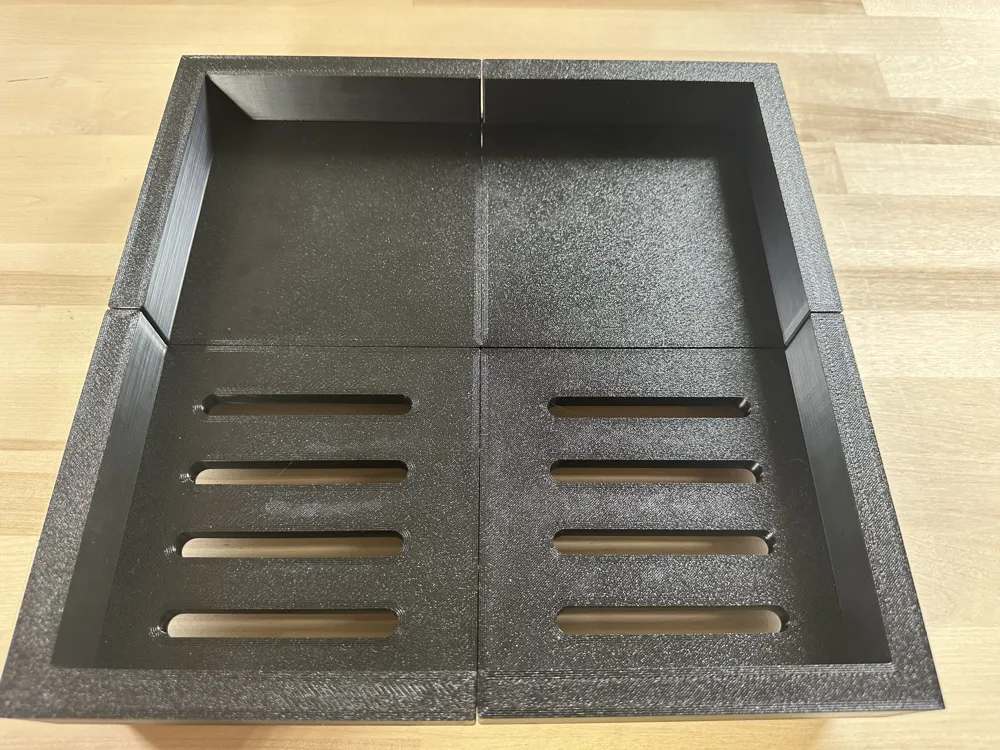

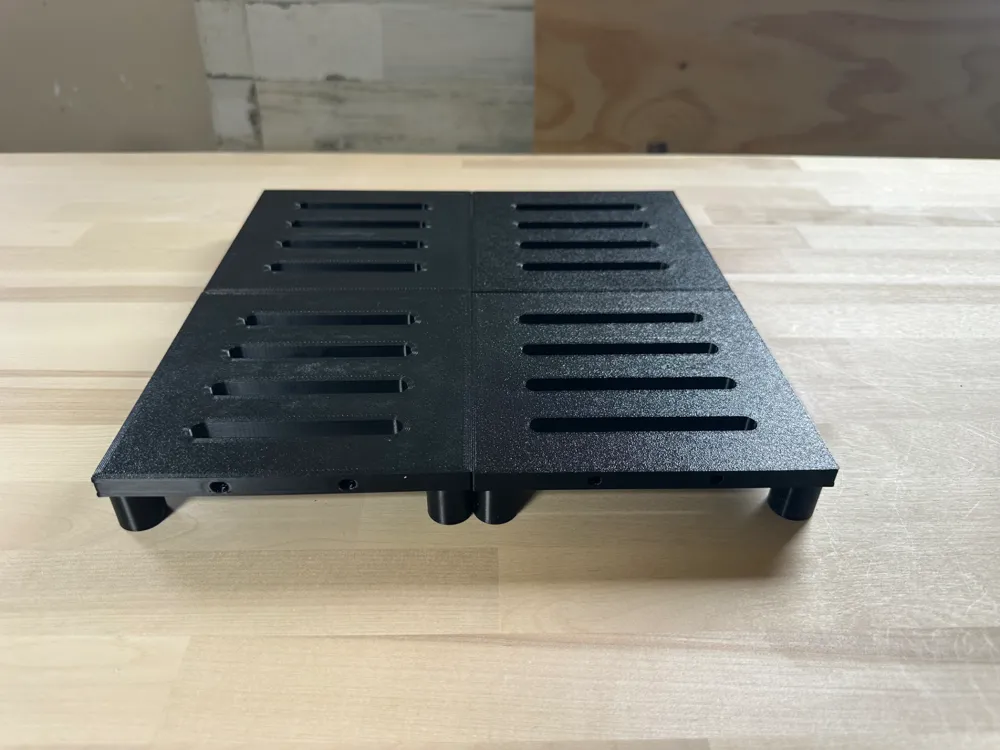

Tiles connect using alignment pins and optional magnets, allowing layouts to expand, reconfigure and adapt to changing needs.

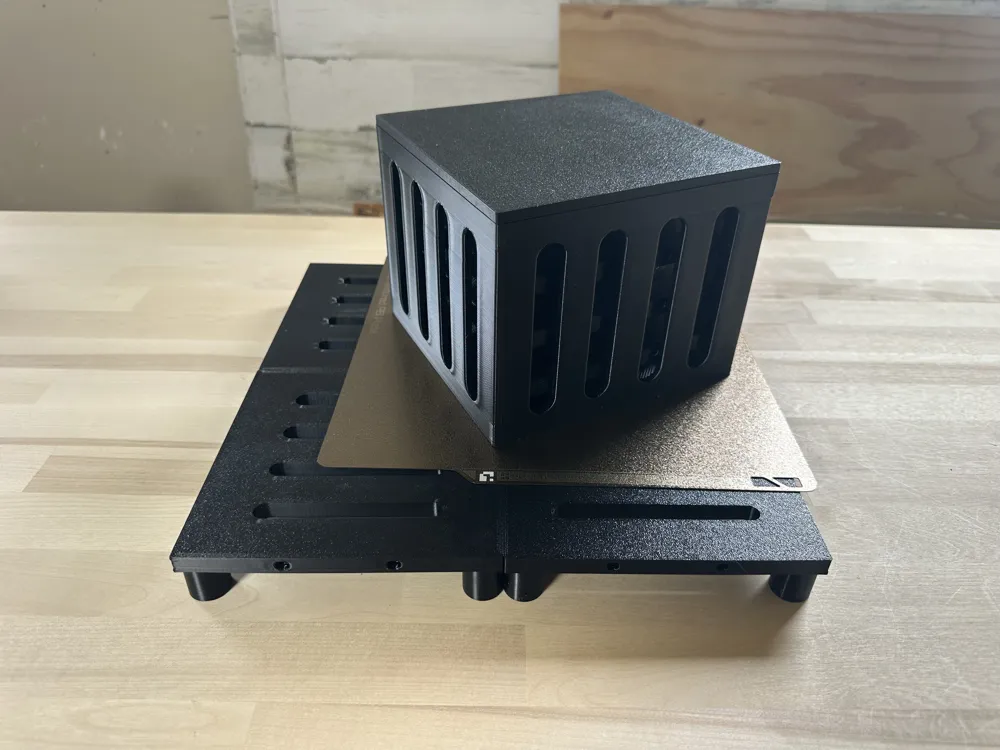

Originally developed as a better solution for cooling freshly printed build plates, the system has evolved into a flexible modular surface suitable for a wide range of workshop and maker applications.

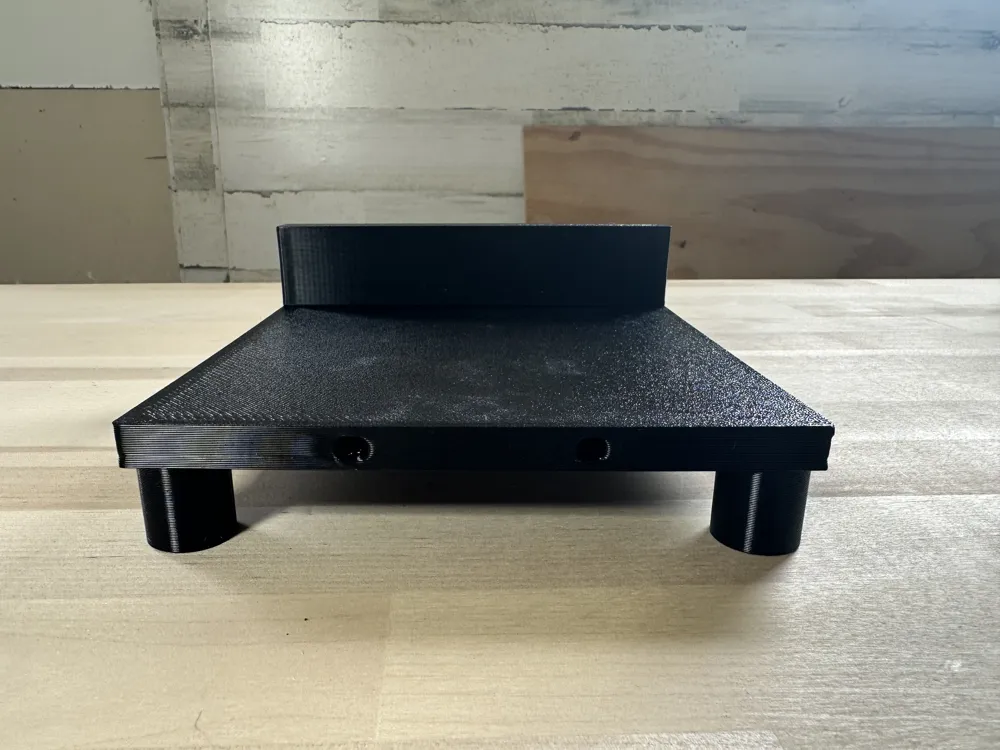

Tiles are 150mm x 150mm x 30mm
Magnets: 6mmx2mm, magnet holes are 5.9mmx2.1mm and press fit very well.

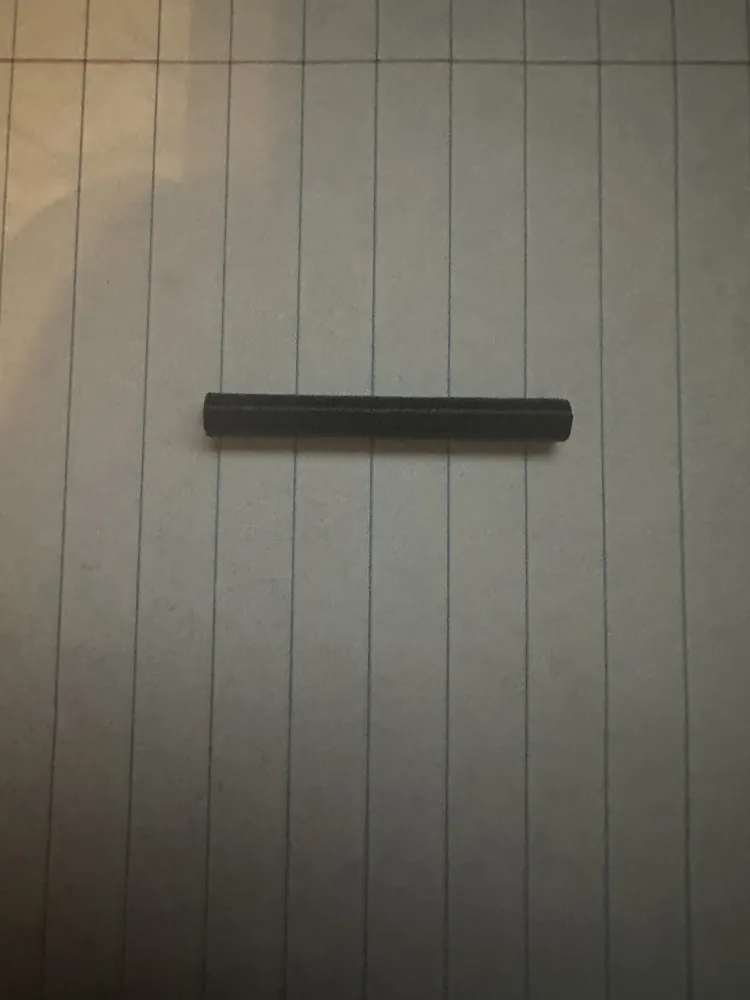

Alignment Pins: 5mmx40mm Steel or 5.1mmx40 PETG, Alignment holes are 5.4mmx21mm
